Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

18 part groups · 3 illustrations

Illustrations

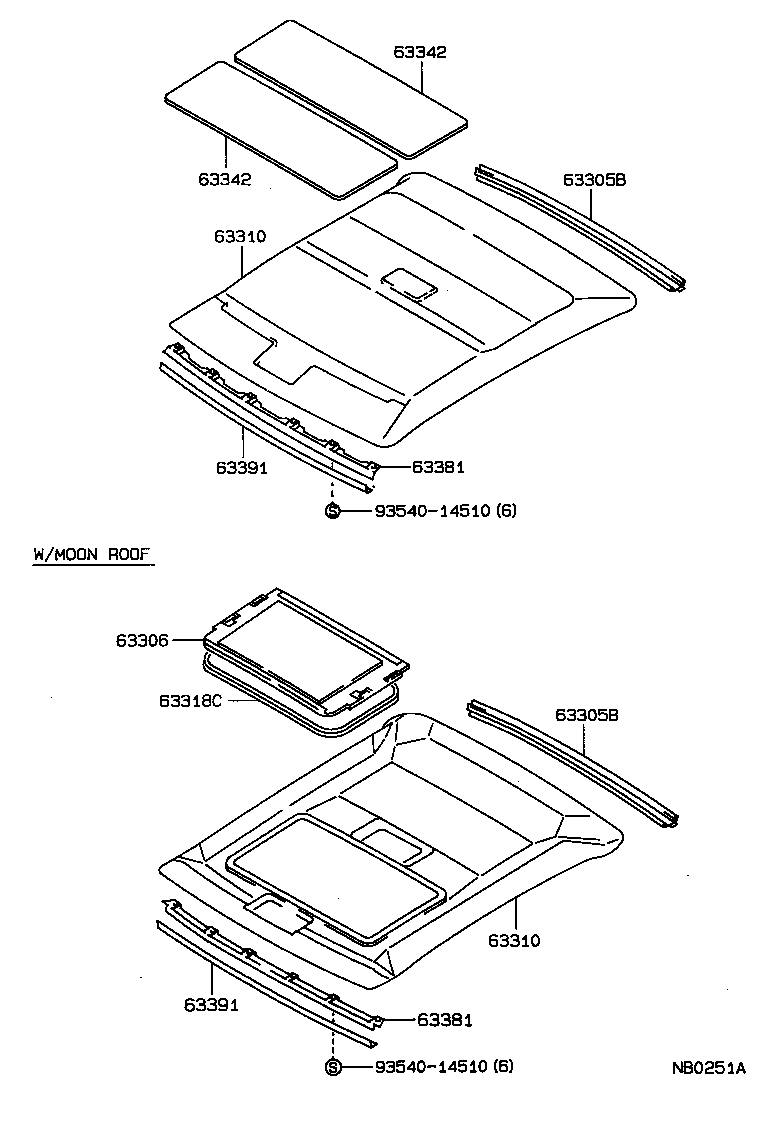

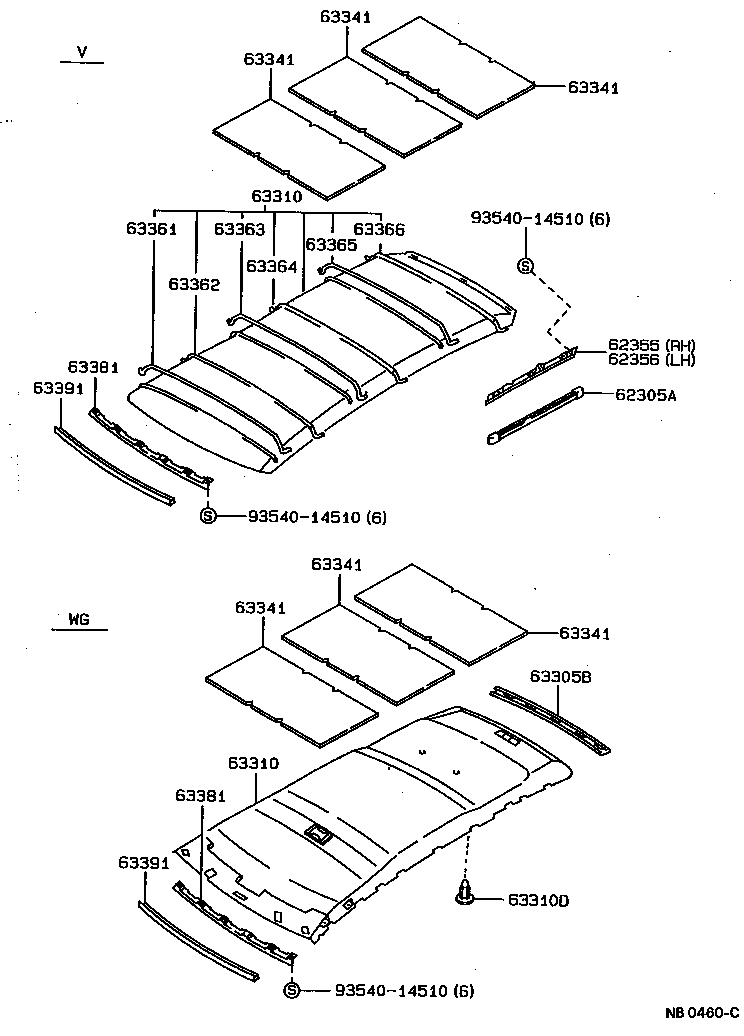

Figure NB0248A NB0248A 1987-05 → — Figure NB0251A NB0251A 1987-05 → — Figure NB0460C NB0460C 1987-08 → —

Part groups

PNCDescription
62305A Trim Sub-assy, Quarter Window Inside
62355 Retainer, Quarter Window Inside Trim, RH
62356 Retainer, Quarter Window Inside Trim, LH
63305B Trim Sub-assy, Roof Headlining, Rear
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
