Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11

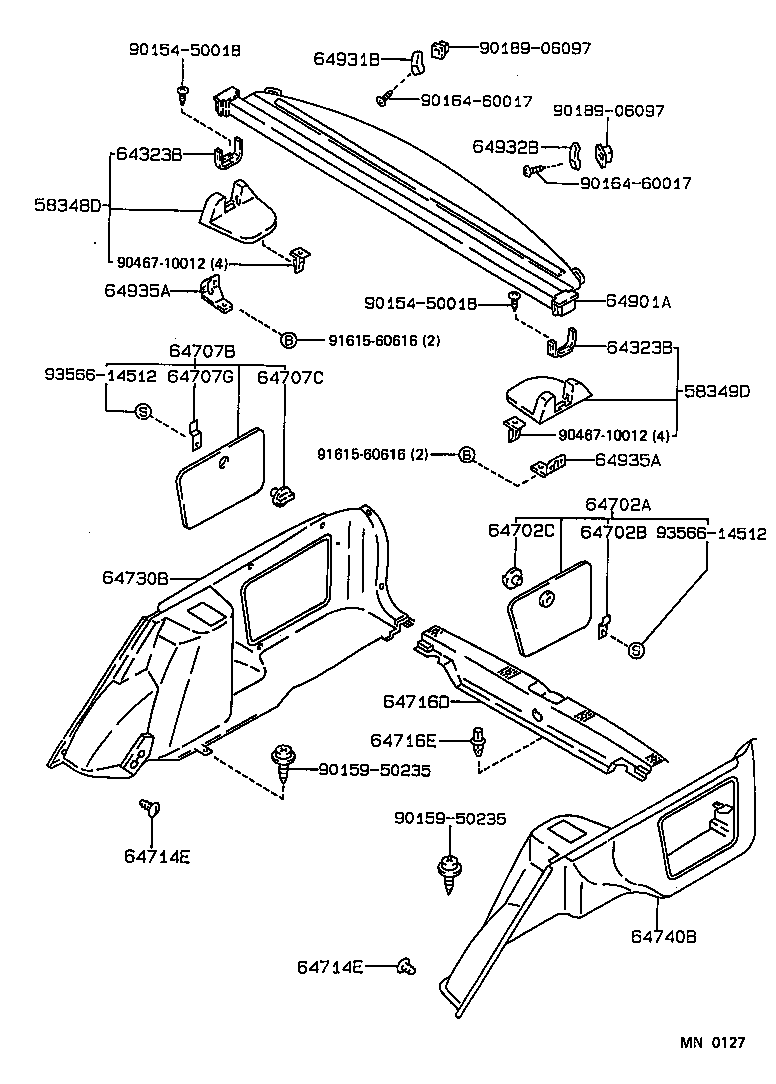

Deck Board & Deck Trim Cover
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58348D | Cover, Rear Absorber Service Hole, RH |
| 58349D | Cover, Rear Absorber Service Hole, LH |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64310 | Bracket, Package Tray Trim, RH |
| 64320 | Bracket, Package Tray Trim, LH |
| 64323A | Clamp, Package Tray Trim, RH |
| 64323B | Clamp, Tonneau Cover |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64333B | Cover, Package Tray Trim Side, RH |
| 64348A | Knob, Package Tray Trim |
| 64349B | Cover, Package Tray Trim Side, LH |
| 64381A | Hanger, Package Tray Trim |
| 64395 | Pin, Package Tray Trim Hinge |
| 64702A | Cover Sub-assy, Deck Trim Side Service Hole |
| 64702B | Stopper, Washer Tank Cover |
| 64702C | Knob, Washer Tank Cover |
| 64707B | Cover Sub-assy, Quarter Trim Jack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64733A | Pad, Deck Trim Side, NO.1 |
| 64740B | Board, Deck Trim Side, LH |
| 64746A | Cover, Deck Trim Side Lamp Hole |
| 64750B | Retainer(FOR DECK SIDE TRIM PANEL) |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64751B | Bracket, Speaker Set, NO.1 RH |
| 64752B | Bracket, Speaker Set, NO.1 LH |
| 64770D | Cover Assy, Spare Wheel |
| 64901A | Retractor Sub-assy, Tonneau Cover |
| 64931B | Hanger, Tonneau Cover, RH |
| 64932B | Hanger, Tonneau Cover, LH |
| 64935A | Holder, Tonneau Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
