Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

41 part groups · 9 illustrations

Illustrations

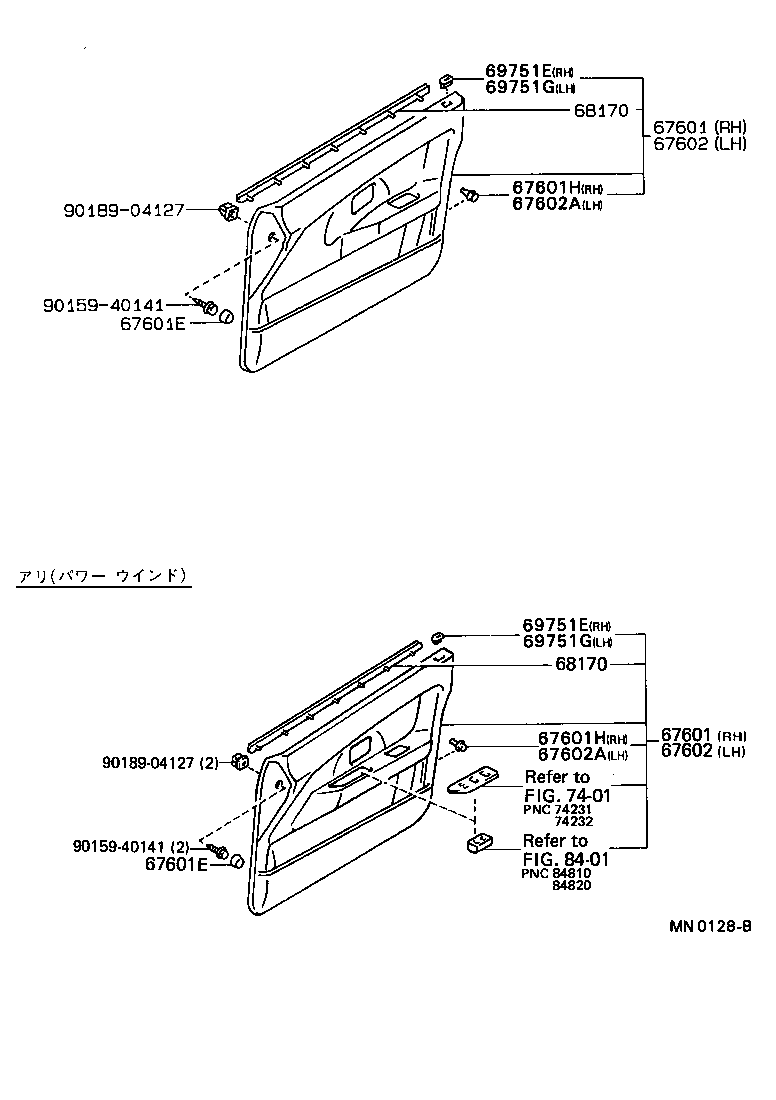

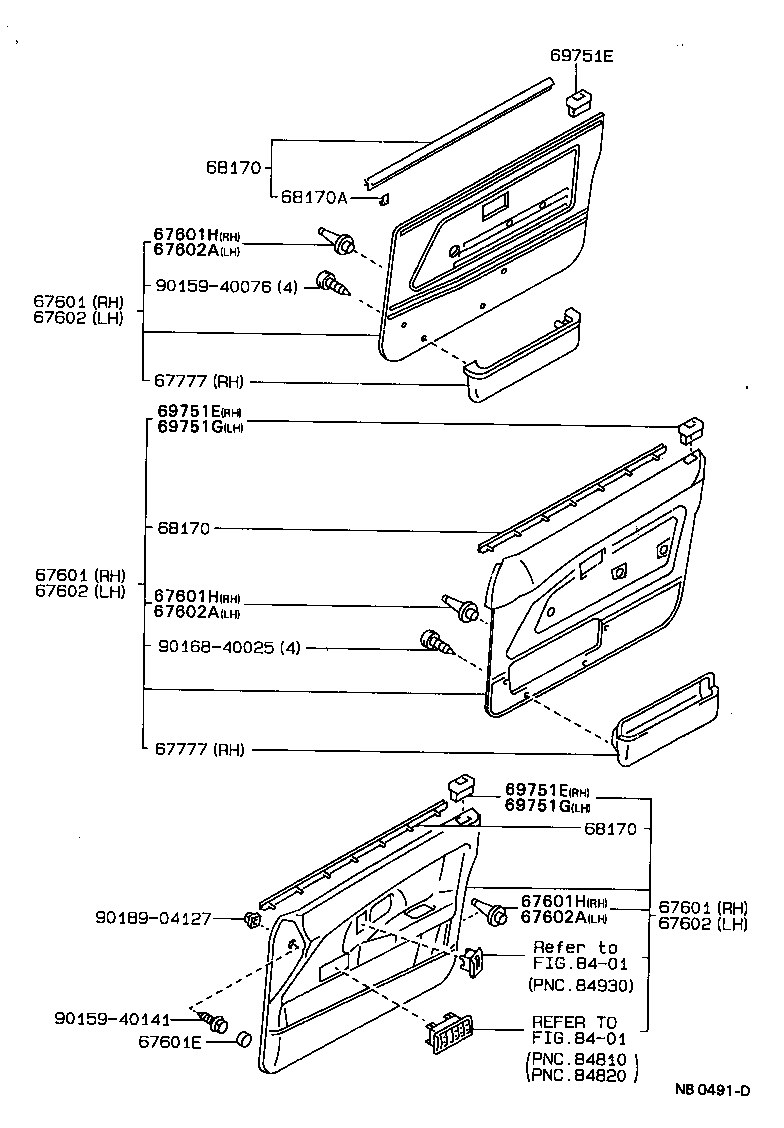

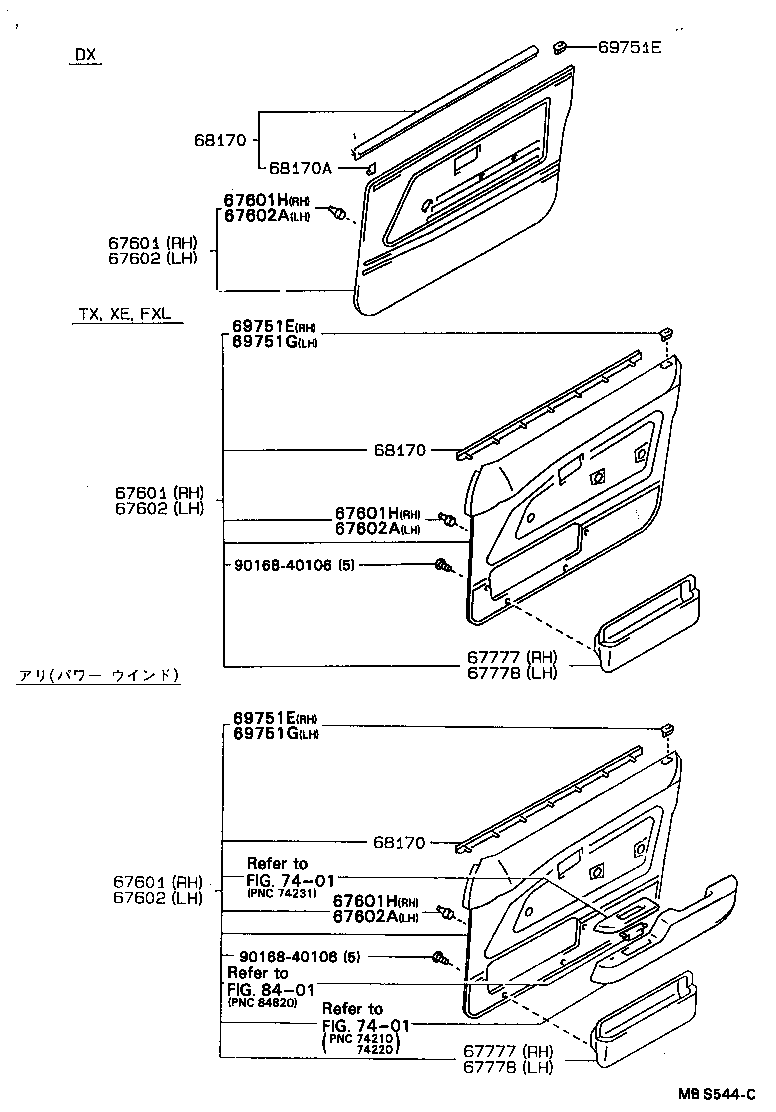

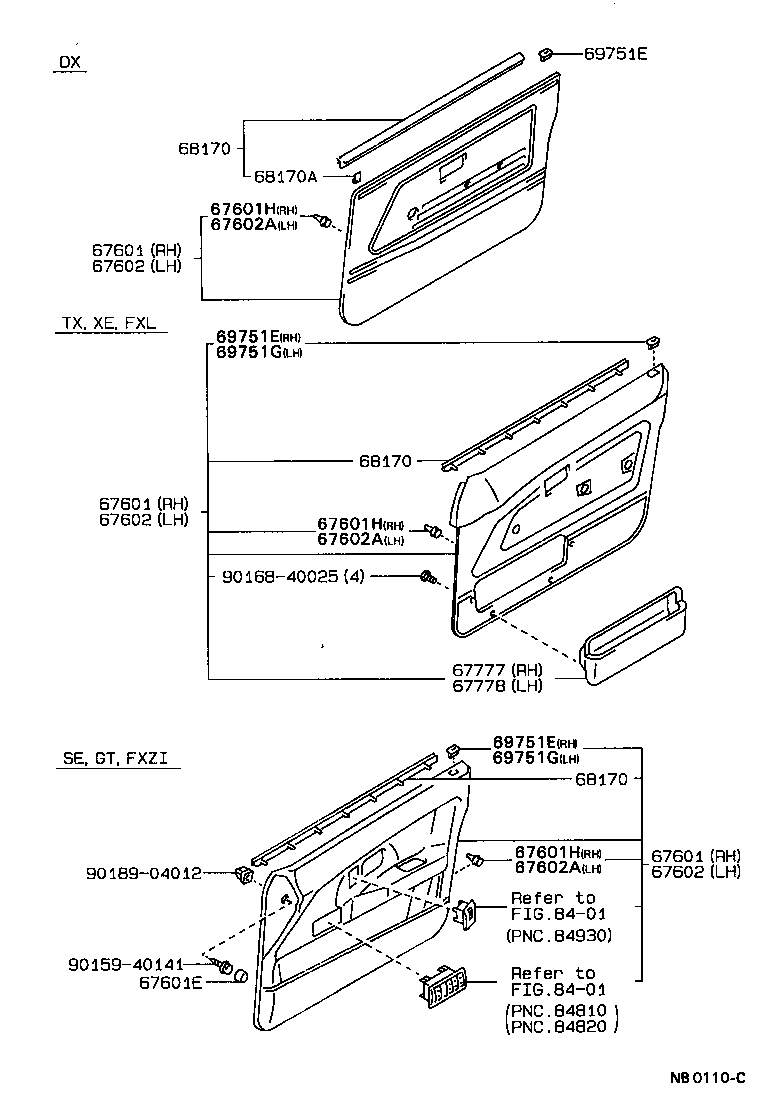

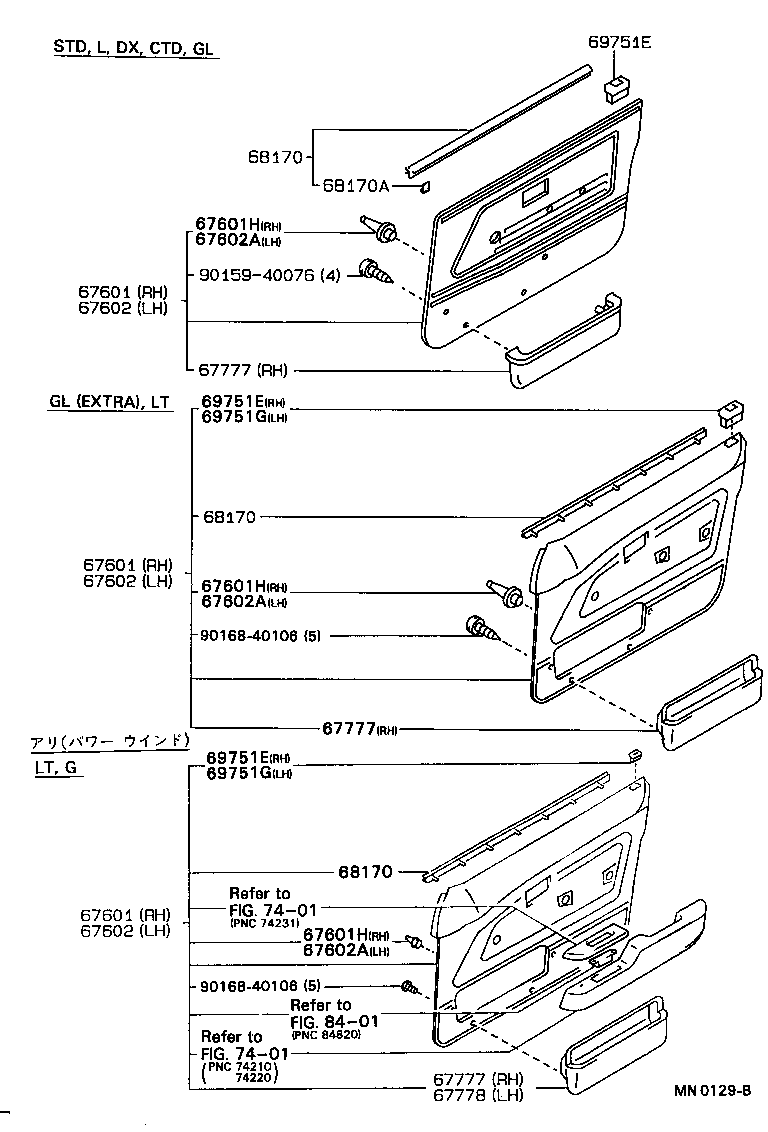

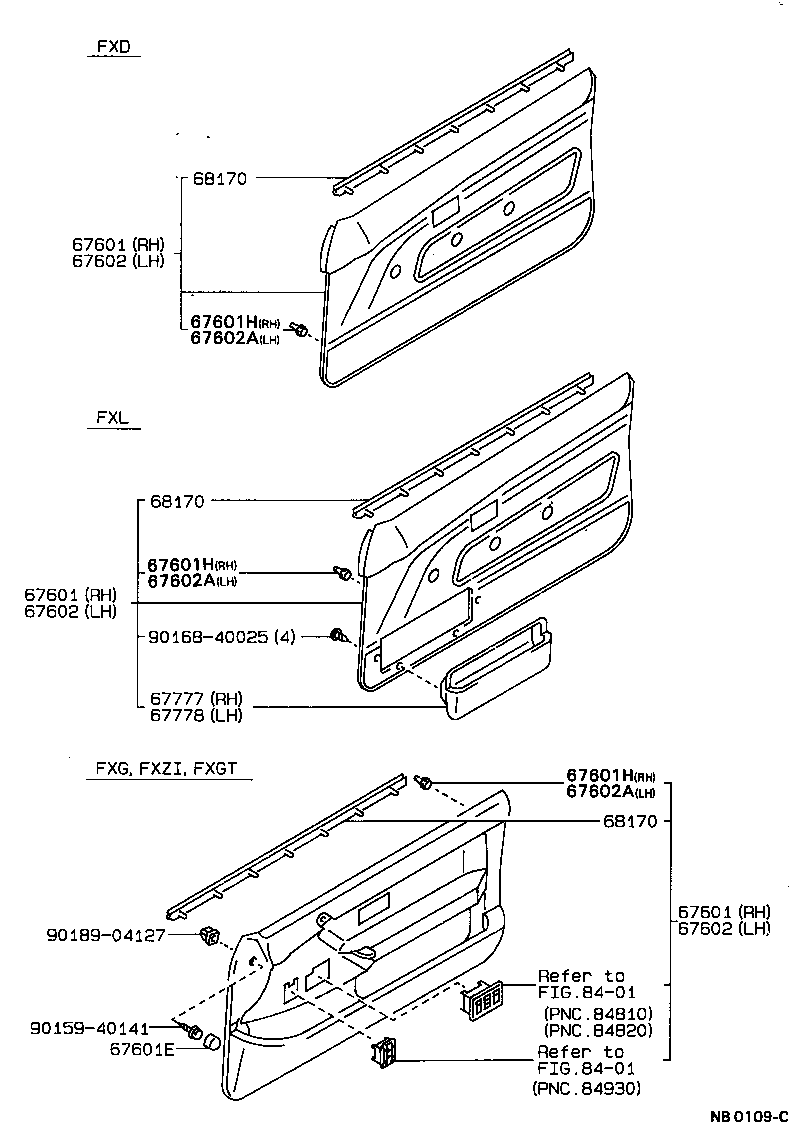

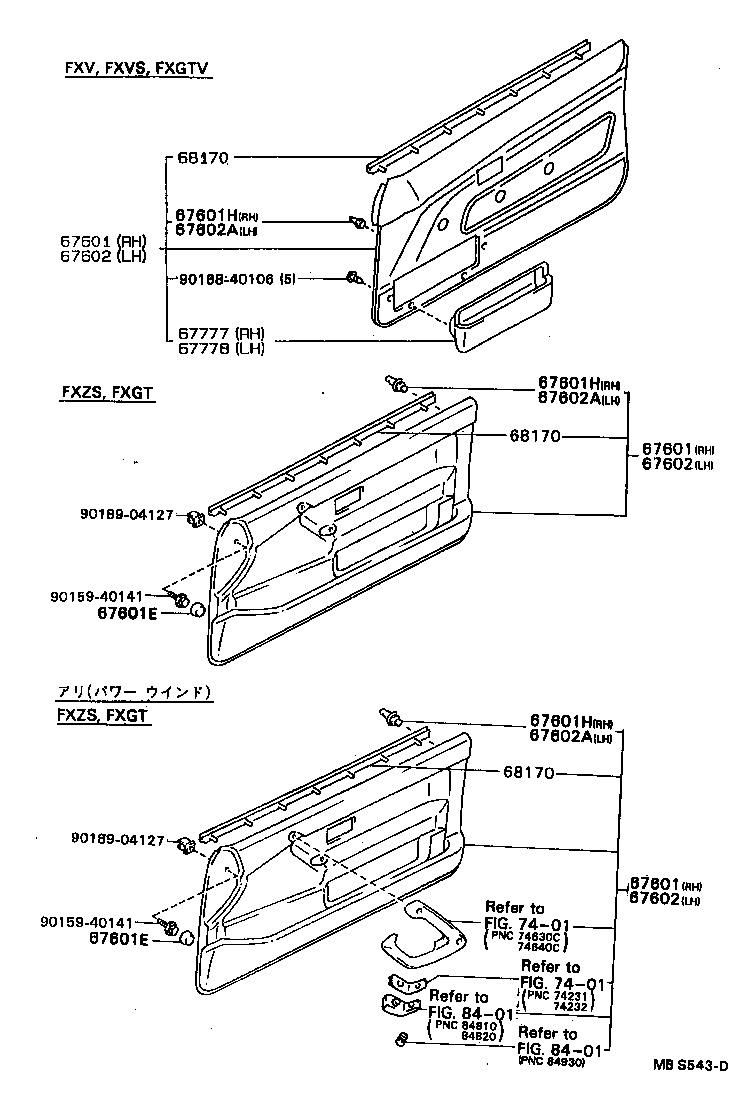

Figure NB0136B NB0136B 1987-05 → — Figure NB0132F NB0132F 1987-05 → — Figure NB0109C NB0109C 1987-05 → 1989-05 Figure MBS543D MBS543D 1989-05 → — Figure NB0110C NB0110C 1987-05 → 1989-05 Figure MBS544C MBS544C 1989-05 → — Figure MN0128B MN0128B 1989-05 → — Figure NB0491D NB0491D 1987-08 → 1989-08 Figure MN0129B MN0129B 1989-08 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67495A Cover, Front Door Front Lower Frame, Upper RH
67496A Cover, Front Door Front Lower Frame, Upper LH
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601E Cap(FOR FRONT DOOR TRIM BOARD)
67601H Retainer, Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68170A Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610 Check Assy, Front Door
68617 Pin, Front Door Check
69751E Holder, Front Door Lock Control Knob
69751G Holder, Front Door Lock Control Knob
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
