Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11

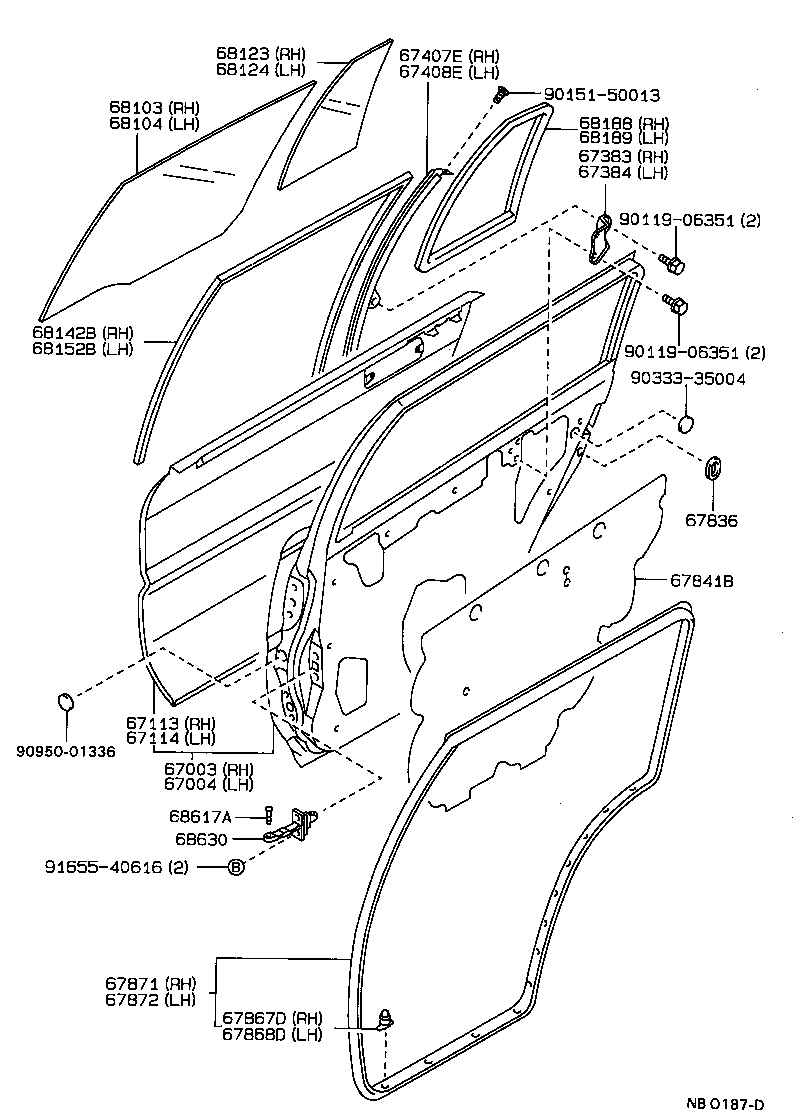

Rear Door Panel & Glass
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67383 | Bracket, Rear Door Inside Panel, NO.2 RH |
| 67384 | Bracket, Rear Door Inside Panel, NO.2 LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |

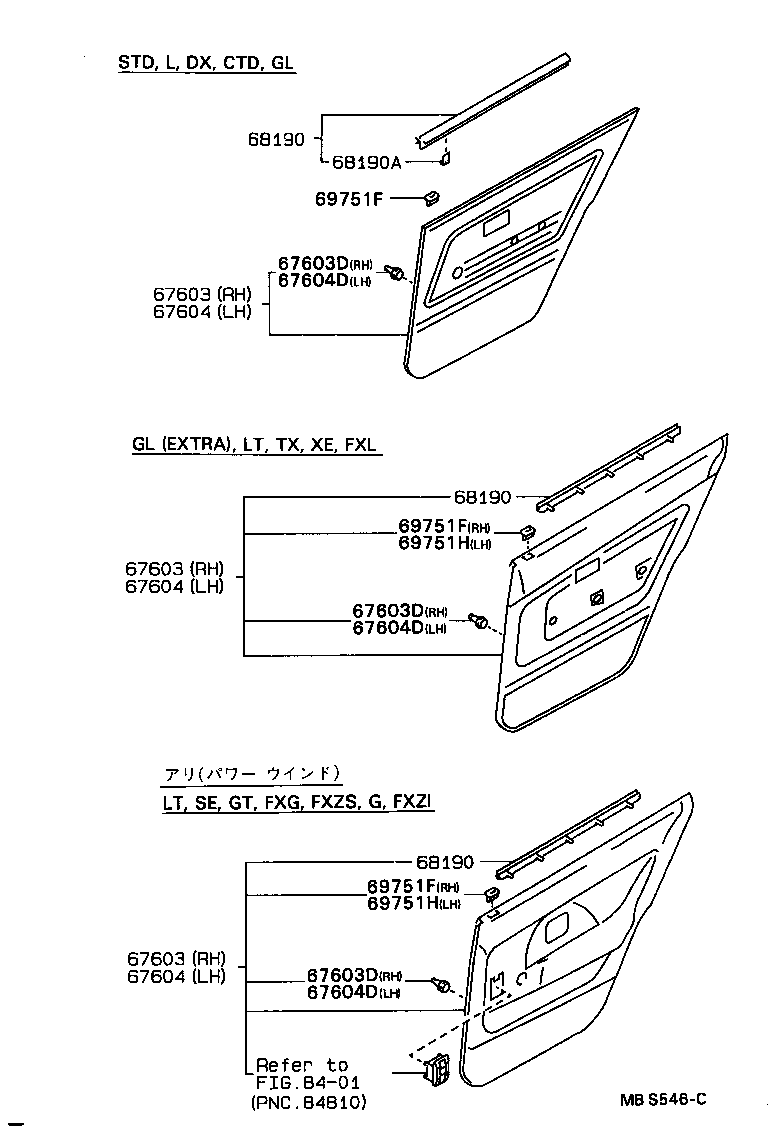

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67841B | Cover, Rear Door Service Hole |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142B | Run, Rear Door Window, RH |
| 68152B | Run, Rear Door Window, LH |
| 68162A | Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68190A | Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68617A | Pin, Rear Door Check |
| 68630 | Check Assy, Rear Door |
| 69751F | Holder, Rear Door Lock Control Knob |
| 69751H | Holder, Rear Door Lock Contral Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
