Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 3 illustrations

Illustrations

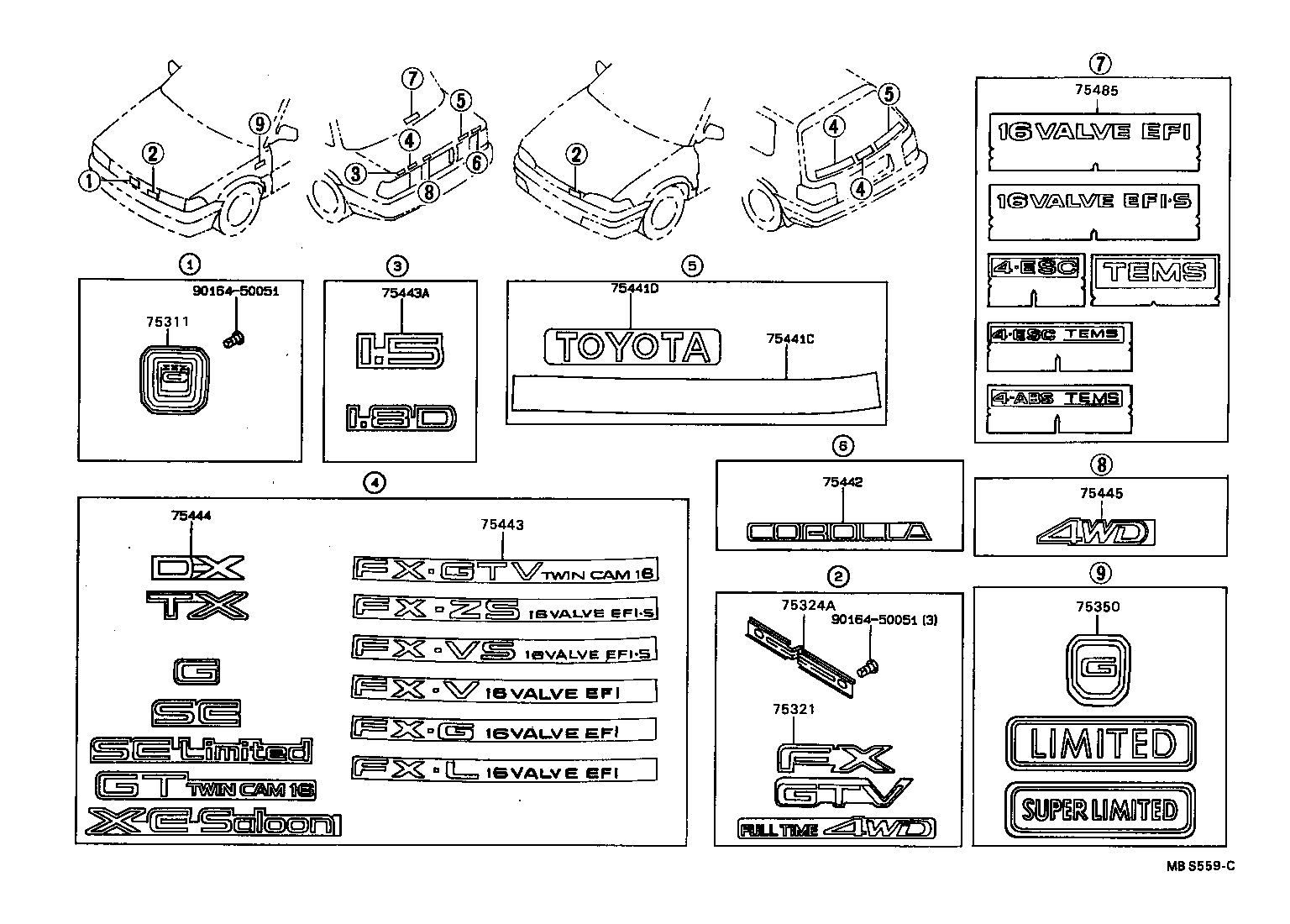

Figure NB0046G NB0046G 1987-05 → 1989-05 Figure MBS559C MBS559C 1989-05 → — Figure MBT406A MBT406A 1987-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75324A Retainer, Radiator Grille Name Plate
75350 Emblem Assy, Front Fender
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75472A Plate, Rear Body Name, NO.2
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
