Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 2 illustrations

Illustrations

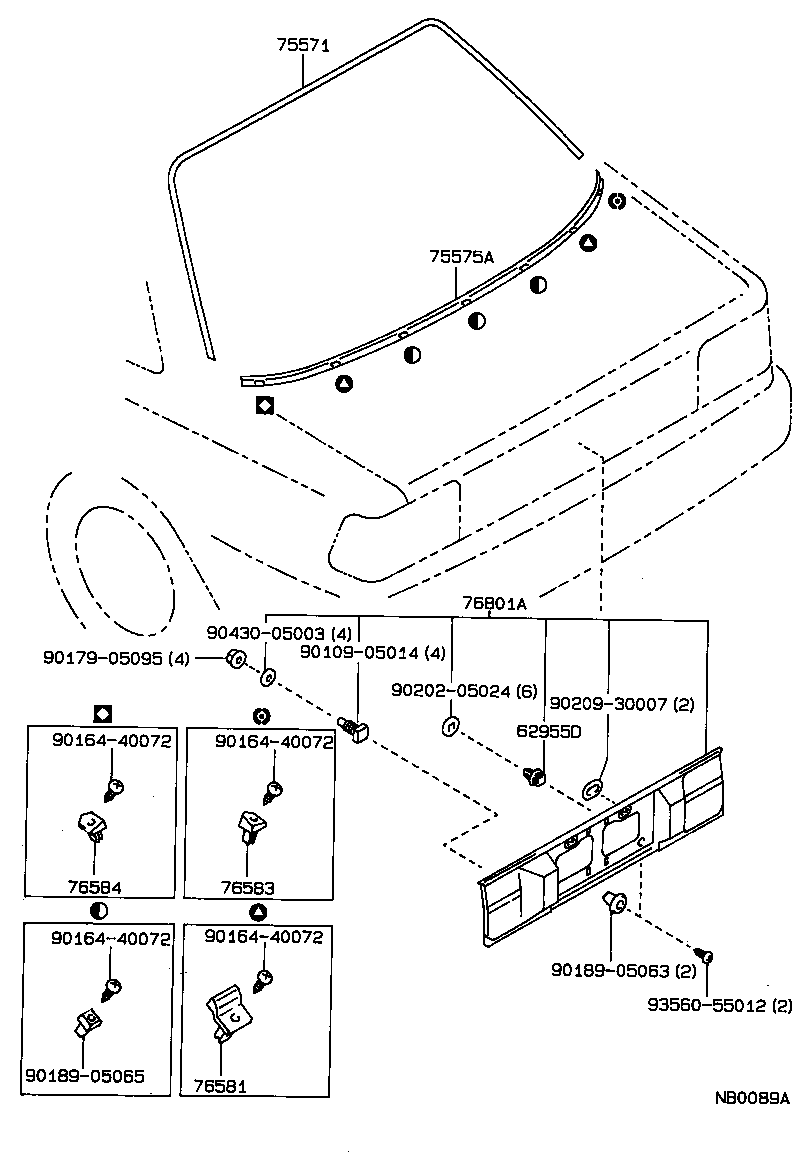

Figure MBS562A MBS562A 1987-05 → — Figure NB0089A NB0089A 1987-05 → —

Part groups

PNCDescription
62955B Retainer, Back Door Garnish
62955D Retainer, Luggage Compartment Door Garnish
75496 Clip, Back Window Outside Moulding, NO.1
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75575A Moulding, Back Window, Outside Lower
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76584 Retainer, Back Window Outside Lower Moulding, LH
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
