Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

11 part groups · 2 illustrations

Illustrations

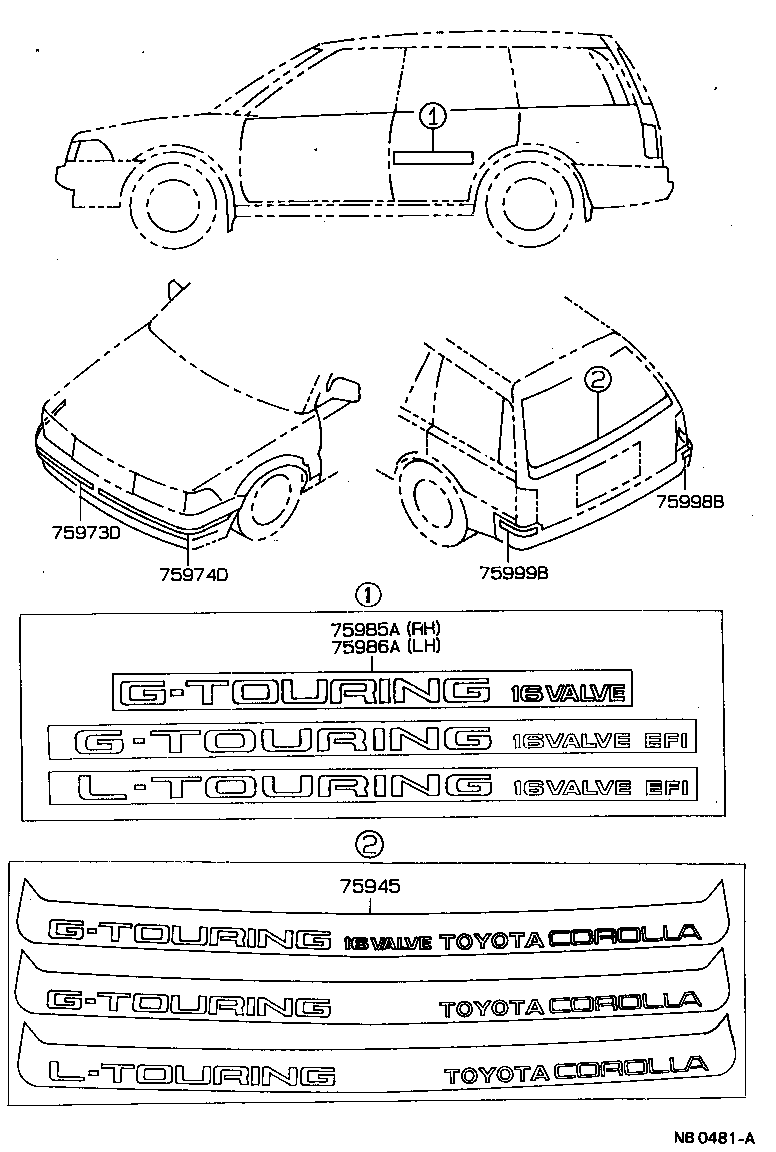

Figure NB0054C NB0054C 1987-05 → — Figure NB0481A NB0481A 1987-08 → —

Part groups

PNCDescription
75945 Stripe, Back Door
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75985 Stripe, Front Door, RH
75985A Stripe, Side Panel, RH
75986 Stripe, Front Door, LH
75986A Stripe, Side Panel, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75998B Stripe, Rear Bumper Side, RH
75999B Stripe, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
