Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

23 part groups · 2 illustrations

Illustrations

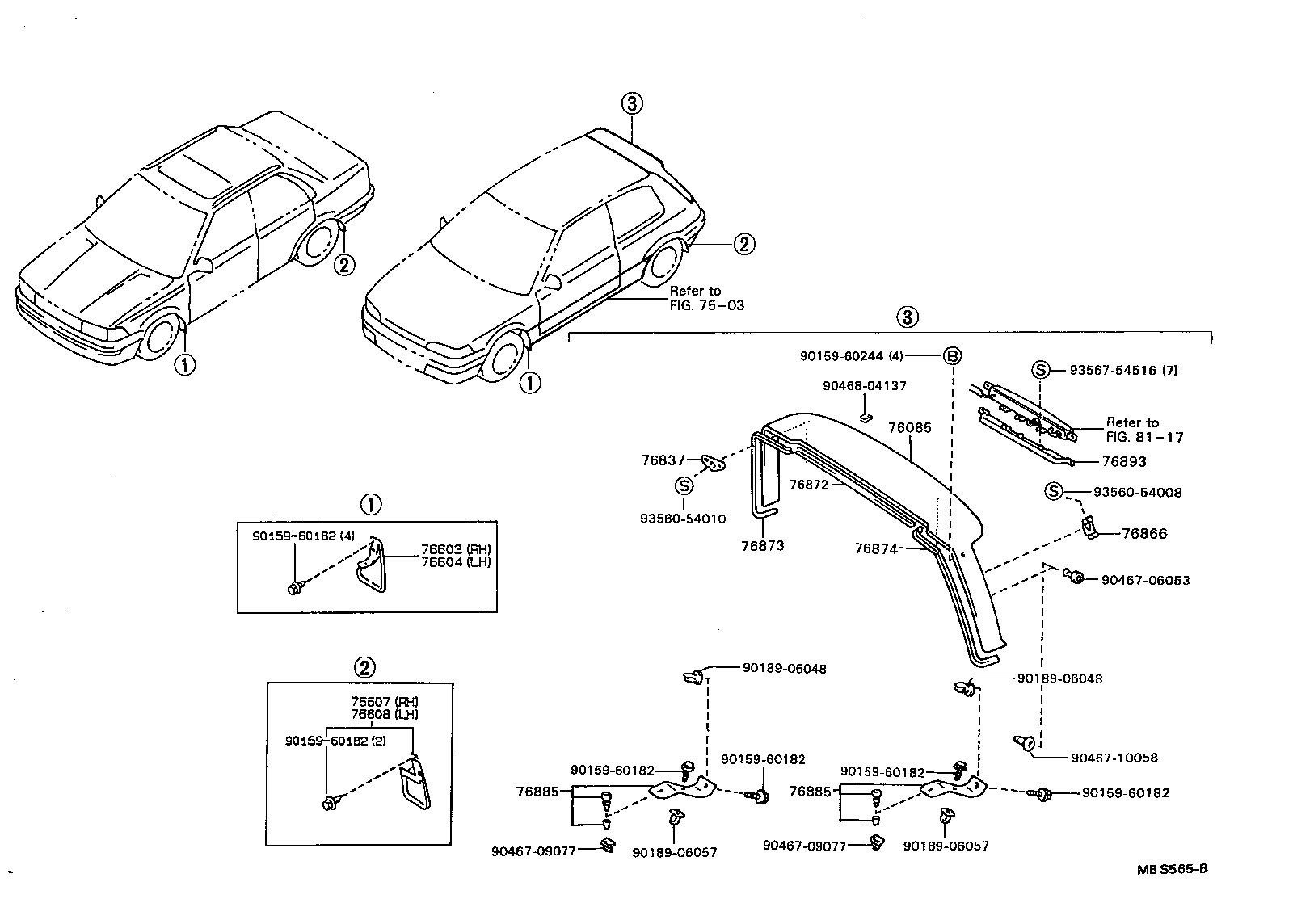

Figure NB0100E NB0100E 1987-05 → 1989-05 Figure MBS565B MBS565B 1989-05 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76837 Retainer, Rear Spoiler, NO.7
76855 Retainer, Front Spoiler, Lower NO.1 Center
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76863 Retainer, Front Spoiler, Lower NO.2 RH
76864 Retainer, Front Spoiler, Lower NO.2 LH
76866 Retainer, Rear Spoiler, NO.2
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76885 Retainer, Rear Spoiler, NO.5
76893 Cover, Rear Spoiler, NO.1
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76915F Mudguard, Side, FR RH
76916F Mudguard, Side, FR LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
