Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

16 part groups · 4 illustrations

Illustrations

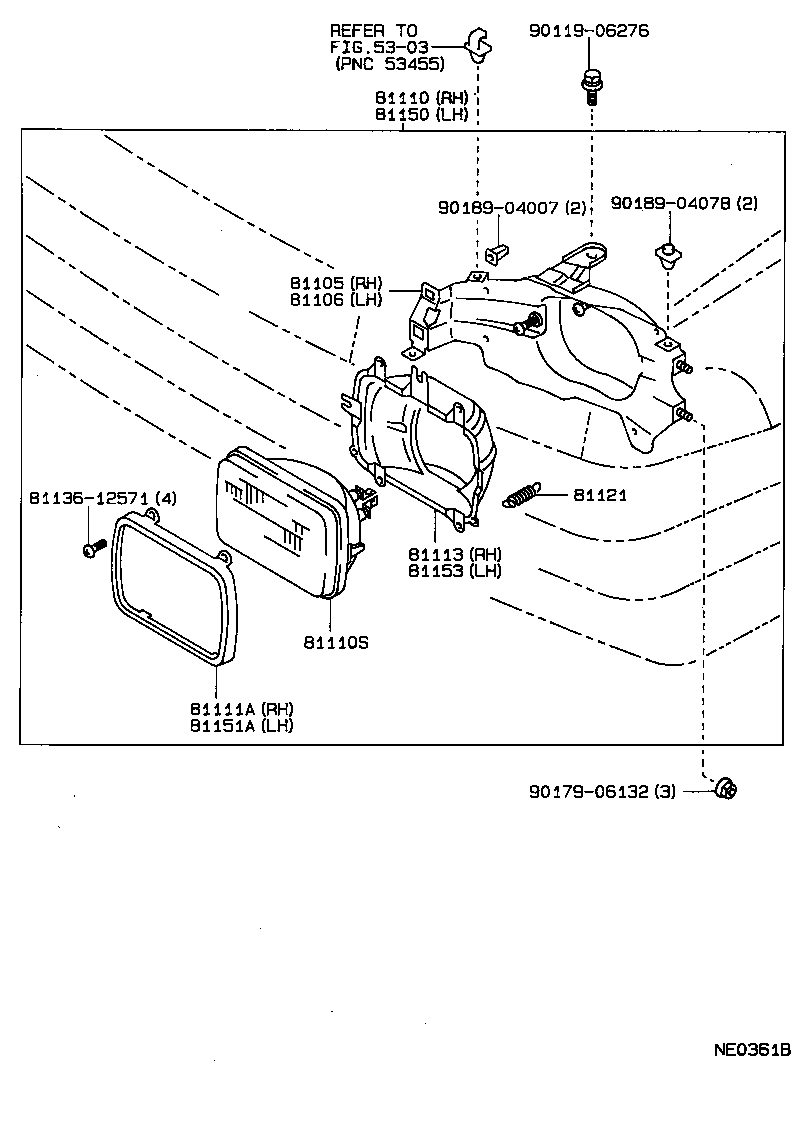

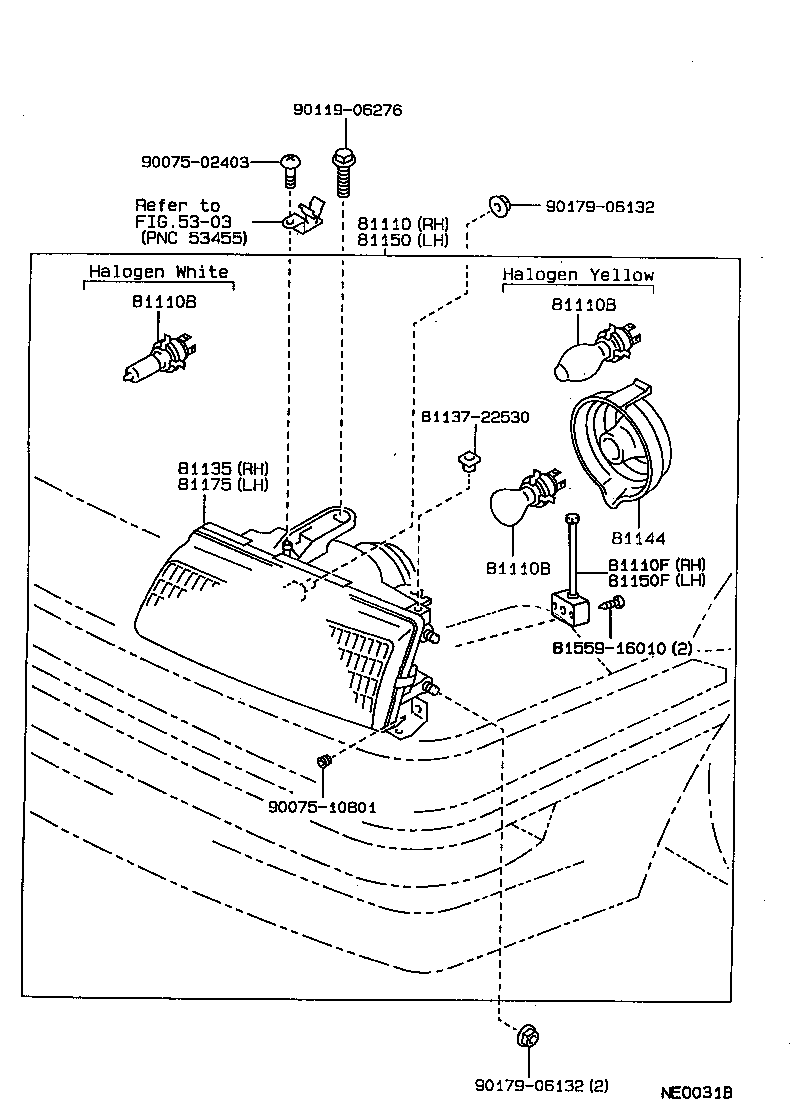

Figure NE0030B NE0030B 1987-05 → — Figure NE0031B NE0031B 1987-05 → — Figure NE0031B NE0031B 1989-08 → — Figure NE0361B NE0361B 1987-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110F Gear Unit Assy, RH NO.1
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81150F Gear Unit Assy, LH NO.1
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
