Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 15 illustrations

Illustrations

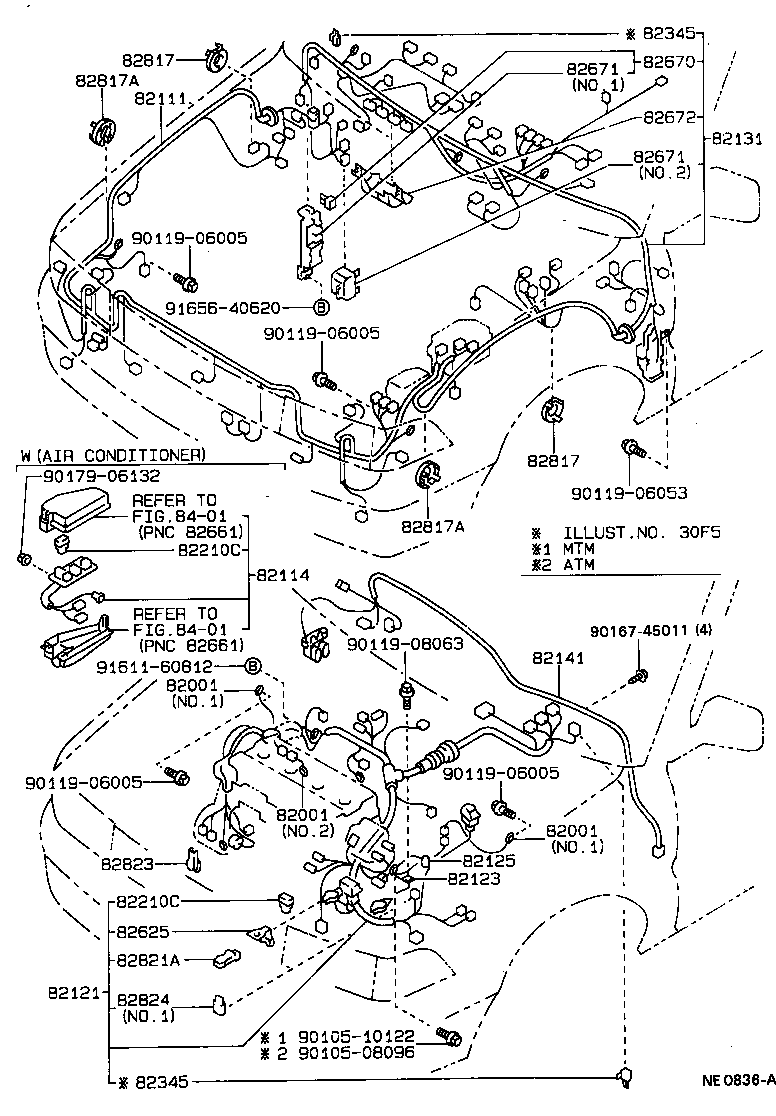

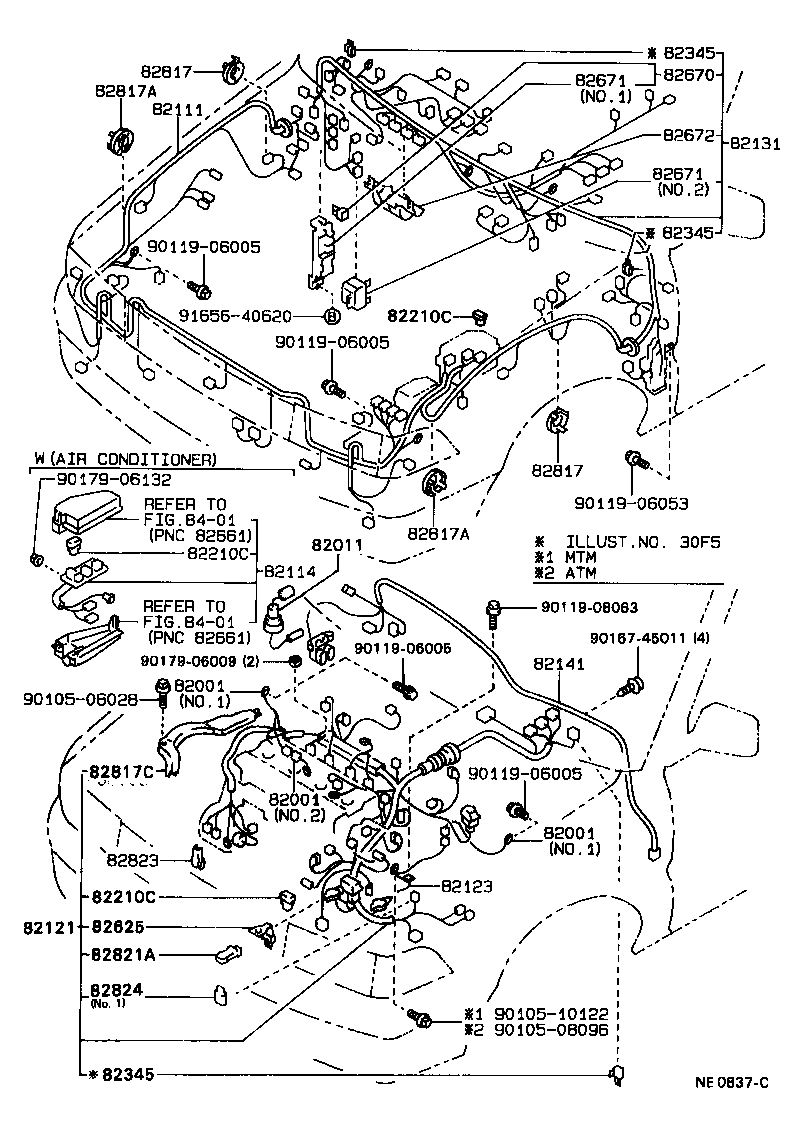

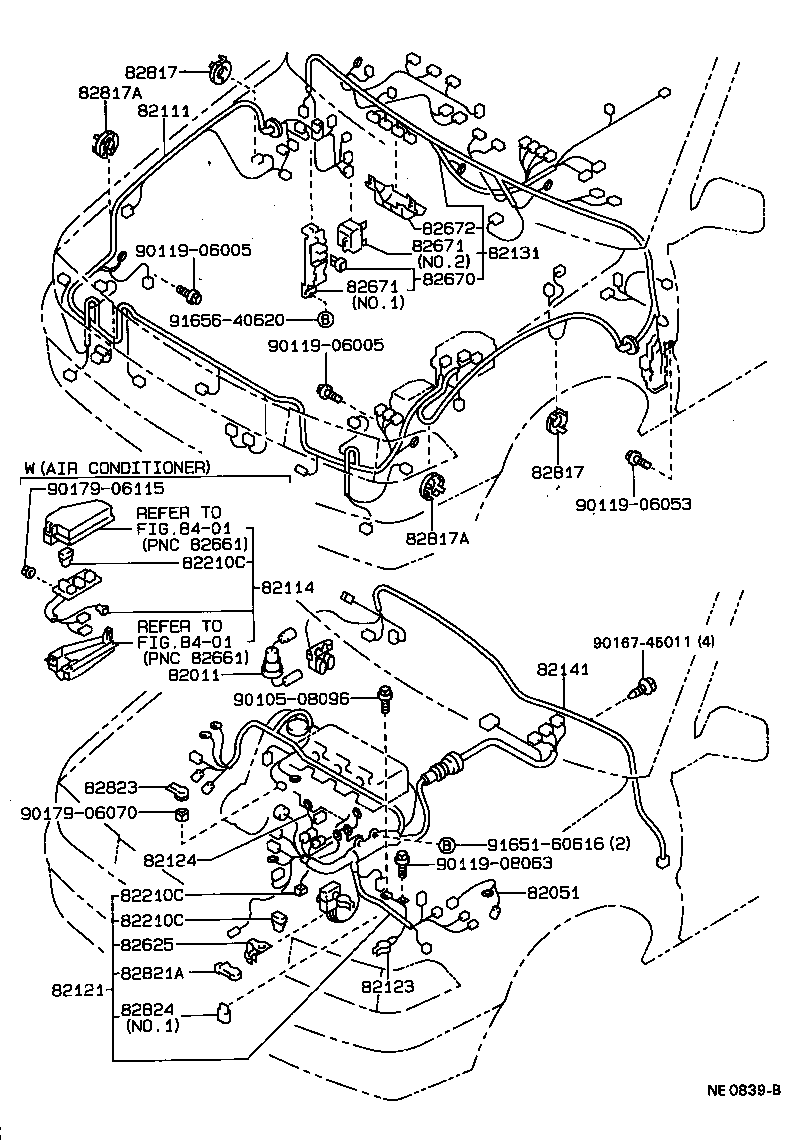

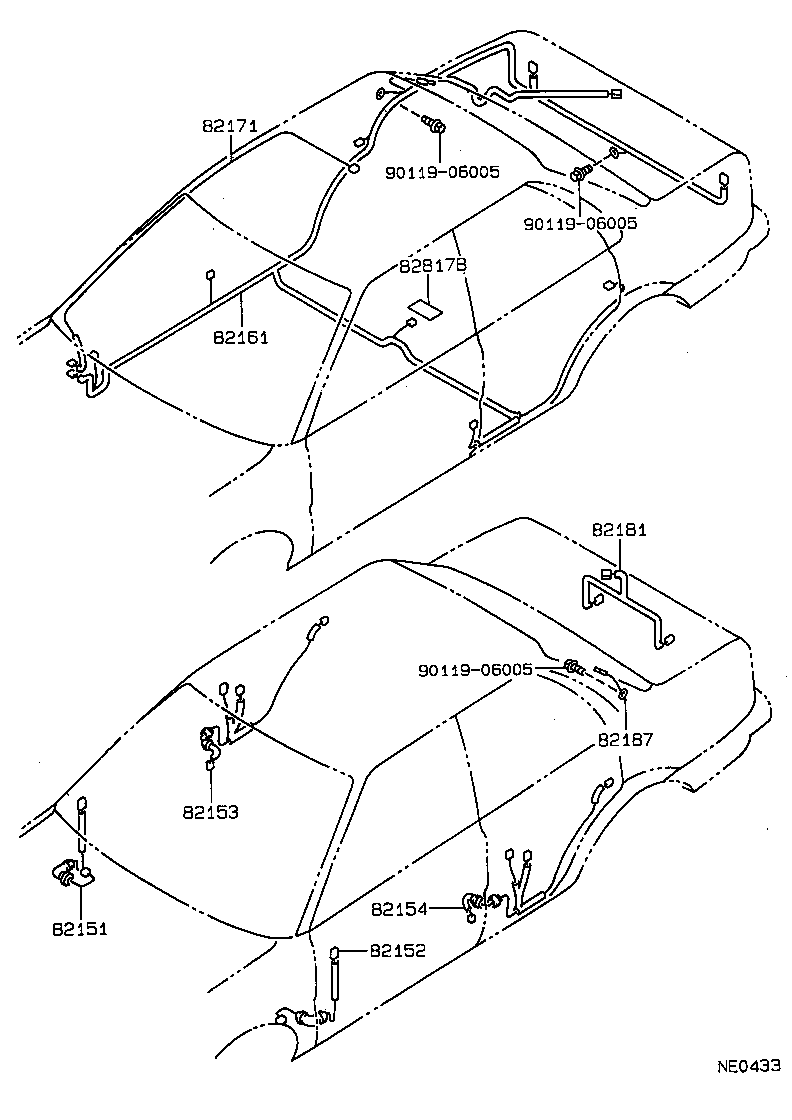

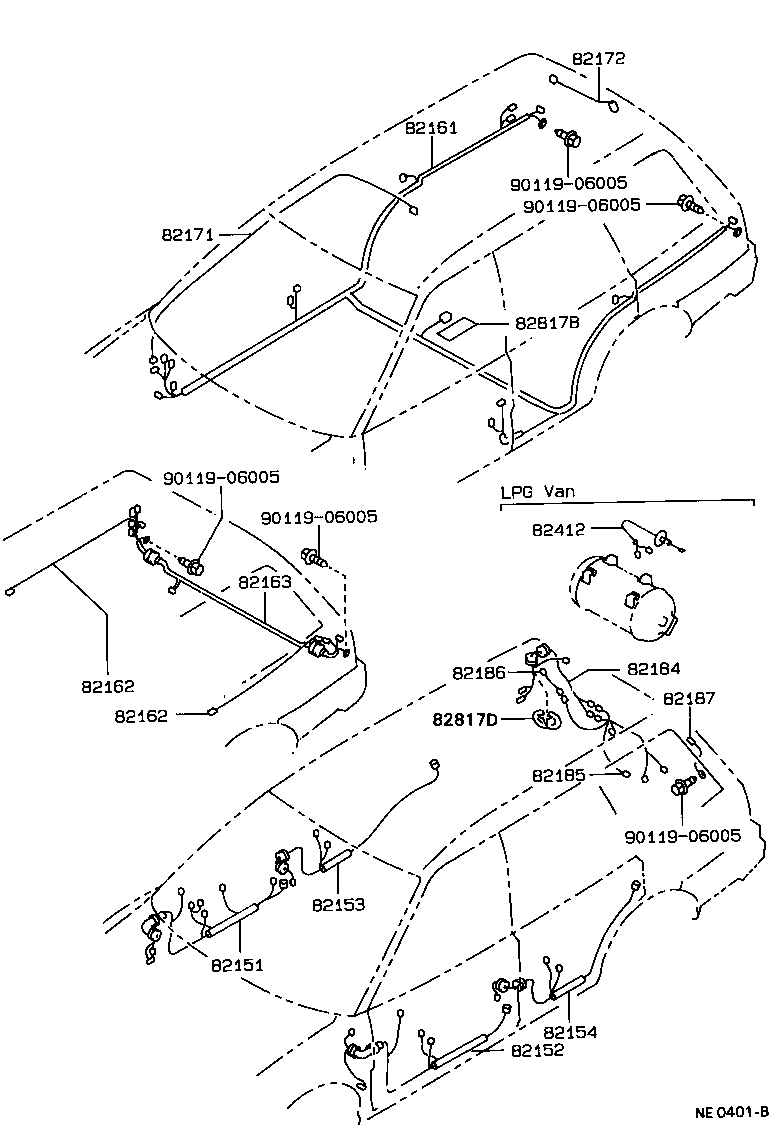

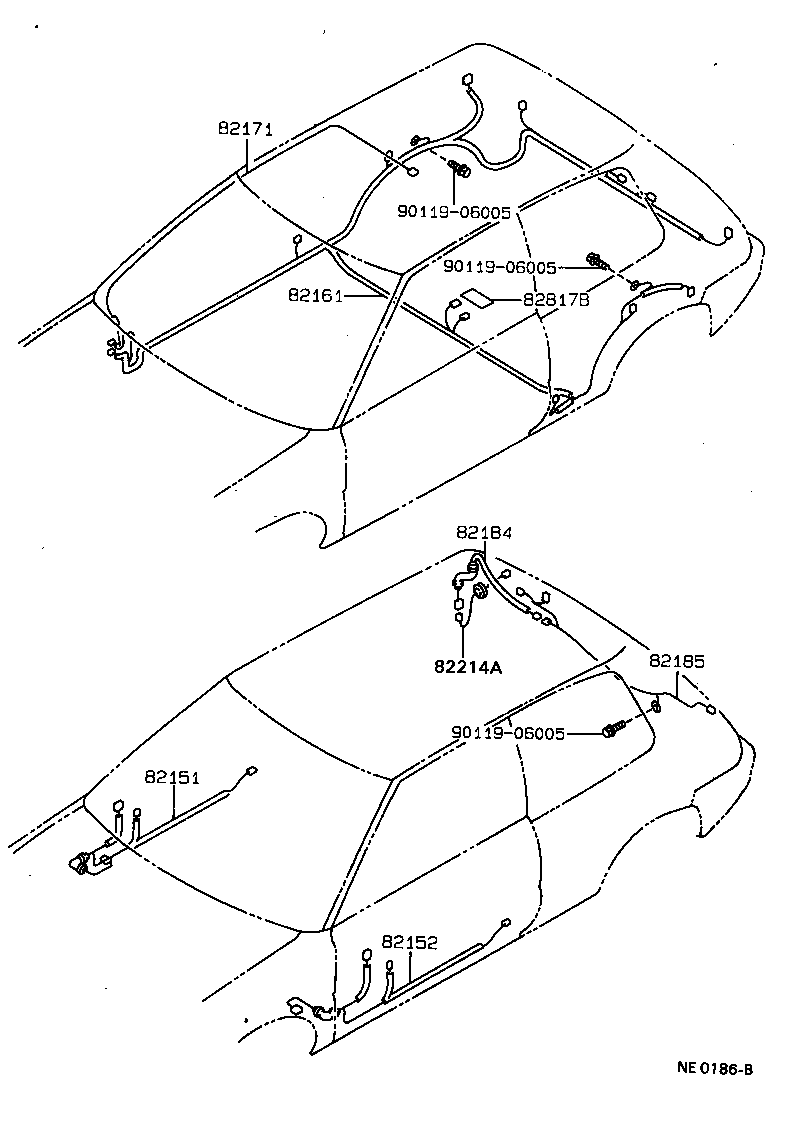

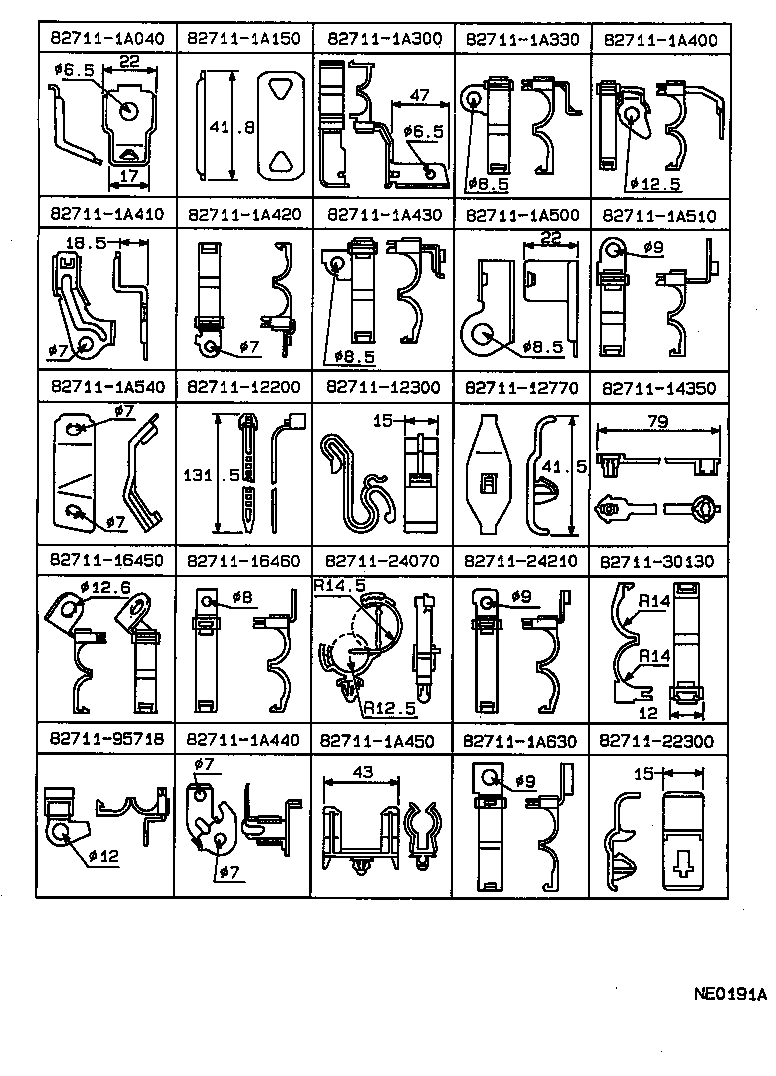

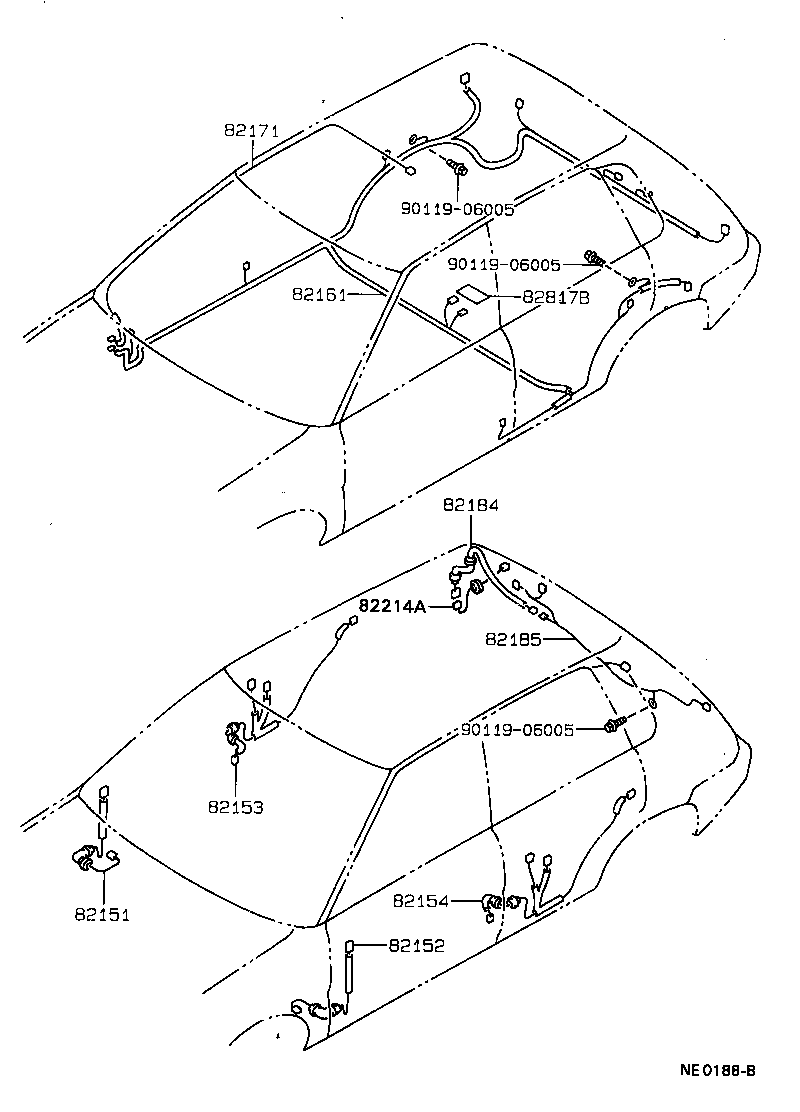

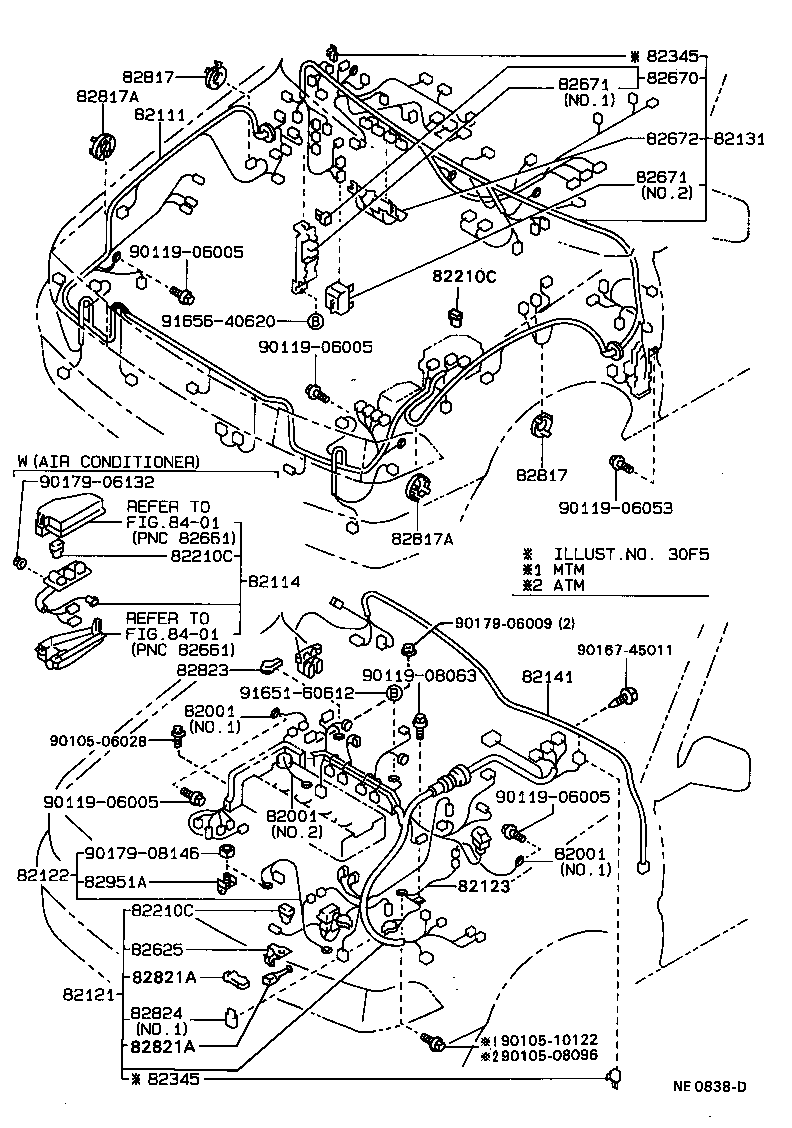

Figure NE0177E NE0177E 1987-05 → — Figure NE0836A NE0836A 1987-05 → 1989-05 Figure NE0837C NE0837C 1989-05 → — Figure NE0838D NE0838D 1987-05 → — Figure NE0839B NE0839B 1987-05 → — Figure NE0186B NE0186B 1987-05 → — Figure NE0433 NE0433 1987-05 → — Figure NE0188B NE0188B 1987-05 → — Figure NE0401B NE0401B 1987-08 → — Figure NE0762A NE0762A 1987-05 → — Figure NE0757A NE0757A 1987-05 → — Figure NE0849 NE0849 1987-05 → — Figure NE0850 NE0850 1987-05 → — Figure NE0191A NE0191A 1987-05 → — Figure NE0851D NE0851D 1987-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82214A Wire, Lamp
82345 Diode
82412 Wire, Fuel Gage
82625 Terminal, Fusible Link
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82951A Bracket, Terminal

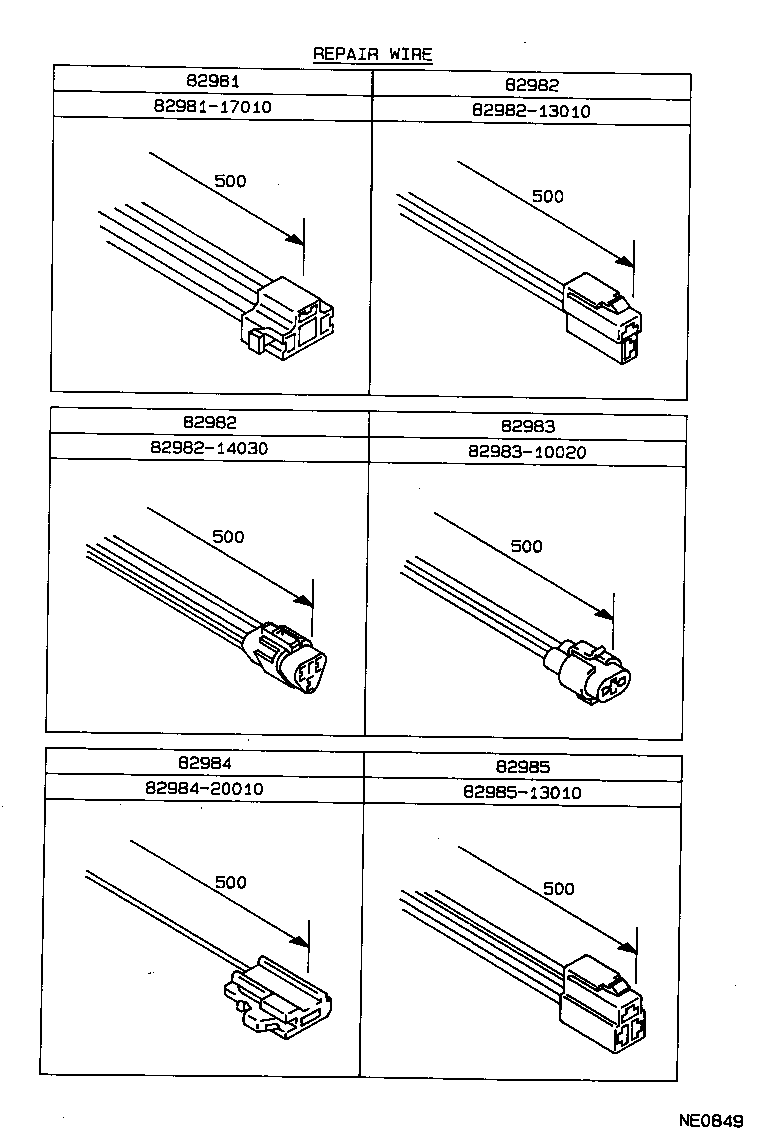

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
