Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

29 part groups · 11 illustrations

Illustrations

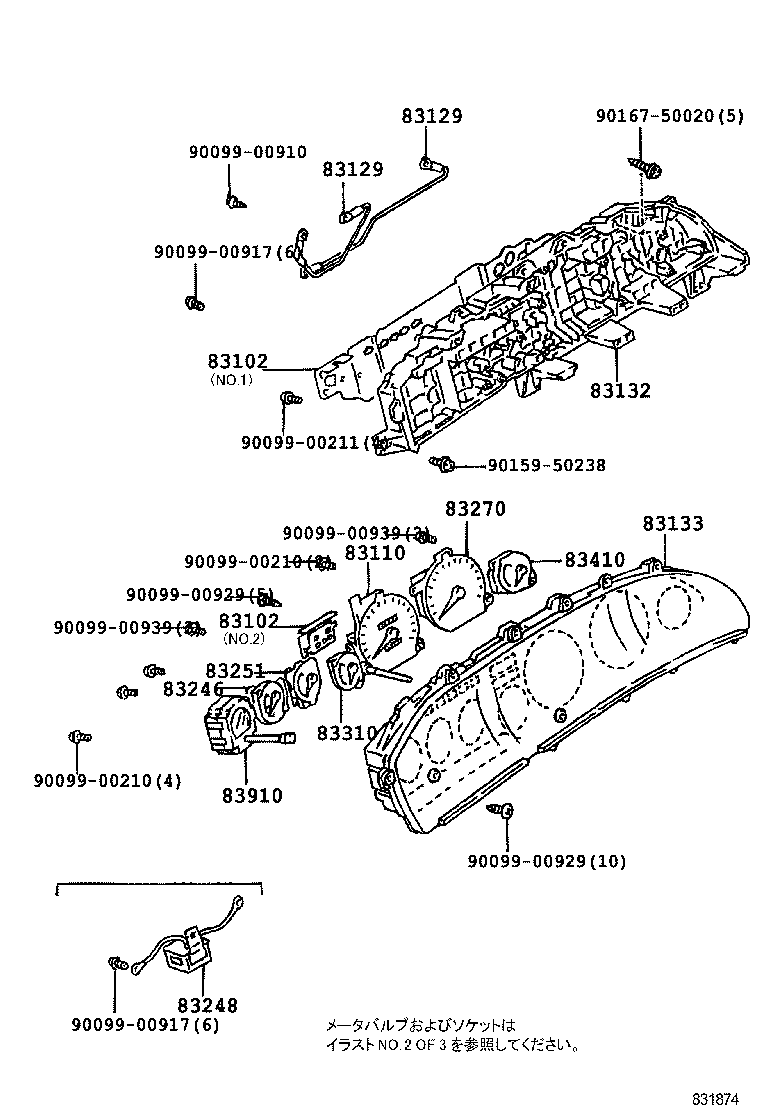

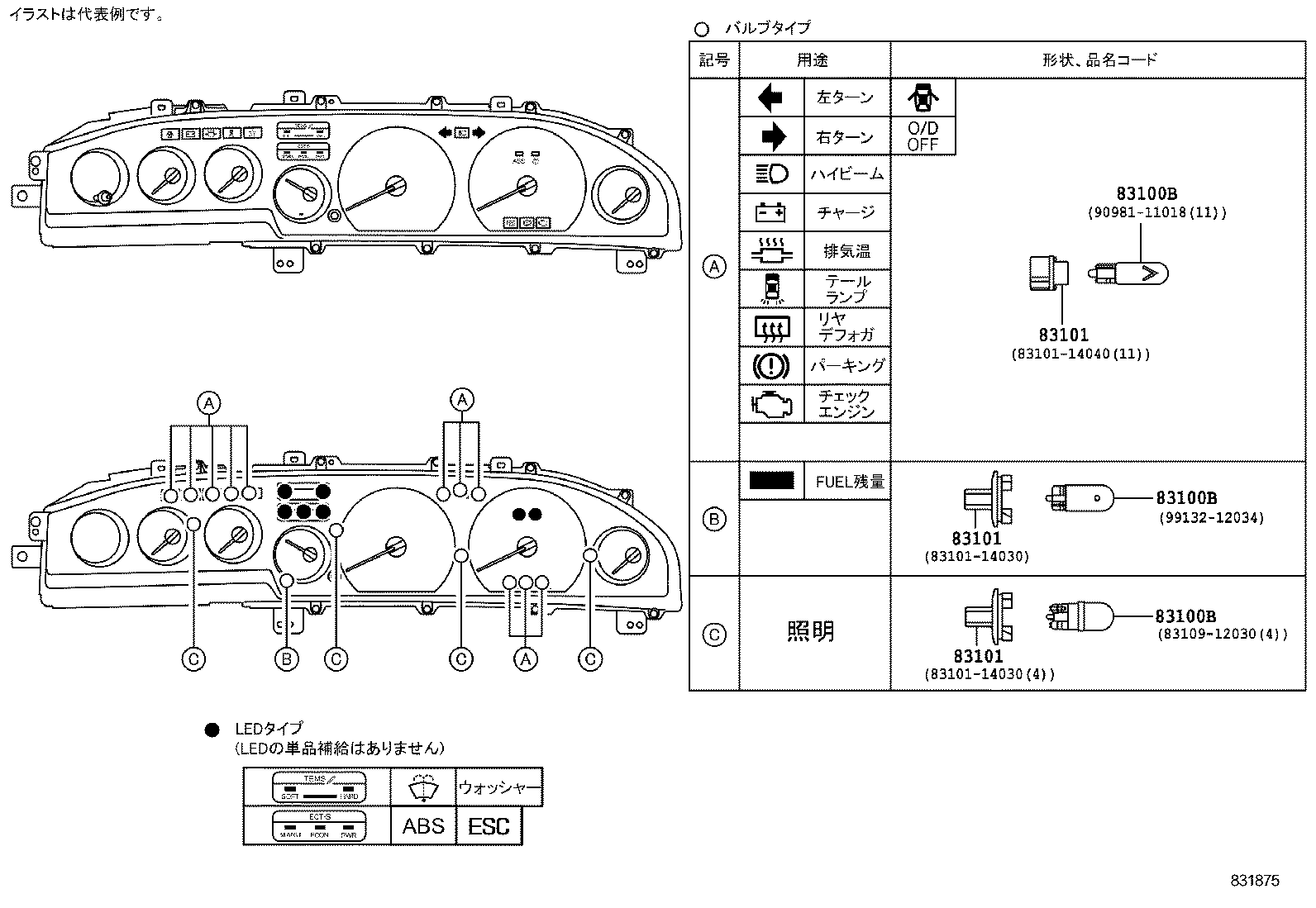

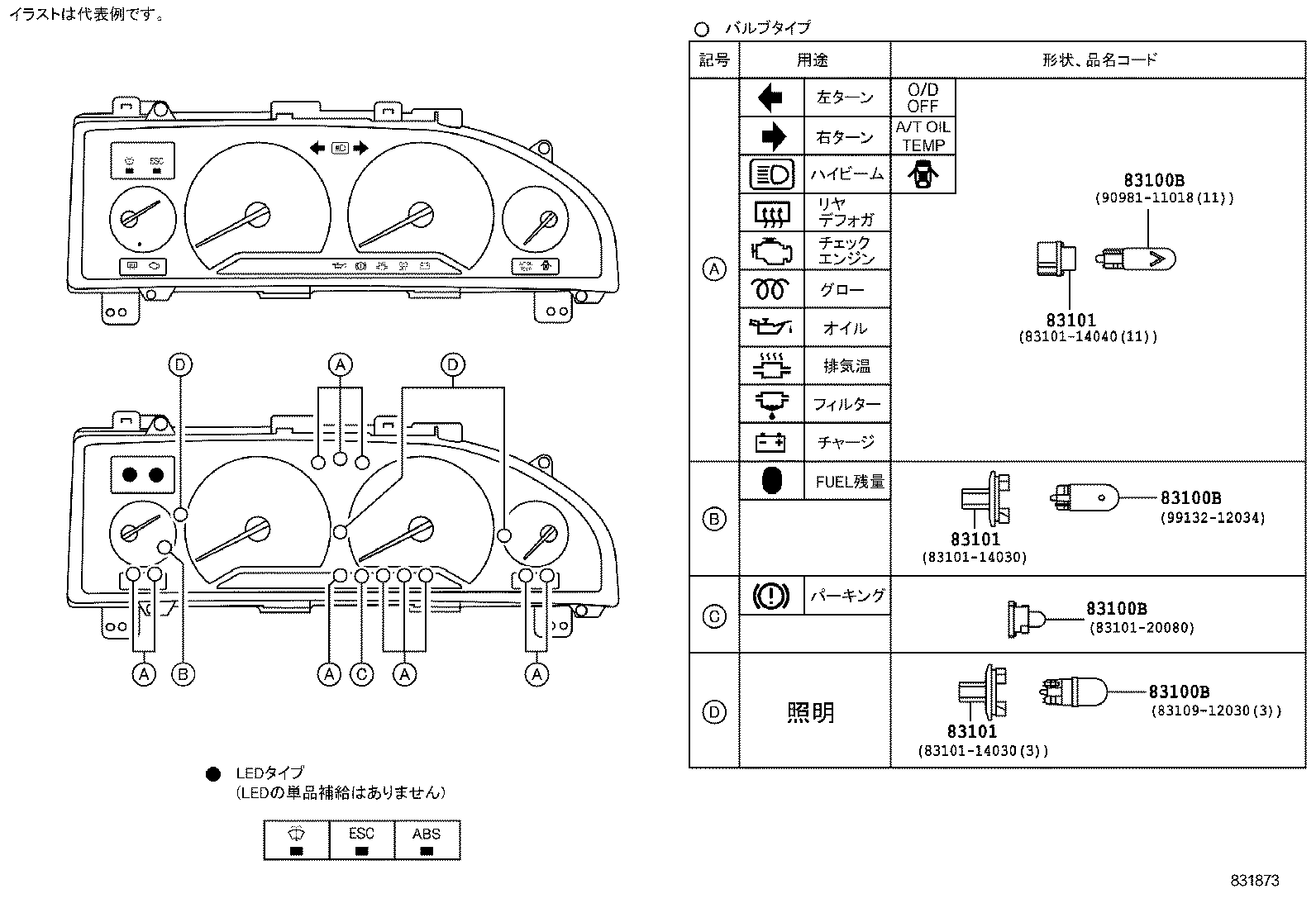

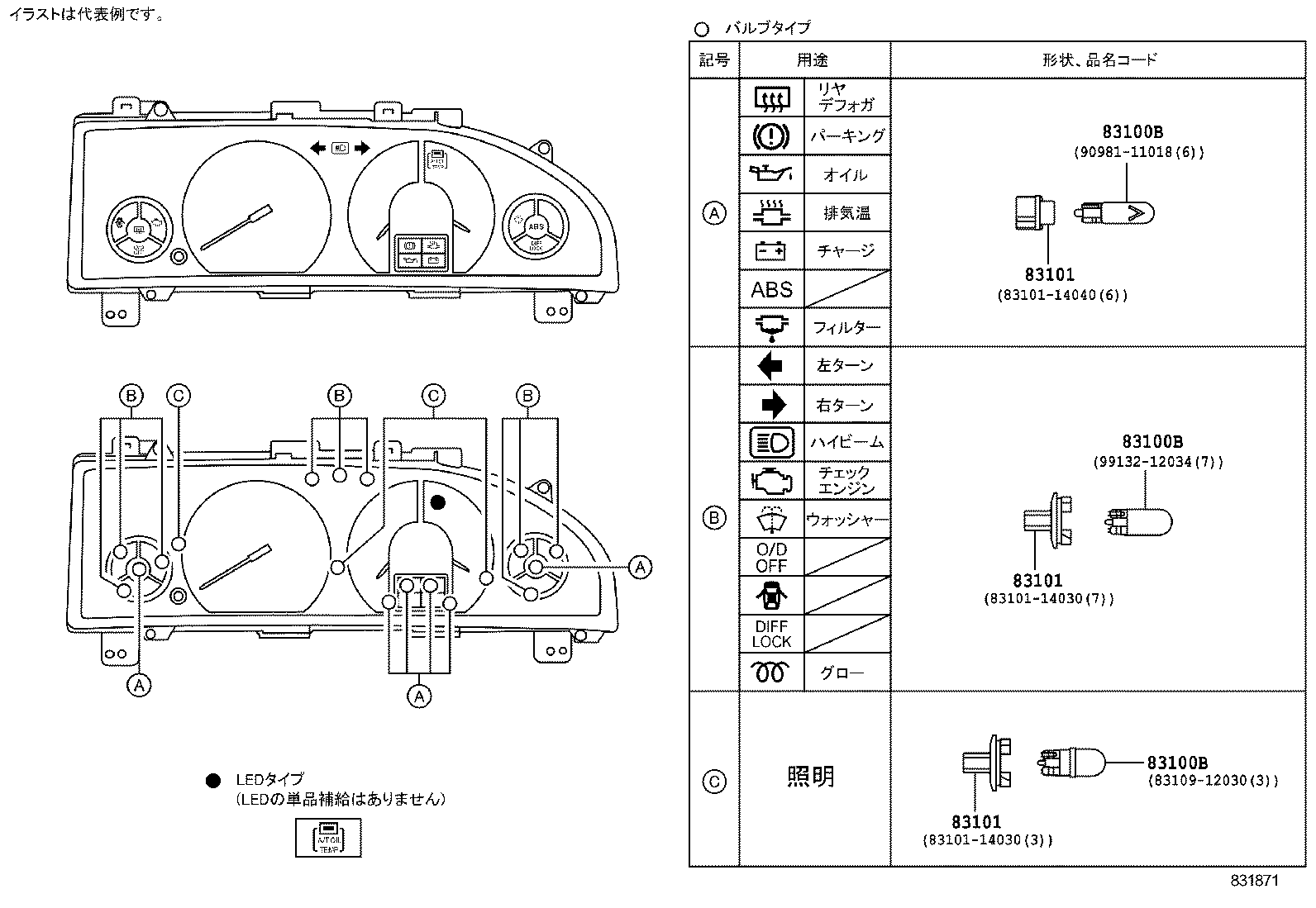

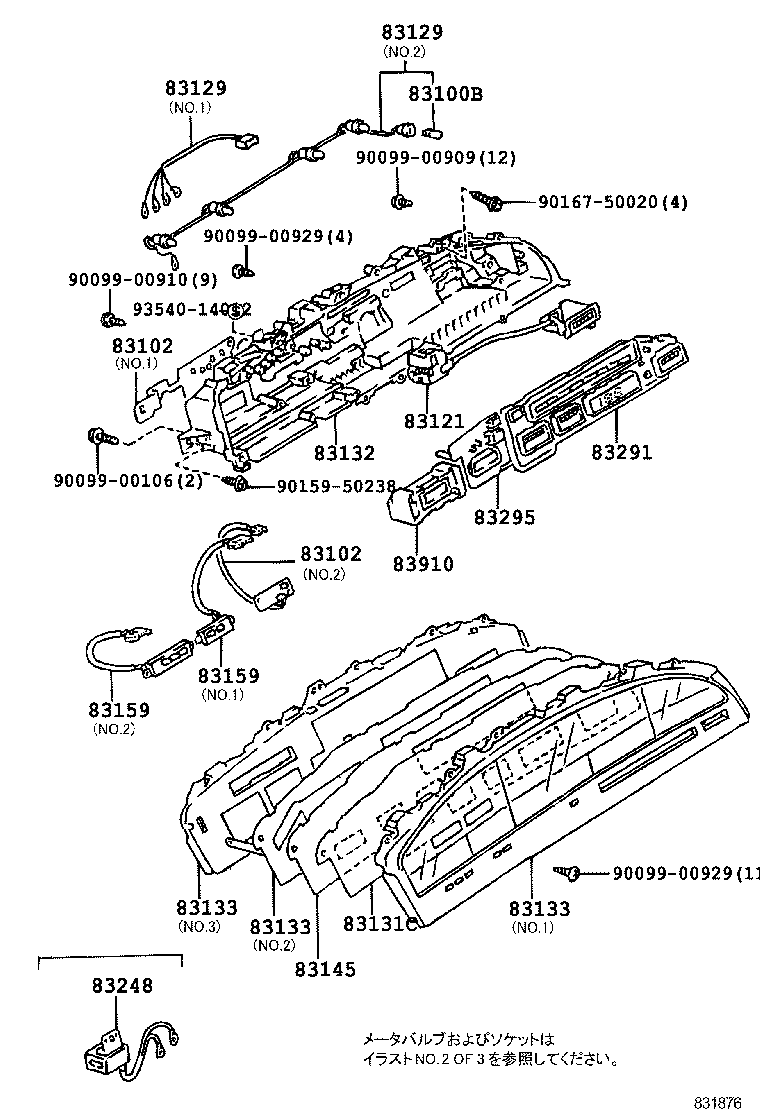

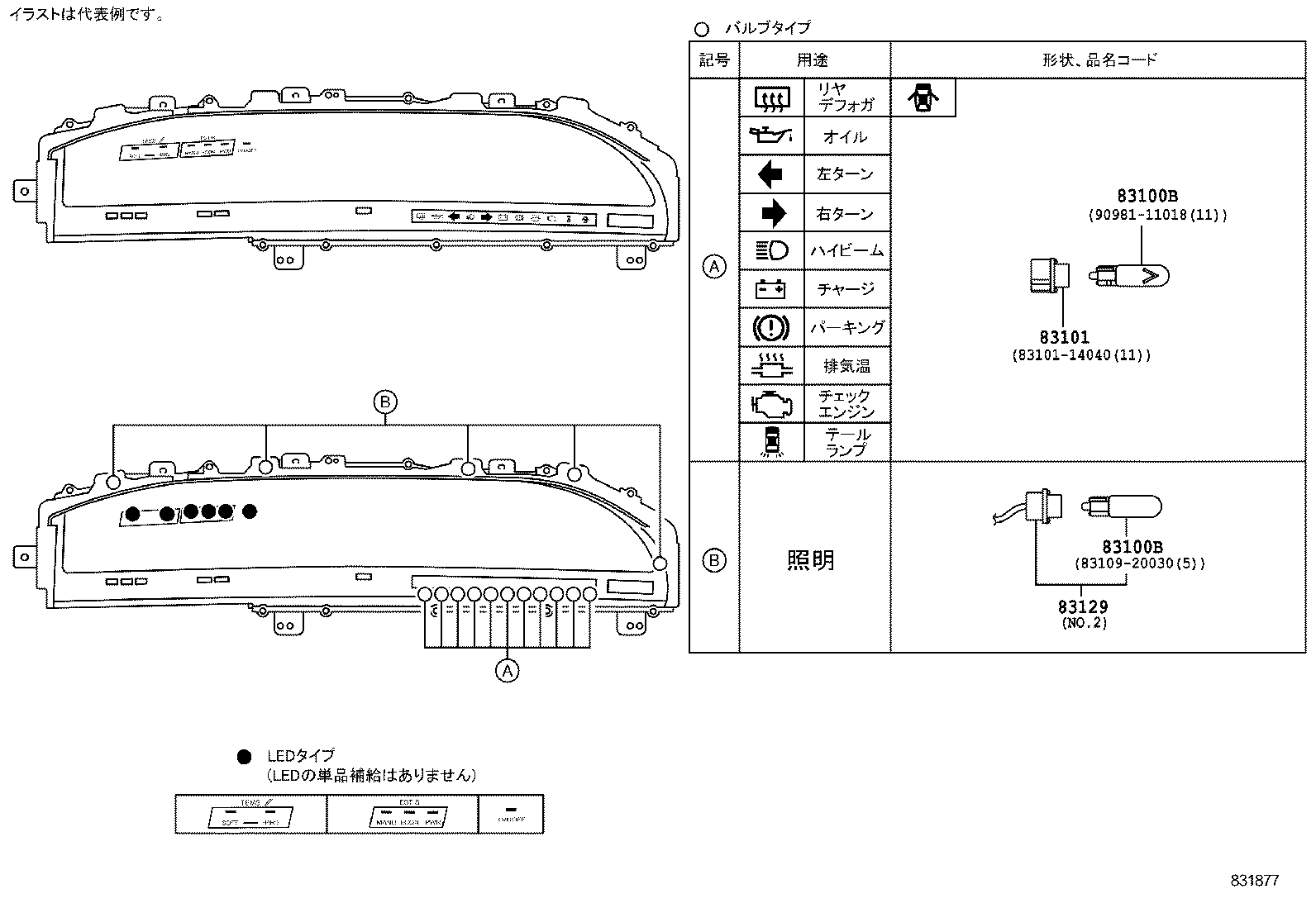

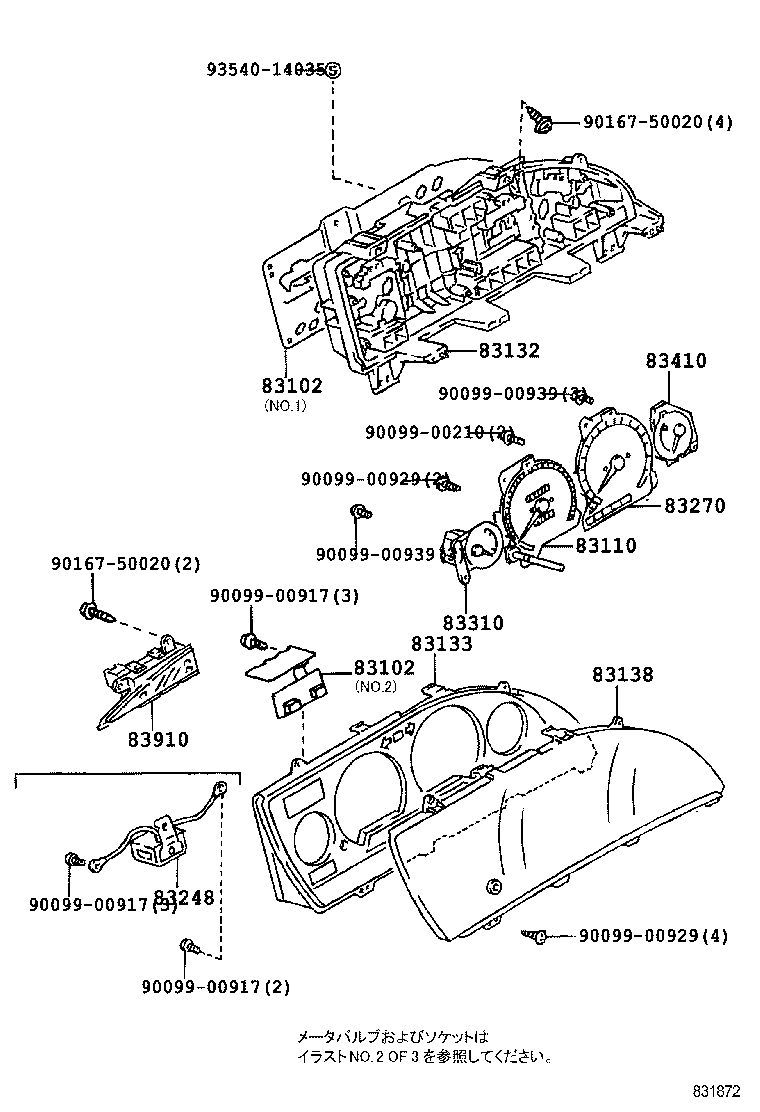

Figure 831870 831870 1987-05 → — Figure 831872 831872 1987-05 → — Figure 831874 831874 1987-05 → — Figure 831874 831874 1989-05 → — Figure 831876 831876 1987-05 → — Figure 831871 831871 1987-05 → — Figure 831873 831873 1987-05 → — Figure 831875 831875 1987-05 → — Figure 831875 831875 1989-05 → — Figure 831877 831877 1987-05 → — Figure NE0230E NE0230E 1987-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83121 Counter, Total
83129 Wire, Meter
83131C Dial, Speedometer
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83159 Switch, Meter, NO.1
83180 Detector Assy, Revolution
83246 Gauge, Oil Pressure Receiver
83248 Chime, Speed Warning
83251 Meter, Voltage
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83295 Panel, Meter Display
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver

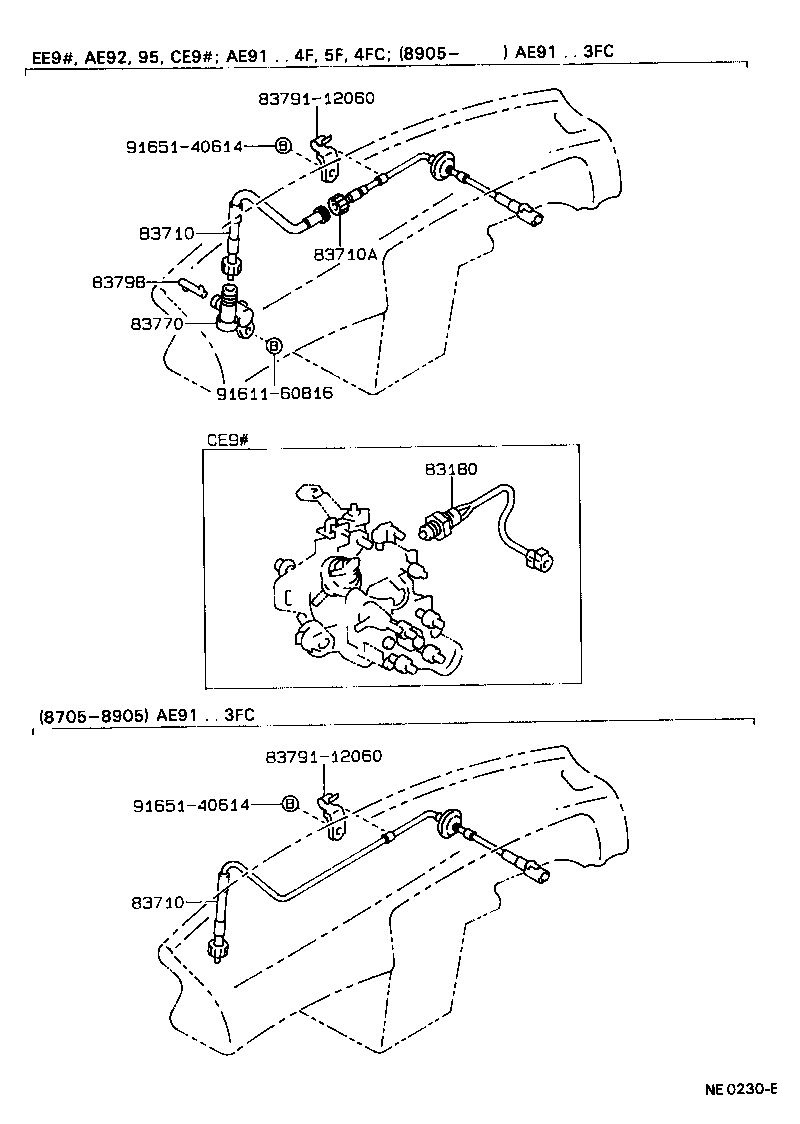

83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
83909 Knob, Clock
83910 Clock Assy
83918 Knob, Clock
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
