Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

128 part groups · 25 illustrations

Illustrations

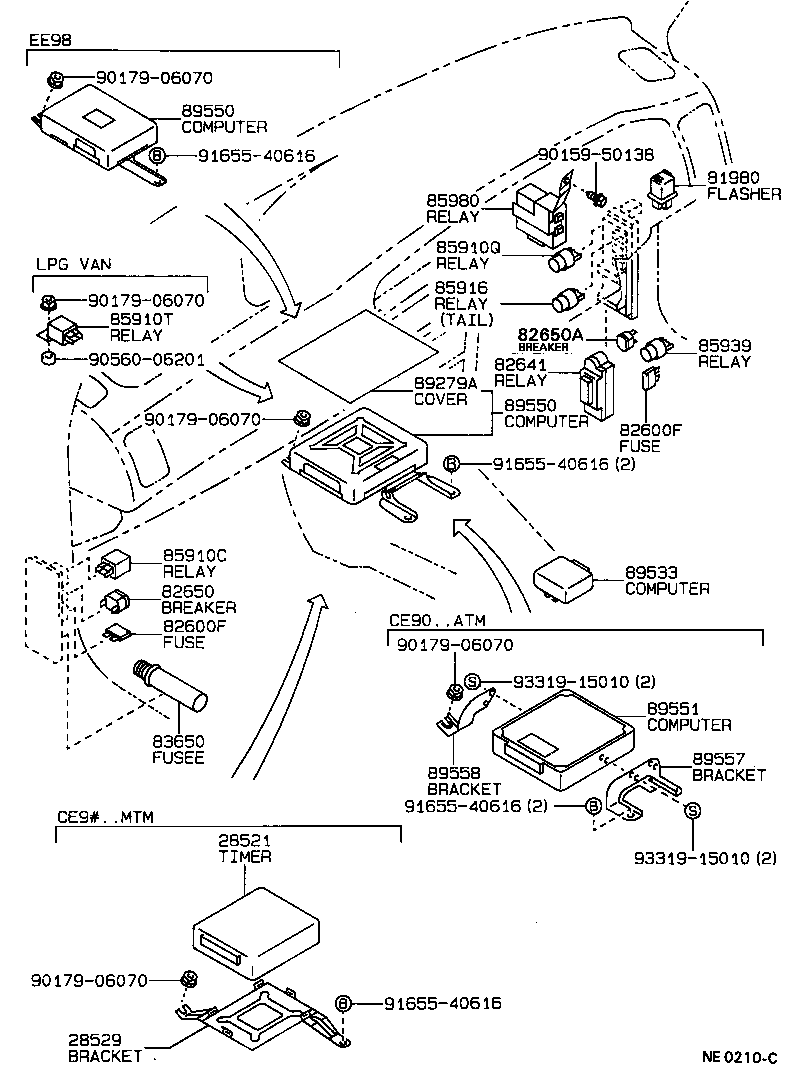

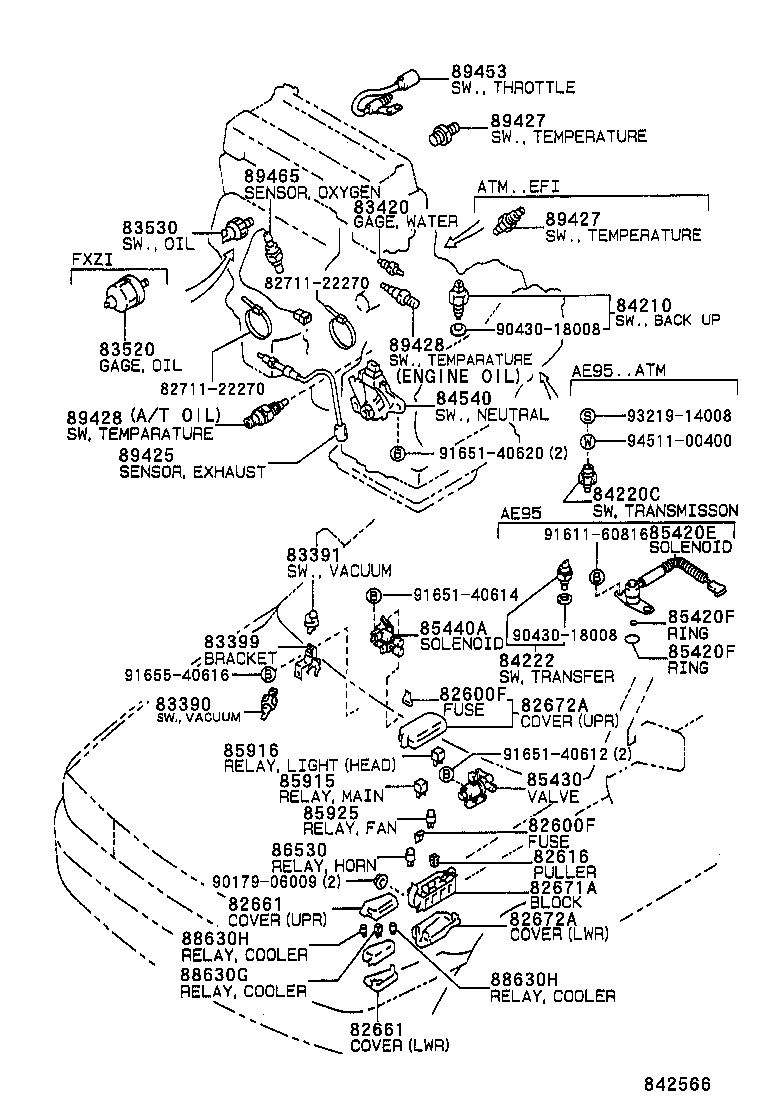

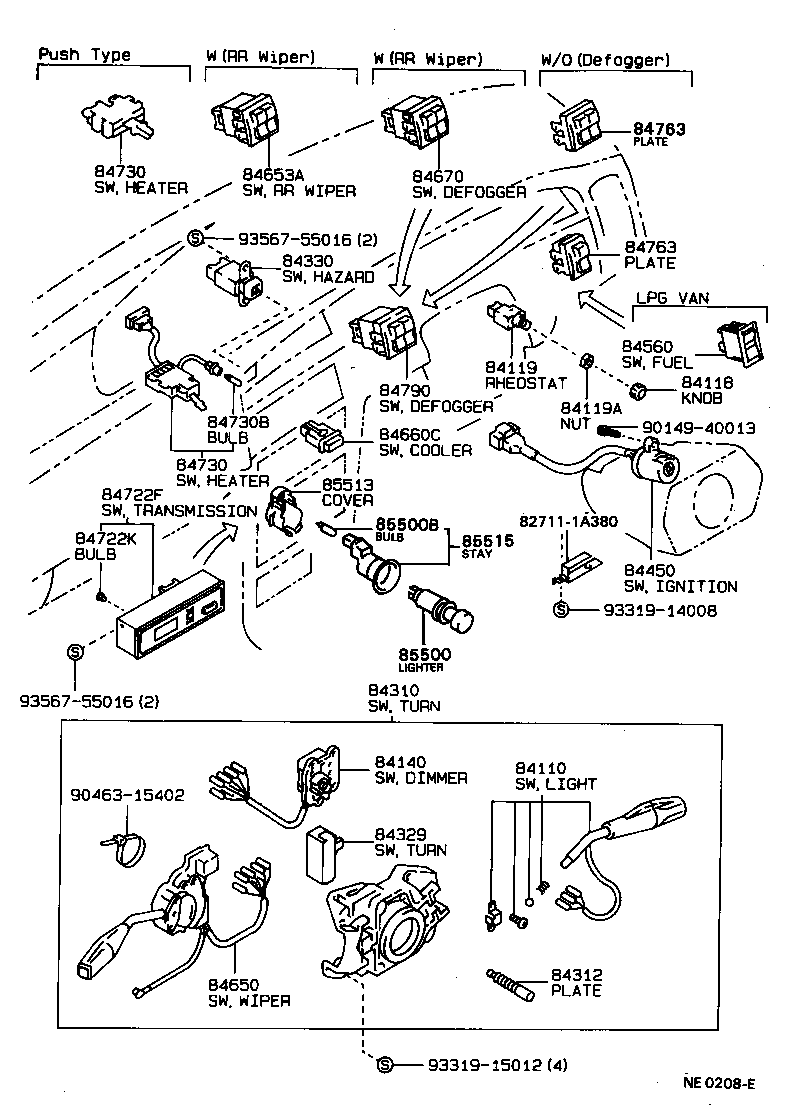

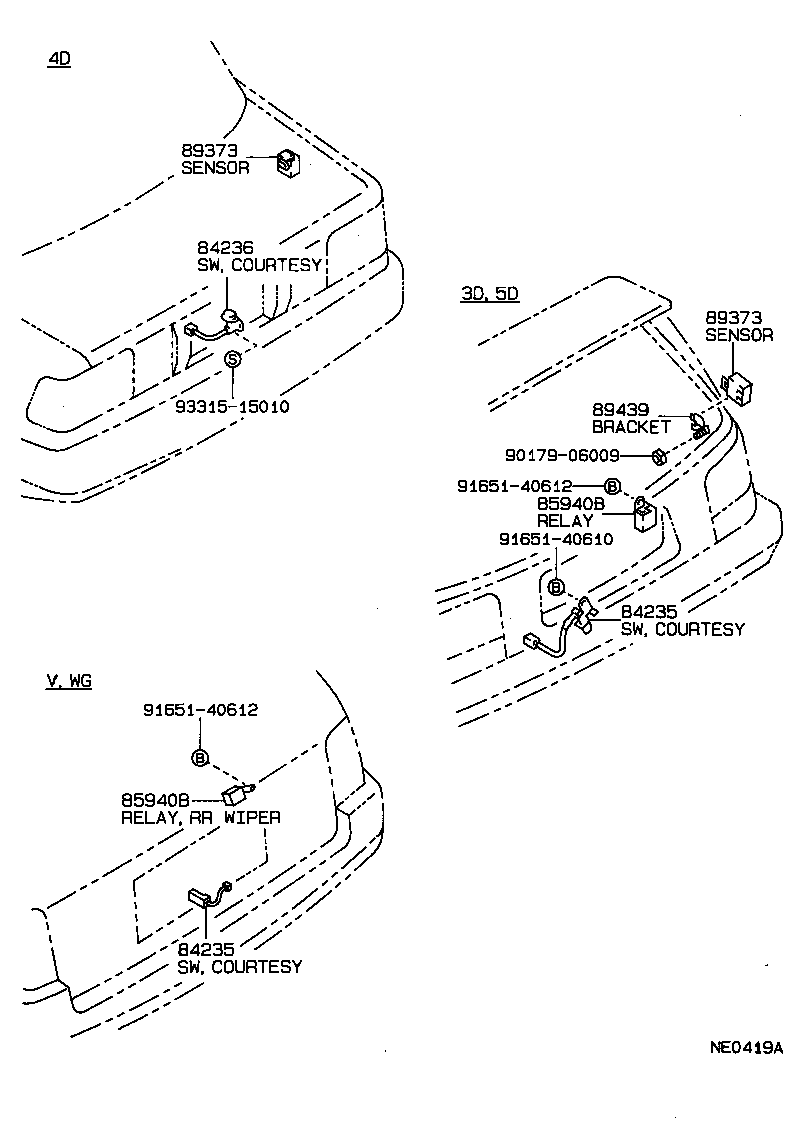

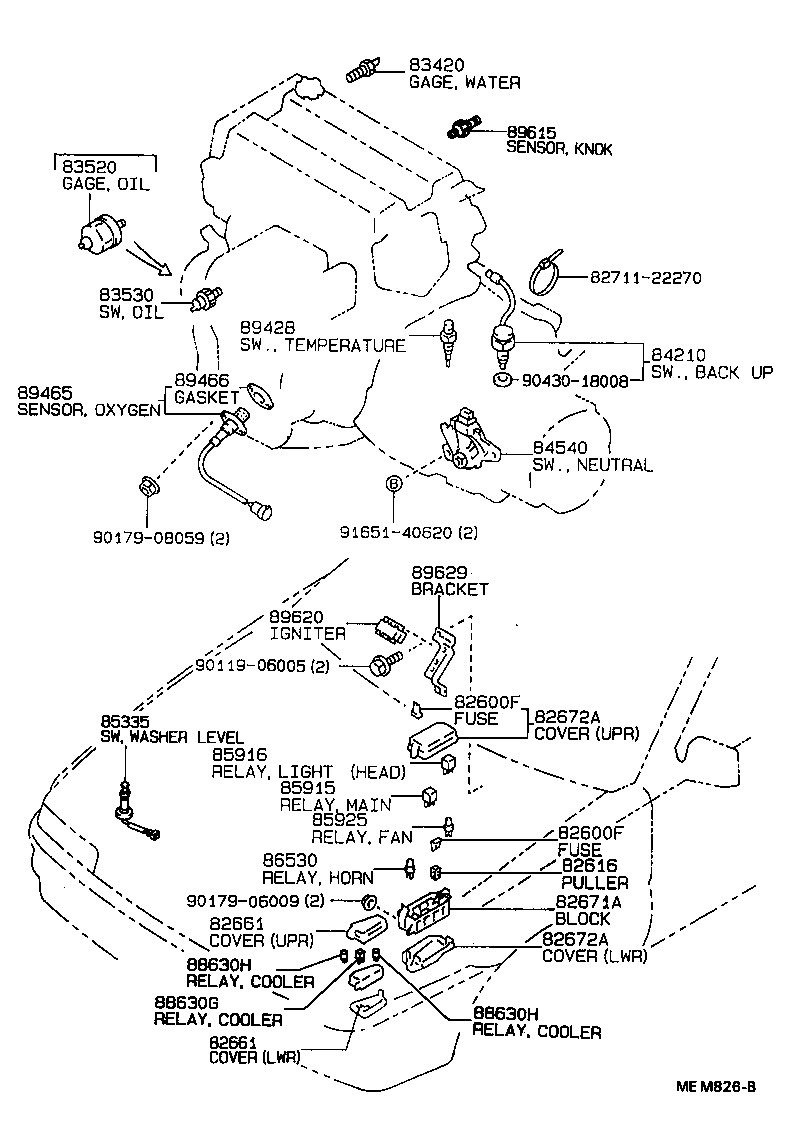

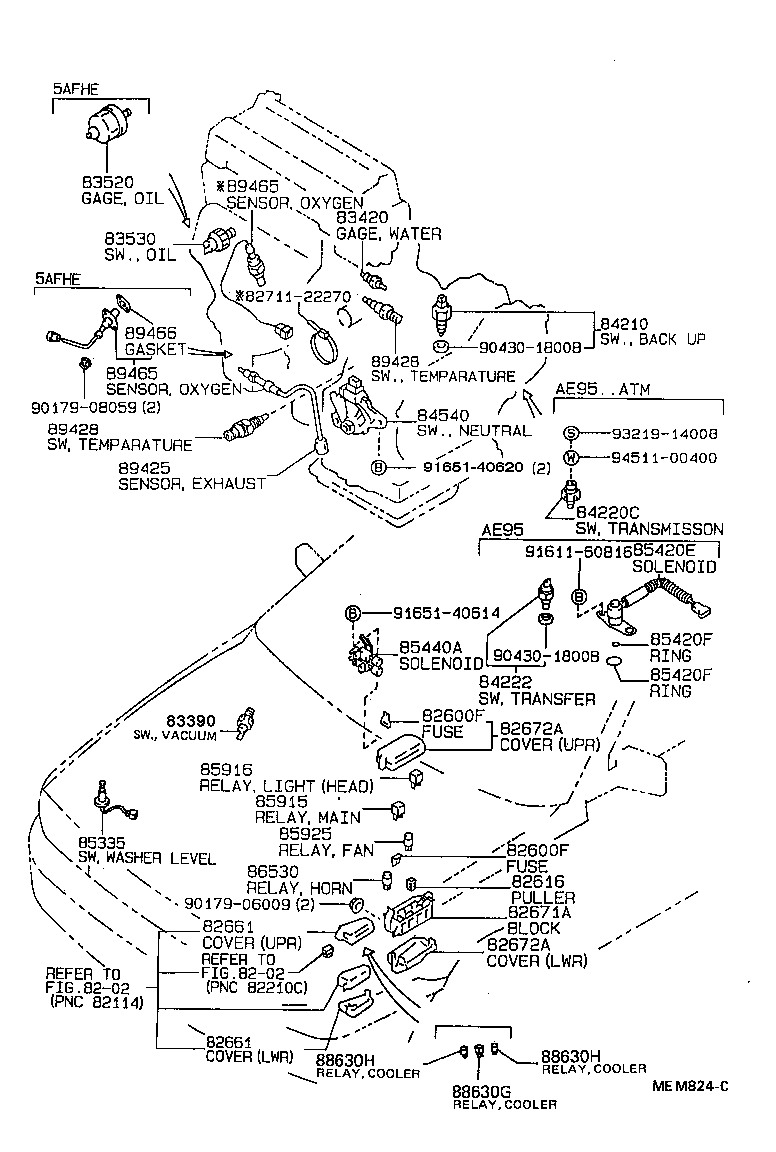

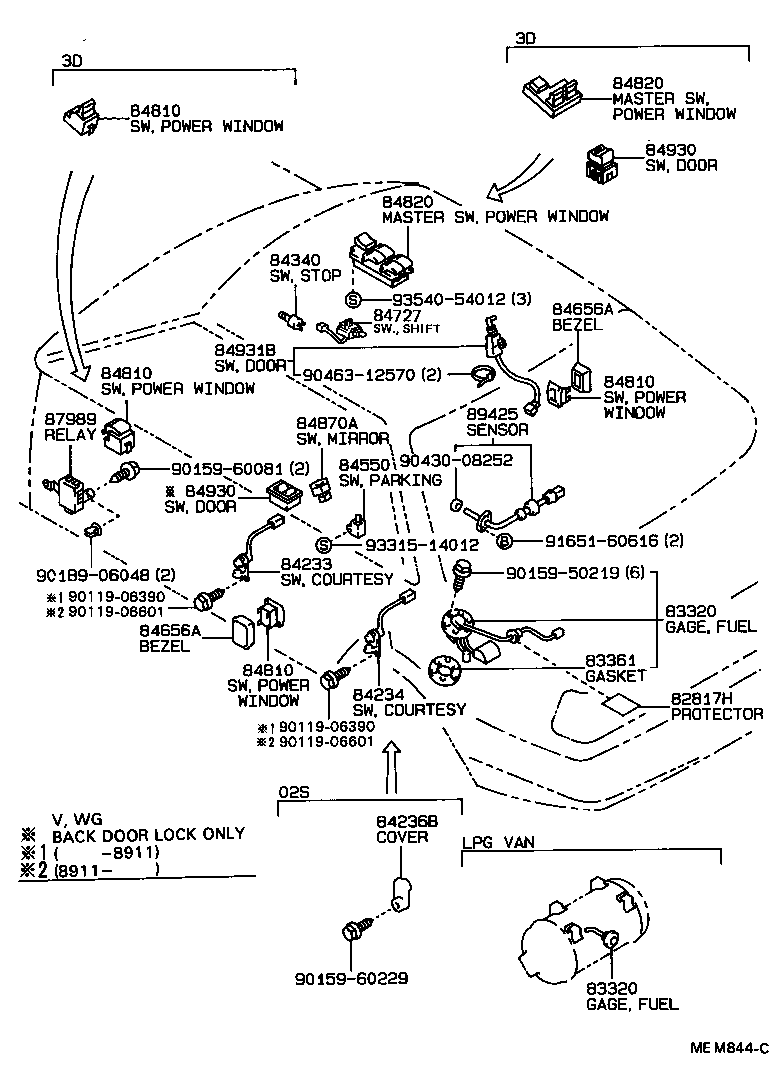

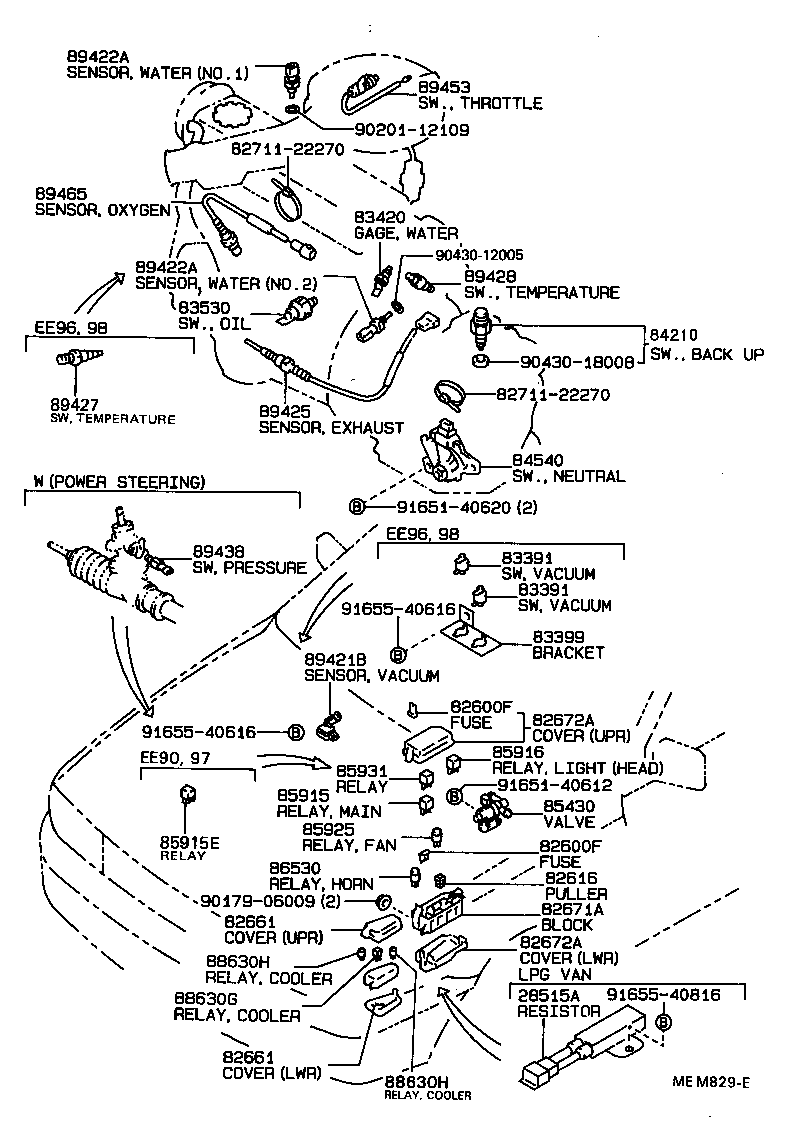

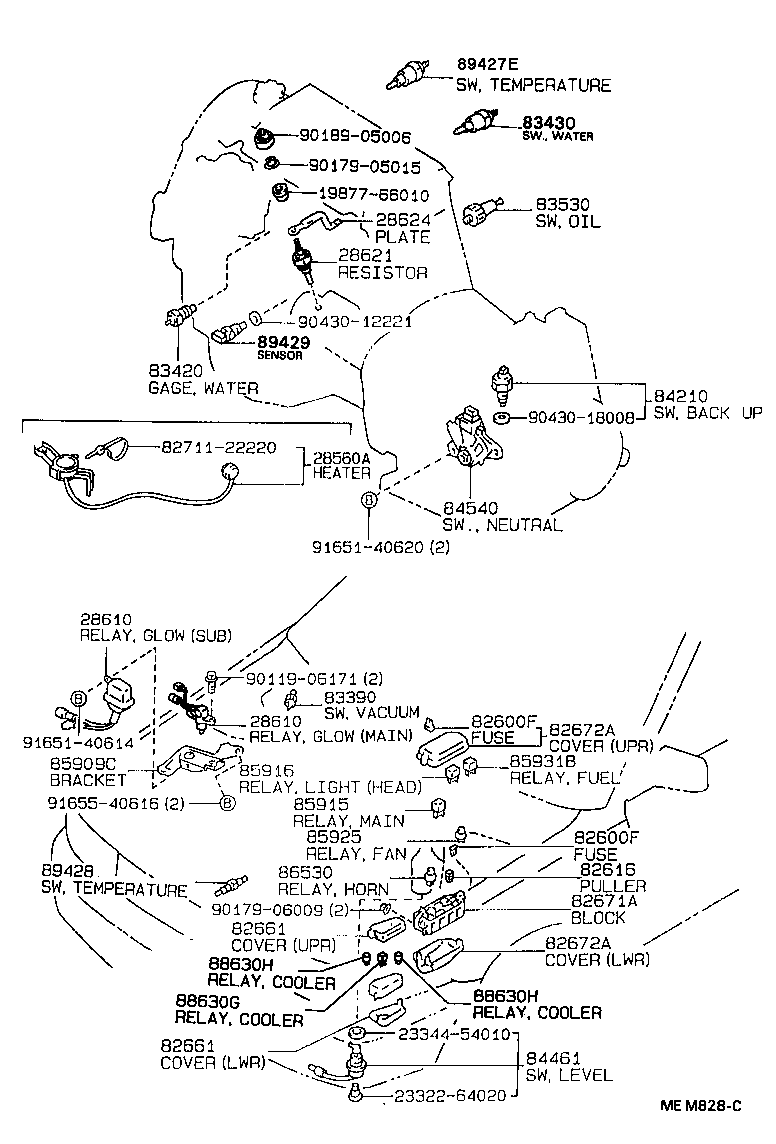

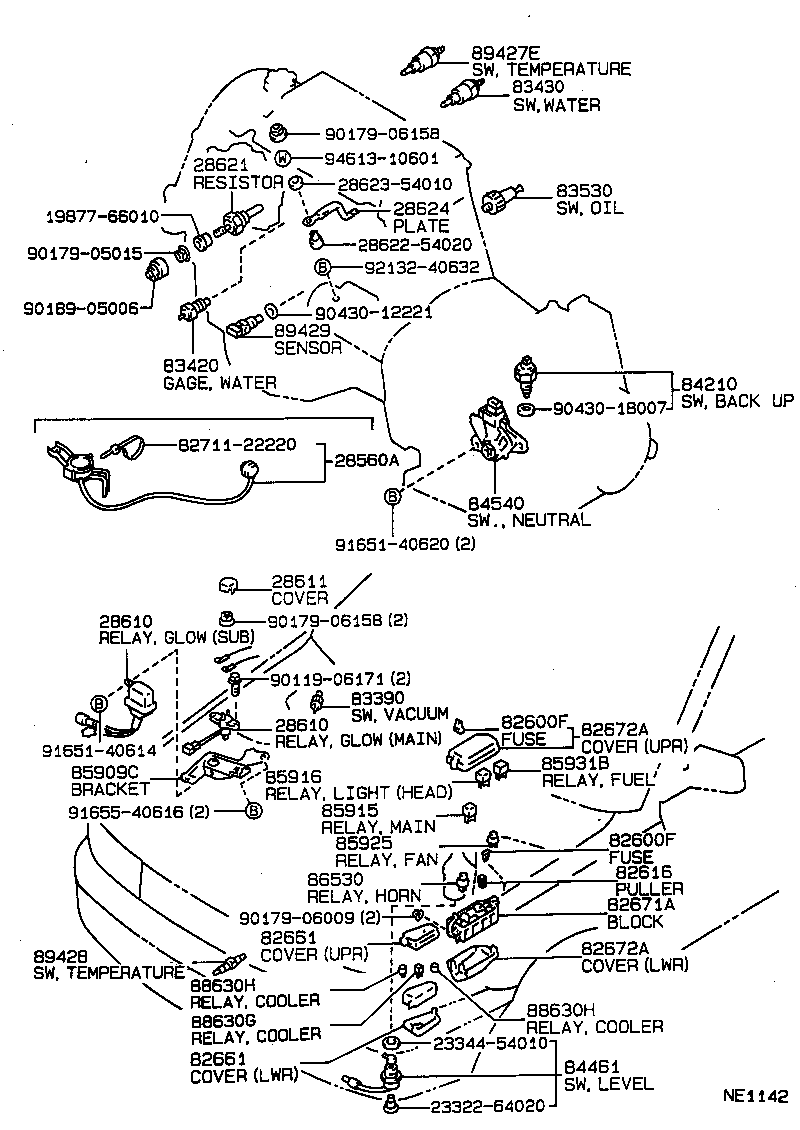

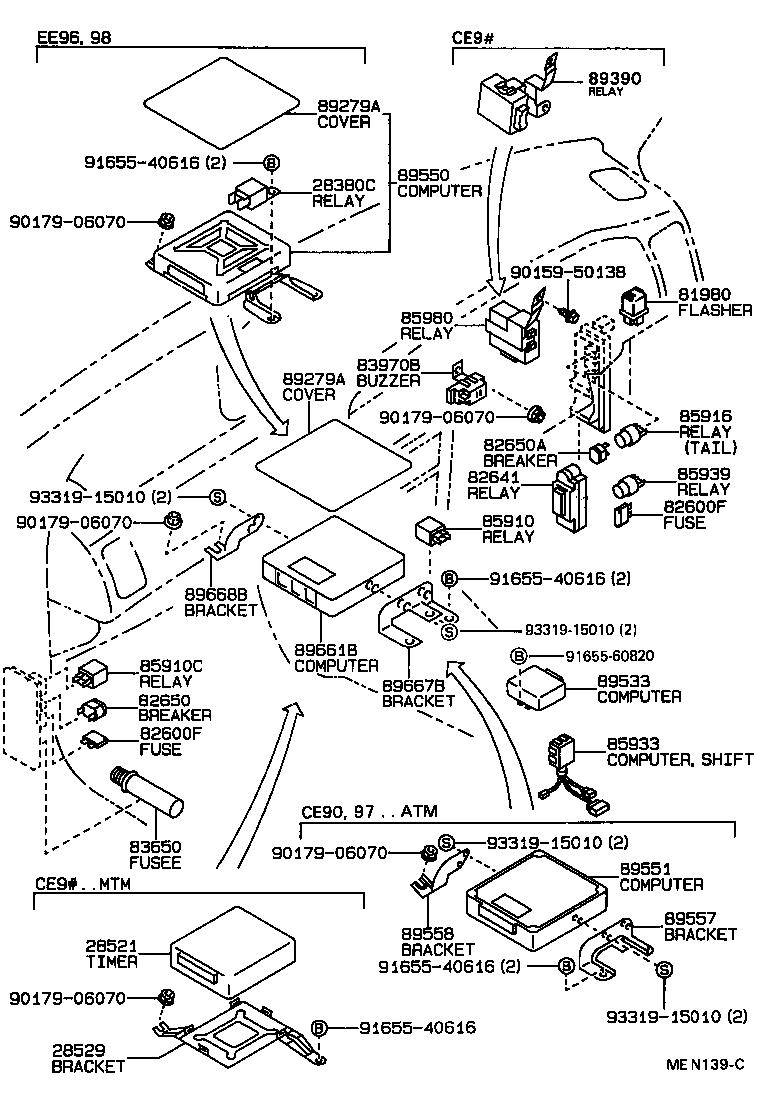

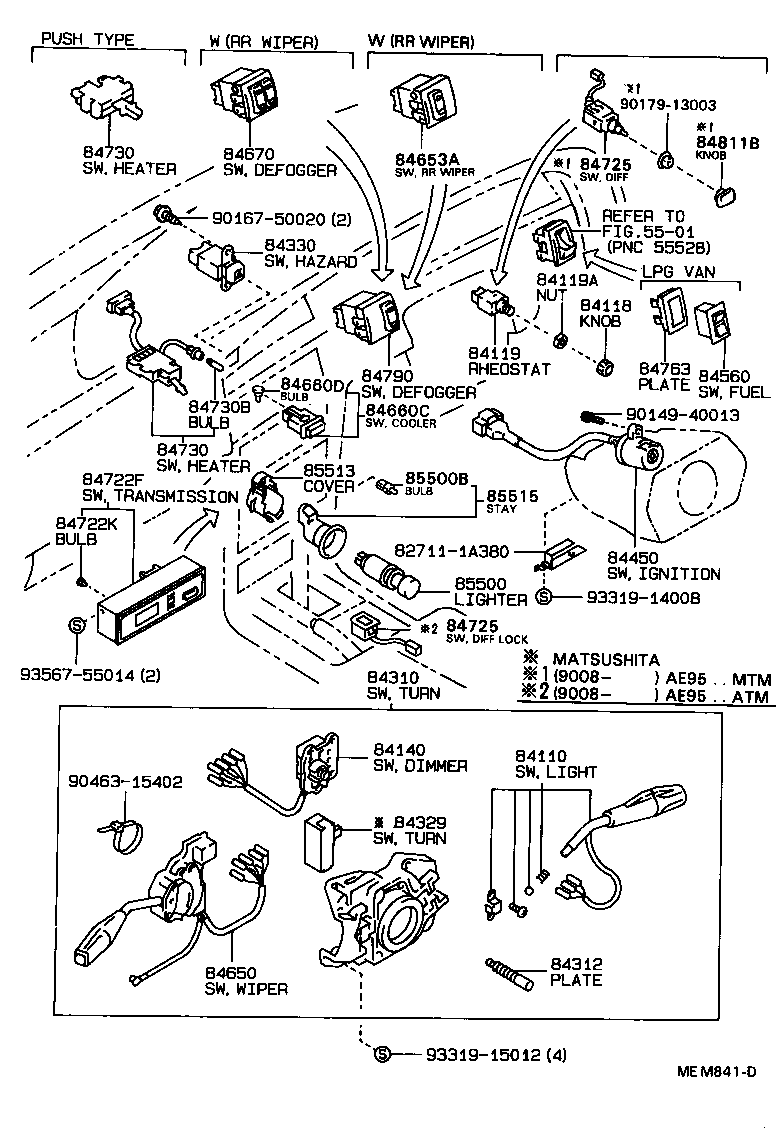

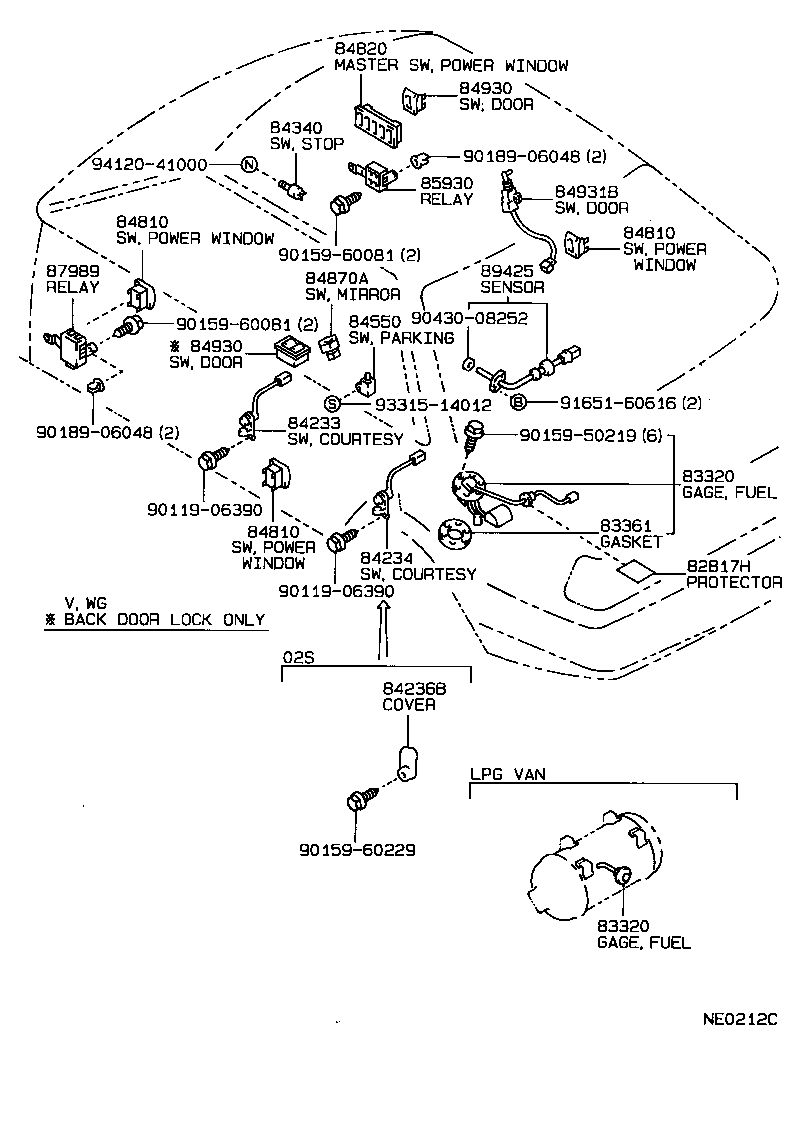

Figure NE0900 NE0900 1987-05 → 1989-05 Figure NE0900 NE0900 1989-05 → 1989-08 Figure MEM829E MEM829E 1989-05 → — Figure MEM829E MEM829E 1989-08 → — Figure 842566 842566 1987-05 → 1989-05 Figure MEM824C MEM824C 1989-05 → — Figure MEM824C MEM824C 1989-08 → — Figure MEM826B MEM826B 1987-05 → — Figure NE1142 NE1142 1987-05 → 1989-05 Figure NE1142 NE1142 1989-05 → 1989-08 Figure MEM828C MEM828C 1989-05 → — Figure MEM828C MEM828C 1989-08 → — Figure NE0208E NE0208E 1987-05 → 1989-05 Figure NE0208E NE0208E 1989-05 → 1989-08 Figure MEM841D MEM841D 1989-05 → — Figure MEM841D MEM841D 1989-08 → — Figure NE0210C NE0210C 1987-05 → 1989-05 Figure NE0210C NE0210C 1989-05 → 1989-08 Figure MEN139C MEN139C 1989-05 → — Figure MEN139C MEN139C 1989-08 → — Figure NE0212C NE0212C 1987-05 → 1989-05 Figure NE0212C NE0212C 1989-05 → 1989-08 Figure MEM844C MEM844C 1989-05 → — Figure MEM844C MEM844C 1989-08 → — Figure NE0419A NE0419A 1987-05 → —

Part groups

PNCDescription
28380C Relay Assy, Fuel Pump
28515A Resistor, Solenoid
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28560A Block, Heater
28610 Relay Assy, Intake Heater OR Glow Plug
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
28624 Plate, Current Sensor
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82616 Puller, Fuse
82641 Relay, Integration NO.1
82650 Breaker Assy, Wiring Circuit, NO.1
82650A Breaker Assy, Wiring Circuit, NO.2
82661 Cover, Relay Block, NO.1
82671A Block, Junction
82672A Cover, Junction Block
82817H Protector, Wiring Harness
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83430 Switch Assy, Water Level Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83970B Buzzer Assy, Reverse Warning
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84119A Bolt OR Nut, Rheostat Control Set
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84222 Switch, Transfer Indicator, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84236B Cover, Courtesy Lamp Switch
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461 Switch, Level Warning
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84560 Switch Assy, Fuel Valve Control
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84656A Bezel, Switch
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84670 Switch Assy, Rear Wiper & Defogger
84722F Switch, Transmission Control
84722K Bulb, Transmission Control Switch
84725 Switch, Center Differential Lock
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84763 Plate, Switch
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84811B Knob, Differential Lock Switch
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
85335 Switch Assy, Washer Level Warning
85420E Solenoid Assy, Transmission
85420F Ring, O(FOR TRANSMISSION SOLENOID)
85430 Valve, Outer Vent Control
85440A Solenoid Assy, Four Wheel Drive Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85909C Bracket Sub-assy, Relay, NO.1
85910 Relay Assy, Circuit Opening
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910Q Relay (FOR IDLE UP)
85910T Relay, Lpg
85915 Relay, Main
85915E Relay
85916 Relay, Light Control
85925 Relay, Radiator Fan
85930 Relay Assy, Power Window
85931 Relay, Emission Control
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85939 Relay, Power Window
85940B Relay Assy, Rear Wiper
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
87989 Relay, Mirror Control
88630G Relay Assy, Cooler
88630H Relay Assy, Cooler
89279A Cover, Computer
89373 Sensor, Lamp Failure Indicator
89390 Relay, Brake Warning
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89427 Switch, Temperature Detect
89427E Switch, Temperature (FOR HEATER IDLE UP)
89428 Switch, Temperature Detect, NO.2
89429 Sensor, Oil Temperature
89438 Switch, Power Steering Oil Pressure
89439 Bracket, Sensor
89453 Switch, Throttle Position (FOR T.C.S.)
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89533 Computer, 4 Wheel Drive Control
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89557 Bracket, Emission Control Computer, NO.1
89558 Bracket, Emission Control Computer, NO.2
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89661B Computer, Engine Control
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
