Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 3 illustrations

Illustrations

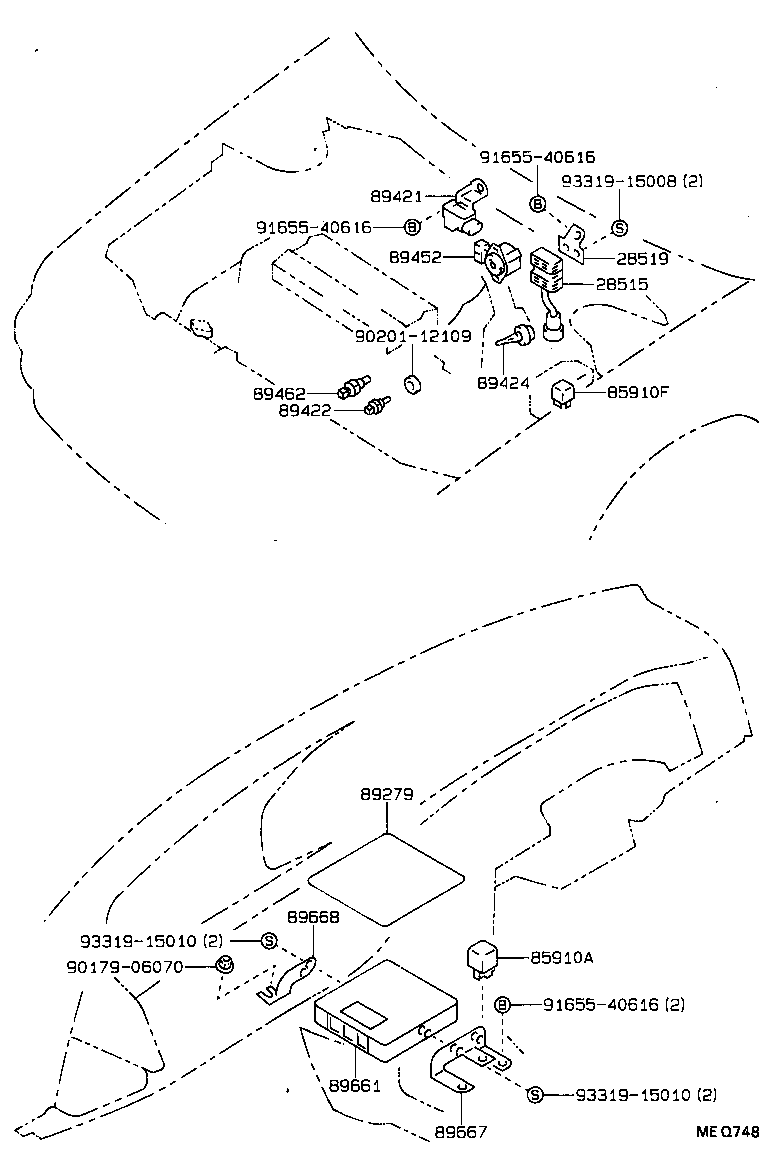

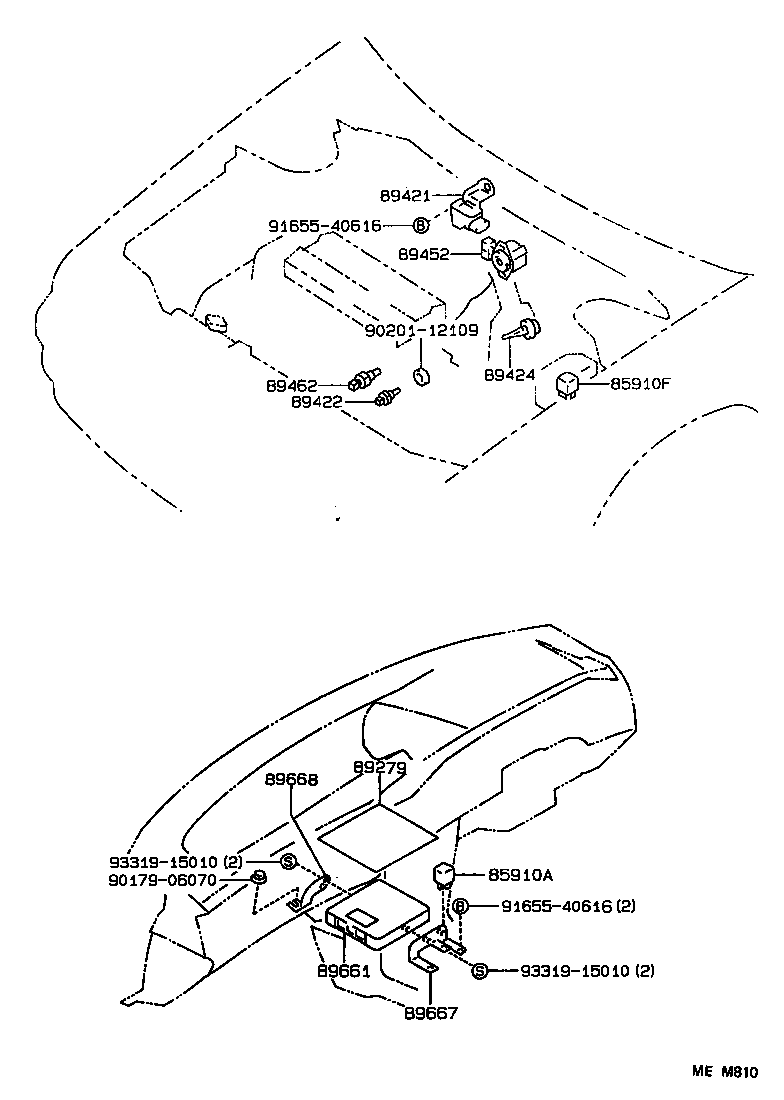

Figure MEM809A MEM809A 1987-05 → — Figure MEQ748 MEQ748 1987-05 → 1989-05 Figure MEM810 MEM810 1989-05 → —

Part groups

PNCDescription
28515 Resistor, Solenoid
28519 Bracket, Solenoid Resistor
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89279 Cover, Engine Control Computer
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89428A Switch, Water Temperature (FOR E.F.I)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
