Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11
Overdrive & Electronic Controlled Transmission
12 part groups · 7 illustrations
Part groups

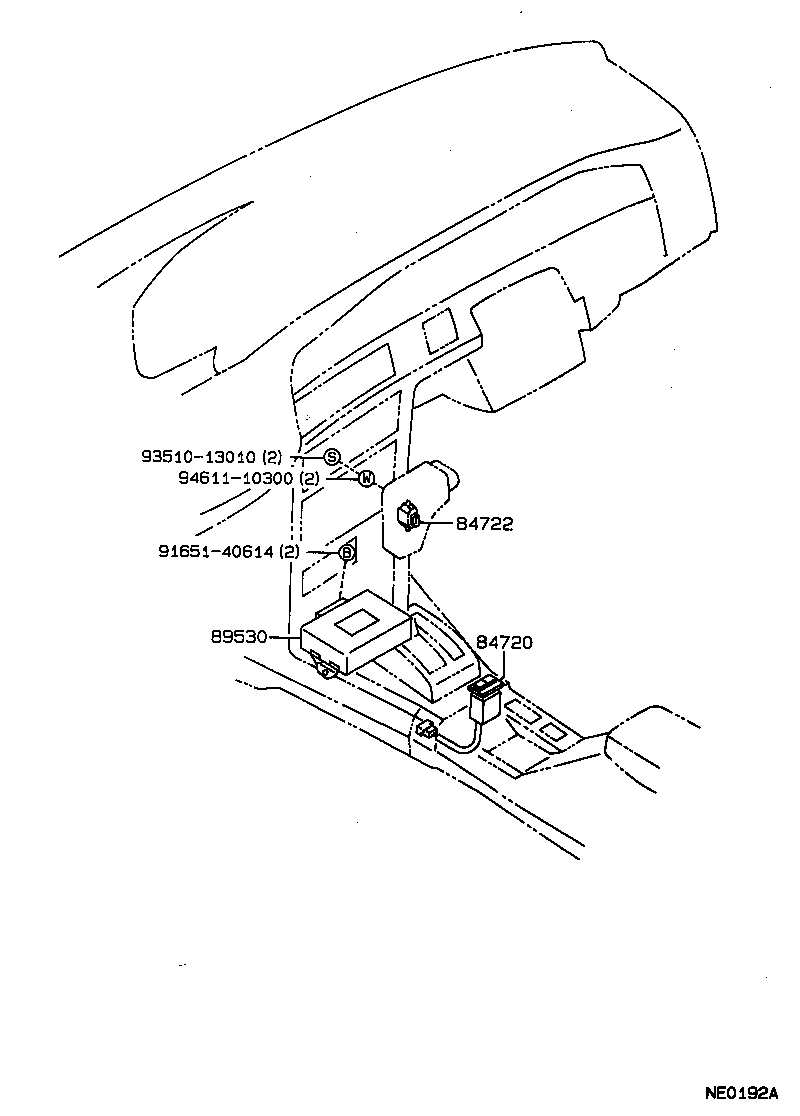

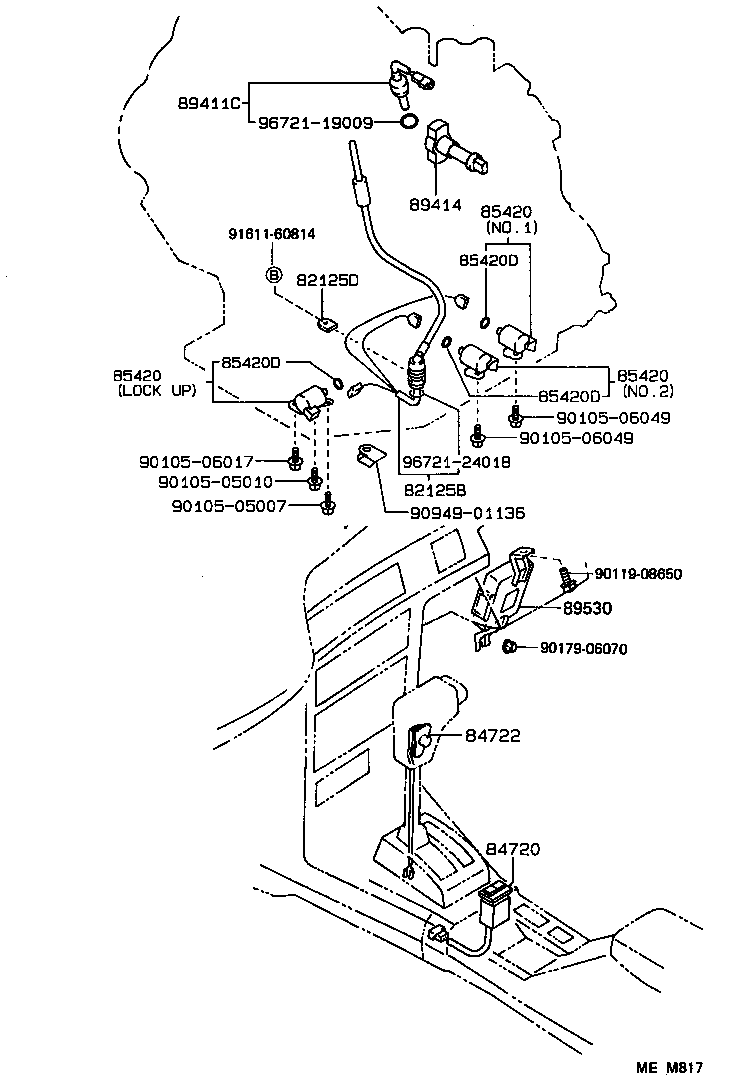

| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85425A | Ring, O (FOR OVERDRIVE SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
