Heating & Air Conditioning - Control & Air Duct

22 part groups · 5 illustrations

Illustrations

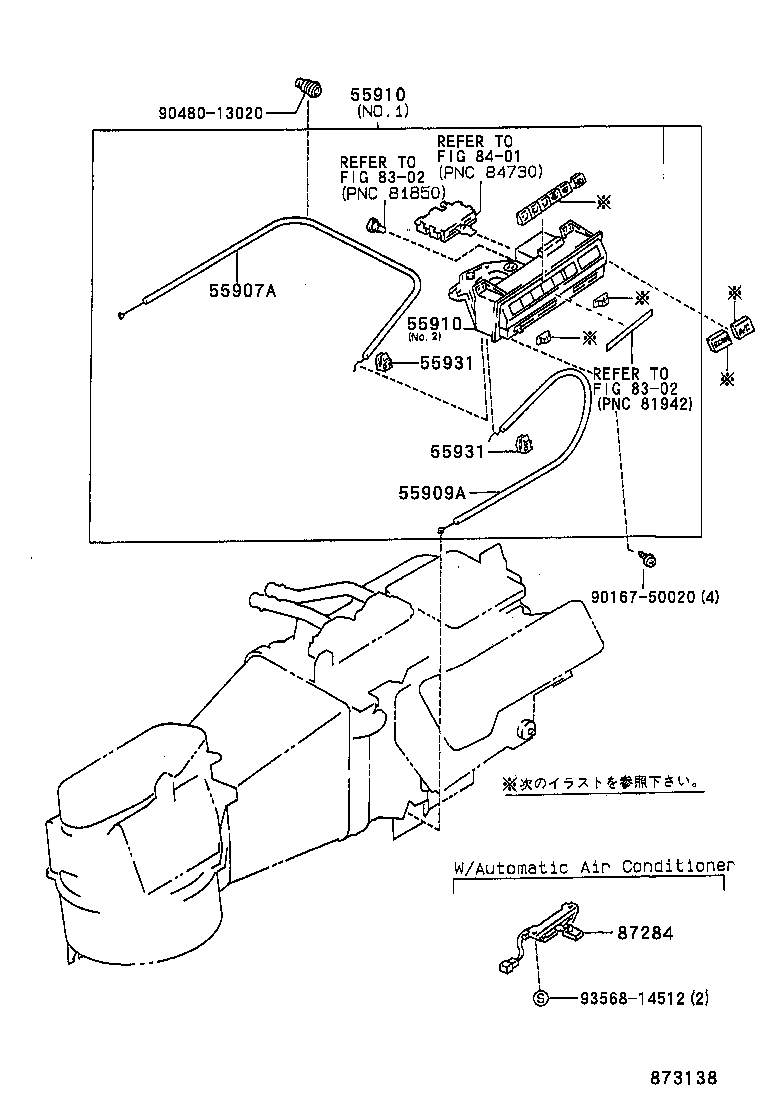

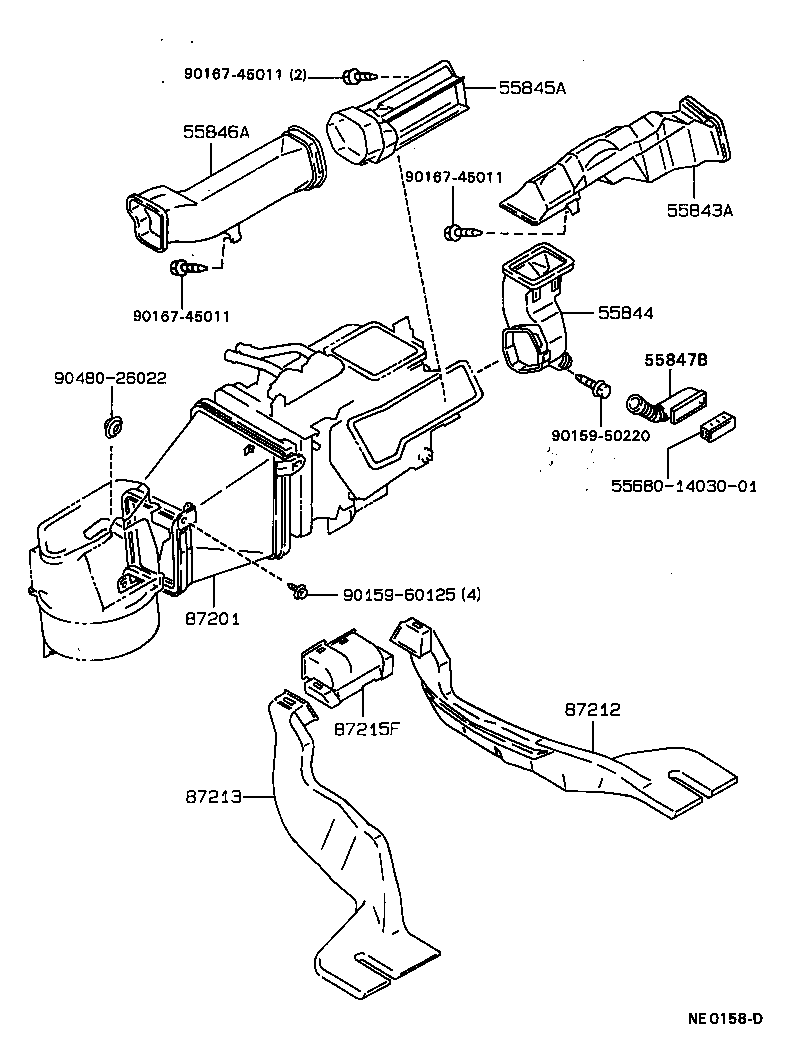

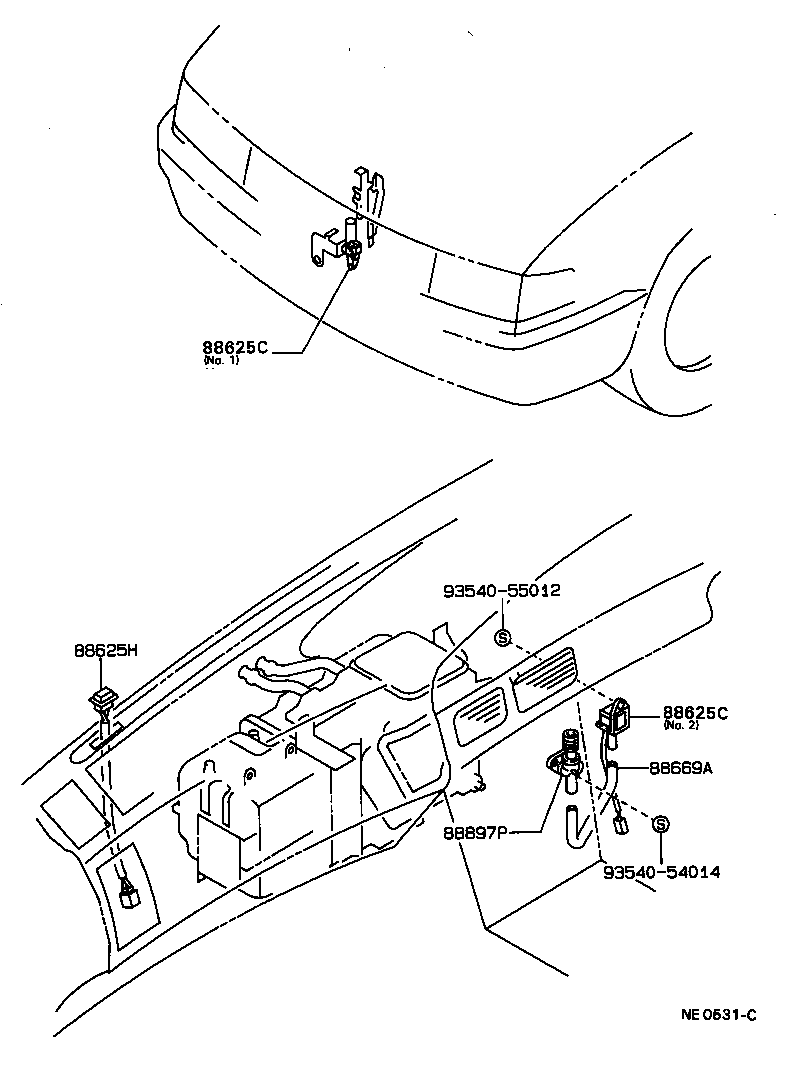

Figure NE0156C NE0156C 1987-05 → — Figure 873138 873138 1987-05 → — Figure MER647 MER647 1987-05 → — Figure NE0158D NE0158D 1987-05 → — Figure NE0531C NE0531C 1987-05 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
