Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

Figure NE0834A

NE0834A 1987-05 → —

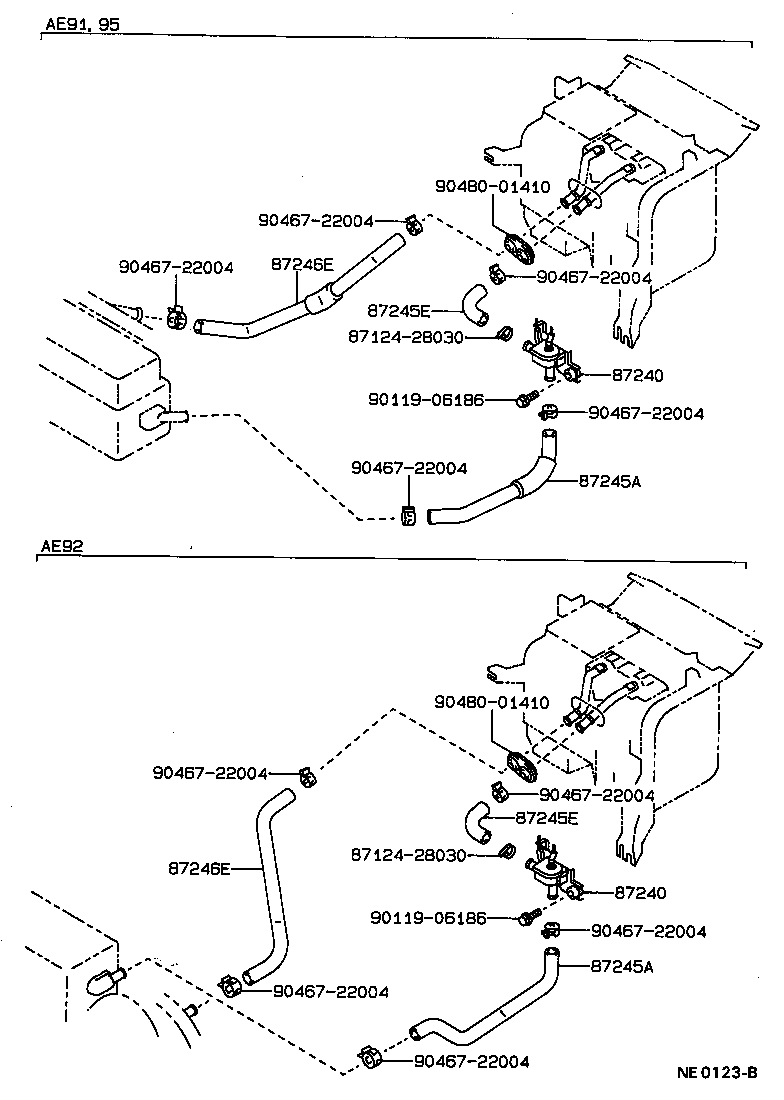

Figure NE0123B

NE0123B 1987-05 → —

Figure NE0124B

NE0124B 1987-05 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246E	Hose, Heater Water, Outlet E

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
