Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 6 illustrations

Illustrations

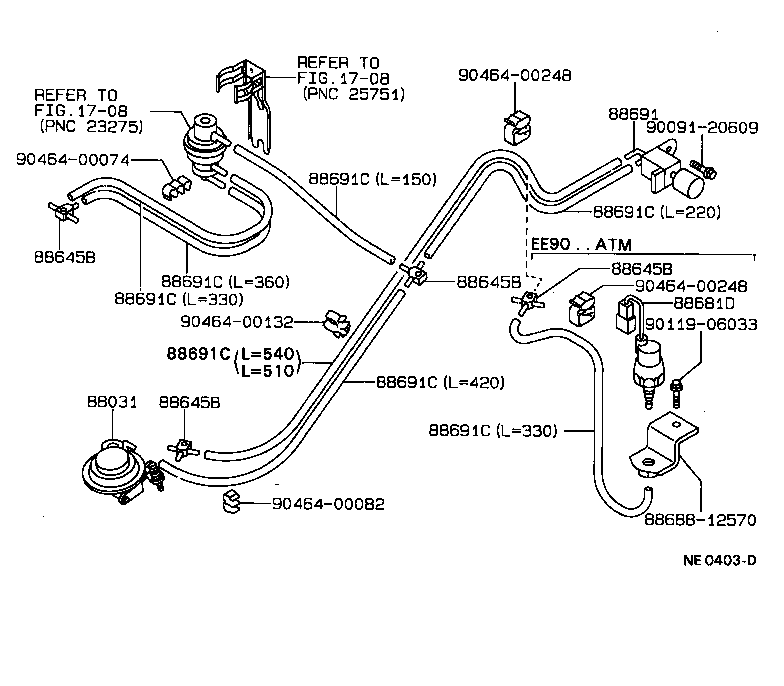

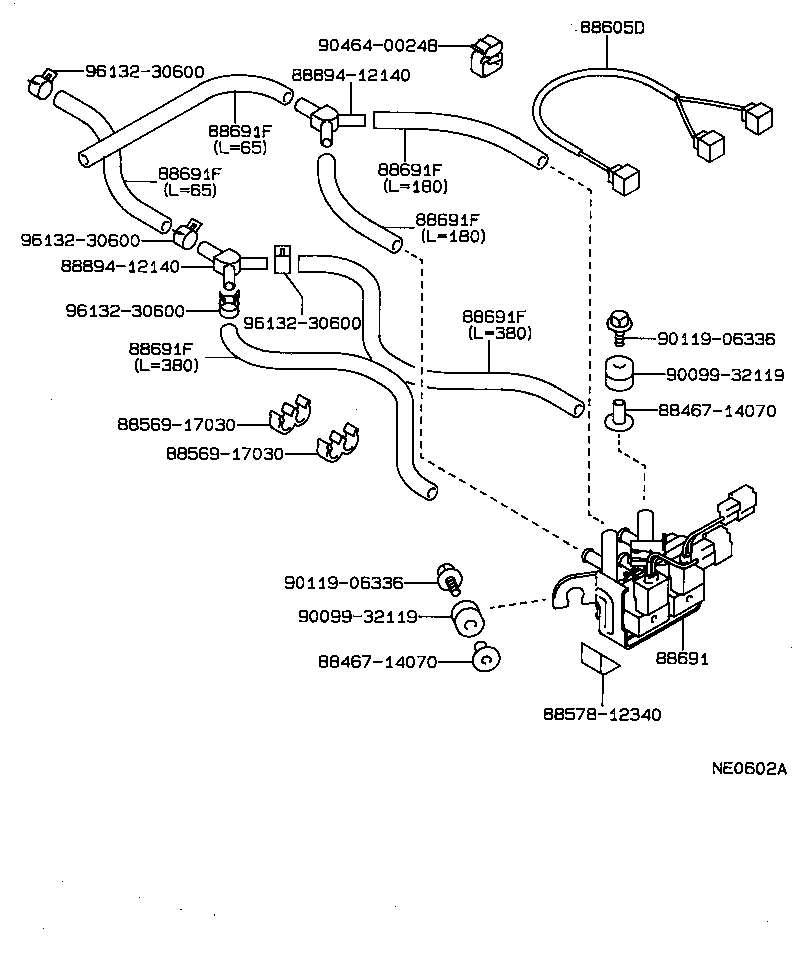

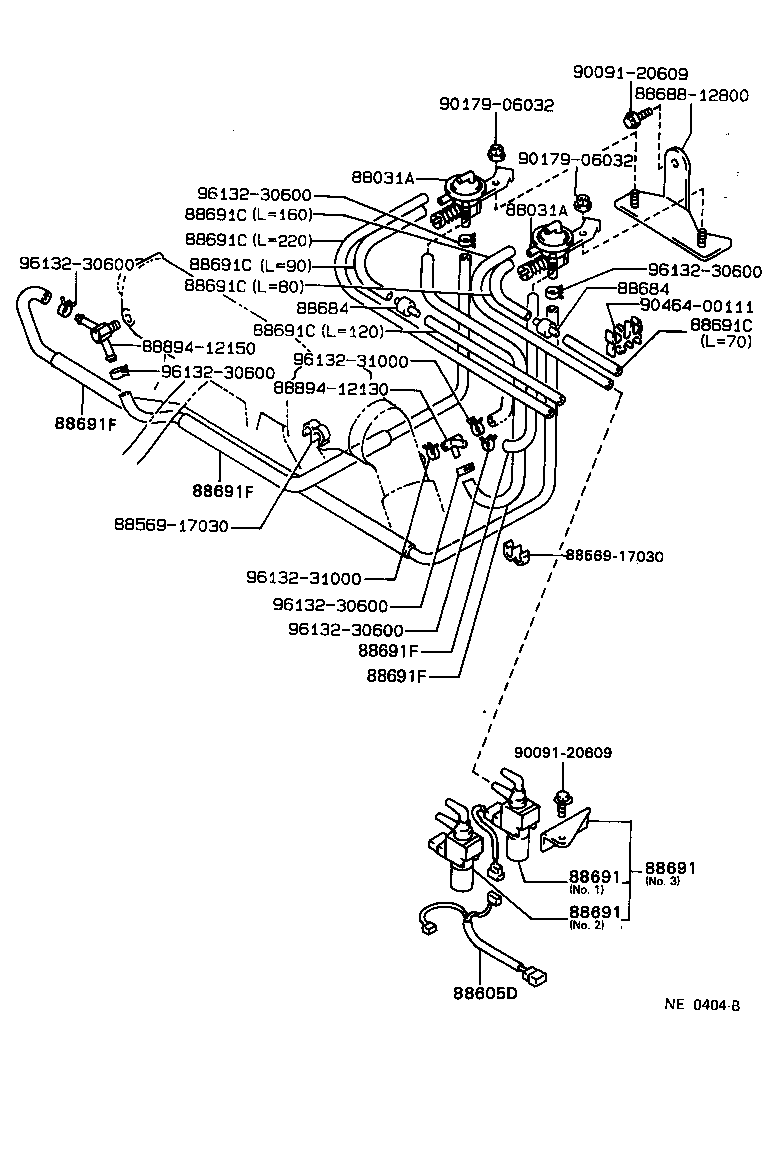

Figure NE0139A NE0139A 1987-05 → — Figure NE0403D NE0403D 1987-05 → — Figure MEQ749B MEQ749B 1987-05 → 1989-08 Figure NE0404B NE0404B 1987-05 → — Figure NE0602A NE0602A 1987-05 → — Figure NE0603B NE0603B 1987-05 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605D Wire, Air Conditioner
88609 Device Sub-assy, Idle UP
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88681D Switch, Vacuum
88684 Valve, Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691F Hose, Vacuum (FOR IDLE UP DIVICE), NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
