Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 6 illustrations

Illustrations

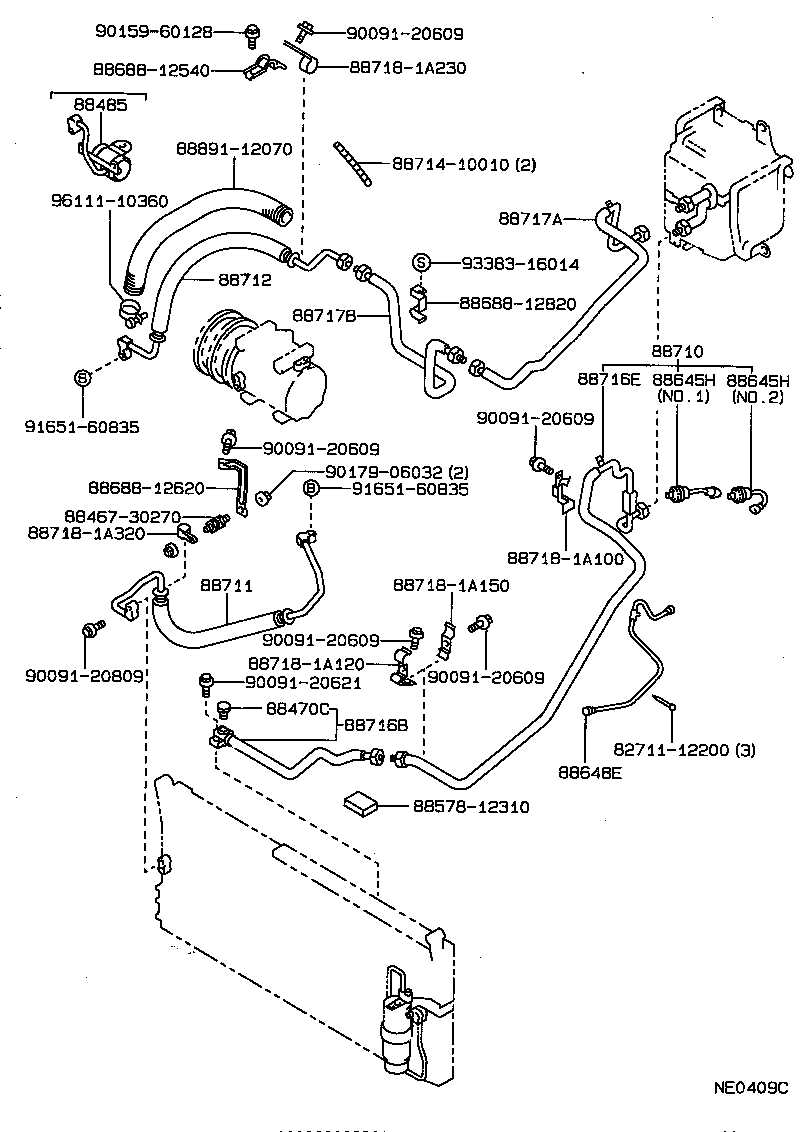

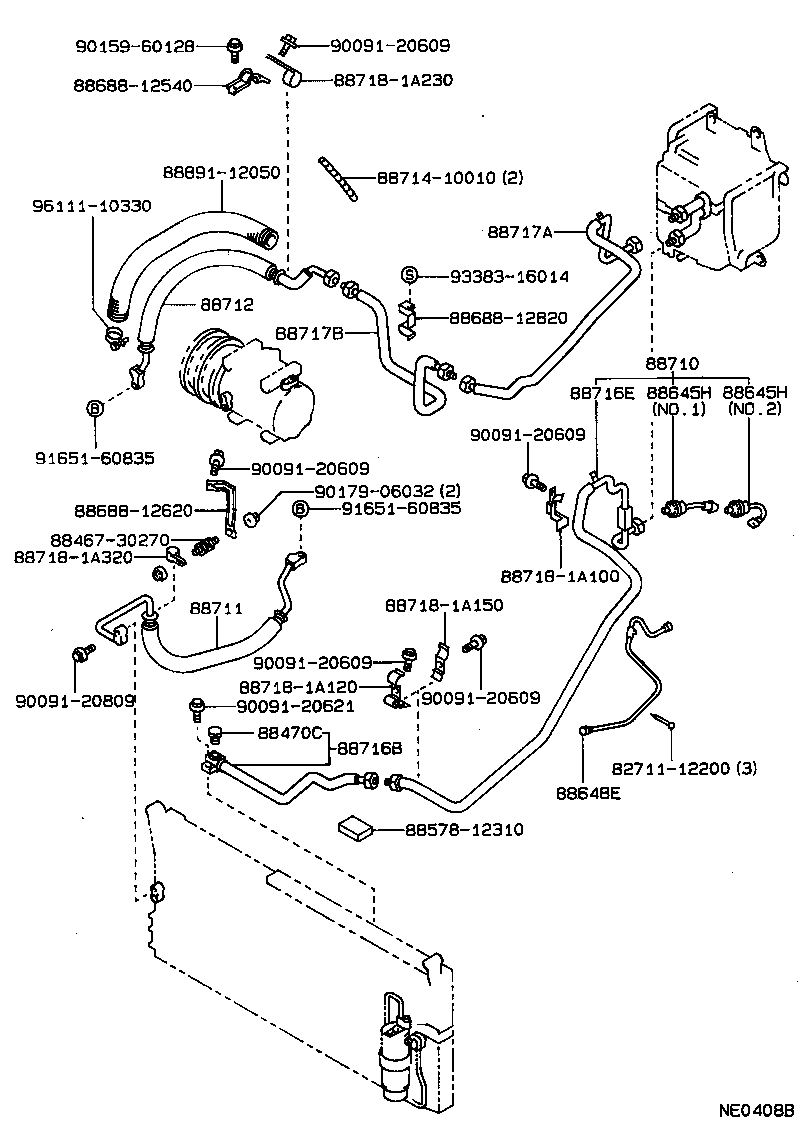

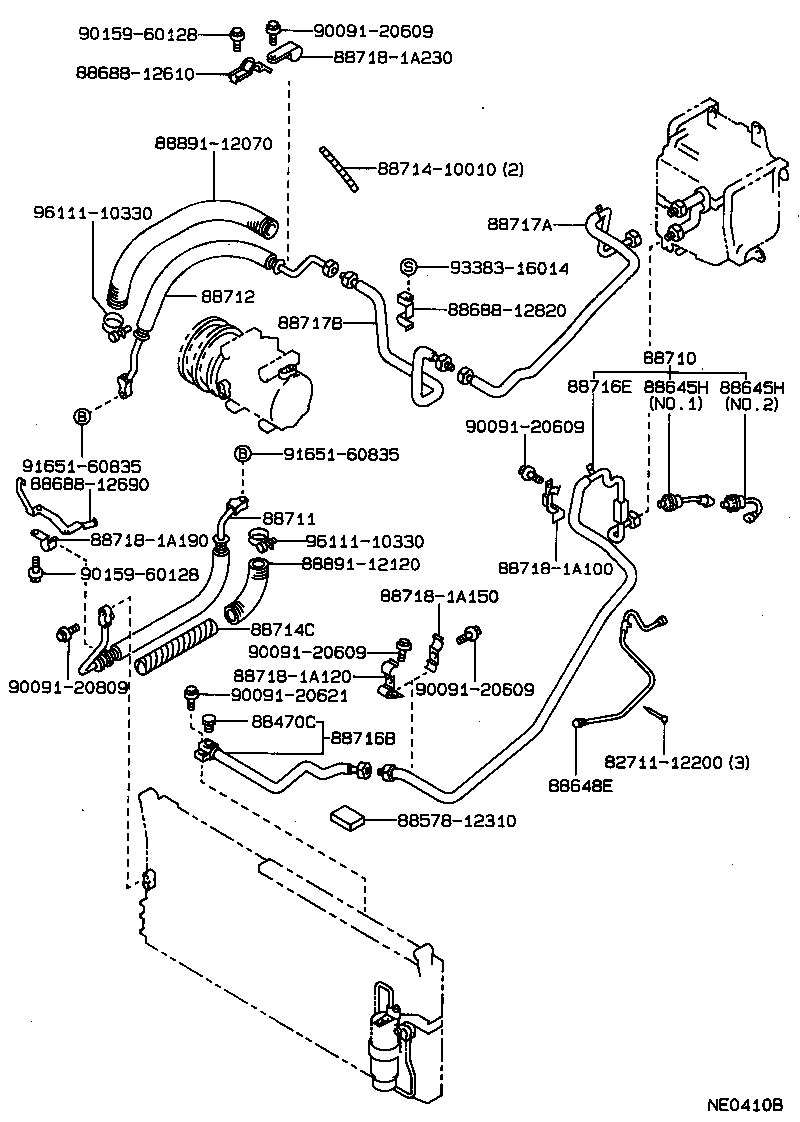

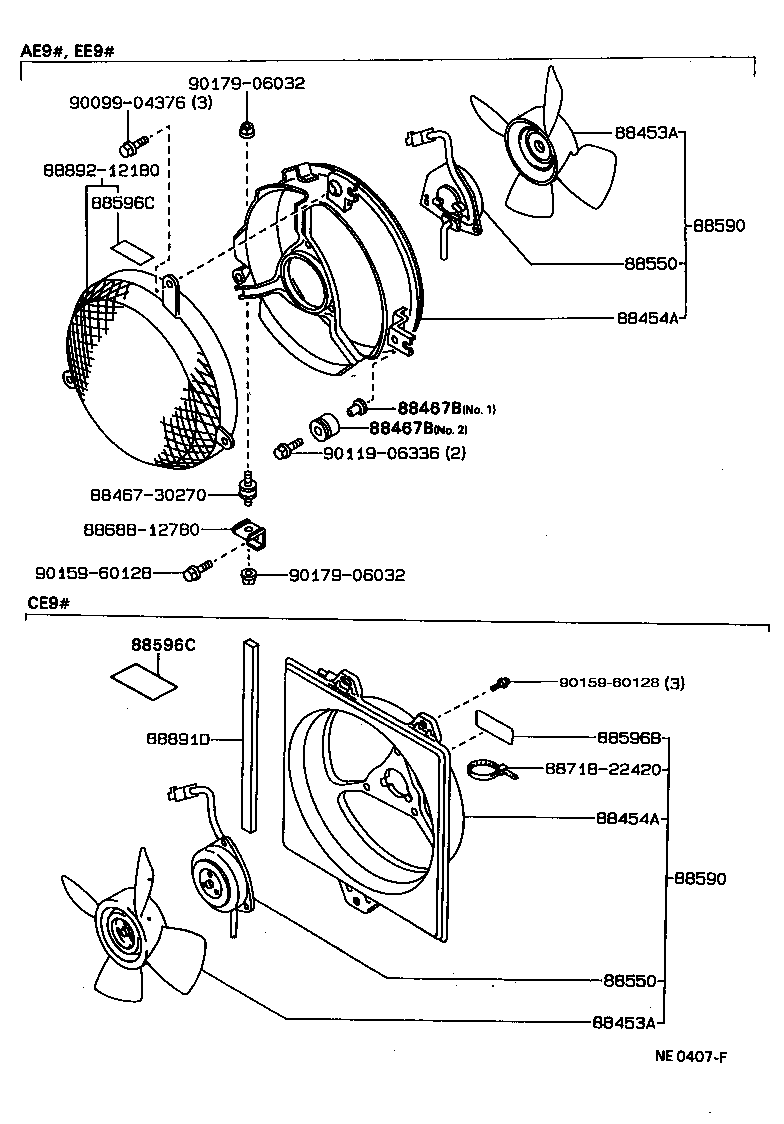

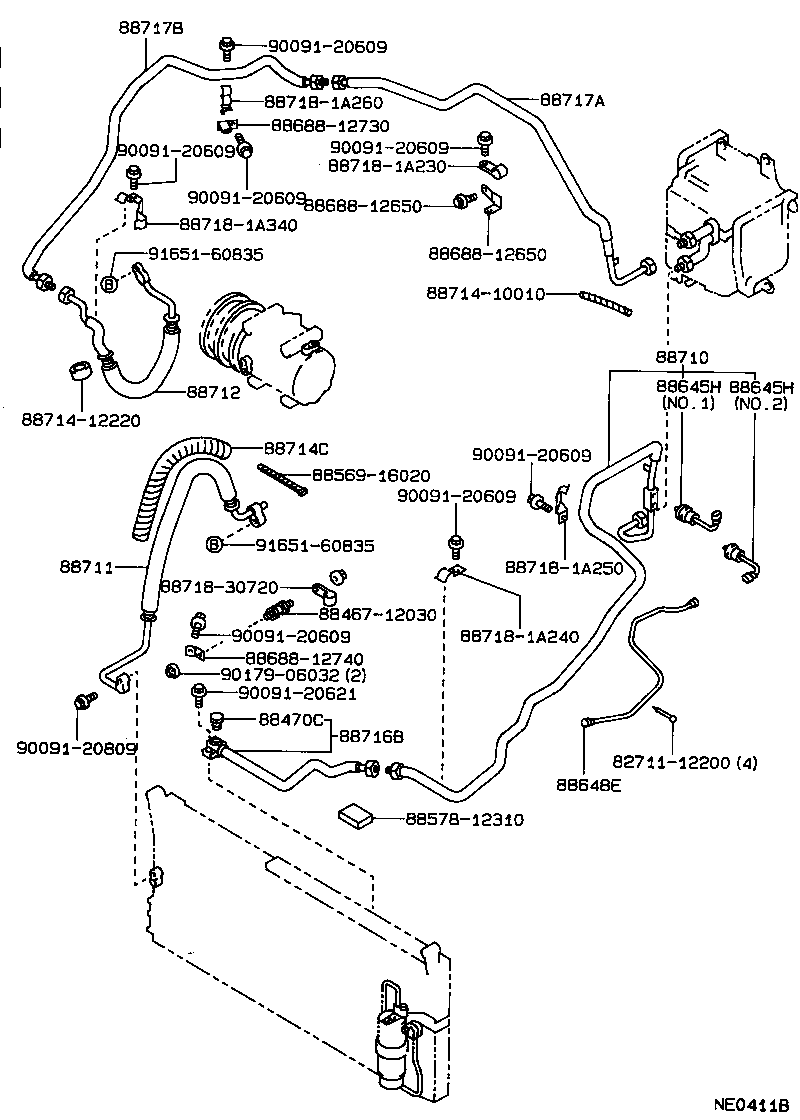

Figure NE0406E NE0406E 1987-05 → — Figure NE0407F NE0407F 1987-05 → — Figure NE0408B NE0408B 1987-05 → — Figure NE0409C NE0409C 1987-05 → — Figure NE0410B NE0410B 1987-05 → — Figure NE0411B NE0411B 1987-05 → —

Part groups

PNCDescription
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88485 Muffler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596B Plate, Caution, NO.1
88596C Plate, Caution, NO.2
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88891D Packing D (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
