Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 7 illustrations

Illustrations

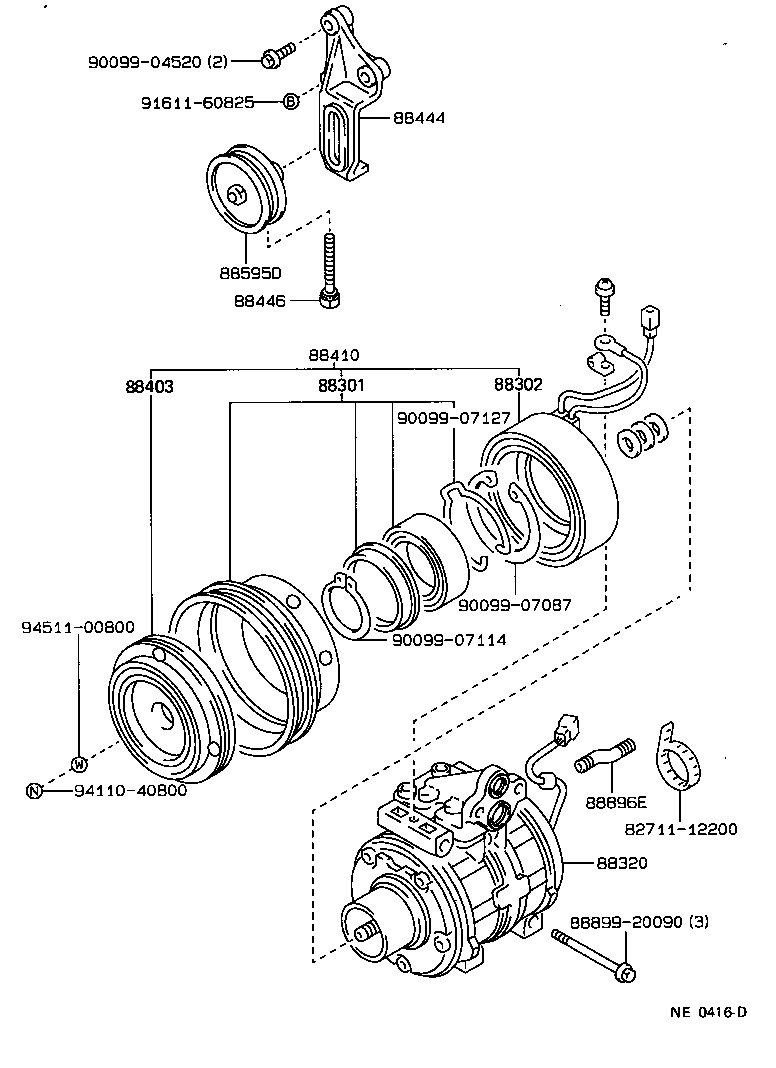

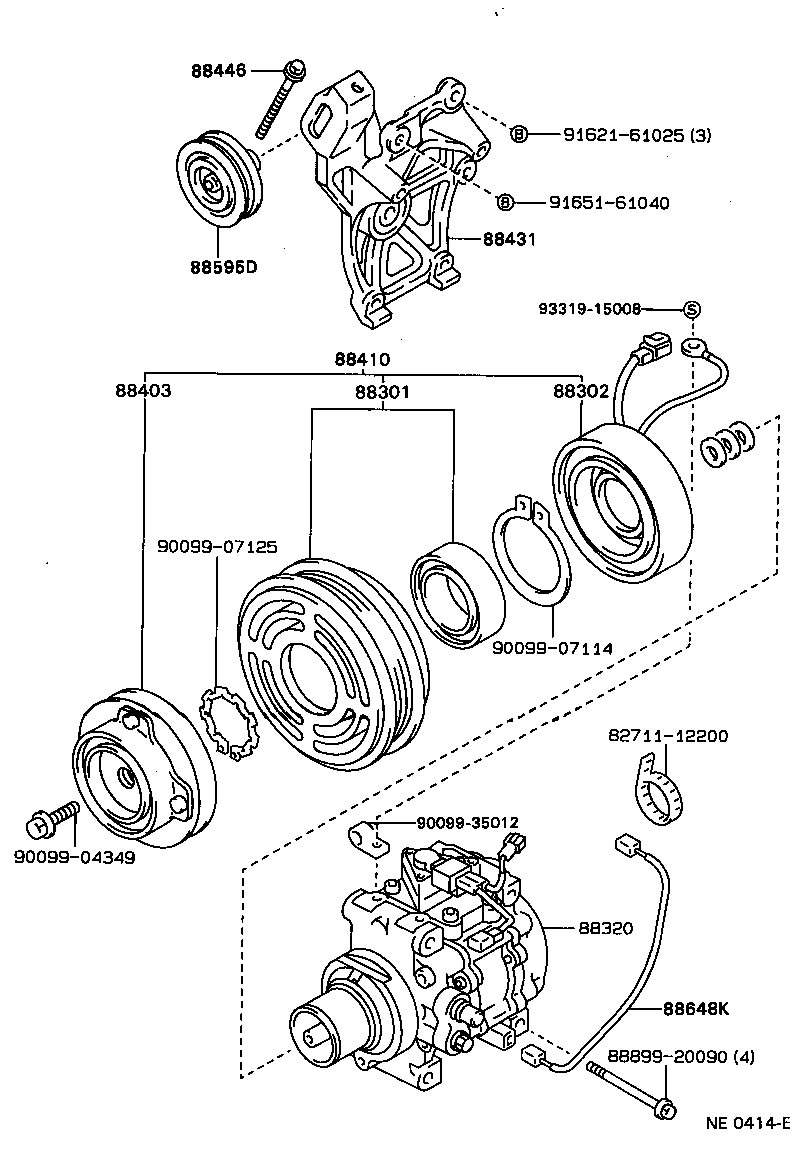

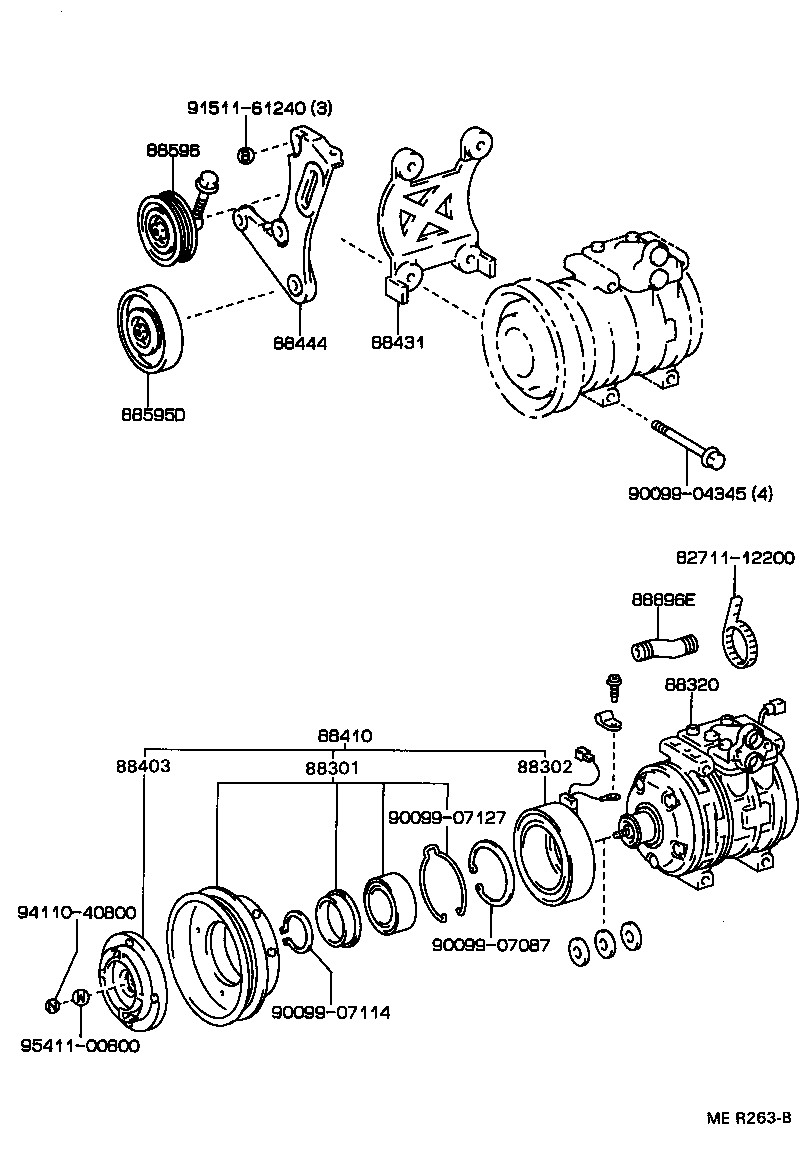

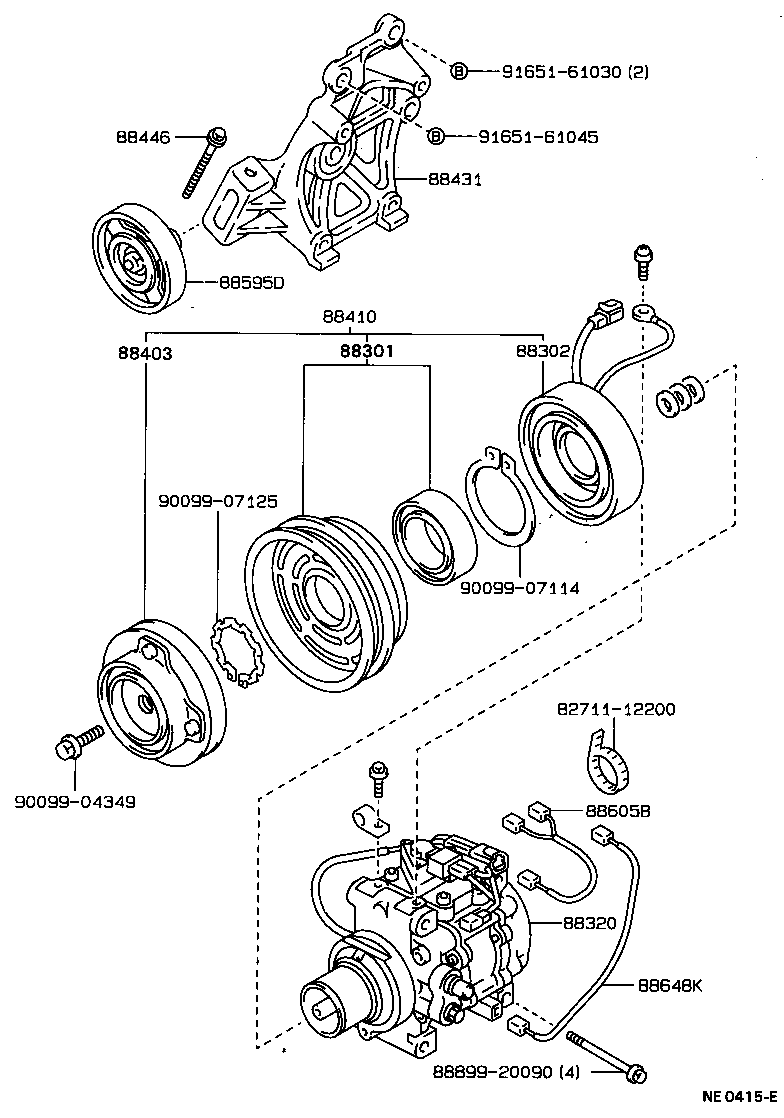

Figure NE0413C NE0413C 1987-05 → — Figure NE0414E NE0414E 1987-05 → — Figure NE0415E NE0415E 1987-05 → — Figure NE0416D NE0416D 1987-05 → 1989-05 Figure NE0416D NE0416D 1989-05 → 1989-08 Figure MER263B MER263B 1989-05 → 1989-08 Figure MER263B MER263B 1989-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595D Pulley Assy, Idle
88596 Pulley Assy, Idle, NO.2
88605B Harness Sub-assy, Air Conditioner Wiring
88648K Wire Sub-assy, Sensor
88896E Cover, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
