Exploded illustration 610206A 63204A — PANEL SUB-ASSY, SLIDING ROOF, INNER (3 parts) 63635A — GARNISH, SLIDING ROOF, FRONT (1 parts) 63214F — CHANNEL, ROOF DRIP, REAR (2 parts) 63221 — CASING, SLIDING ROOF CABLE GUIDE (2 parts) 63279D — STOPPER, SLIDING ROOF GUIDE RAIL (2 parts) 63277C — SHIM, SLIDING ROOF PANEL (4 parts) 63252D — WEATHERSTRIP, SLIDING ROOF HOUSING (1 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (2 parts) 63223 — CABLE, SLIDING ROOF DRIVE, RH (3 parts) 63224 — CABLE, SLIDING ROOF DRIVE, LH (3 parts) 63207G — RAIL SUB-ASSY, SLIDING ROOF GUIDE (4 parts) 63218H — HOSE, SLIDING ROOF DRAIN (7 parts) 63265B — GEAR, SLIDING ROOF DRIVE (2 parts) 63218H — HOSE, SLIDING ROOF DRAIN (7 parts) 63218H — HOSE, SLIDING ROOF DRAIN (7 parts) 63239 — STOPPER, SLIDING ROOF PANEL (2 parts) 63633A — BUSH, SLIDING ROOF HOUSING, NO.1 (1 parts) 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (2 parts) 63634A — BUSH, SLIDING ROOF HOUSING, NO.2 (1 parts) 63277C — SHIM, SLIDING ROOF PANEL (4 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (2 parts) 63267A — PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH (1 parts) 63268A — PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH (1 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (1 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (1 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (1 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (1 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (1 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (1 parts) 63625 — BLOCK, SLIDING ROOF GUIDE, RH (2 parts) 63626 — BLOCK, SLIDING ROOF GUIDE, LH (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (1 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (1 parts) 9016840084 — not listed in this catalogue 9015840004 — not listed in this catalogue 9015840004 — not listed in this catalogue 9017906069 — not listed in this catalogue 9011906033 — not listed in this catalogue 9017906069 — not listed in this catalogue 9048026026 — not listed in this catalogue 9046716029 — not listed in this catalogue 9616000400 — not listed in this catalogue 9046714001 — not listed in this catalogue 9046714001 — not listed in this catalogue 9016840027 — not listed in this catalogue 9095001060 — not listed in this catalogue 9046312014 — not listed in this catalogue 9046714001 — not listed in this catalogue 9017906069 — not listed in this catalogue 9338516012 — not listed in this catalogue 9011906072 — not listed in this catalogue 9011906072 — not listed in this catalogue 9011906072 — not listed in this catalogue 9011906072 — not listed in this catalogue 9011906072 — not listed in this catalogue 9166160620 — not listed in this catalogue 9016840079 — not listed in this catalogue 9356054008 — not listed in this catalogue 9094901868 — not listed in this catalogue 9014940022 — not listed in this catalogue 9046805017 — not listed in this catalogue 9046804128 — not listed in this catalogue 9015440011 — not listed in this catalogue 9015940056 — not listed in this catalogue 63219A — GARNISH, SLIDING ROOF, REAR (1 parts) 63259B — HOLDER, SLIDING ROOF WEATHERSTRIP (1 parts)

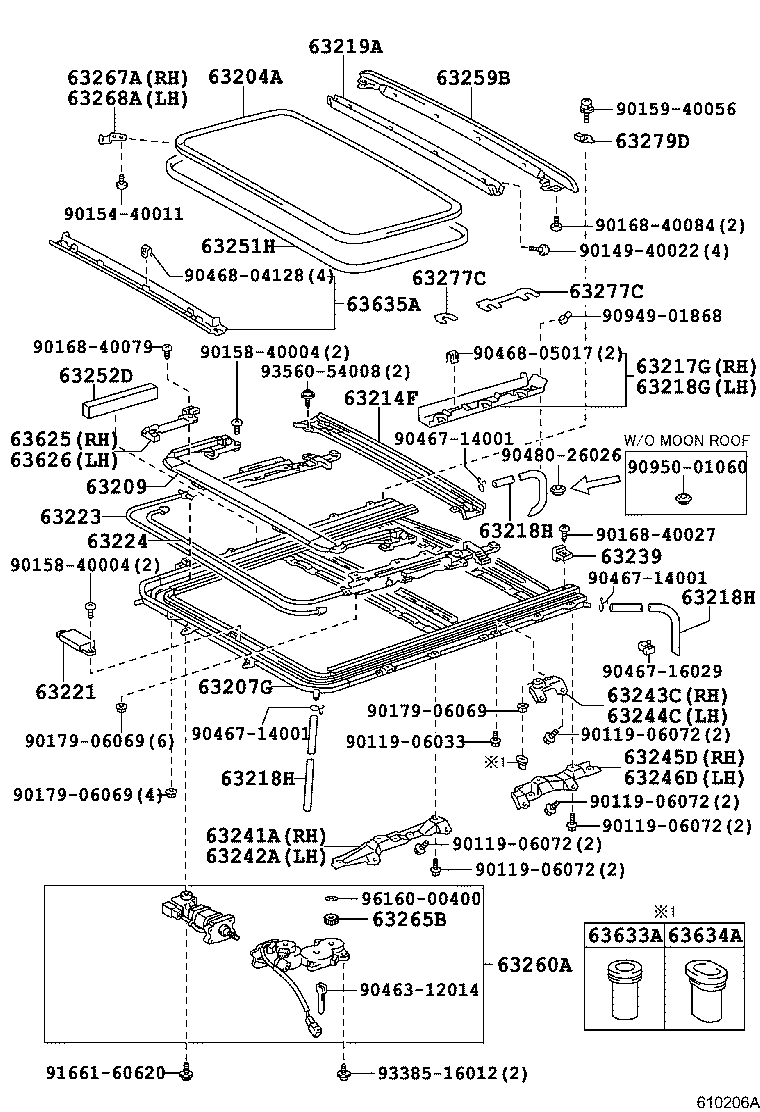

610206A · 35 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
63204A — Panel Sub-assy, Sliding Roof, Inner
63204-12060 note Panel Sub-assy, Sliding Roof, Inner
1991-06 → 1994-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥71,600
63204-12061 note Panel Sub-assy, Sliding Roof, Inner
1994-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥71,600
63204-13020 note Panel Sub-assy, Sliding Roof, Inner
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥85,800
63207G — Rail Sub-assy, Sliding Roof Guide
63207-12110 Rail Sub-assy, Sliding Roof Guide
1991-06 → 1991-09 ended
AE10#,CE100 GT,SEG,SEL,XE ¥37,100
63207-12111 Rail Sub-assy, Sliding Roof Guide
1991-09 → 1994-01 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥36,500
63207-12112 Rail Sub-assy, Sliding Roof Guide
1994-01 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥36,800
63207-13030 Rail Sub-assy, Sliding Roof Guide
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥36,800
63209 — Panel Sub-assy, Roof Wind Deflector
63209-12080 Panel Sub-assy, Roof Wind Deflector
1991-06 → 1995-05 ended
AE10#,CE100,104 4DS (GT,SEG,SEL,XE) ¥17,300
63209-12100 Panel Sub-assy, Roof Wind Deflector
1992-05 → 1995-05 ended
AE101 3DS ¥14,400
63214F — Channel, Roof Drip, Rear
63214-12040 Channel, Roof Drip, Rear
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥3,180
63214-13020 Channel, Roof Drip, Rear
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥4,180
63217G — Garnish, Sliding Roof Side, RH
63217-12060 Garnish, Sliding Roof Side, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥3,400
63218G — Garnish, Sliding Roof Side, LH
63218-12070 Garnish, Sliding Roof Side, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥3,400
63218H — Hose, Sliding Roof Drain
63220-13010 note Hose, Sliding Roof Drain
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥1,400
63249-12160 note Hose, Sliding Roof Drain
1991-06 → 1995-05 ended
AE10#,CE100,104 4DS (GT,SEG,SEL,XE) ¥1,410
63249-12210 note Hose, Sliding Roof Drain
1991-06 → 1993-07 ended
AE10#,CE100,104 4DS (GT,SEG,SEL,XE) ¥1,460
63249-12210 note Hose, Sliding Roof Drain
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥1,460
63249-12210 note Hose, Sliding Roof Drain
1993-07 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥1,460
63249-12230 note Hose, Sliding Roof Drain
1992-05 → 1995-05 ended
AE101 3DS ¥1,360
63249-32090 note Hose, Sliding Roof Drain
1992-05 → 1993-07 ended
AE101 3DS ¥1,600
63219A — Garnish, Sliding Roof, Rear
63219-12040 Garnish, Sliding Roof, Rear
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥2,870
63221 — Casing, Sliding Roof Cable Guide
63221-12070 Casing, Sliding Roof Cable Guide
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥2,190
63221-13030 Casing, Sliding Roof Cable Guide
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥12,200
63223 — Cable, Sliding Roof Drive, RH
63223-12090 Cable, Sliding Roof Drive, RH
1991-06 → 1991-09 ended
AE10#,CE100 GT,SEG,SEL,XE ¥18,700
63223-12091 Cable, Sliding Roof Drive, RH
1991-09 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥18,500
63223-13040 Cable, Sliding Roof Drive, RH
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥14,600
63224 — Cable, Sliding Roof Drive, LH
63224-12080 Cable, Sliding Roof Drive, LH
1991-06 → 1991-09 ended
AE10#,CE100 GT,SEG,SEL,XE ¥18,700
63224-12081 Cable, Sliding Roof Drive, LH
1991-09 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥18,500
63224-13040 Cable, Sliding Roof Drive, LH
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥14,600
63239 — Stopper, Sliding Roof Panel
63239-12020 Stopper, Sliding Roof Panel
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥140
63239-12030 Stopper, Sliding Roof Panel
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥170
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-12040 Bracket, Sliding Roof Housing Front Mounting, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥2,080
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-12020 Bracket, Sliding Roof Housing Front Mounting, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥2,080
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-12060 Bracket, Sliding Roof Housing Center Mounting, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥740
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-12060 Bracket, Sliding Roof Housing Center Mounting, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥740
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-12030 Bracket, Sliding Roof Housing Rear Mounting, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥1,840
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-12020 Bracket, Sliding Roof Housing Rear Mounting, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥1,840
63251H — Weatherstrip, Sliding Roof
63251-12120 Weatherstrip, Sliding Roof
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥6,300
63251-13020 Weatherstrip, Sliding Roof
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥7,500
63252D — Weatherstrip, Sliding Roof Housing
63252-12030 Weatherstrip, Sliding Roof Housing
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥550
63259B — Holder, Sliding Roof Weatherstrip
63259-12070 Holder, Sliding Roof Weatherstrip
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥2,020
63260A — Gear Sub-assy, Sliding Roof Drive
63260-12070 Gear Sub-assy, Sliding Roof Drive
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥46,800
63260-13030 Gear Sub-assy, Sliding Roof Drive
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥46,900
63265B — Gear, Sliding Roof Drive
63265-12020 Gear, Sliding Roof Drive
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥580
63265-12040 Gear, Sliding Roof Drive
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥1,600
63267A — Protector, Sliding Roof Weatherstrip, RH
63267-32020 Protector, Sliding Roof Weatherstrip, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥310
63268A — Protector, Sliding Roof Weatherstrip, LH
63268-32020 Protector, Sliding Roof Weatherstrip, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥310
63277C — Shim, Sliding Roof Panel
63277-20020 note Shim, Sliding Roof Panel
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥740
63277-20030 note Shim, Sliding Roof Panel
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥280
63277-20040 note Shim, Sliding Roof Panel
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥740
63277-20050 note Shim, Sliding Roof Panel
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥240
63279D — Stopper, Sliding Roof Guide Rail
63279-12020 Stopper, Sliding Roof Guide Rail
1991-08 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥580
63279-12030 Stopper, Sliding Roof Guide Rail
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥320
63625 — Block, Sliding Roof Guide, RH
63625-12010 Block, Sliding Roof Guide, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥720
63625-13010 Block, Sliding Roof Guide, RH
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥2,370
63626 — Block, Sliding Roof Guide, LH
63626-12010 Block, Sliding Roof Guide, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥720
63626-13010 Block, Sliding Roof Guide, LH
1997-05 → 2000-08 ended
AE100,101,104,CE100,101 ¥2,370
63633A — Bush, Sliding Roof Housing, NO.1
63633-12010 Bush, Sliding Roof Housing, NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥140
63634A — Bush, Sliding Roof Housing, NO.2
63634-12010 Bush, Sliding Roof Housing, NO.2
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥140
63635A — Garnish, Sliding Roof, Front
63635-12030 Garnish, Sliding Roof, Front
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL,SJ,XE ¥3,760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
