Exhaust Pipe

49 part groups · 25 illustrations

Illustrations

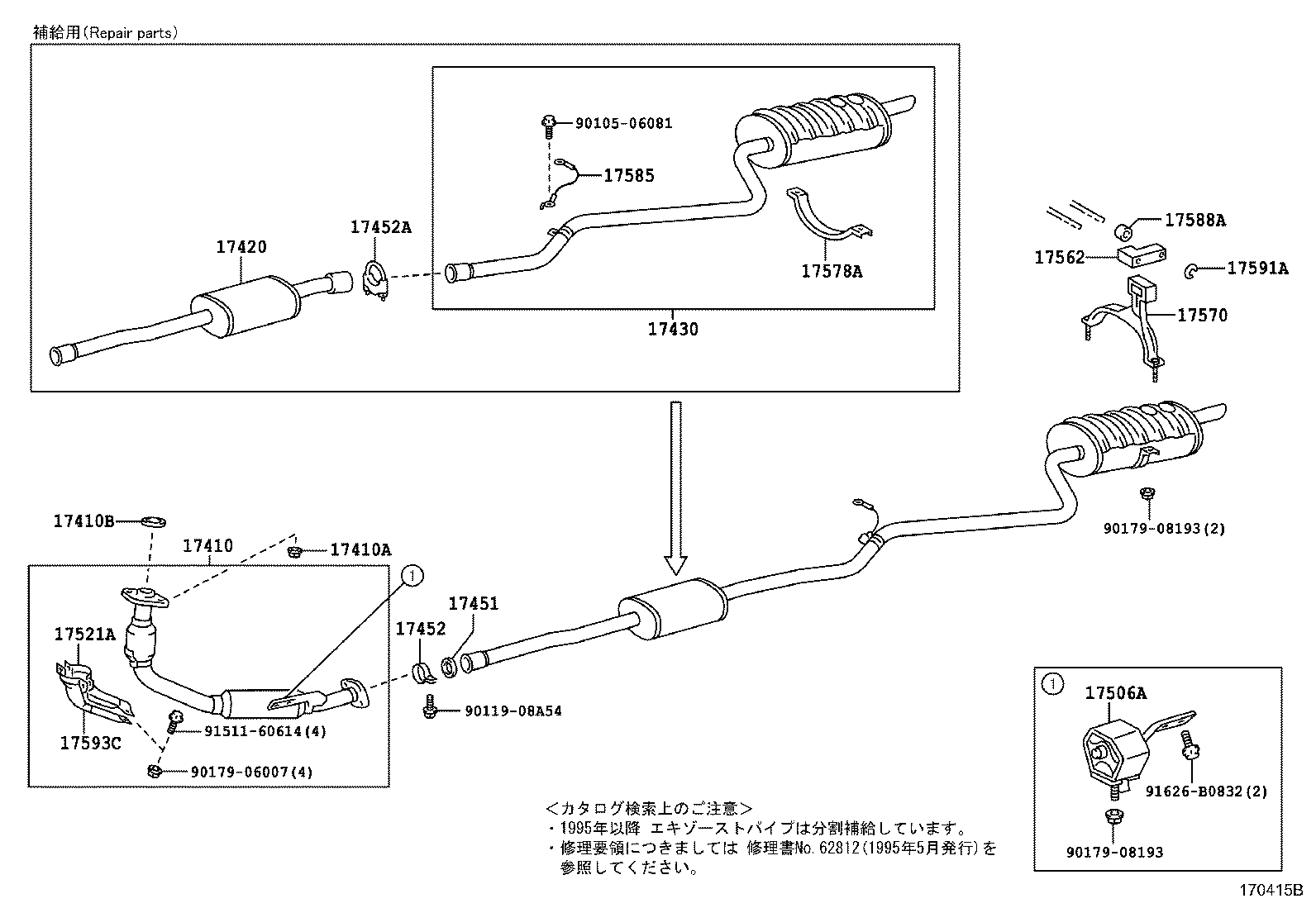

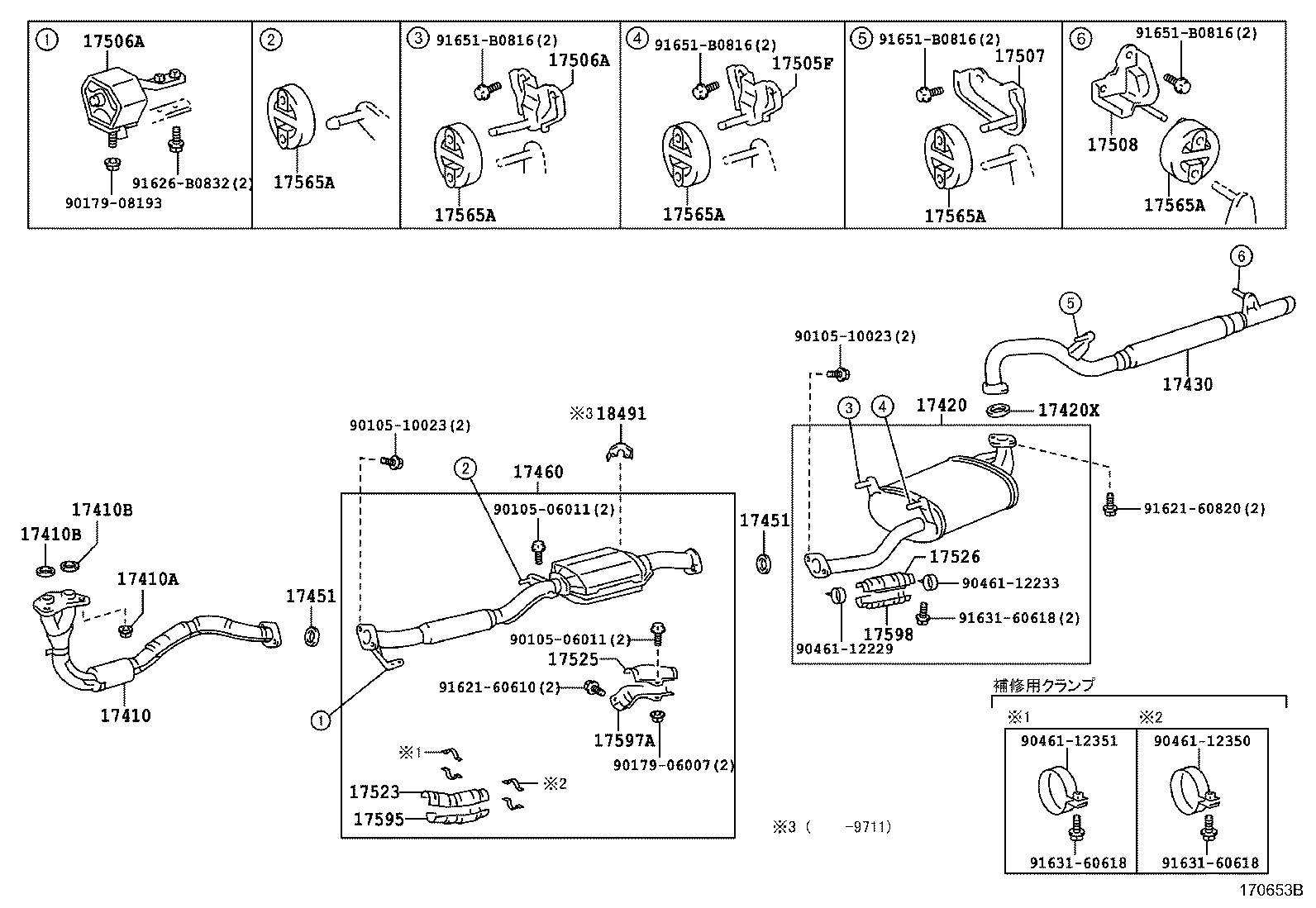

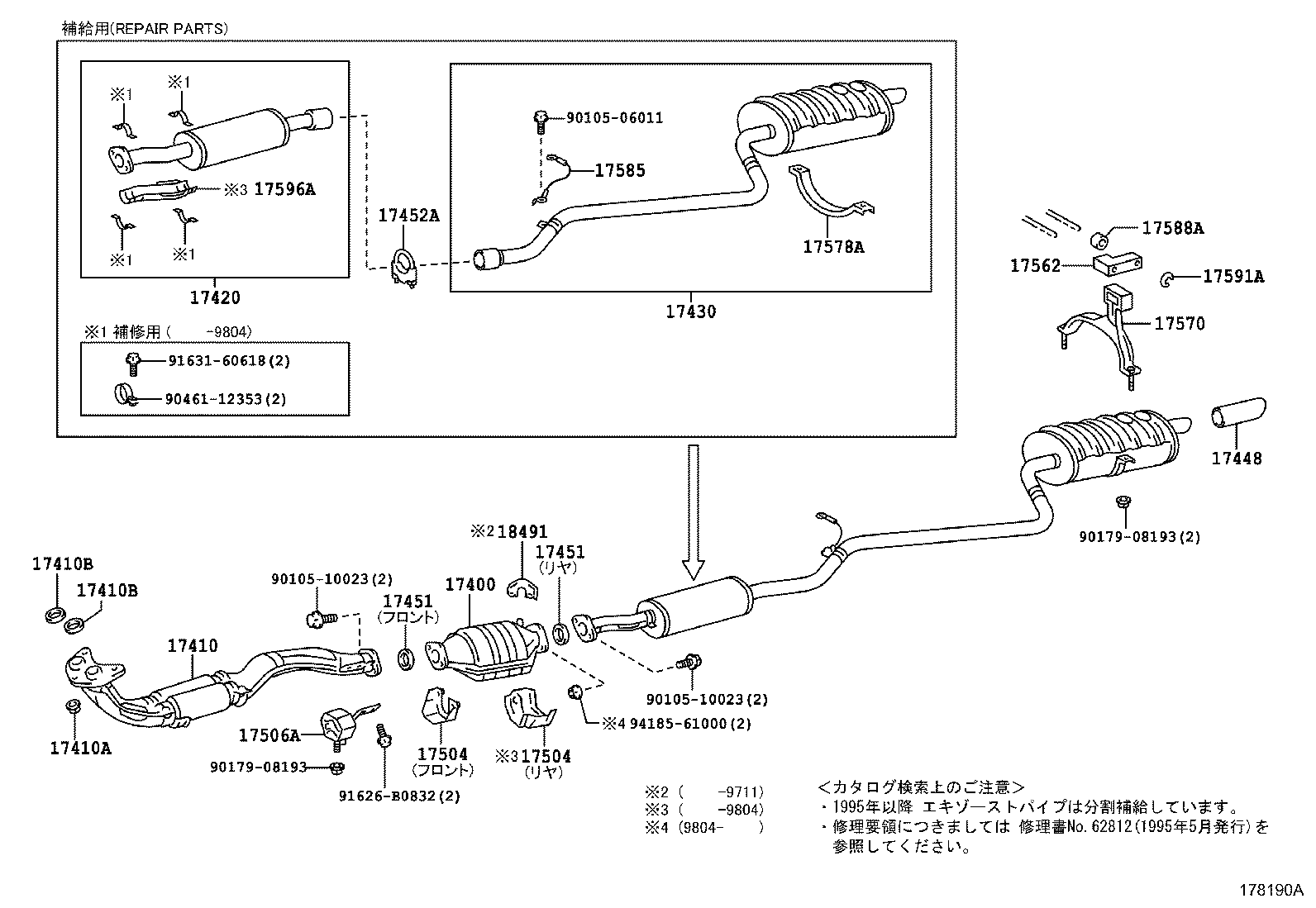

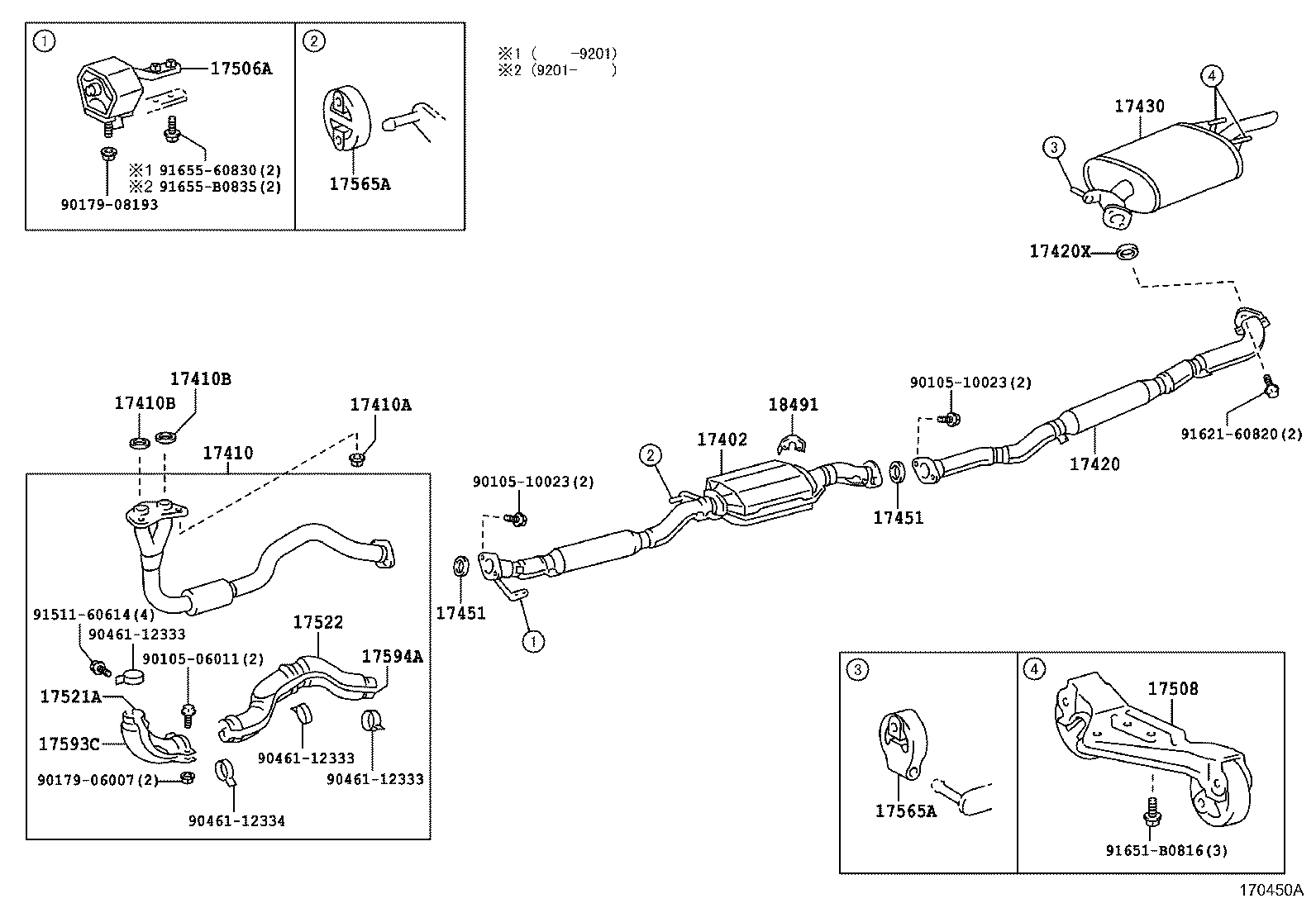

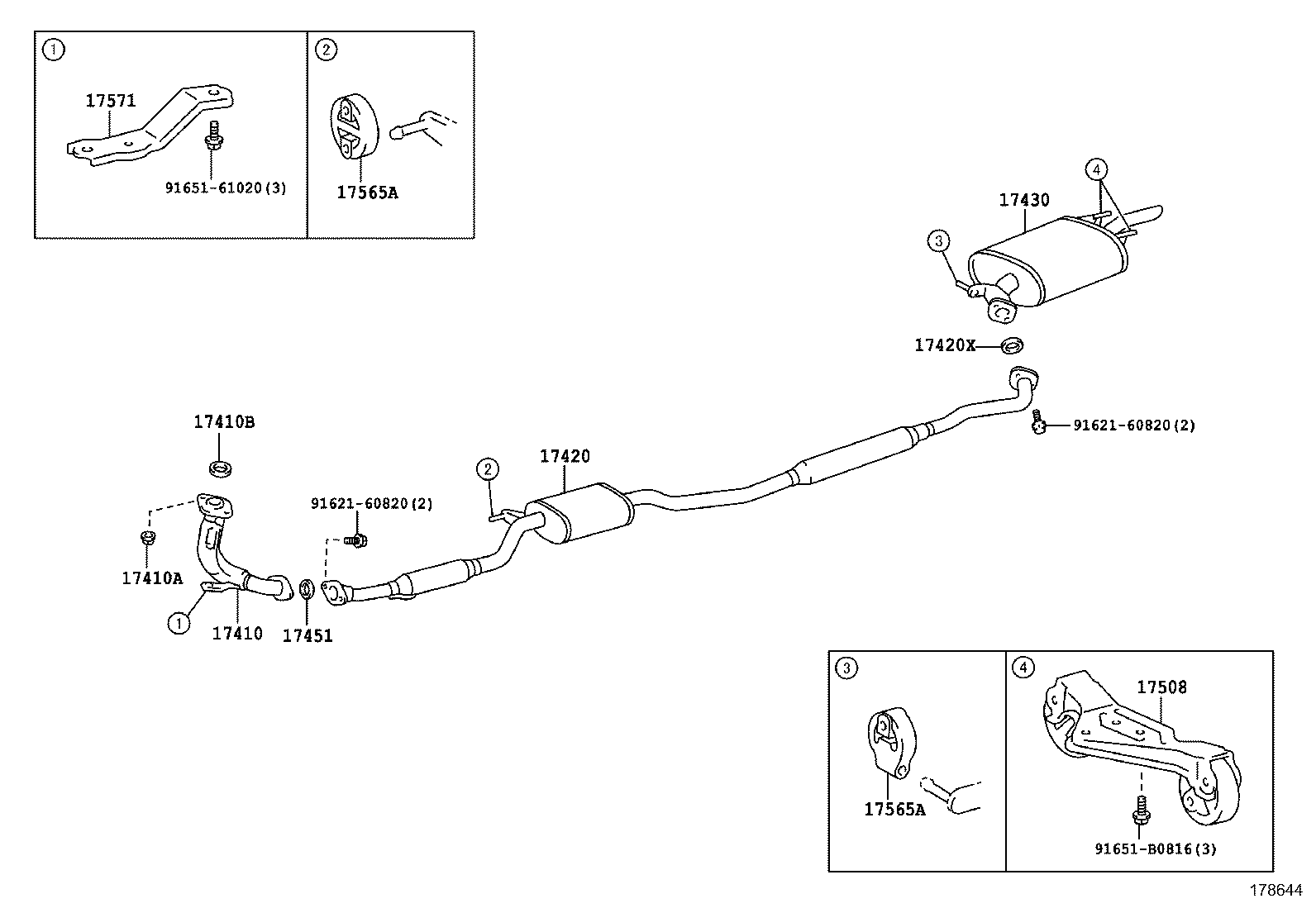

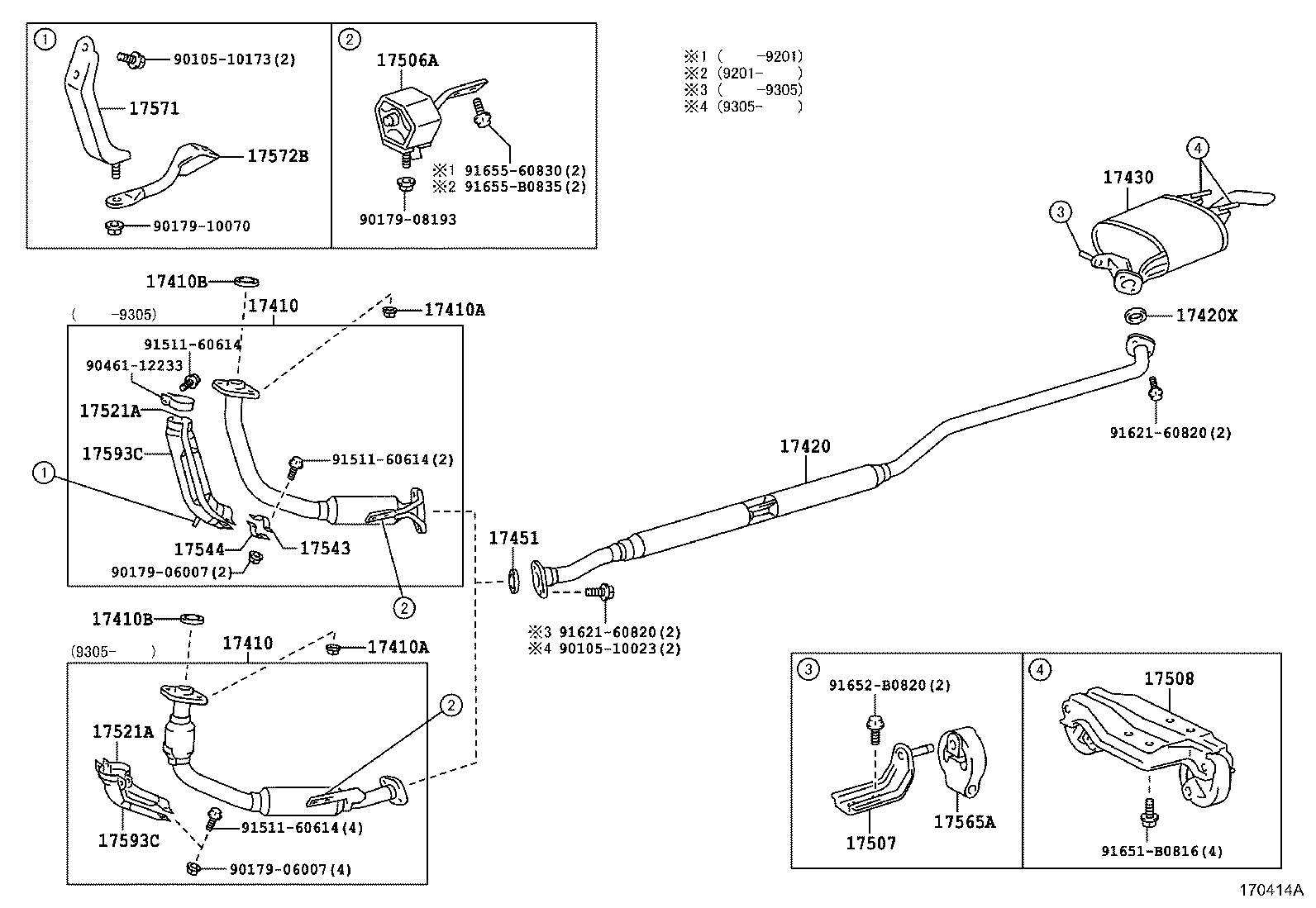

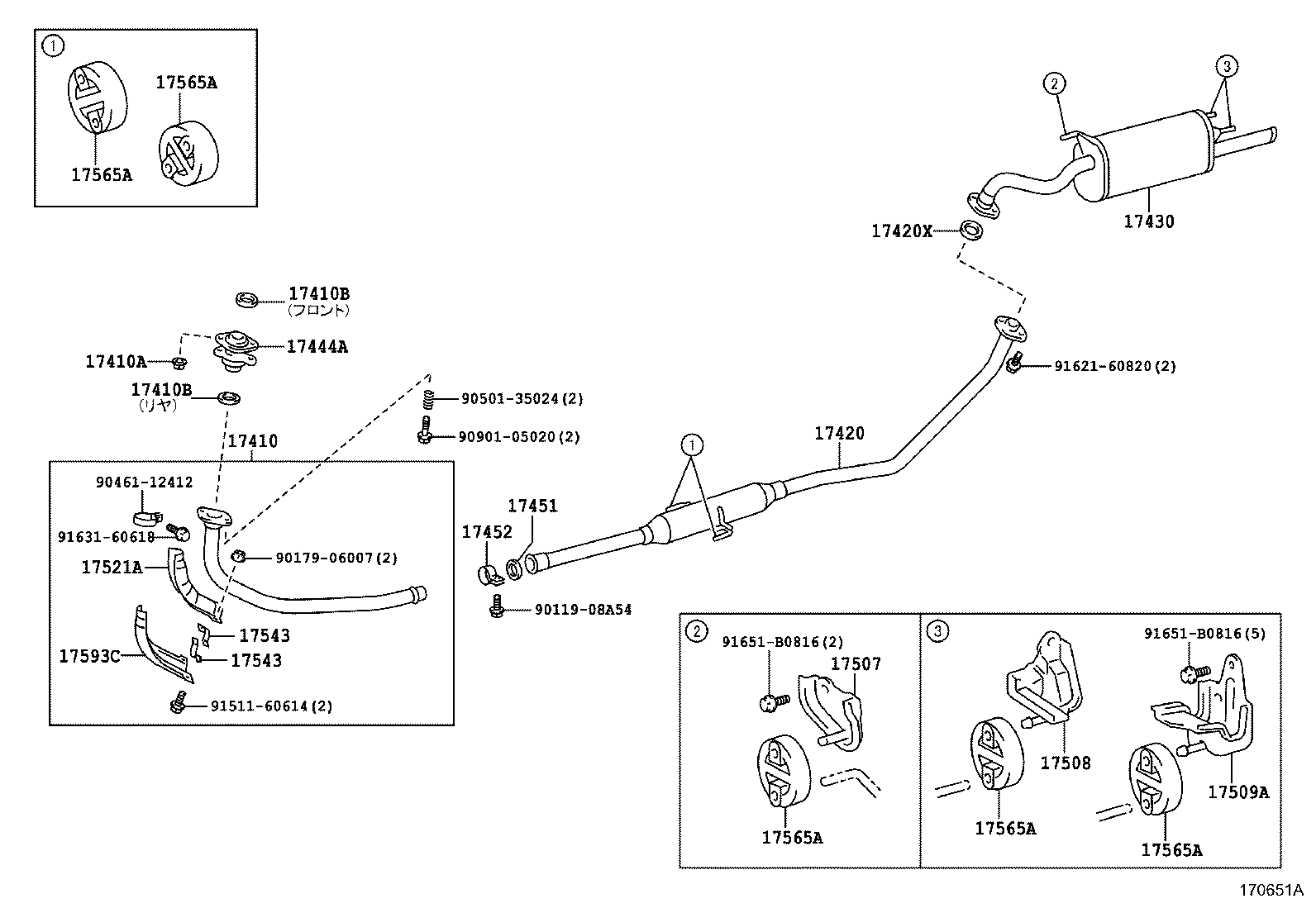

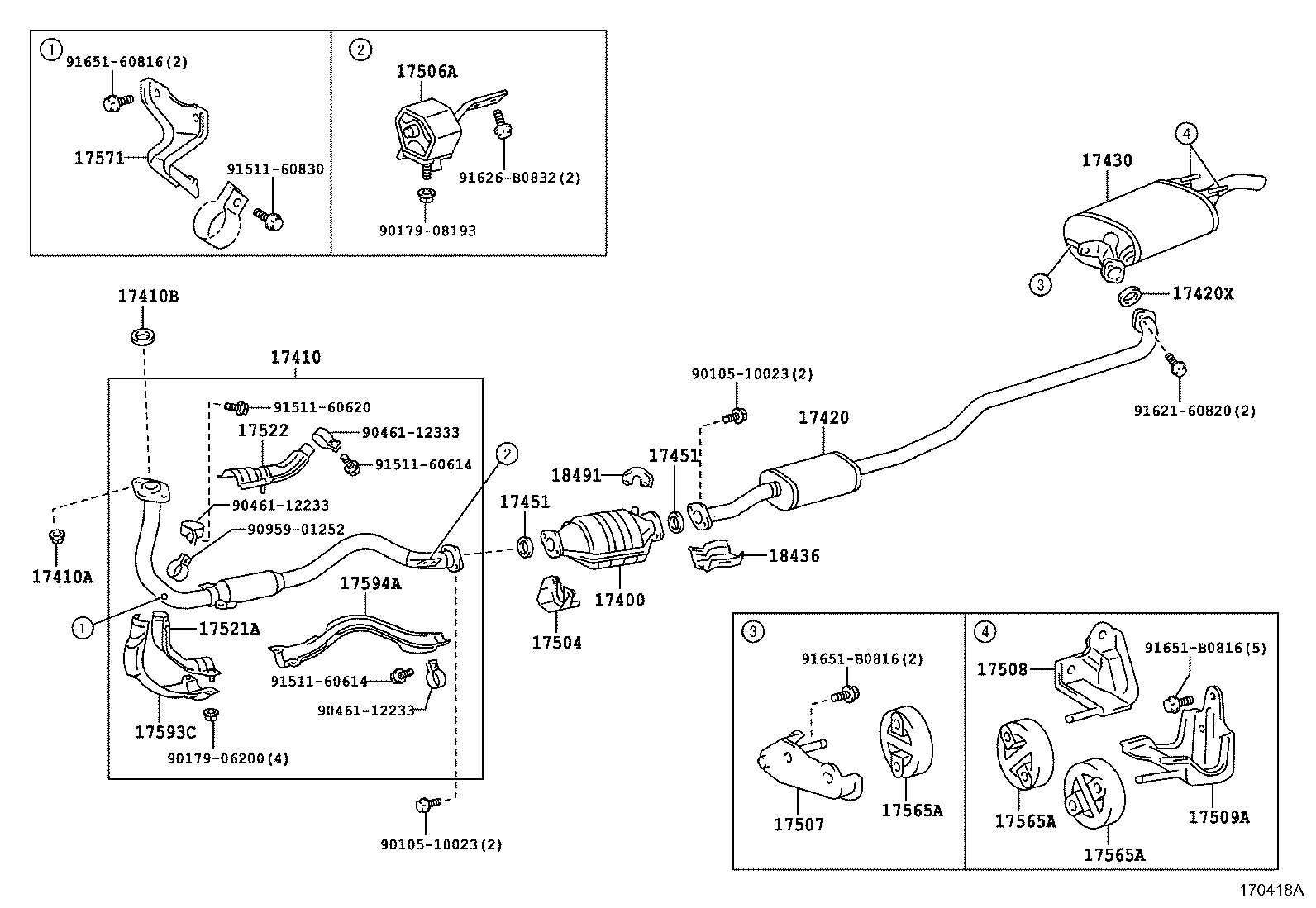

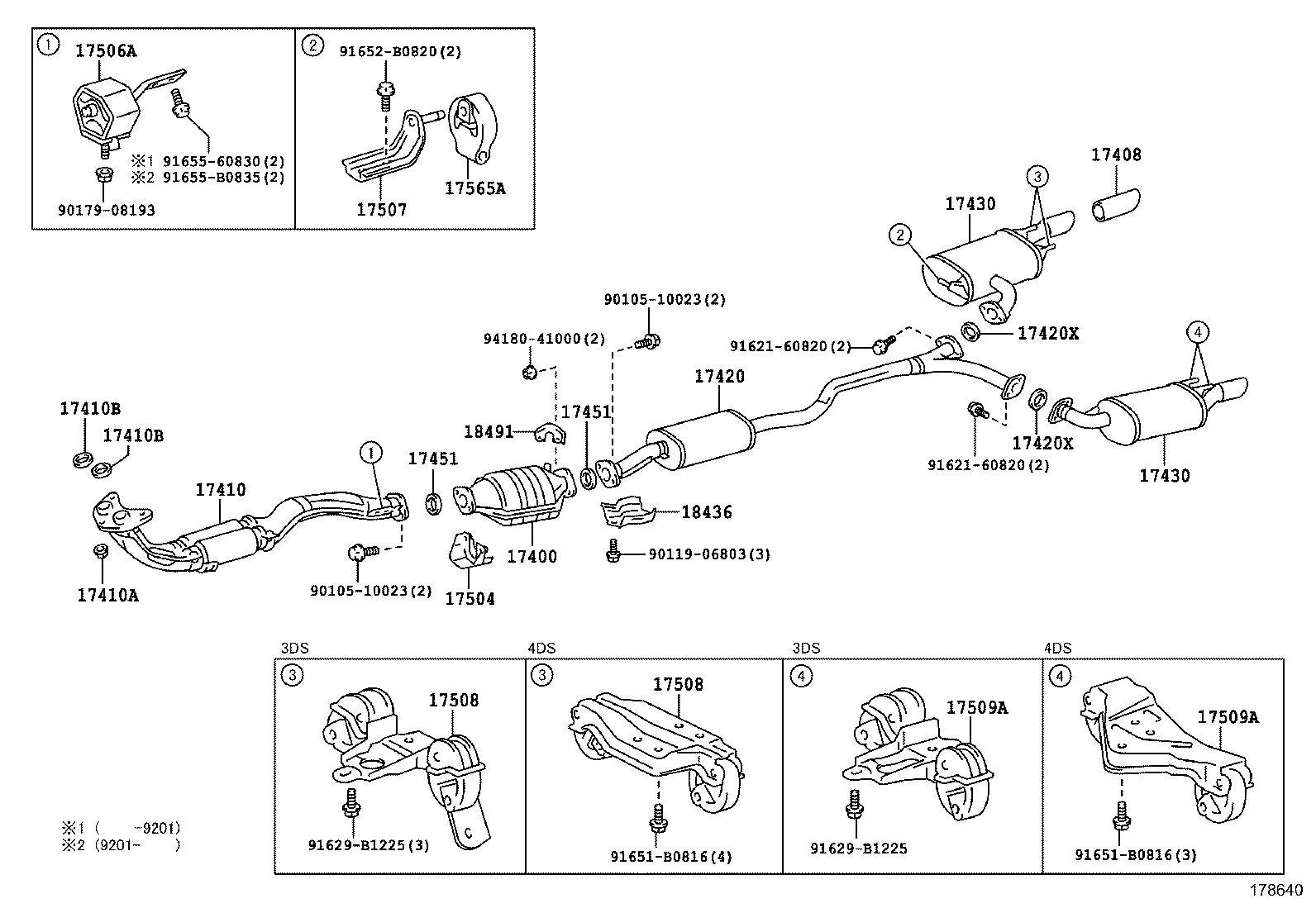

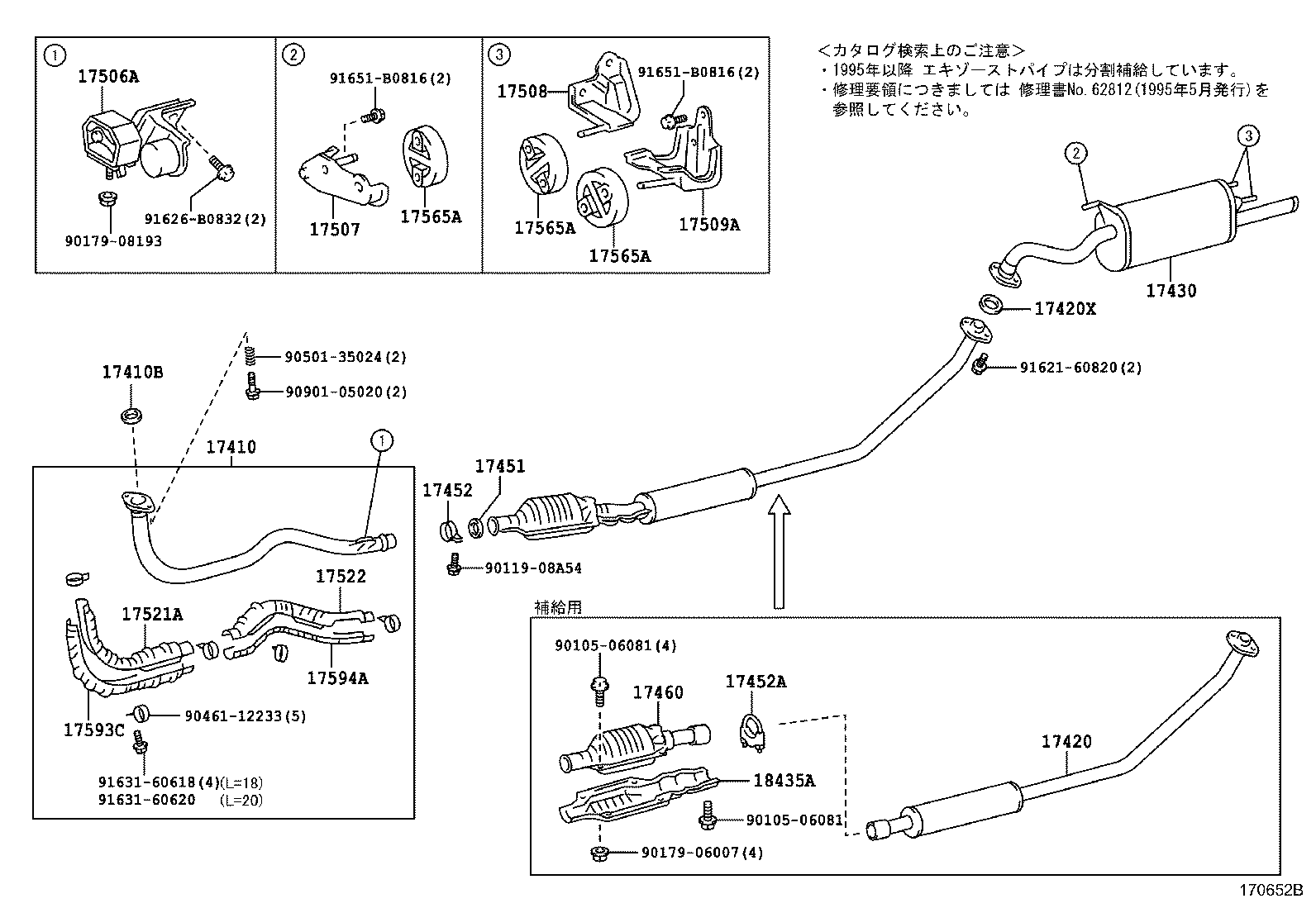

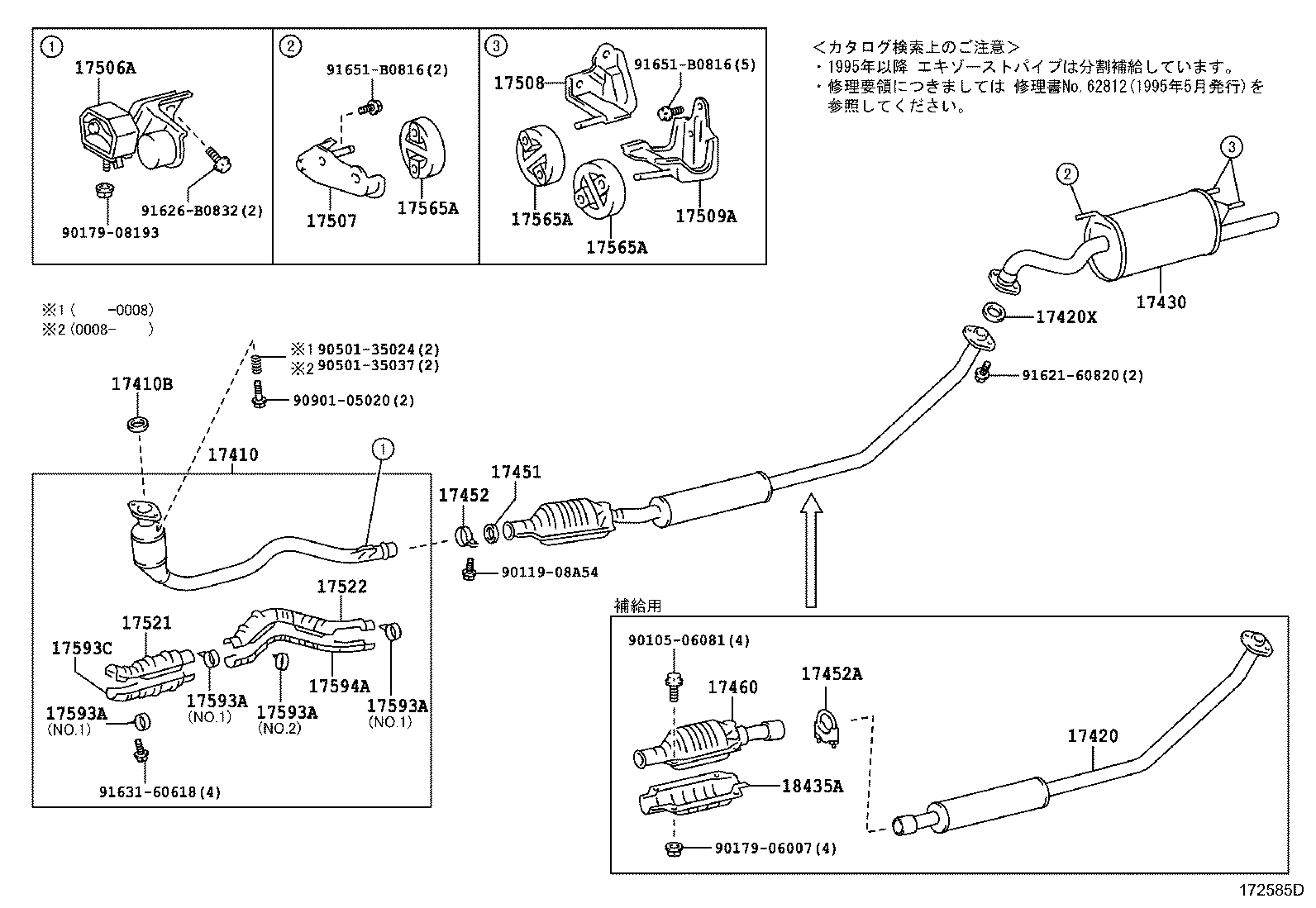

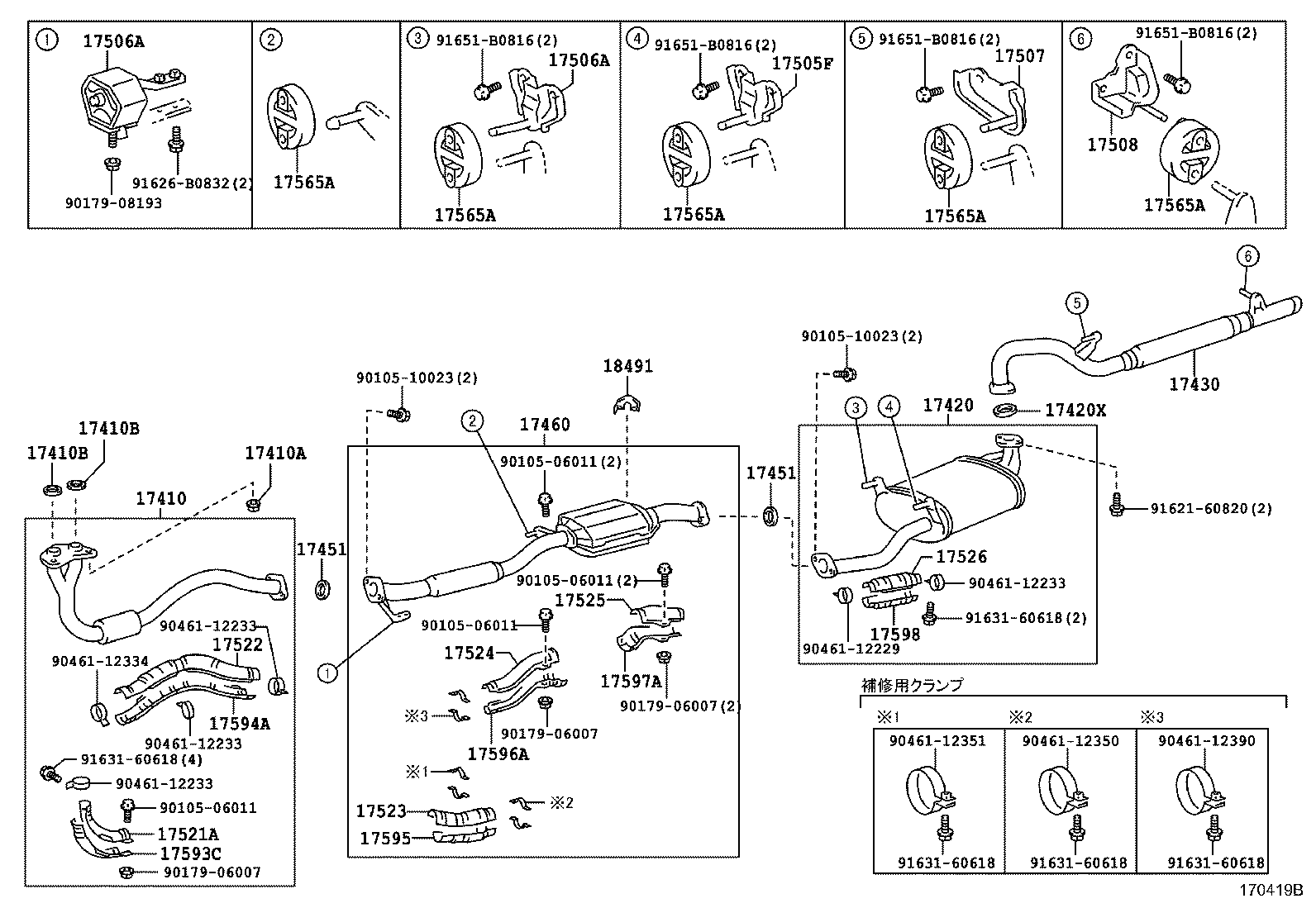

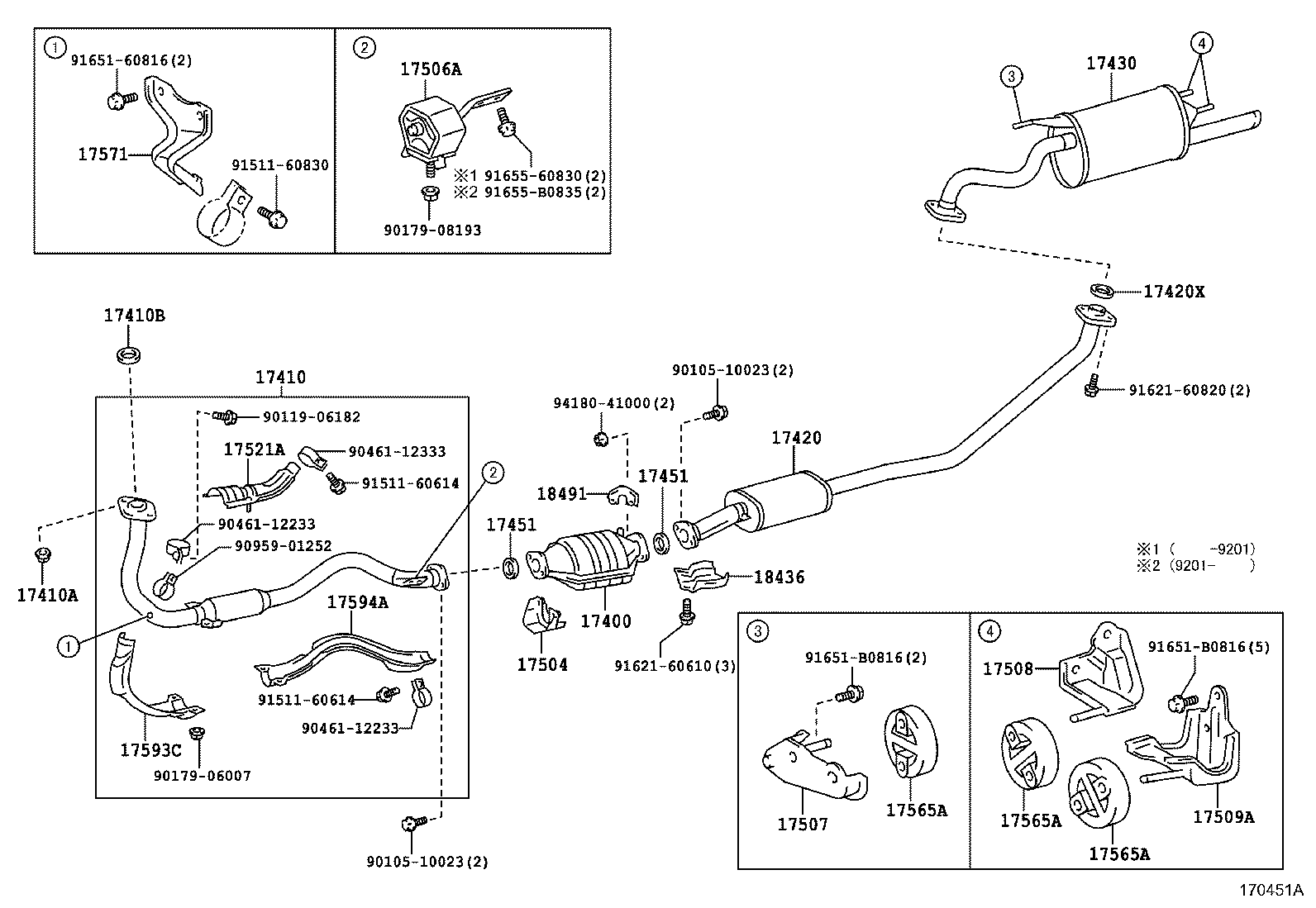

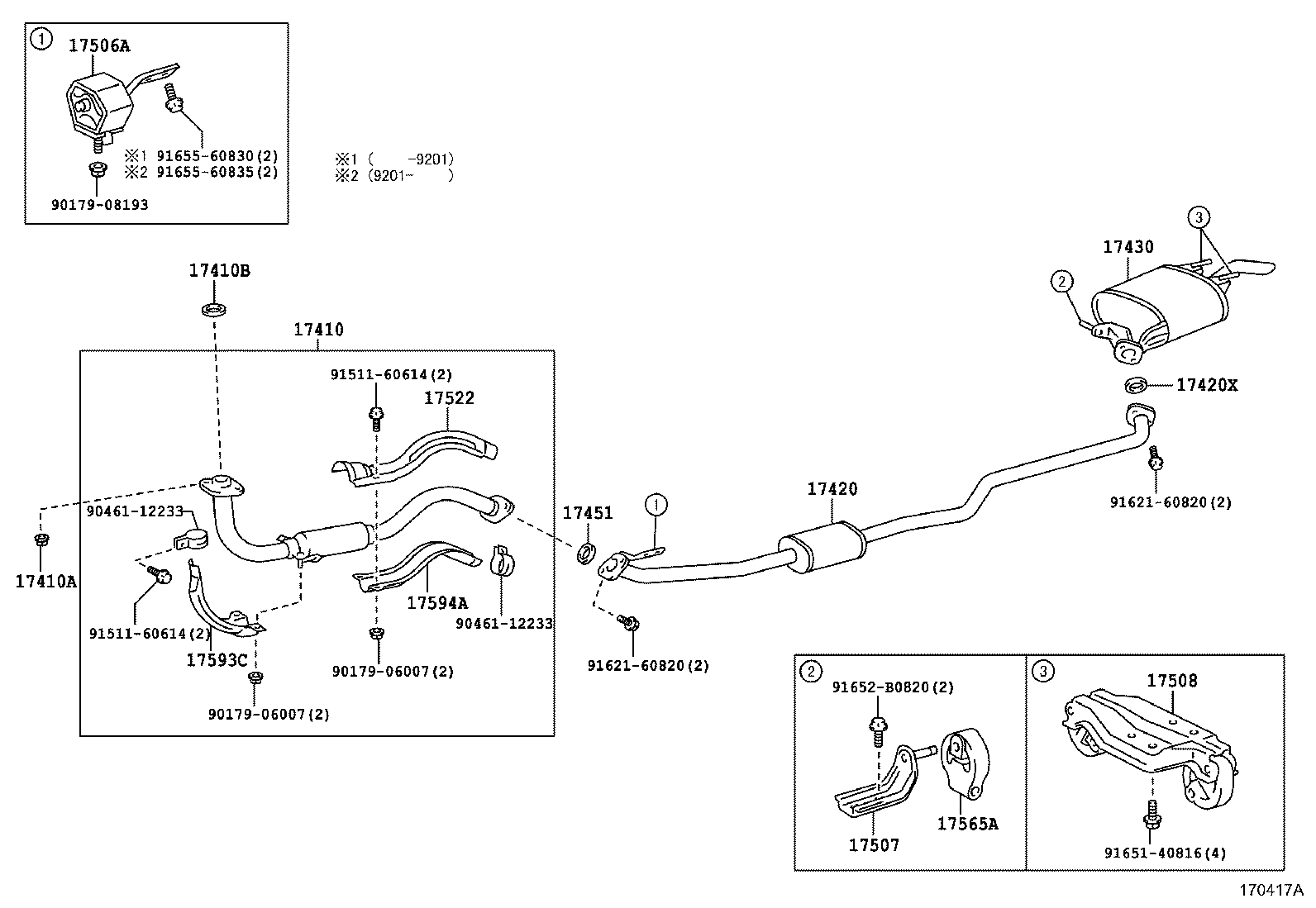

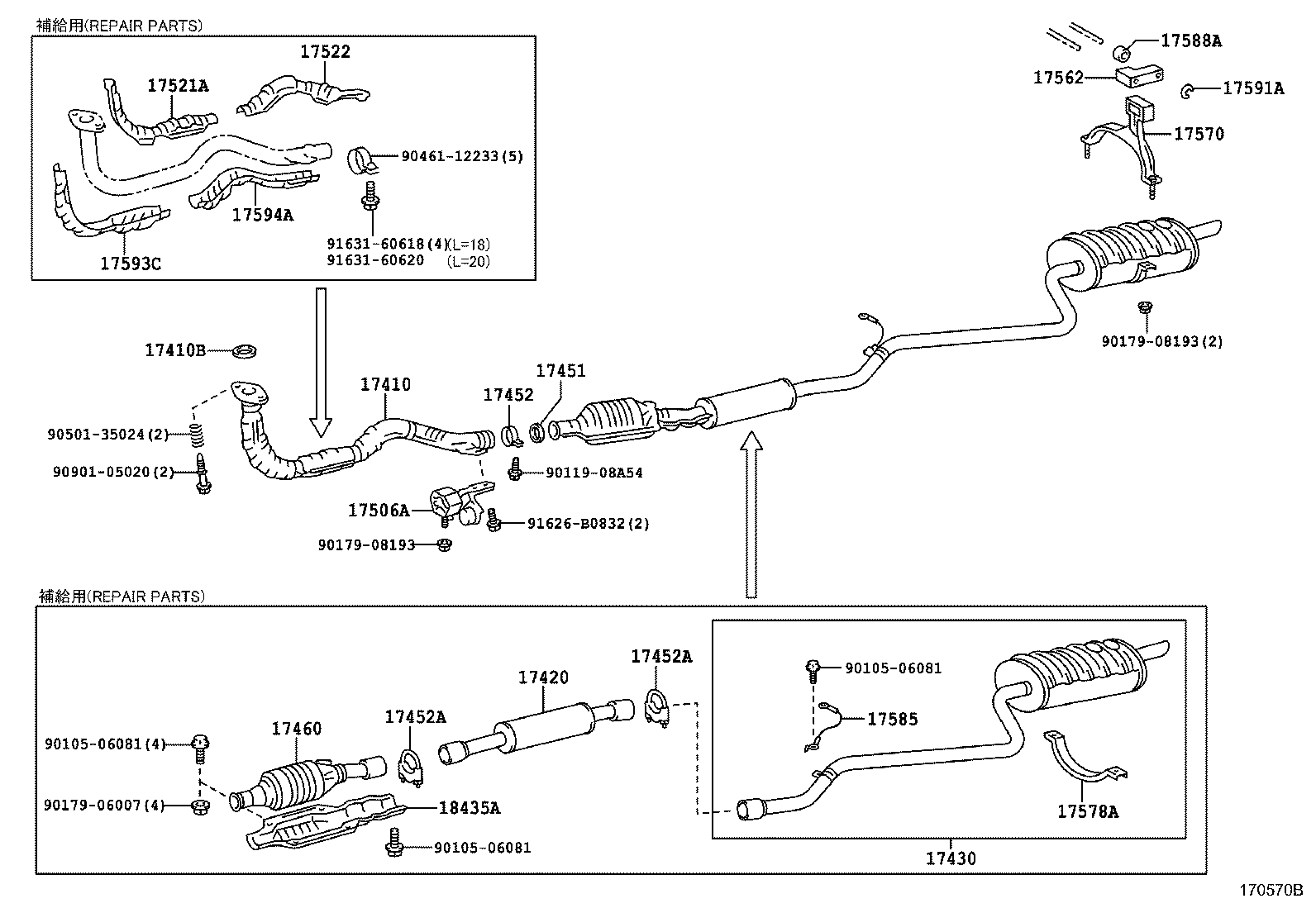

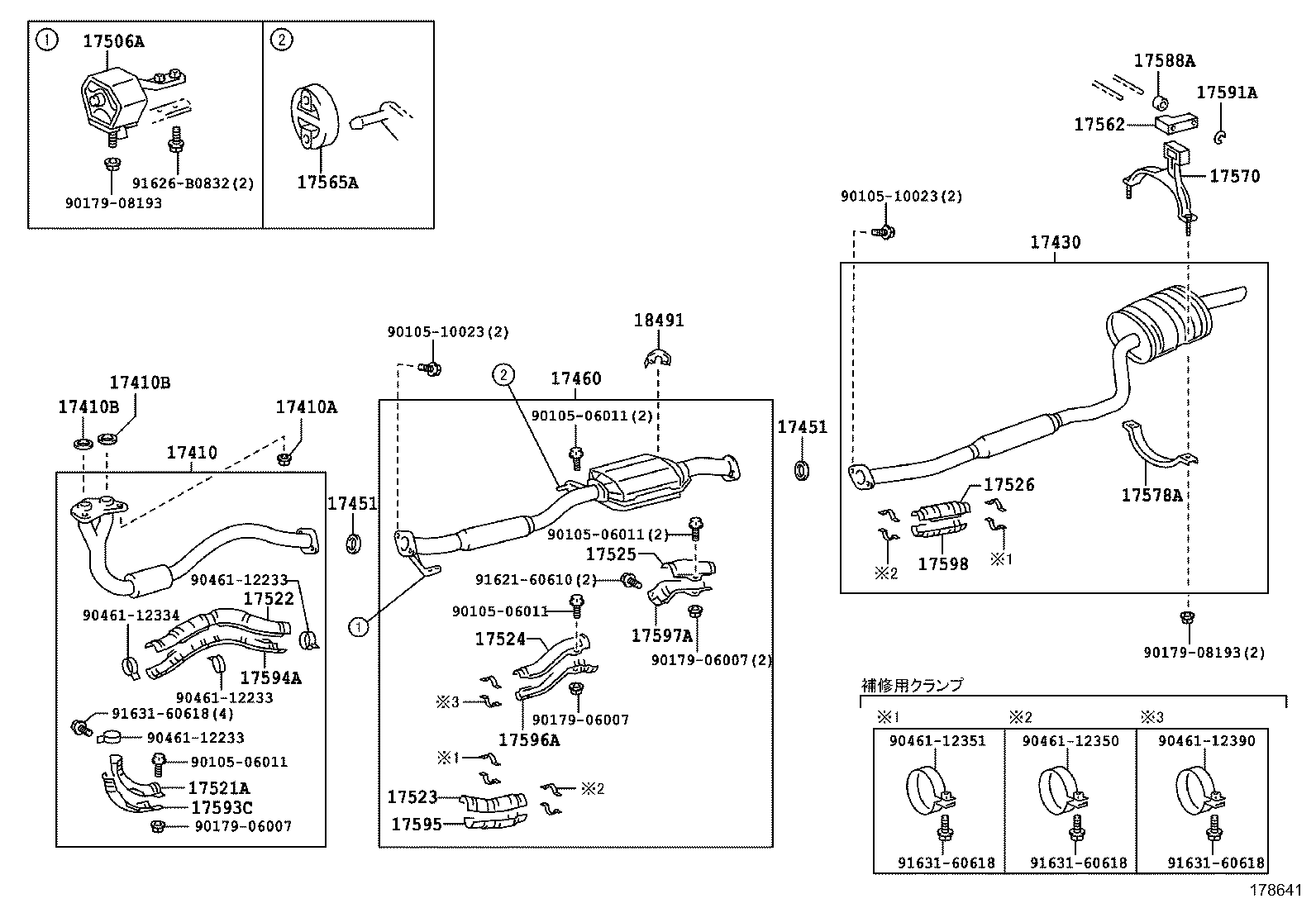

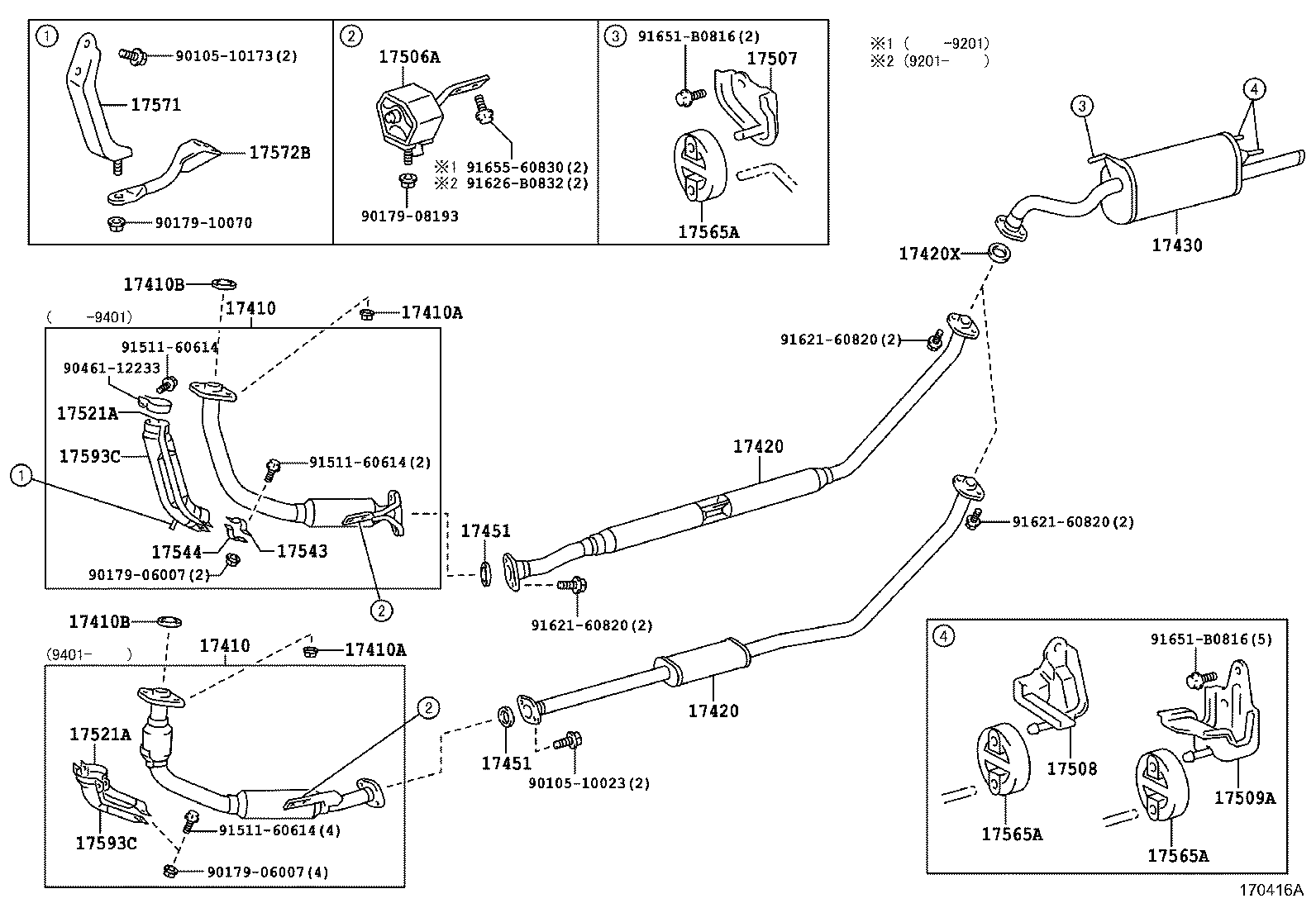

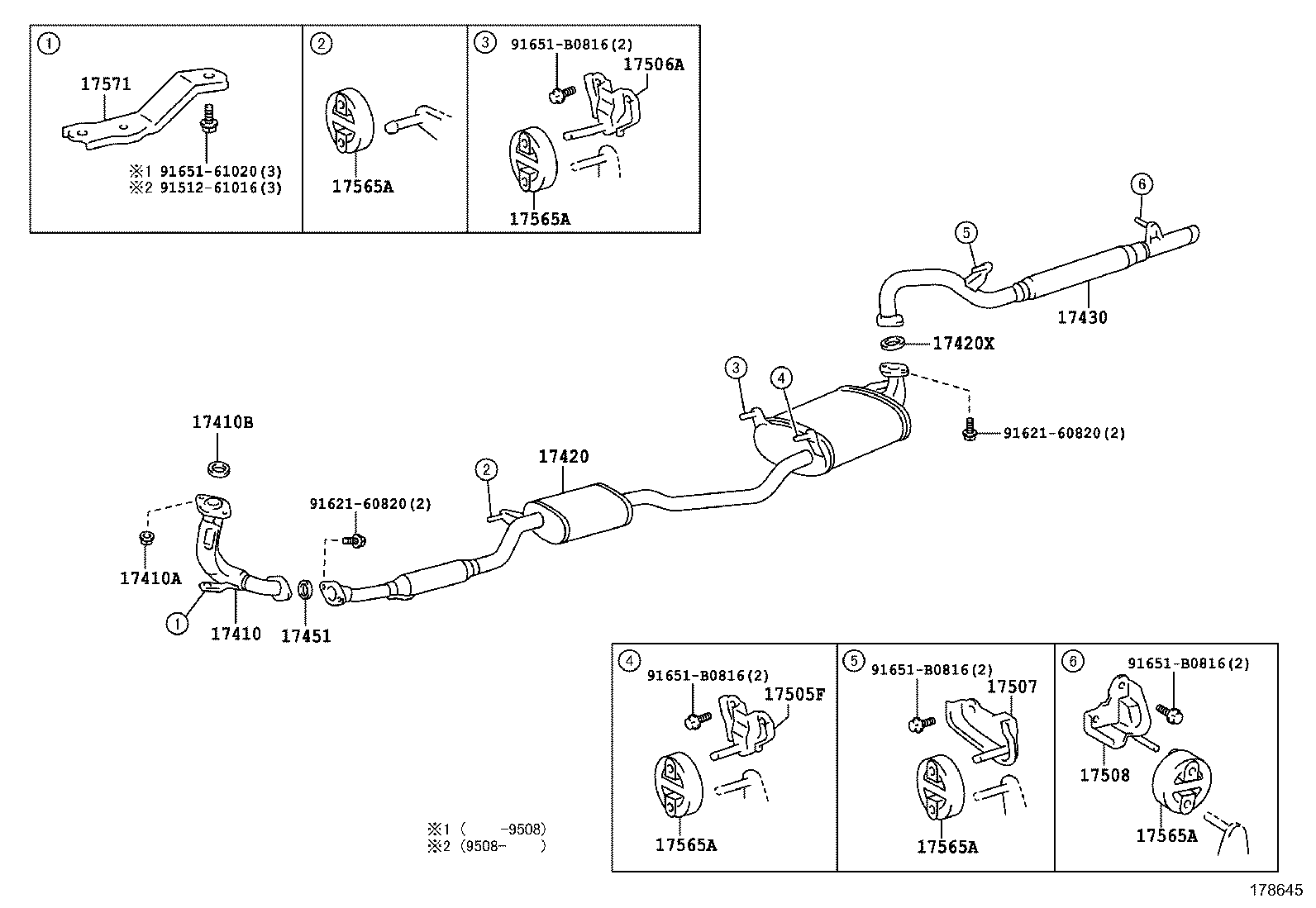

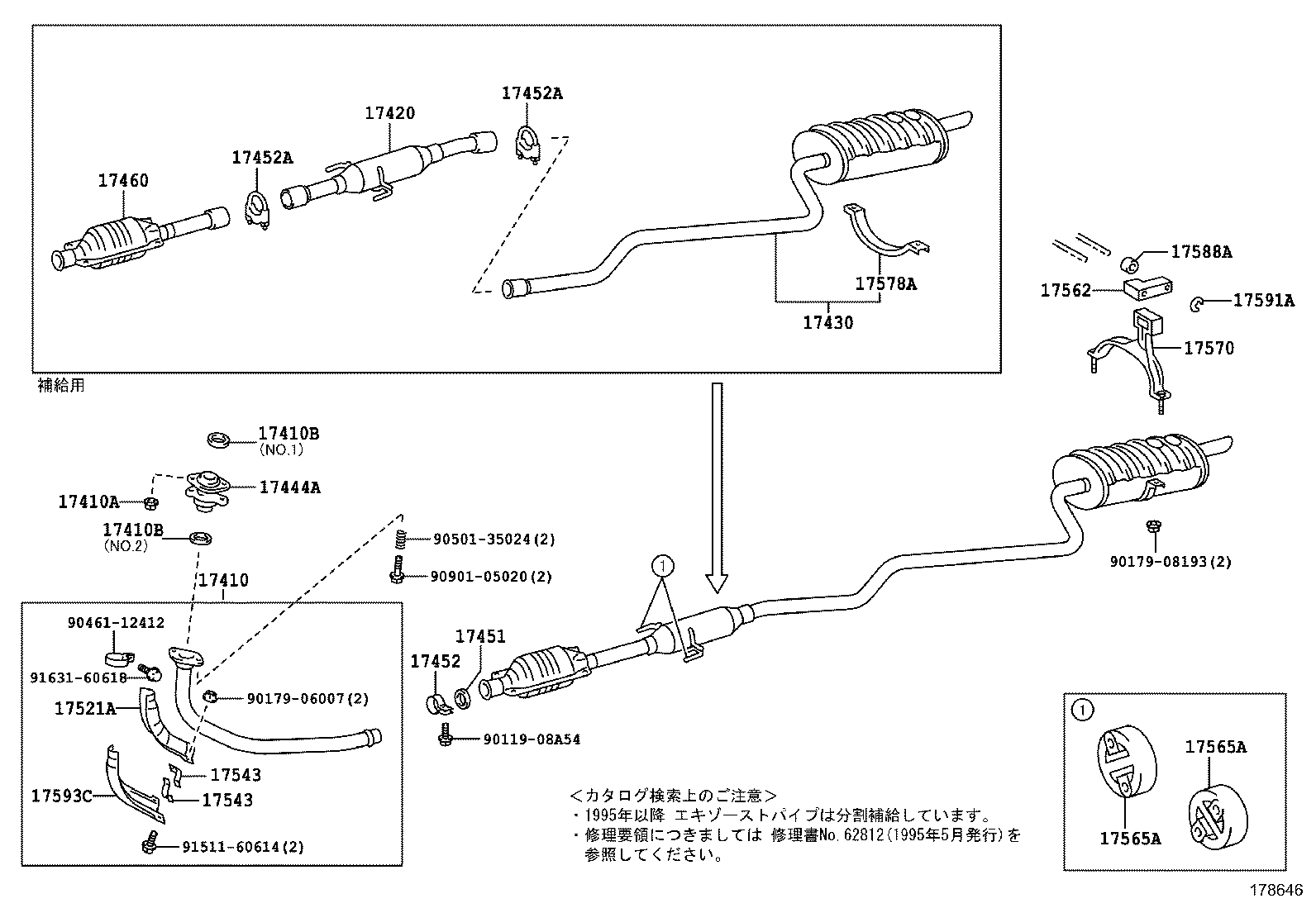

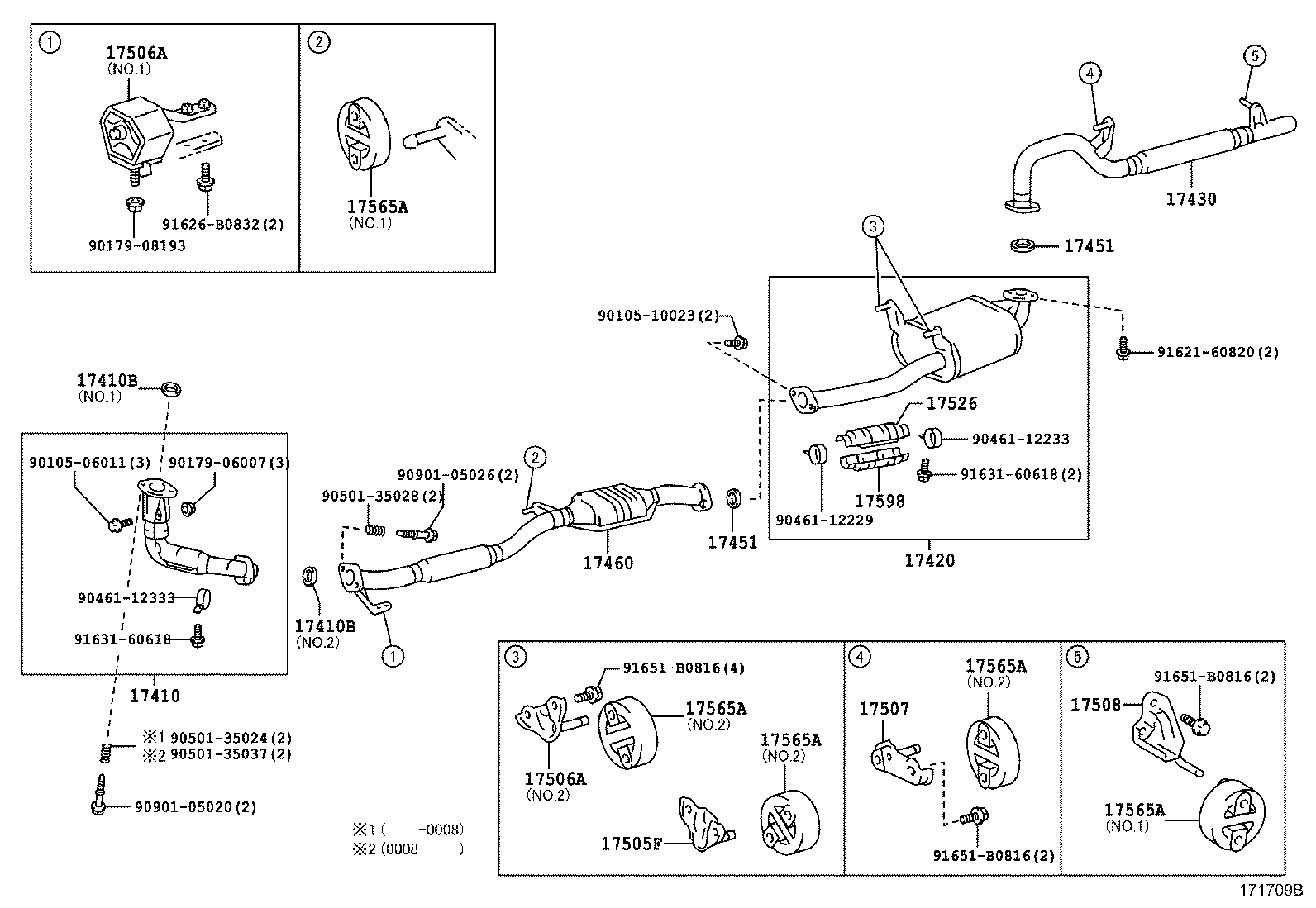

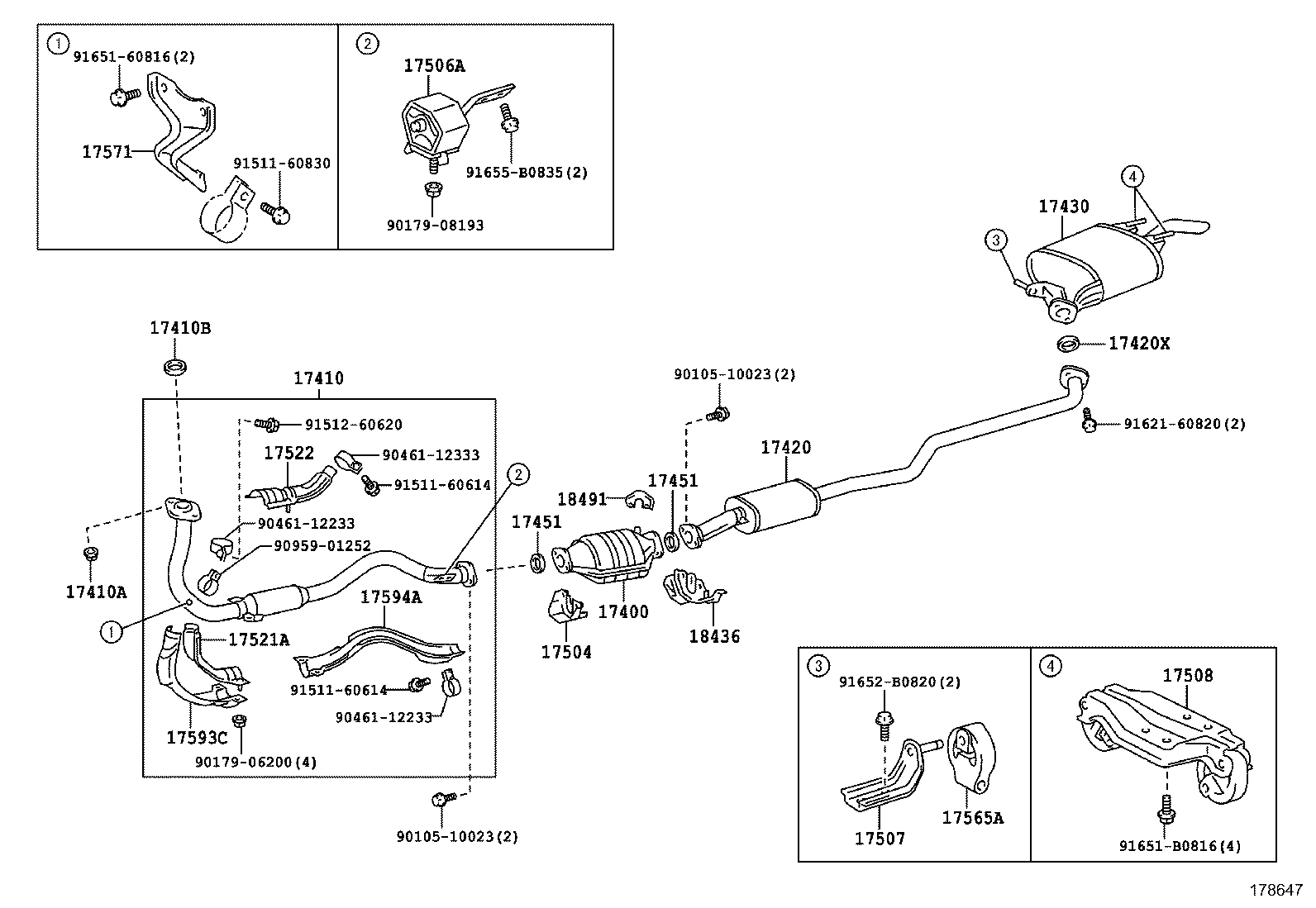

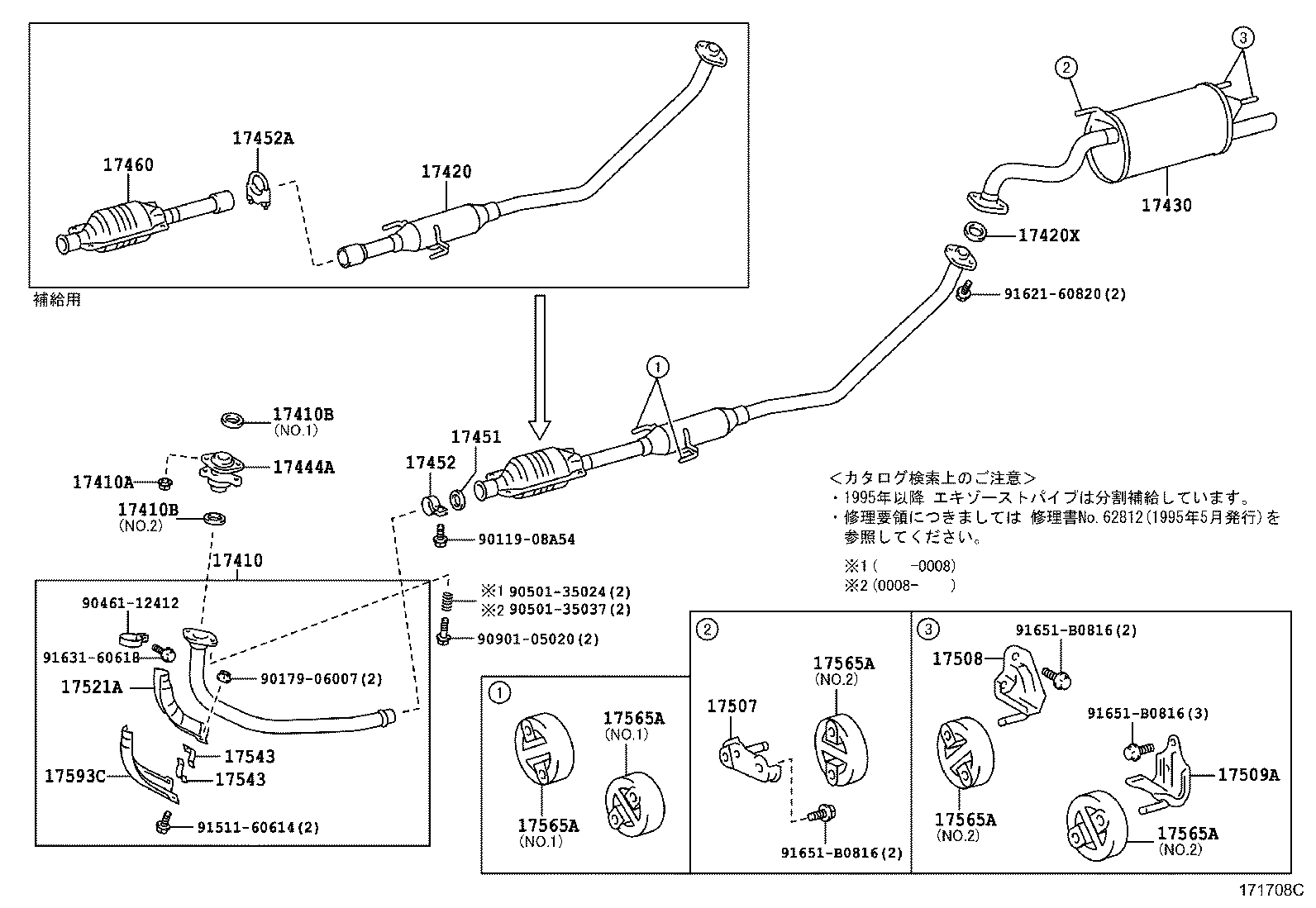

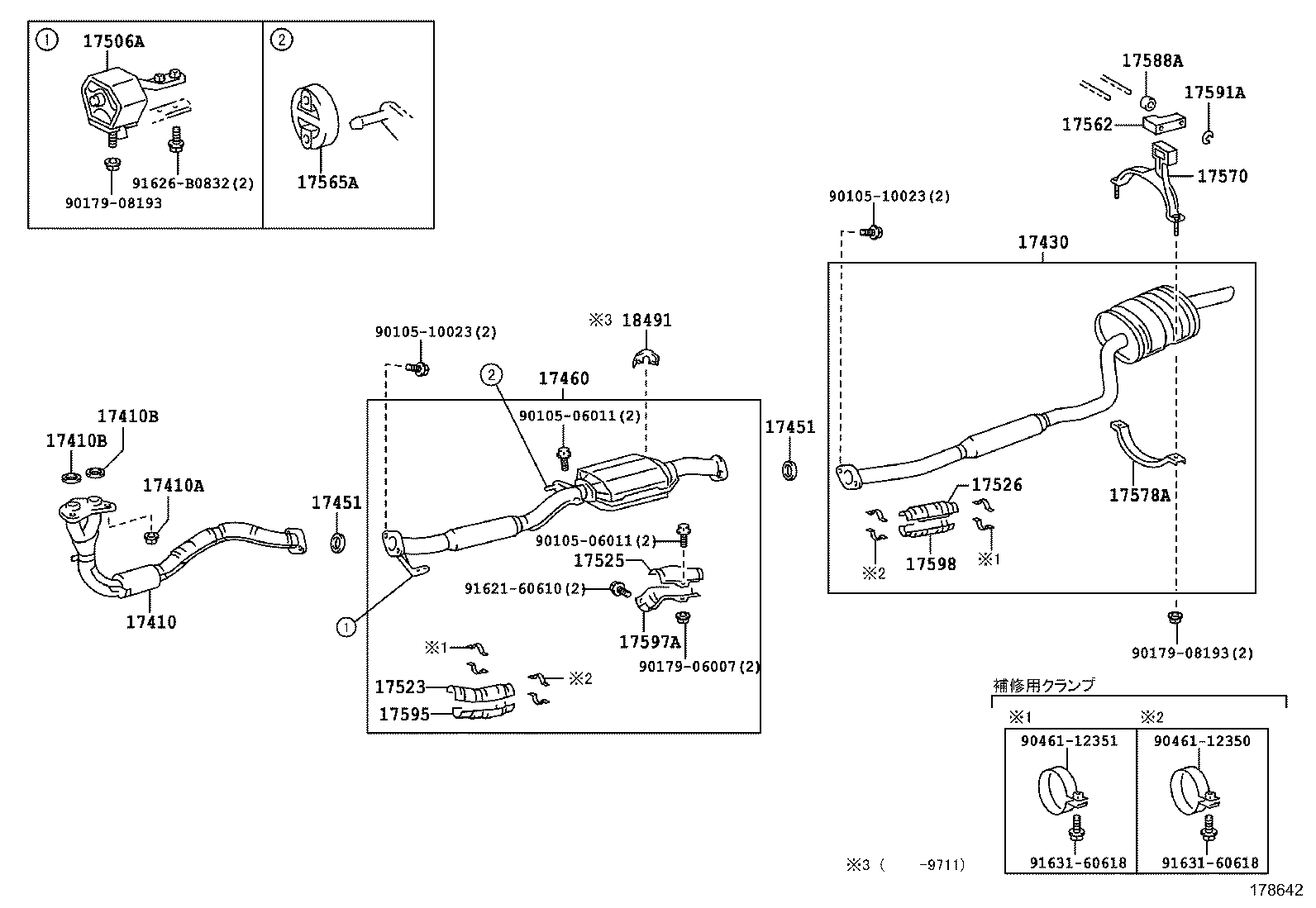

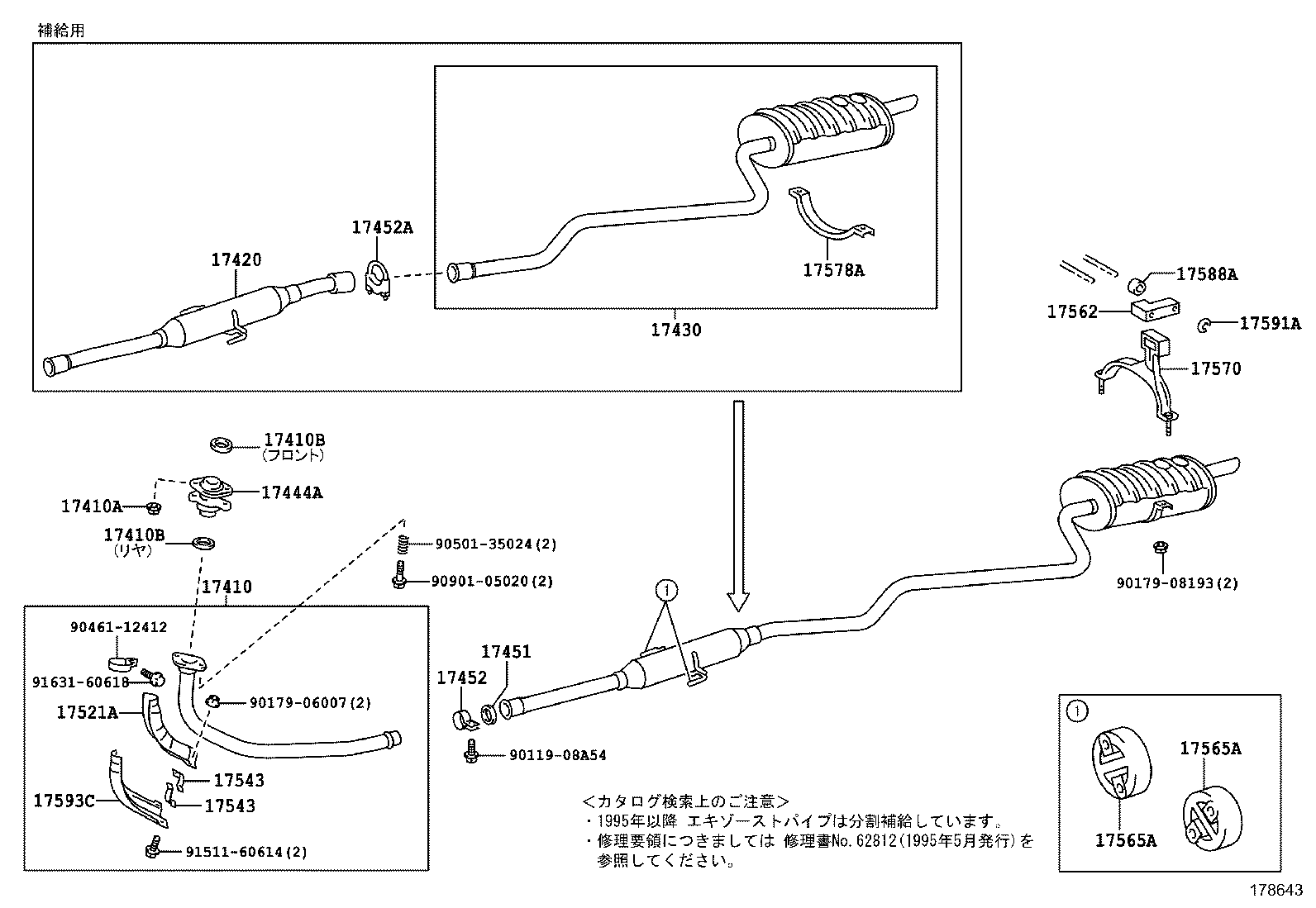

Figure 178639 178639 1991-06 → 1995-05 Figure 170570B 170570B 1995-05 → 2000-08 Figure 178640 178640 1991-06 → 1995-05 Figure 170450A 170450A 1991-09 → 1995-05 Figure 178641 178641 1995-05 → 1997-05 Figure 178642 178642 1997-05 → — Figure 170414A 170414A 1991-06 → 1995-05 Figure 170415B 170415B 1995-05 → 1997-05 Figure 178643 178643 1997-05 → 1998-04 Figure 178644 178644 1991-09 → 1995-05 Figure 170416A 170416A 1991-09 → 1997-04 Figure 170651A 170651A 1997-04 → 1998-04 Figure 178645 178645 1991-09 → 1998-04 Figure 178646 178646 1998-04 → — Figure 171708C 171708C 1998-04 → — Figure 171709B 171709B 1998-04 → — Figure 170451A 170451A 1991-09 → 1994-01 Figure 170417A 170417A 1991-06 → 1993-05 Figure 178647 178647 1993-05 → 1995-05 Figure 170418A 170418A 1994-01 → 1997-04 Figure 170652B 170652B 1997-04 → 2000-08 Figure 172585D 172585D 2000-08 → — Figure 178190A 178190A 1996-05 → 2000-08 Figure 170419B 170419B 1996-05 → 1997-04 Figure 170653B 170653B 1997-04 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17444A Spacer, Exhaust Front Pipe
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17452A Clamp, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17504 Bracket Sub-assy, Catalytic Converter
17505F Support Sub-assy, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521 Protector, Exhaust Pipe, Front NO.1
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17523 Protector, Exhaust Pipe, Upper NO.3
17524 Protector, Exhaust Pipe, Upper NO.4
17525 Protector, Exhaust Pipe, Upper NO.5
17526 Protector, Exhaust Pipe, Upper NO.6
17543 Stay, Exhaust Pipe Protector, NO.3
17544 Stay, Exhaust Pipe Protector, NO.4
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
17570 Bracket Assy, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17578A Clamp, Muffler
17585 Hanger, Exhaust Pipe
17588A Spacer, Exhaust Pipe Hanger
17591A Stopper, Exhaust Pipe Support
17593A Clamp
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
17596A Protector, Exhaust Pipe, Lower NO.4
17597A Protector, Exhaust Pipe, Lower NO.5
17598 Protector, Exaust Pipe, Lower NO.6
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
