Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

35 part groups · 11 illustrations

Illustrations

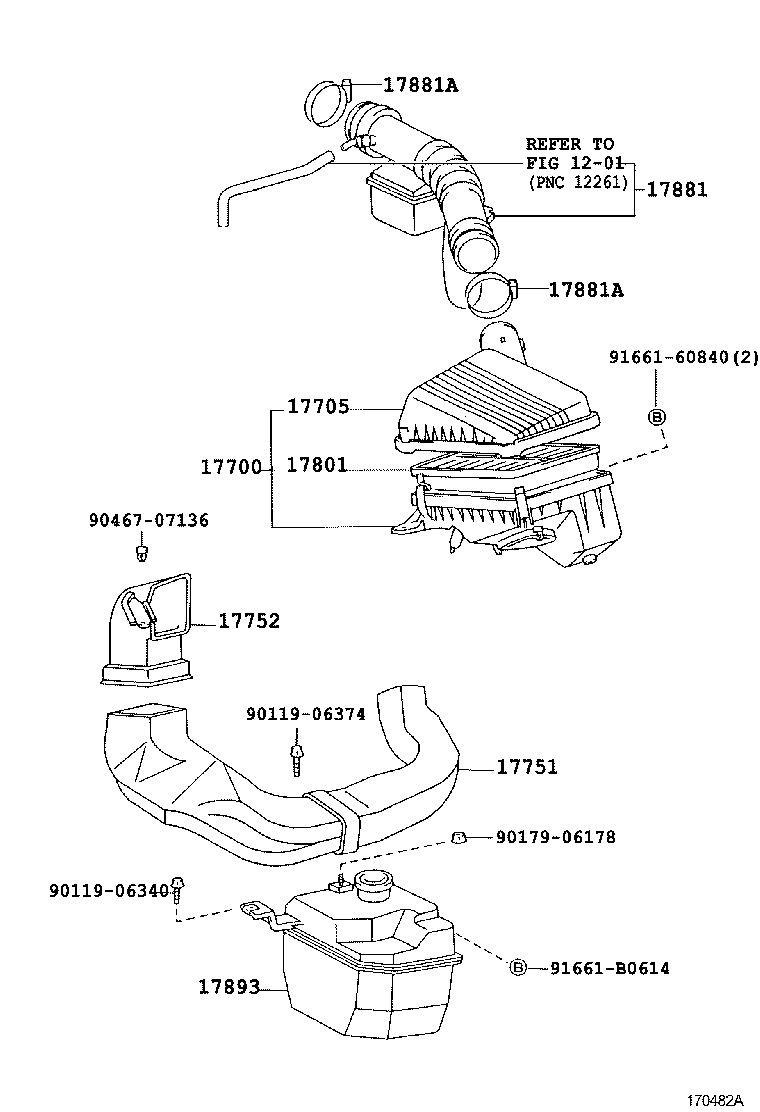

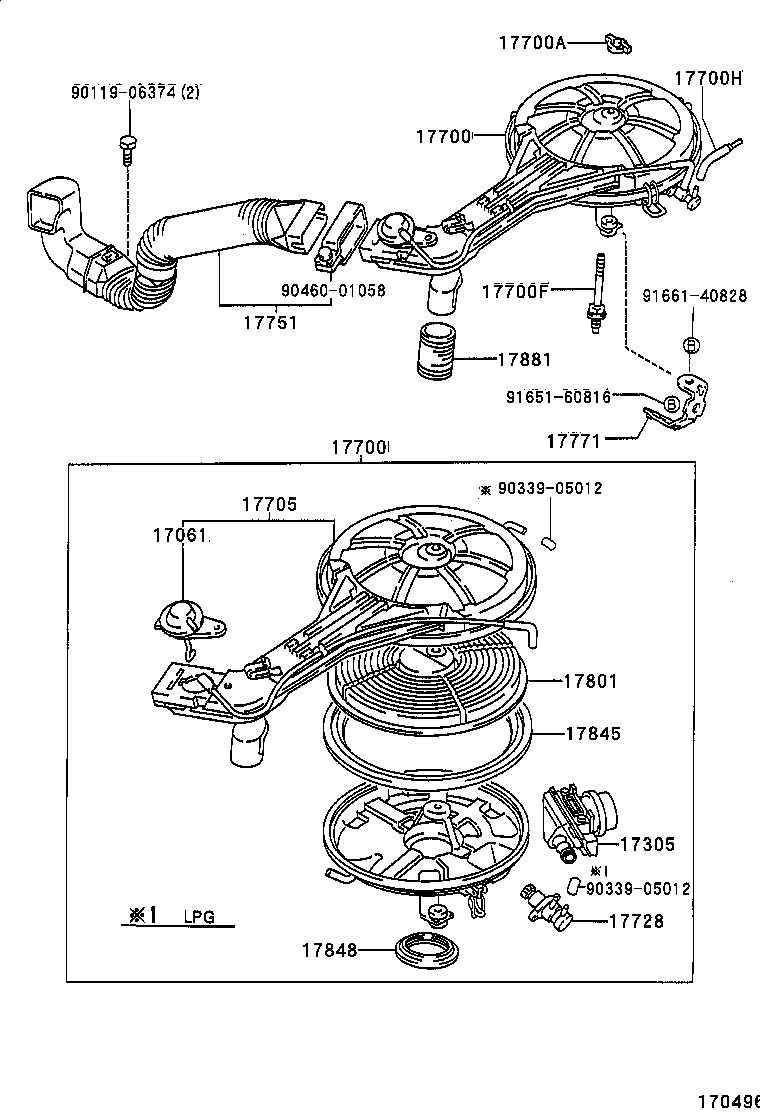

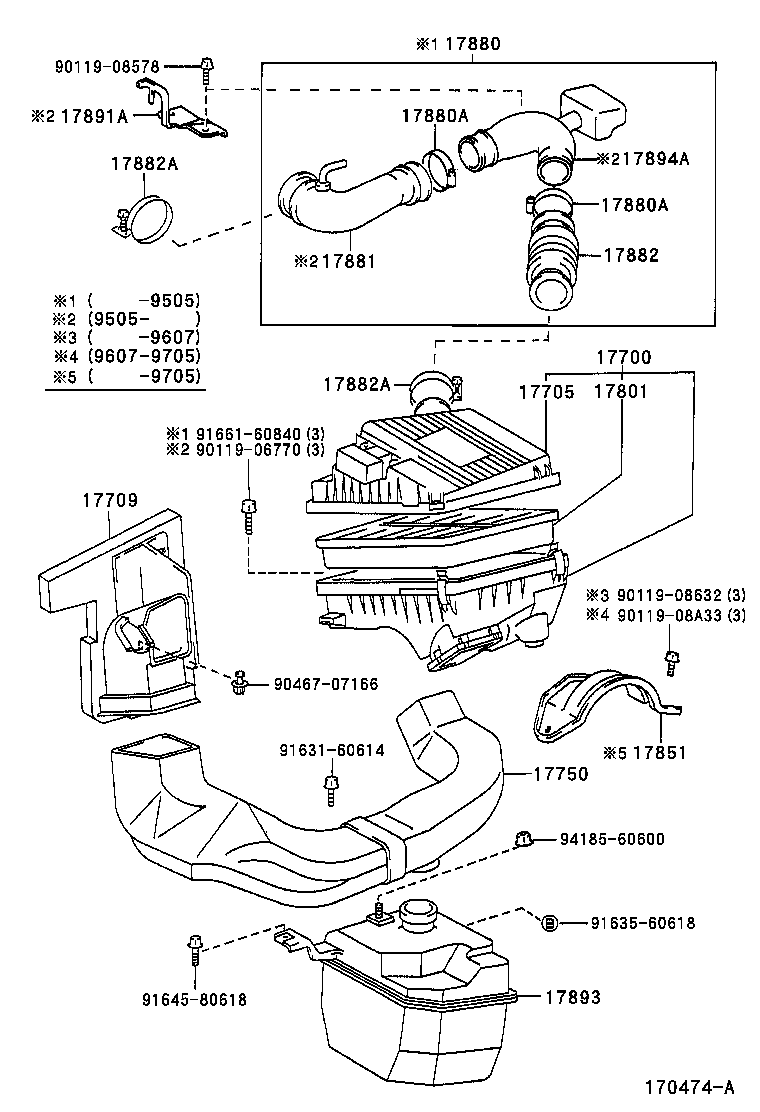

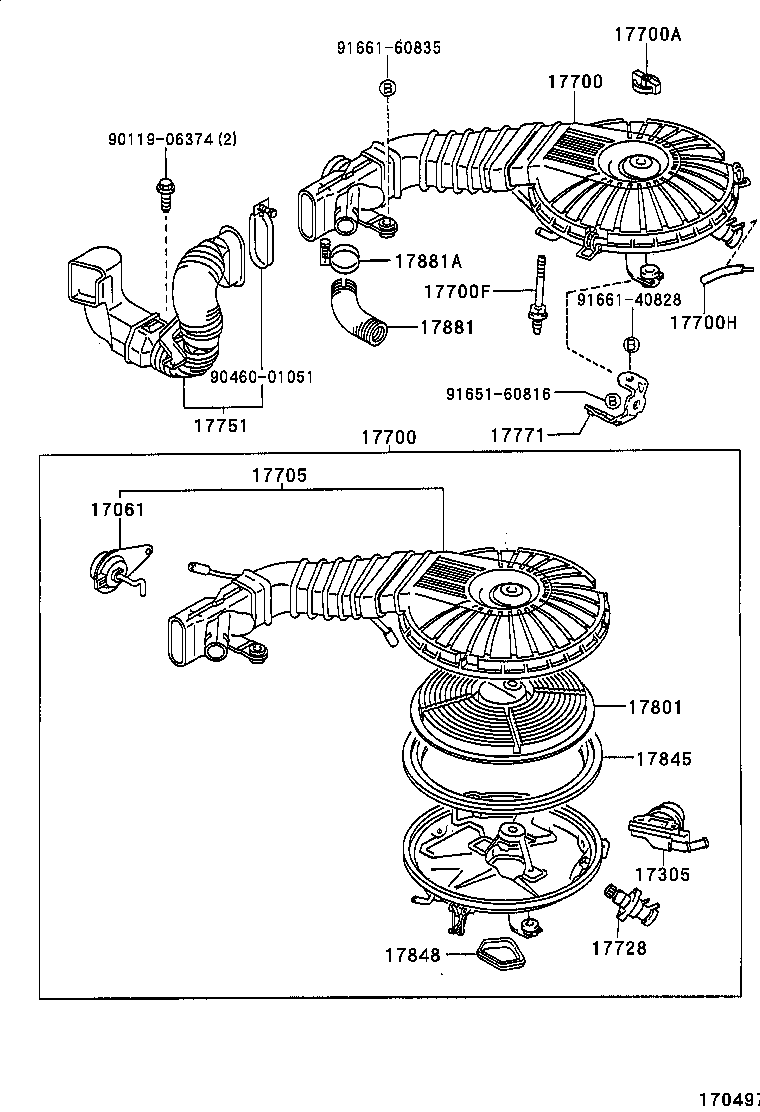

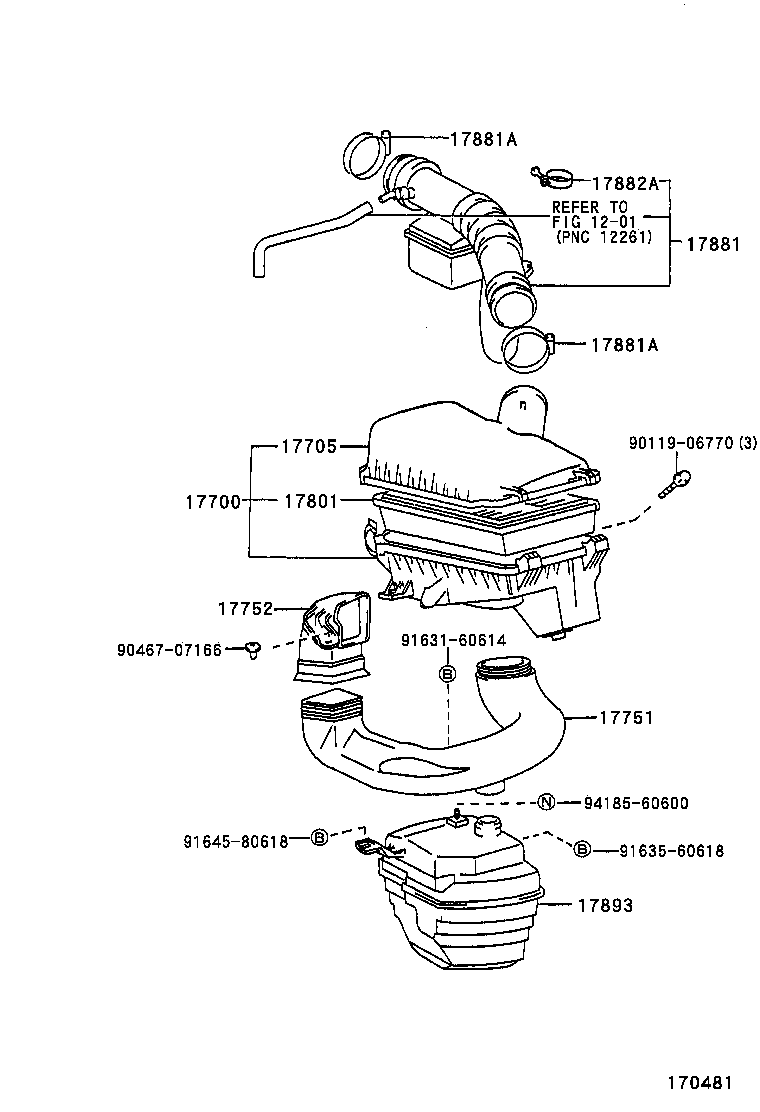

Figure MAE769A MAE769A 1991-06 → 1995-05 Figure 170431 170431 1995-05 → — Figure 170448 170448 1991-06 → 1995-05 Figure 170438 170438 1996-05 → — Figure 170474A 170474A 1991-06 → 1998-04 Figure 171665A 171665A 1998-04 → — Figure 170482A 170482A 1991-06 → 1995-05 Figure 170481 170481 1995-05 → 1997-04 Figure 170714A 170714A 1997-04 → — Figure 170496 170496 1991-09 → 1994-01 Figure 170497 170497 1991-09 → 1994-01

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17750 Cover Assy, Air Cleaner Inlet, Seal
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17753 Inlet, Air Cleaner, NO.3
17771 Bracket, Air Cleaner Inlet Duct
17783A Retainer, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17891A Clamp, Air Cleaner Hose
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
