Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

43 part groups · 16 illustrations

Illustrations

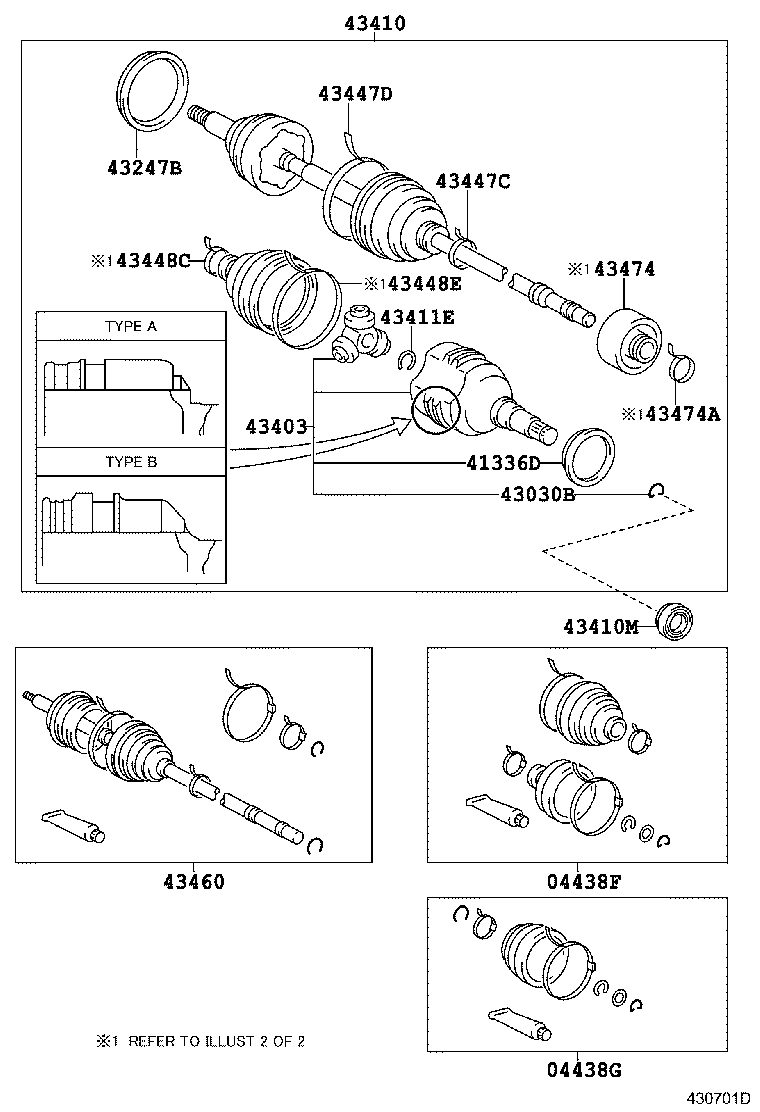

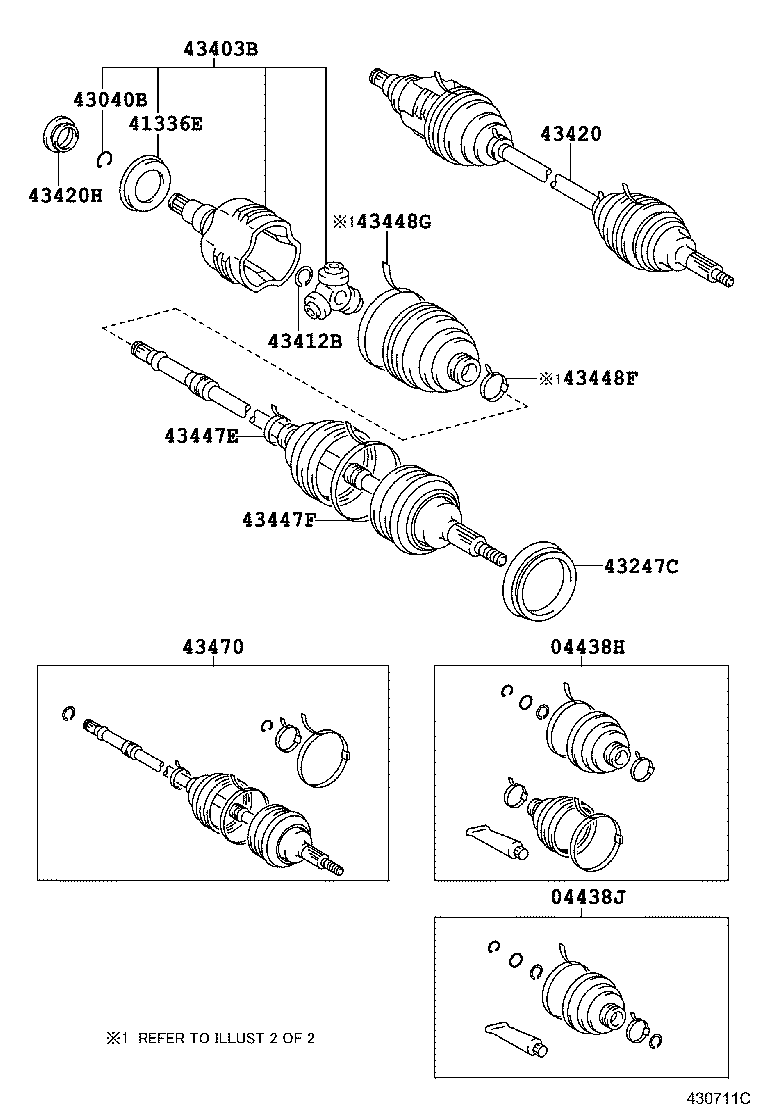

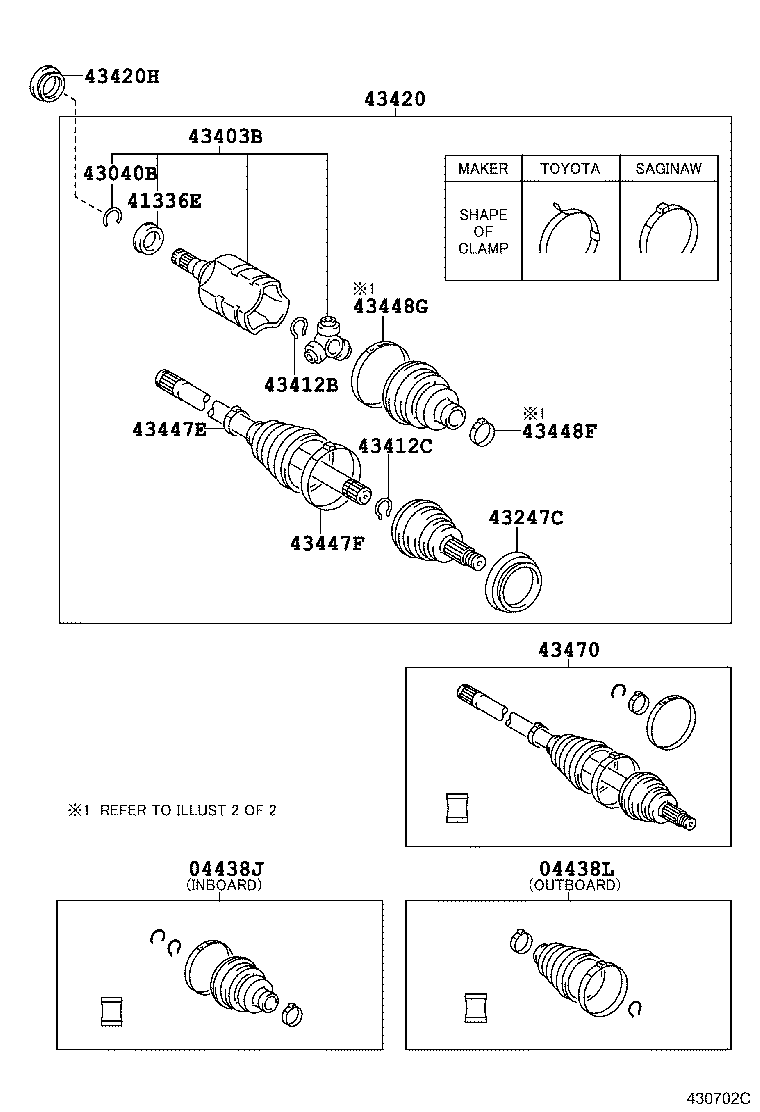

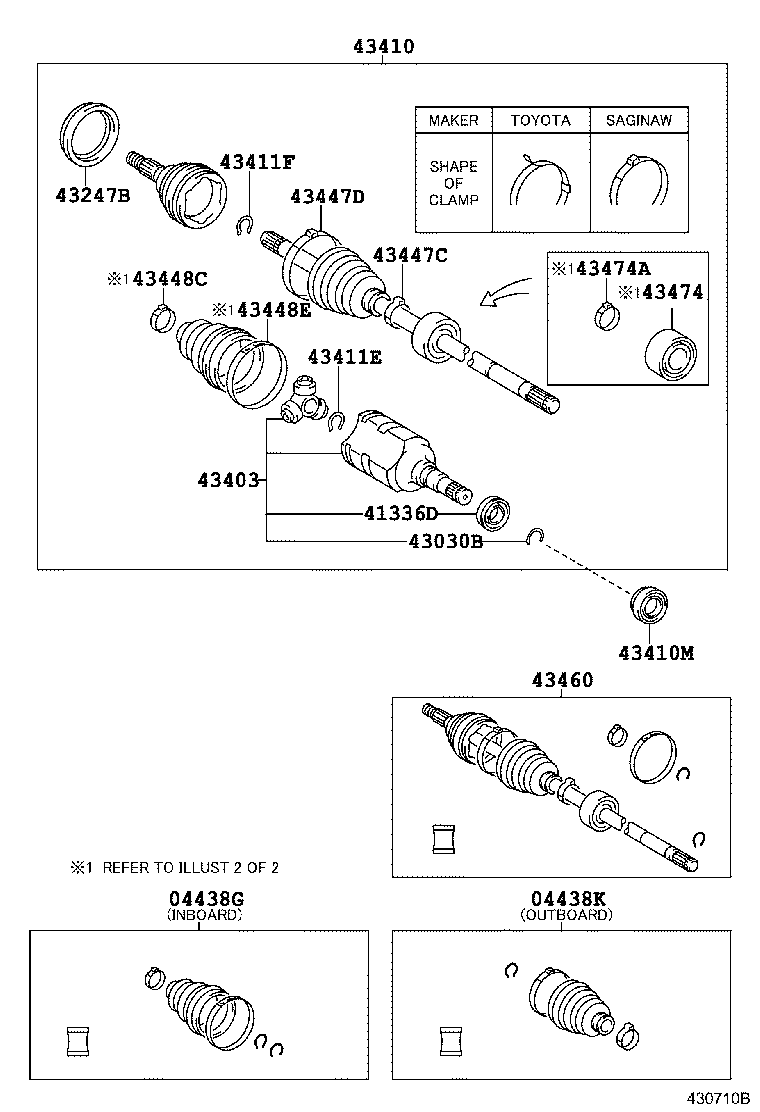

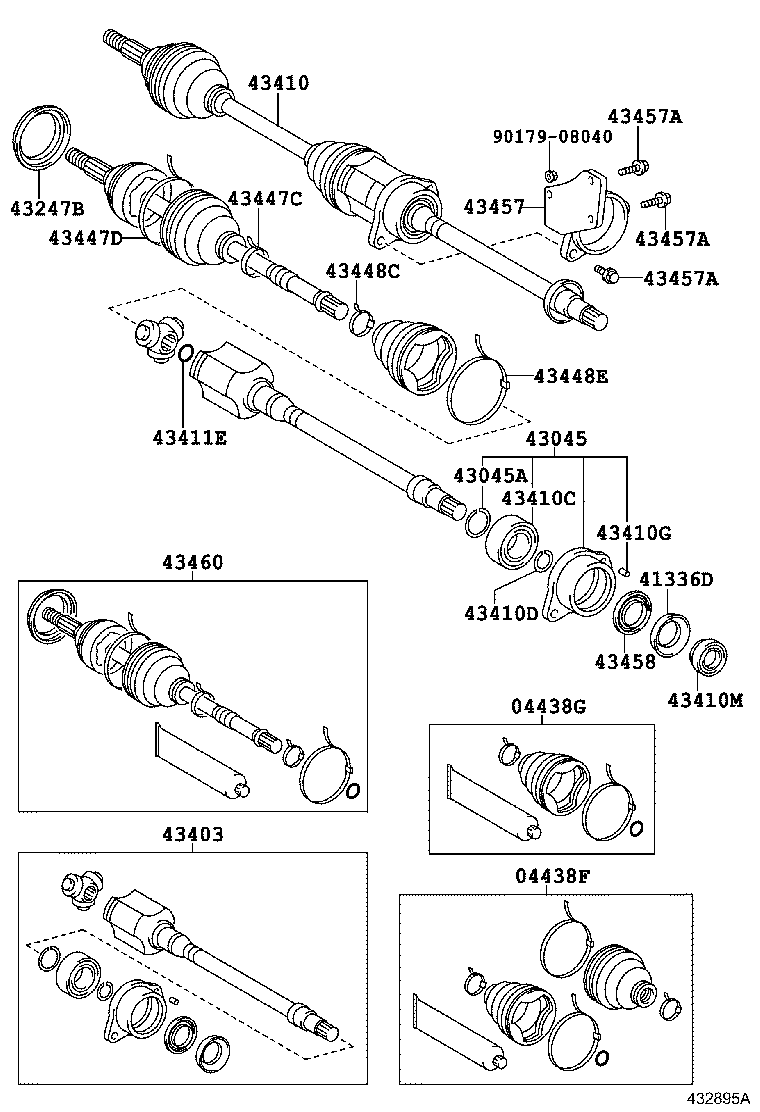

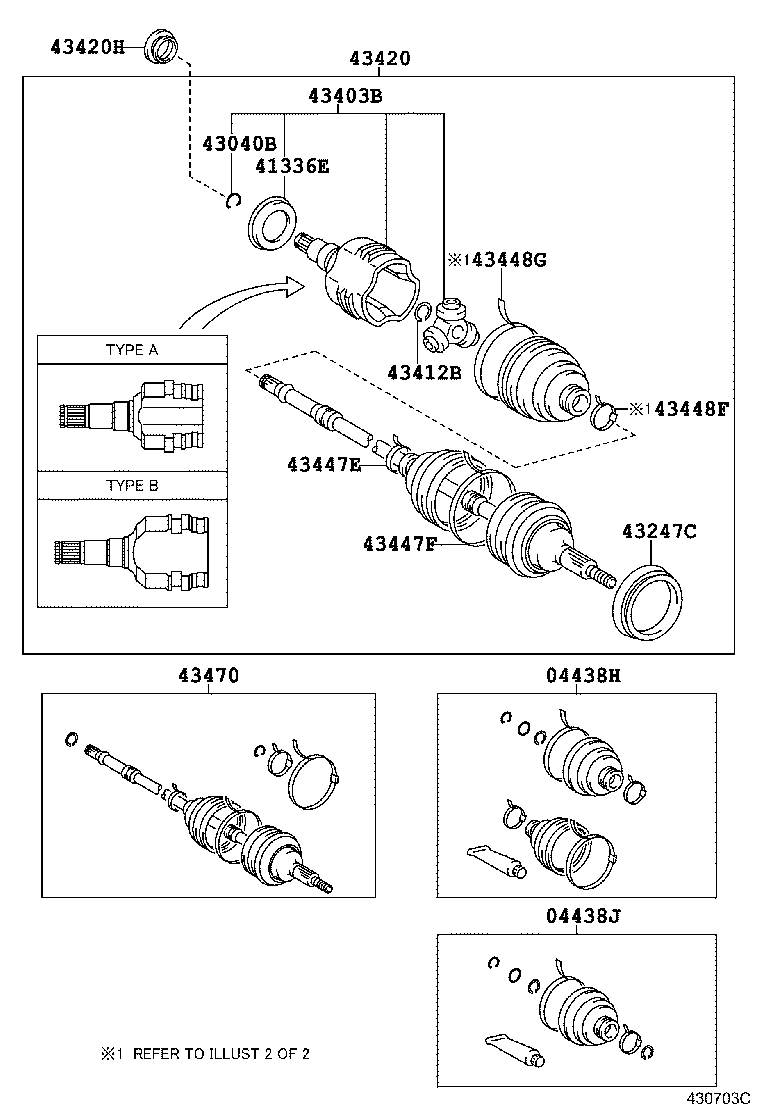

Figure 430709C 430709C 1991-06 → 1995-05 Figure 430709C 430709C 1991-06 → — Figure 430709C 430709C 1995-05 → — Figure 430710B 430710B 1993-05 → — Figure 430710B 430710B 1995-05 → — Figure 430701D 430701D 1991-06 → — Figure 430701D 430701D 1994-01 → — Figure 432895A 432895A 1991-06 → — Figure 432895A 432895A 1996-05 → — Figure 430711C 430711C 1991-06 → 1995-05 Figure 430711C 430711C 1991-06 → — Figure 430711C 430711C 1995-05 → — Figure 430702C 430702C 1993-05 → — Figure 430703C 430703C 1991-06 → — Figure 430703C 430703C 1994-01 → — Figure 430708A 430708A 1991-06 → —

Part groups

PNCDescription
04438F Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
04438K Boot Kit, Front Drive Shaft Outboard Joint, RH
04438L Boot Kit, Front Drive Shaft Outboard Joint, LH
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43030B Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
43040B Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
43045 Case Sub Assy, Drive Shaft Bearing
43045A Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43247B Deflector, Front Wheel Bearing Dust, RH NO.2
43247C Deflector, Front Wheel Bearing Dust, LH NO.2
43403 Joint Set, Front Axle Inboard, RH
43403B Joint Set, Front Axle Inboard, LH
43403C Ring, O (FOR FRONT DRIVE INBOARD JOINT)
43410 Shaft Assy, Front Drive, RH
43410C Bearing (FOR FRONT DRIVE SHAFT)
43410D Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
43410G Pin, Straight (FOR FRONT DRIVE SHAFT)
43410M Oil Seal, Front Drive Shaft, RH
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43411F Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43412C Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER LH)
43420 Shaft Assy, Front Drive, LH
43420H Oil Seal, Front Drive Shaft, LH
43447C Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457 Bracket, Drive Shaft Bearing
43457A Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43458 Cover, Front Drive Shaft Dust
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474 Damper, Drive Shaft
43474A Clamp (FOR DRIVE SHAFT DAMPER SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
