Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 8 illustrations

Illustrations

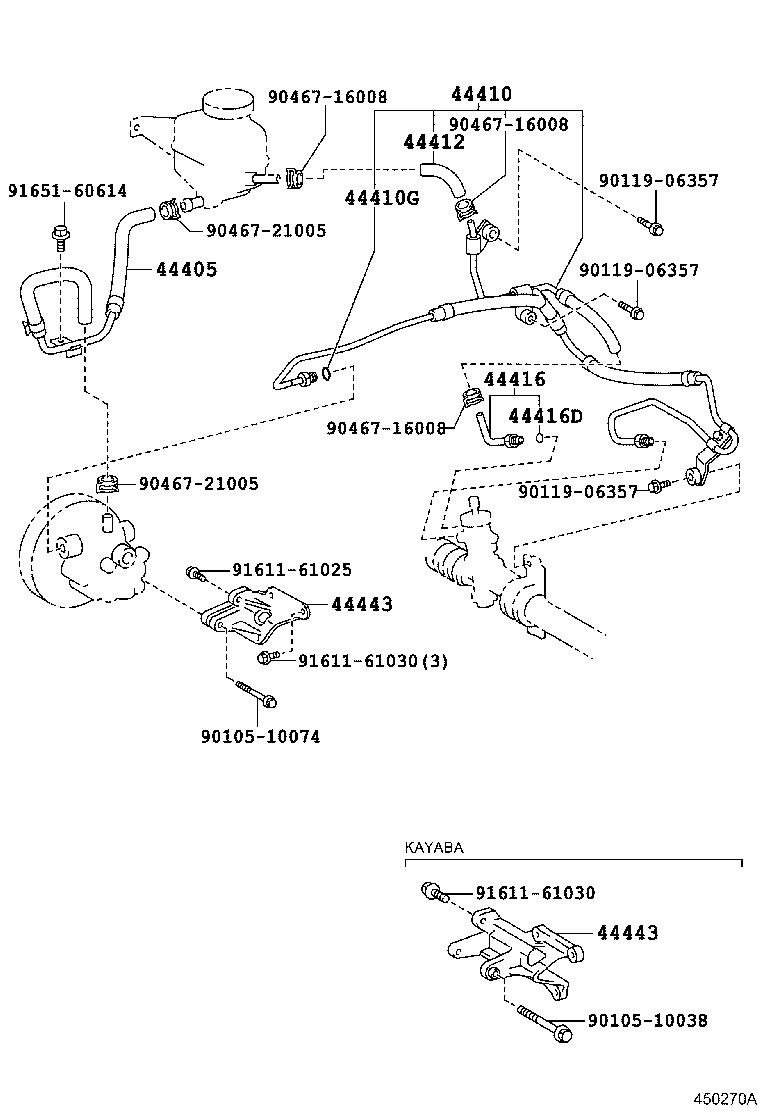

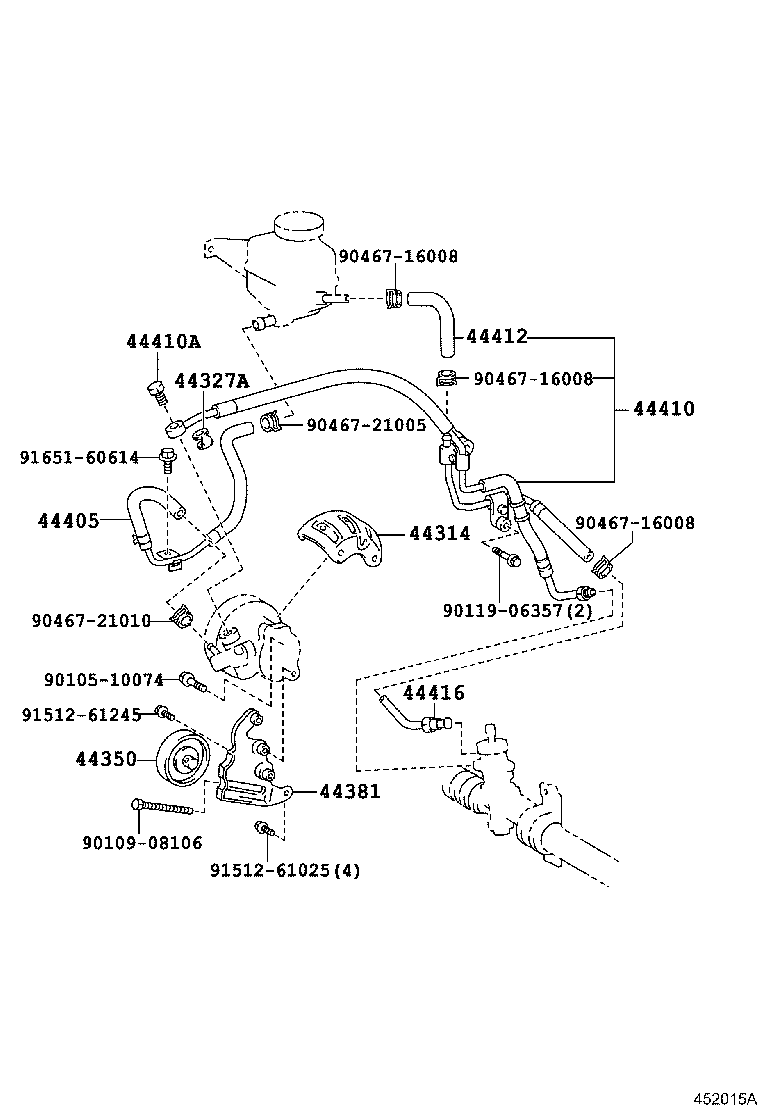

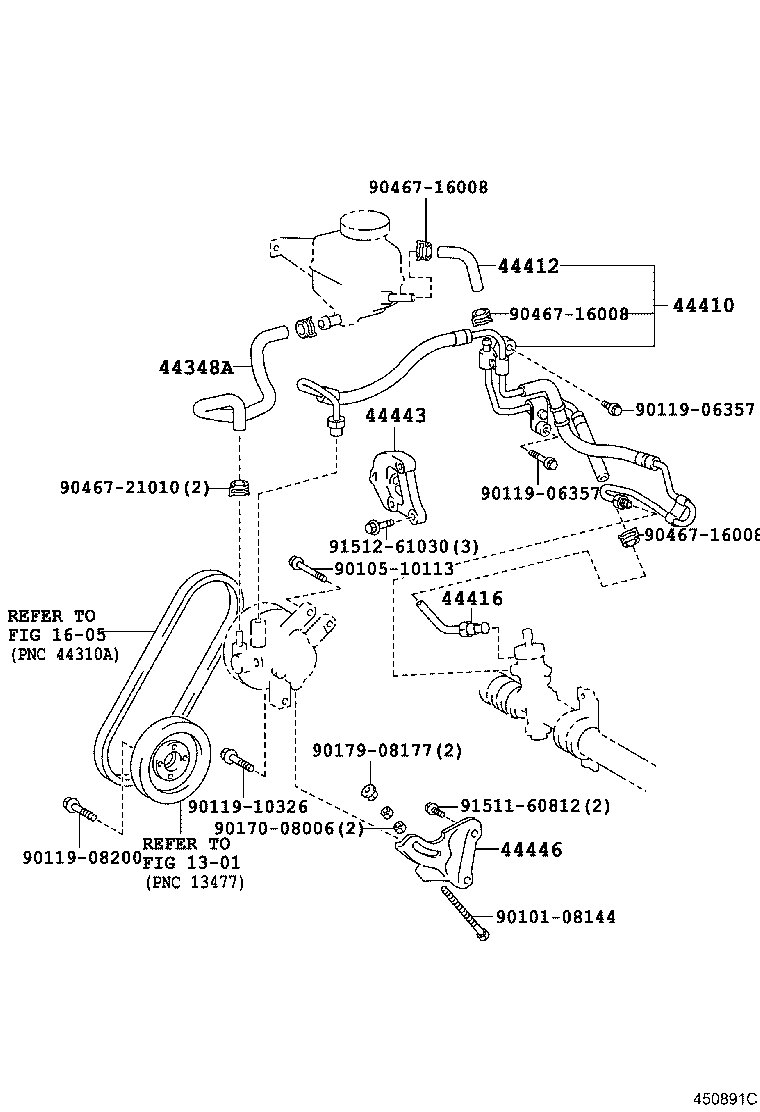

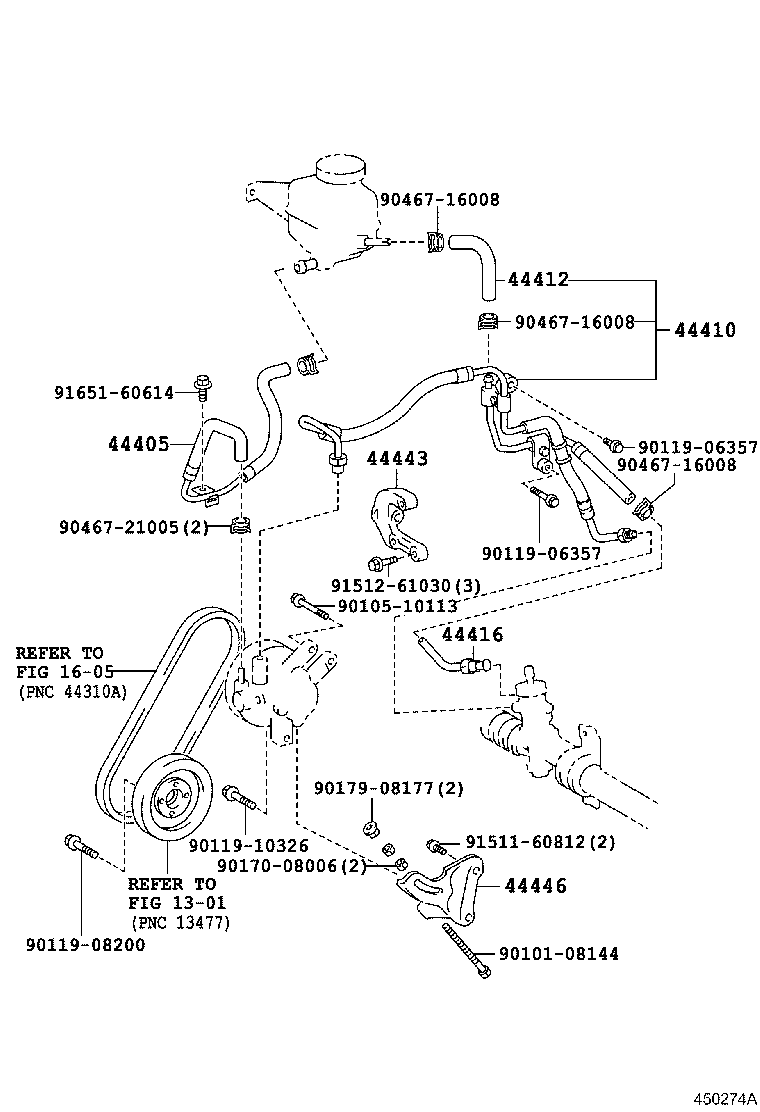

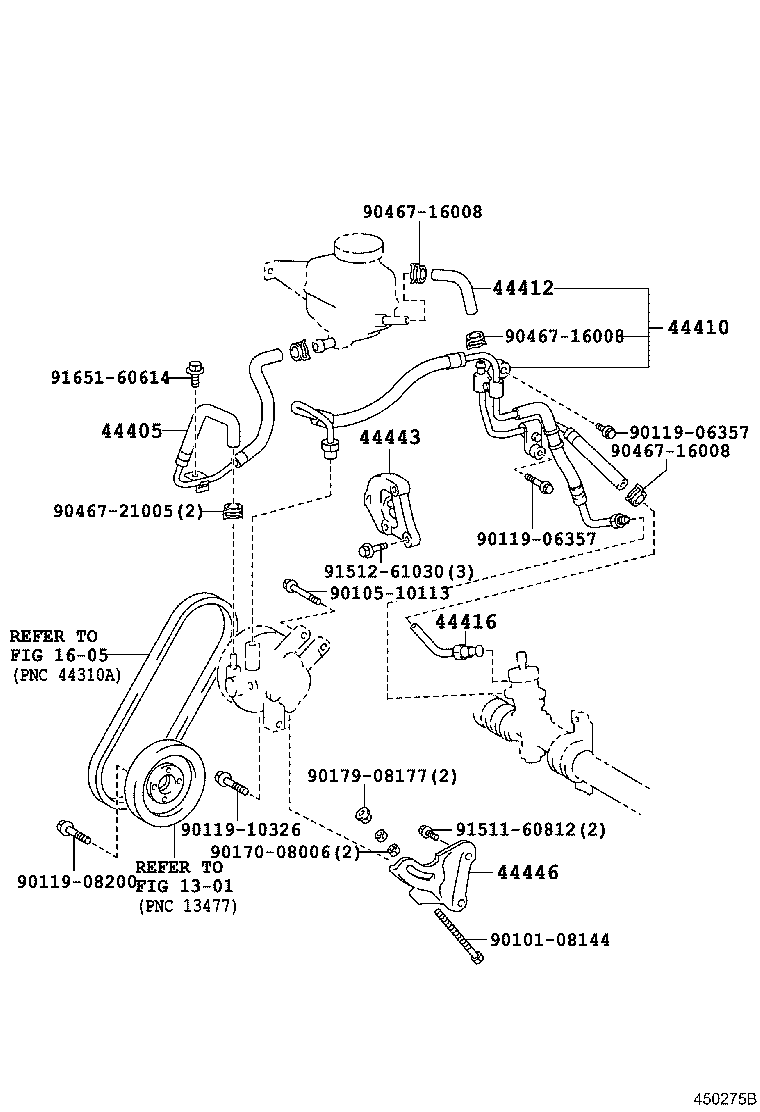

Figure 450271B 450271B 1991-06 → — Figure 450270A 450270A 1991-06 → — Figure 452014A 452014A 1996-05 → — Figure 452015A 452015A 1991-06 → — Figure 450274A 450274A 1991-06 → 1995-05 Figure 450275B 450275B 1991-09 → 1994-01 Figure 450275B 450275B 1994-01 → 1995-05 Figure 450891C 450891C 1995-05 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
