Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

19 part groups · 11 illustrations

Illustrations

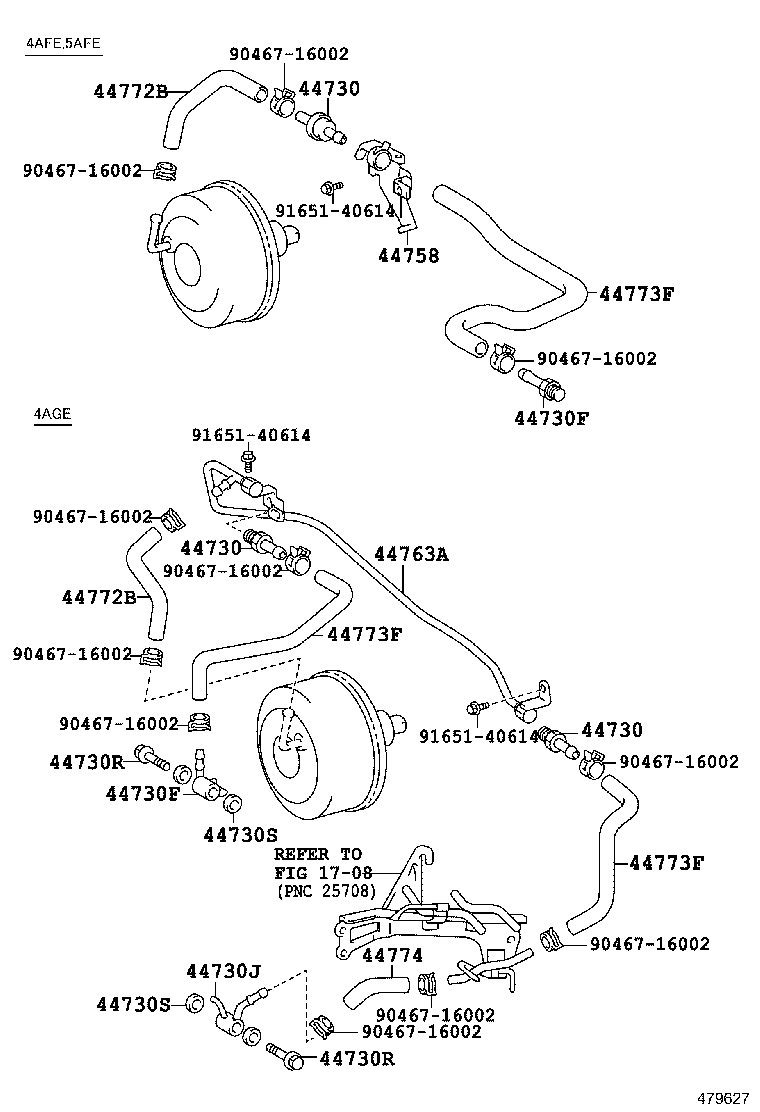

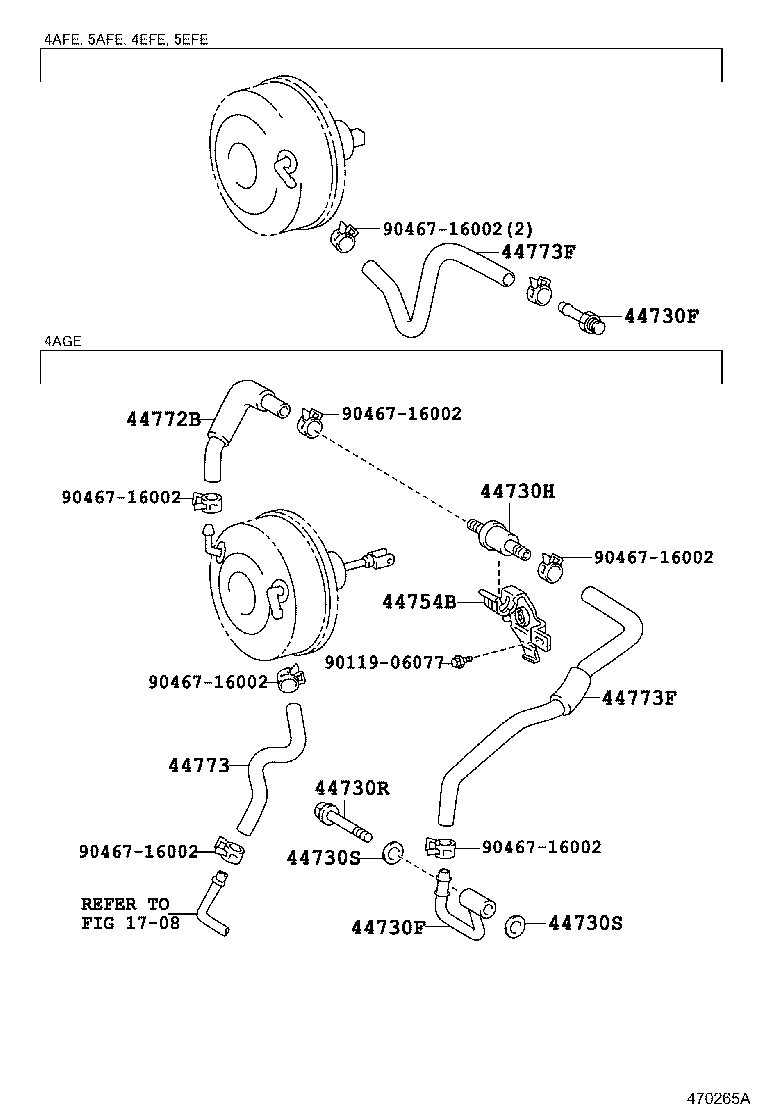

Figure 479625 479625 1991-06 → 1995-05 Figure 479625 479625 1995-05 → 1995-08 Figure 479625 479625 1995-08 → — Figure 479626 479626 1995-05 → 1995-08 Figure 479626 479626 1995-08 → — Figure 479627 479627 1991-06 → 1995-05 Figure 470265A 470265A 1995-05 → 1995-08 Figure 470265A 470265A 1995-08 → — Figure 471509B 471509B 1991-06 → — Figure 471509B 471509B 1994-01 → 1995-08 Figure 479628 479628 1991-09 → 1994-01

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44730J Way(FOR BOOSTER VACUUM)
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44731C Bracket, Brake Booster
44754B Bracket, Vacuum Tube
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773 Hose, Vacuum, NO.2
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
