Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

54 part groups · 6 illustrations

Illustrations

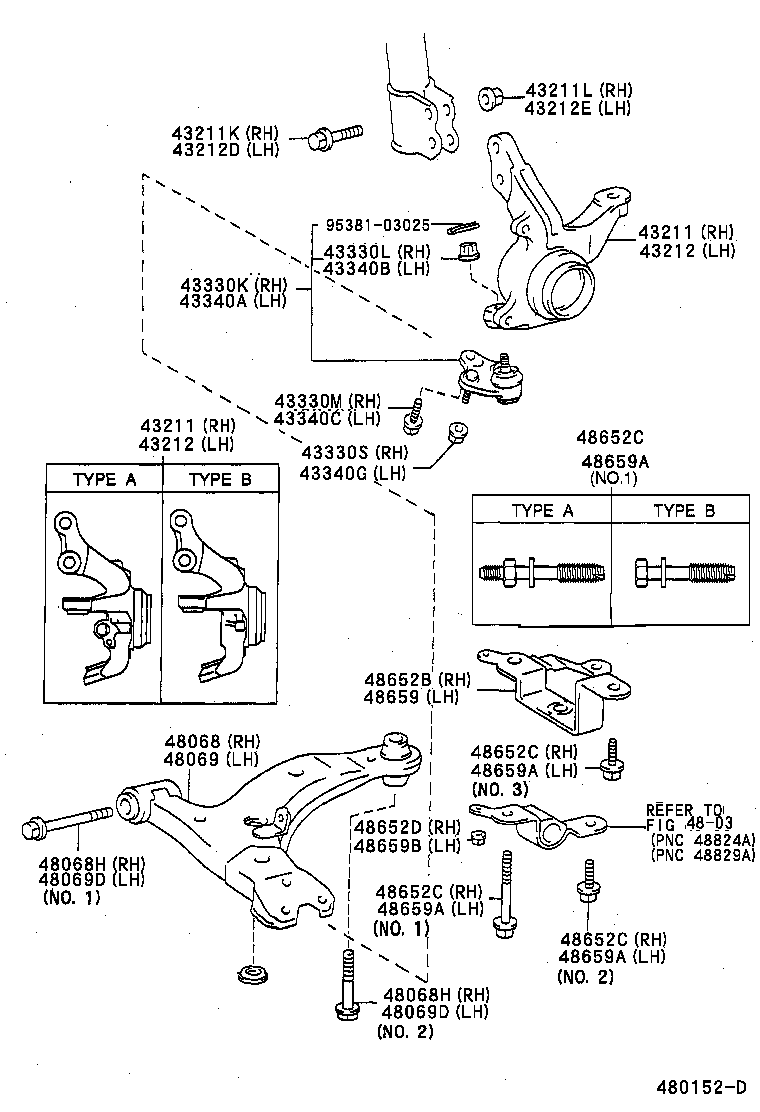

Figure 480151 480151 1991-06 → 1995-05 Figure 480151 480151 1995-05 → 1995-08 Figure 480152D 480152D 1995-05 → 1995-08 Figure 480152D 480152D 1995-08 → — Figure 480150 480150 1991-06 → — Figure 480149A 480149A 1992-05 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43211M Stud, Hexagon Lobular (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43212F Stud, Hexagon Lobular (FOR STEERING KNUCKLE LH)
43330K Joint Assy, Lower Ball, Front RH
43330L Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
43330M Bolt (FOR FRONT LOWER BALL JOINT RH)
43330S Nut (FOR FRONT LOWER BALL JOINT RH)
43340A Joint Assy, Lower Ball, Front LH
43340B Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
43340C Bolt (FOR FRONT LOWER BALL JOINT LH)
43340G Nut (FOR FRONT LOWER BALL JOINT LH)
43350 Joint Assy, Front Upper Ball, RH
43350A Nut (FOR FRONT UPPER BALL JOINT RH)
43350B Ring, Snap (FOR FRONT UPPER BALL JOINT RH)
43360 Joint Assy, Front Upper Ball, LH
43360A Nut (FOR FRONT UPPER BALL JOINT LH)
43360B Ring, Snap (FOR FRONT UPPER BALL JOINT LH)
43525F Cap, Front Suspension Lower Arm, RH
43525G Cap, Front Suspension Lower Arm, LH
43525H Cap, Front Suspension Camber Control Arm, RH
43525J Cap, Front Suspension Camber Control Arm, LH
48066C Nut(FOR FRONT SUSPENSION CAMBER CONTROL ARM RH)
48066D Nut(FOR FRONT SUSPENSION CAMBER CONTROL ARM LH)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068E Arm Sub-assy, Front Suspension, Lower NO.2 RH
48068F Retainer, Cushion(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068G Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068K Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48068L Washer(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069A Arm Sub-assy, Front Suspension, Lower NO.2 LH
48069B Retainer, Cushion(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069C Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069D Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069F Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48069G Washer(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48625 Attachment, Front Lower Ball Joint, RH
48625A Bolt(FOR FRONT LOWER BALL JOINT ATTACHMENT RH)
48625B Nut(FOR FRONT LOWER BALL JOINT ATTACHMENT RH)
48626 Attachment, Front Lower Ball Joint, LH
48626A Bolt(FOR FRONT LOWER BALL JOINT ATTACHMENT LH)
48626B Nut(FOR FRONT LOWER BALL JOINT ATTACHMENT LH)
48652B Bracket, Front Lower Arm, RH
48652C Bolt(FOR FRONT LOWER ARM BRACKET RH)
48652D Nut(FOR FRONT LOWER ARM BRACKET RH)
48659 Bracket, Front Lower Arm, LH
48659A Bolt(FOR FRONT LOWER ARM BRACKET LH)
48659B Nut(FOR FRONT LOWER ARM BRACKET LH)
