Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

10 part groups · 6 illustrations

Illustrations

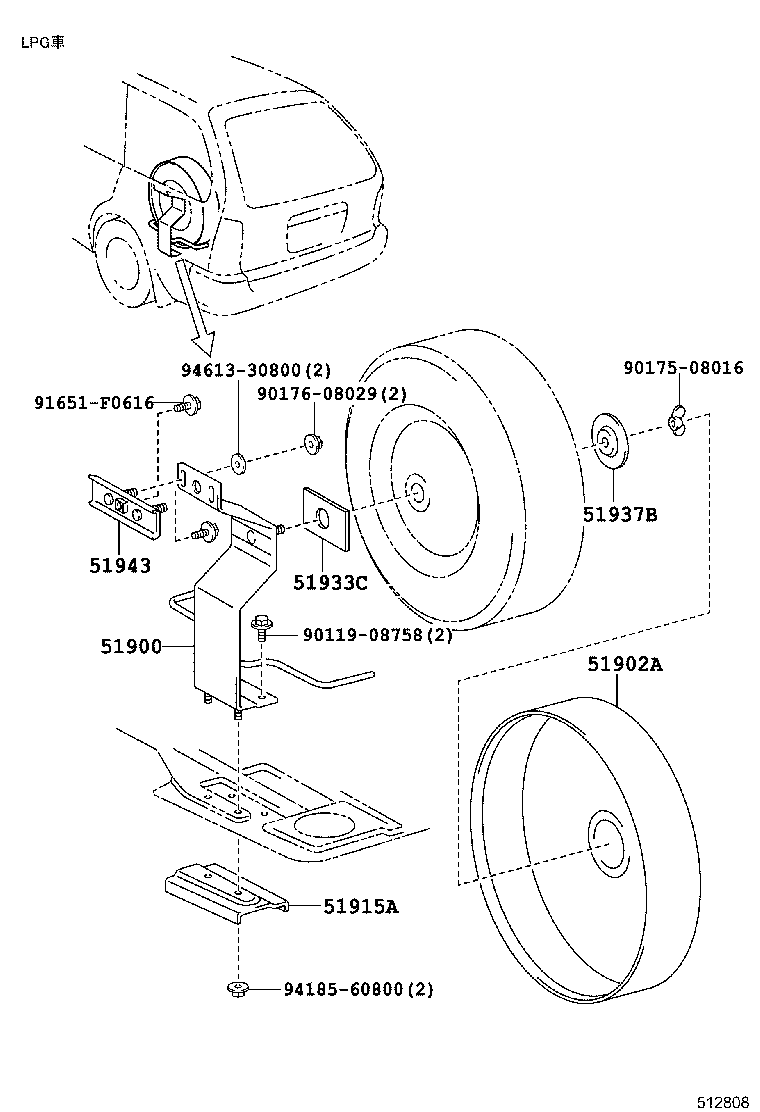

Figure 512806 512806 1991-06 → 1994-03 Figure 512806 512806 1994-03 → — Figure 512807 512807 1991-09 → — Figure 512807 512807 1994-01 → — Figure 512808 512808 1991-09 → 1994-01 Figure 512809 512809 1994-03 → 1995-05

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51902A Cover Sub-assy, Spare Wheel
51915A Base, Spare Wheel Carrier
51933C Stopper, Spare Wheel
51937B Plate, Spare Wheel Carrier Lock
51938 Lock, Spare Wheel Carrier
51938D Tube(FOR SPARE WHEEL CARRIER BOLT)
51938F Bolt(FOR SPARE WHEEL CARRIER LOCK)
51943 Bracket, Spare Wheel Carrier, NO.1
64777E Clamp, Spare Wheel Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
