Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 7 illustrations

Illustrations

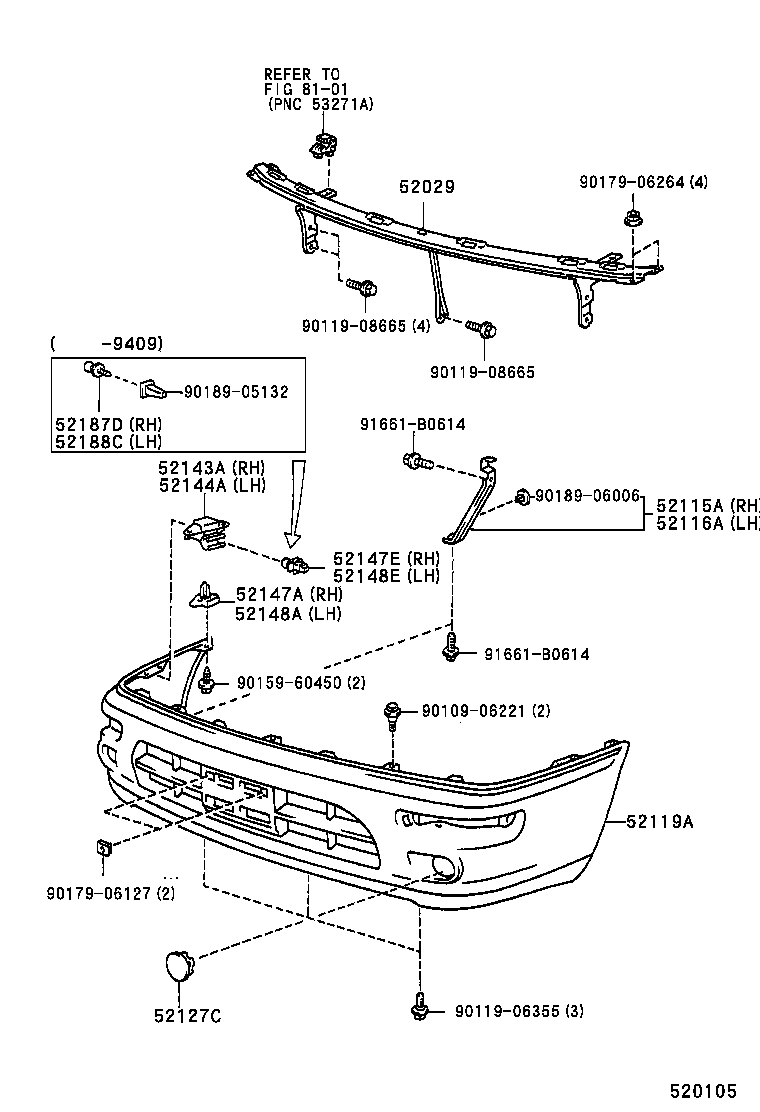

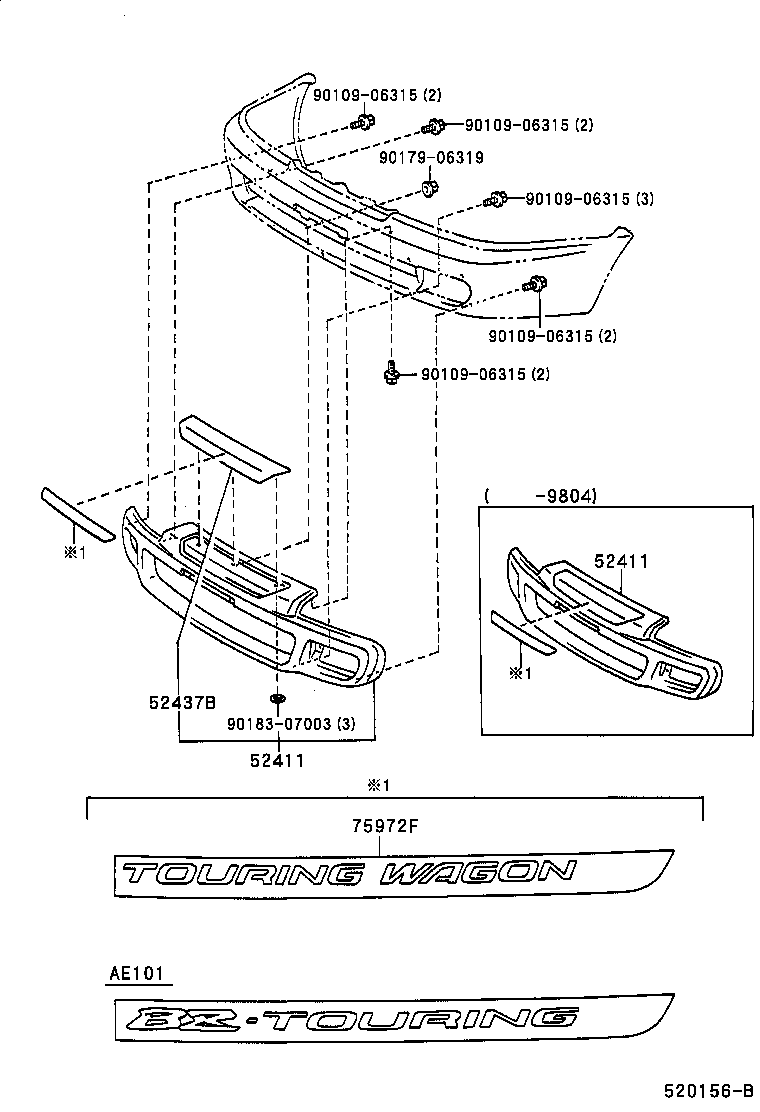

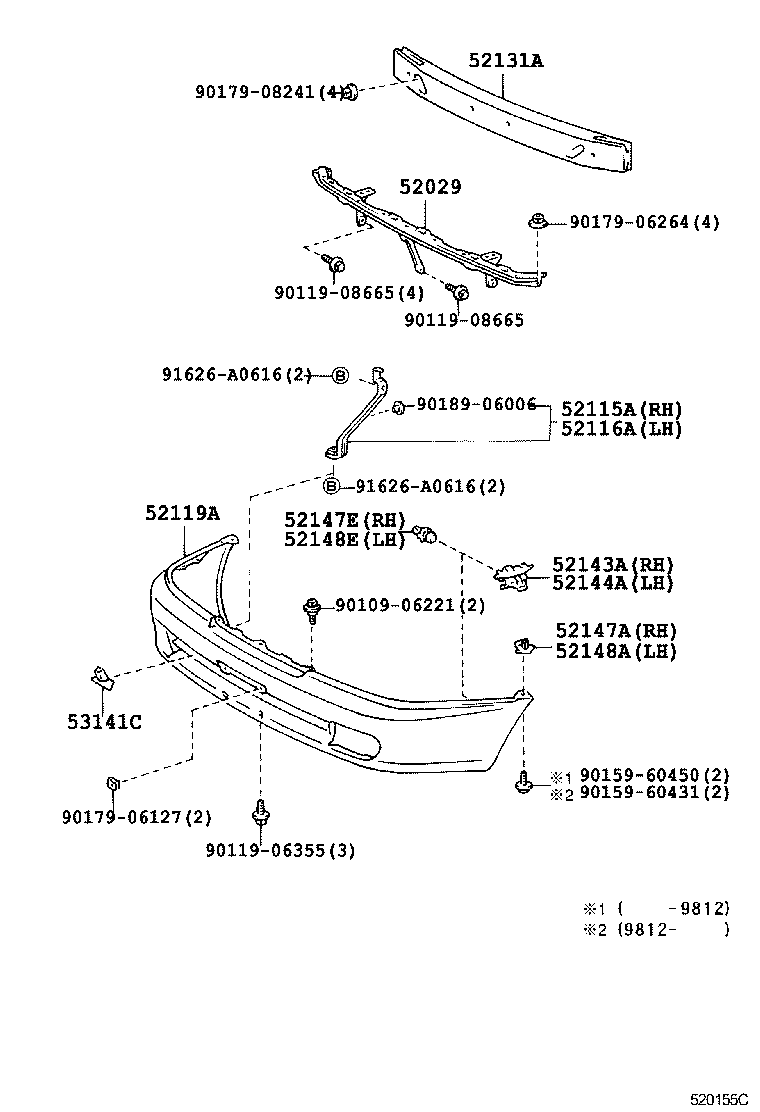

Figure 520209B 520209B 1991-06 → 1995-05 Figure 520209B 520209B 1995-05 → 1997-05 Figure 520209B 520209B 1995-05 → — Figure 520155C 520155C 1997-05 → — Figure 520105 520105 1992-05 → 1995-05 Figure 520104 520104 1995-05 → 1997-05 Figure 520156B 520156B 1997-05 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52147A Bracket, Front Bumper Stay, RH
52147E Bracket, Front Bumper Mounting, RH
52148A Bracket, Front Bumper Stay, LH
52148E Bracket, Front Bumper Mounting, LH
52187D Guide, Front Bumper Location, RH
52188C Guide, Front Bumper Location, LH
52411 Guard, Front Bumper
52431A Bracket, Front Bumper Guard, RH
52432A Bracket, Front Bumper Guard, LH
52436 Protector, Front Bumper Guard
52437 Cover, Front Bumper Guard, RH
52437B Cover, Front Bumper Guard Base
52675 Support, Front Bumper Lower Side, RH
52676 Support, Front Bumper Lower Side, LH
53141C Garnish, Radiator Grille
75972F Stripe, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
