Toyota Corolla
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan
Discontinued model
Data version 2003-01
Mat & Carpet

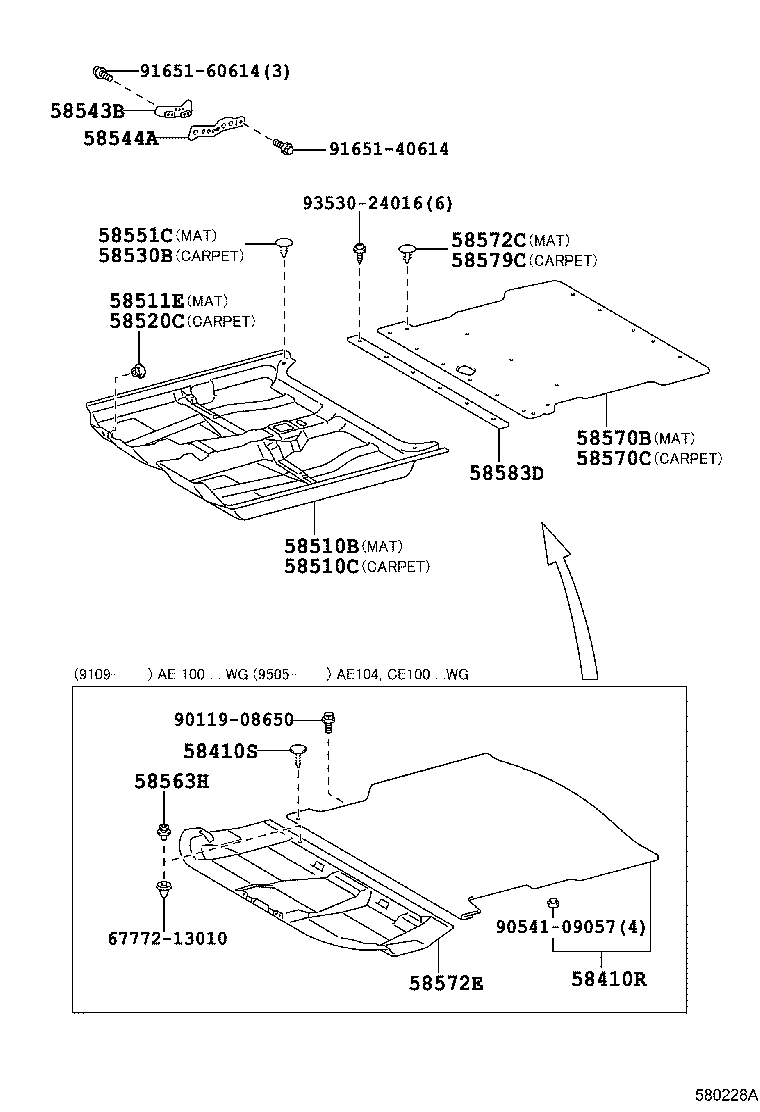

17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410R | Board Assy, Deck |
| 58410S | Clip, Deck Board |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58543B | Bracket, Floor Carpet, RH |
| 58544A | Bracket, Floor Carpet, LH |
| 58551C | Clip(FOR FLOOR MAT, REAR) |
| 58563H | Clip(FOR REAR FLOOR MAT) |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58572C | Clip, Rear Floor Mat Set |
| 58572E | Mat, Rear Floor, Front |
| 58579C | Clip, Rear Floor Carpet Set |
| 58583D | Plate, Rear Seatback Carpet Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
