Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

87 part groups · 7 illustrations

Illustrations

615100 1991-06 → 1995-05

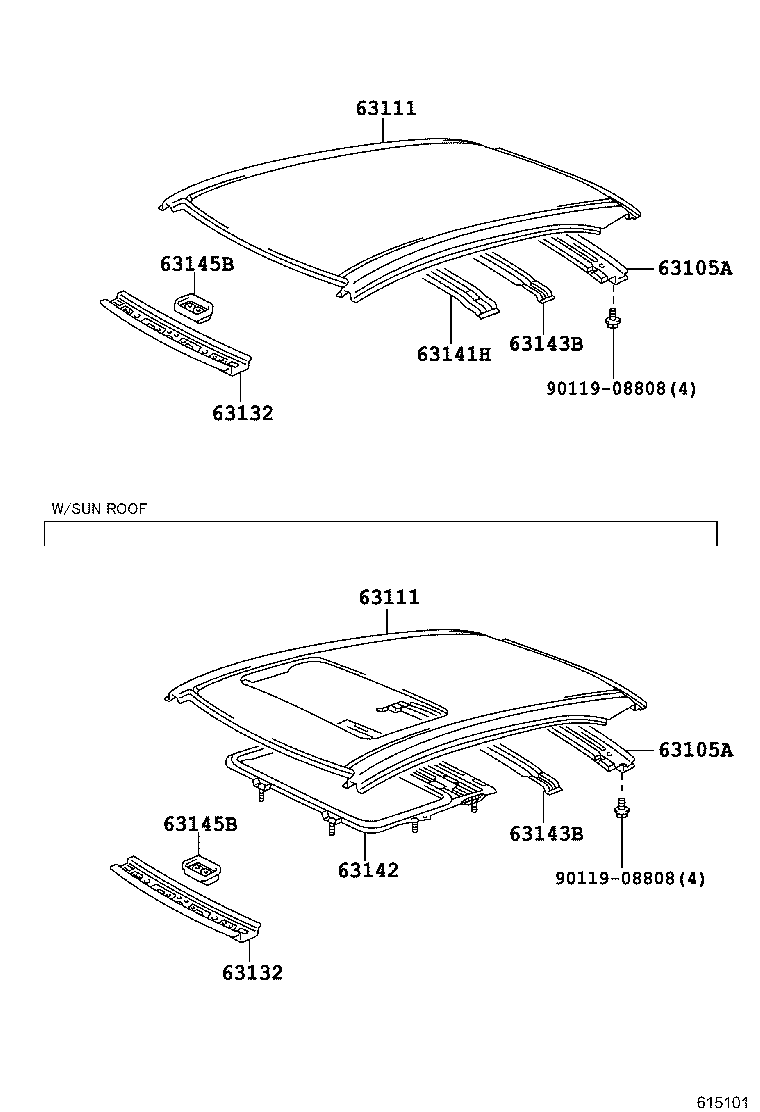

615101 1992-05 → 1995-05

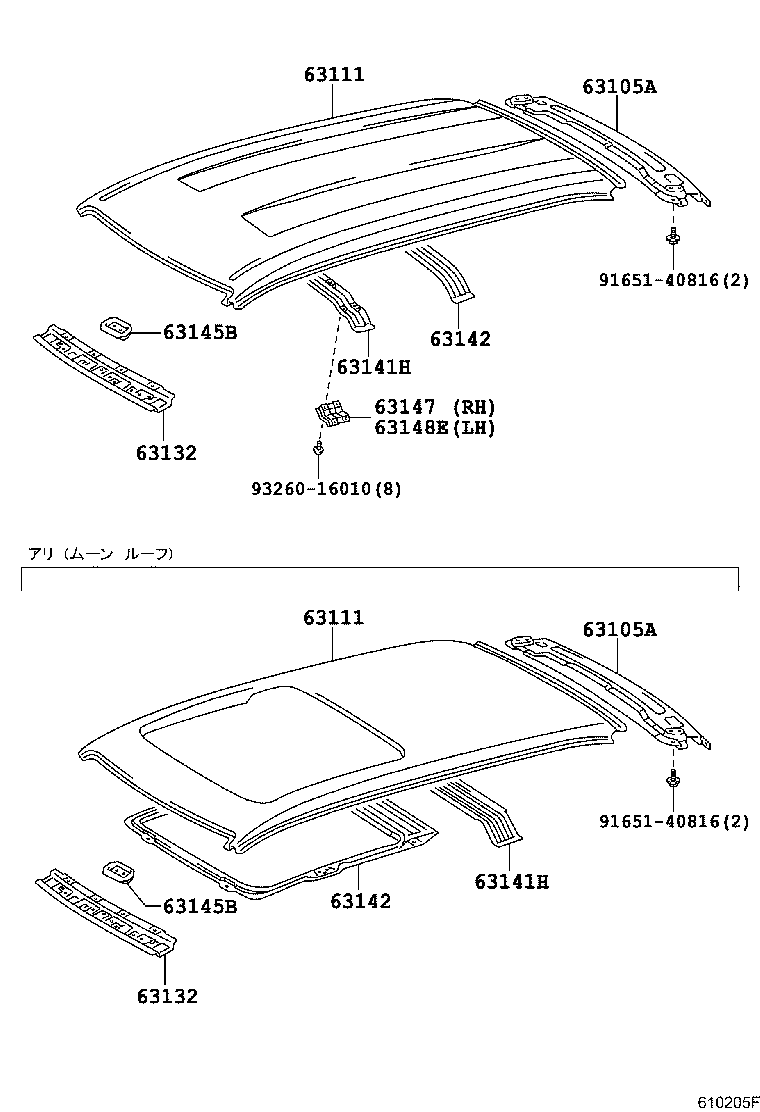

610205F 1991-09 → —

610206A 1991-06 → 1995-05

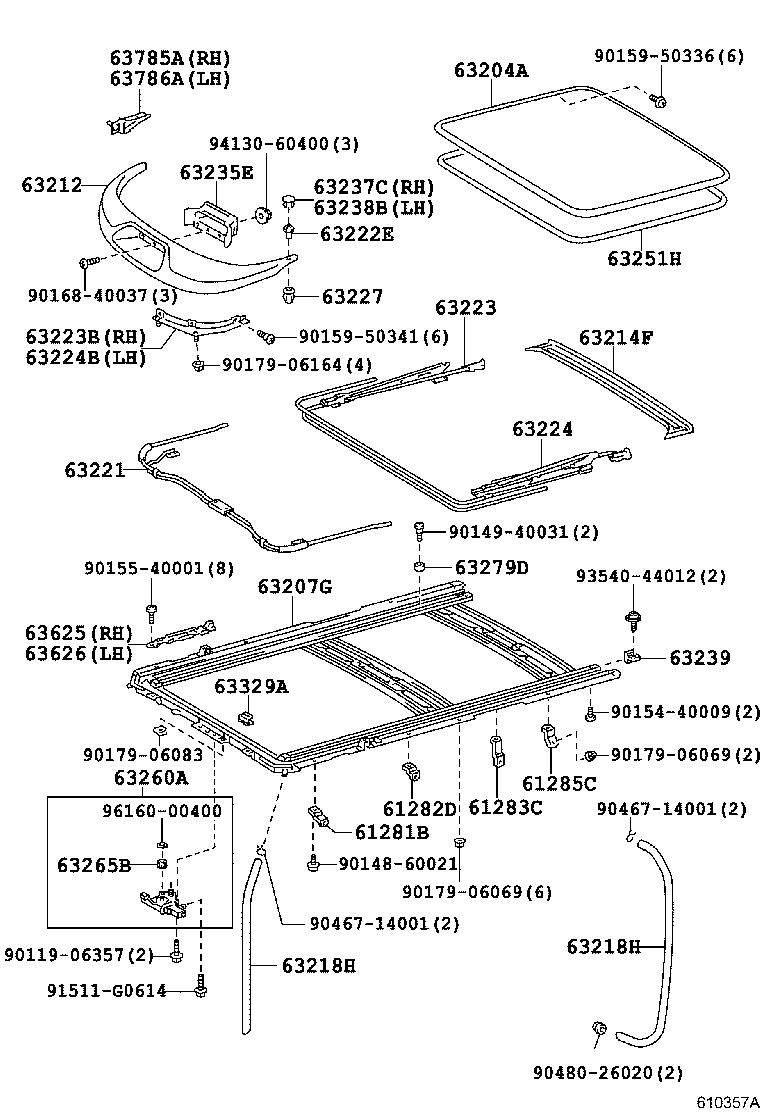

610357A 1997-05 → —

610355A 1997-05 → —

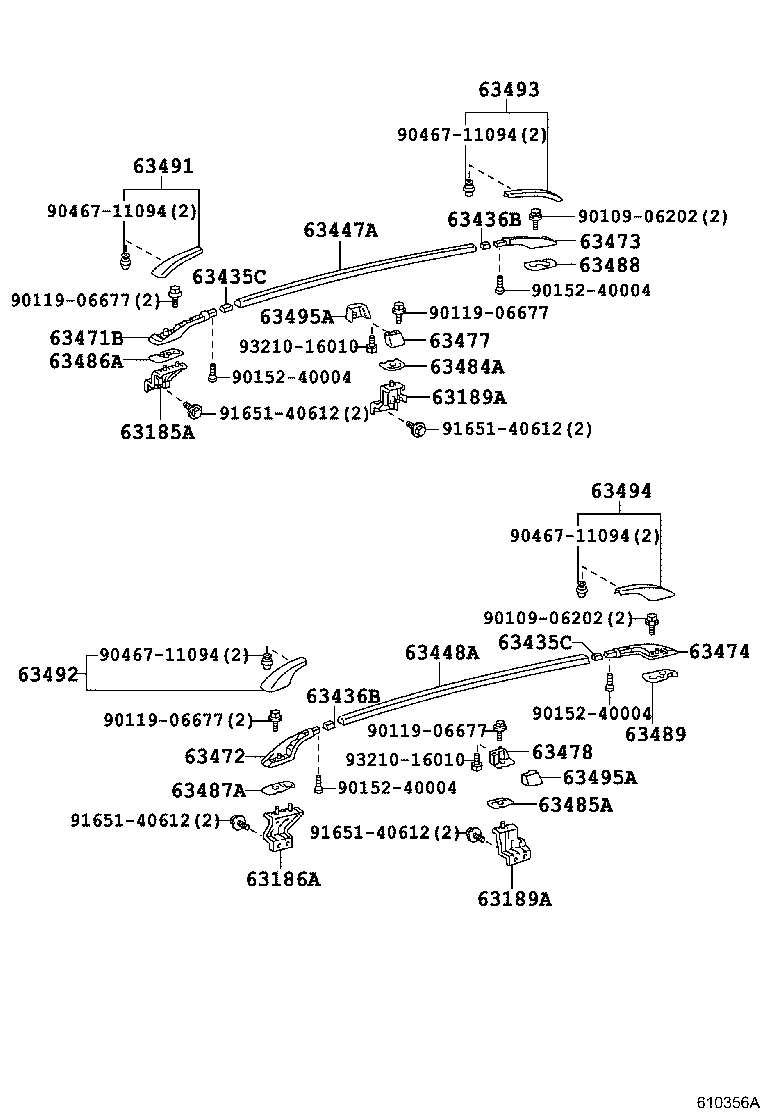

610356A 1991-09 → —

Part groups

PNC	Description
04641	Dam Kit, Back Window Glass
61281B	Bracket, Sliding Roof Housing Side Mounting, NO.1
61282D	Bracket, Sliding Roof Housung Side Mounting, NO.2
61283C	Bracket, Sliding Roof Housing Side Mounting, NO.3
61285C	Bracket, Sliding Roof Housing Side Mounting, NO.4
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63132	Panel, Windshield Header, Inner
63133A	Frame, Back Window, Upper
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63145B	Reinforcement, Windshield Header Panel
63147	Bracket, Roof Panel Reinforcement
63148E	Bracket, Roof Panel Reinforcement, LH
63185A	Bracket, Roof Rack, Front RH
63186A	Bracket, Roof Rack, Front LH
63189A	Bracket, Roof Rack, Center
63204A	Panel Sub-assy, Sliding Roof, Inner
63207G	Rail Sub-assy, Sliding Roof Guide
63209	Panel Sub-assy, Roof Wind Deflector
63212	Panel, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63217G	Garnish, Sliding Roof Side, RH
63218G	Garnish, Sliding Roof Side, LH
63218H	Hose, Sliding Roof Drain
63219A	Garnish, Sliding Roof, Rear
63221	Casing, Sliding Roof Cable Guide
63222E	Pin, Roof Wind Deflector
63223	Cable, Sliding Roof Drive, RH
63223B	Bracket, Roof Wind Deflector, RH
63224	Cable, Sliding Roof Drive, LH
63224B	Bracket, Roof Wind Deflector, LH
63227	Clip, Roof Wind Deflector Panel
63235E	Duct, Roof Wind Deflector
63237C	Cap, Roof Wind Deflector, RH
63238B	Cap, Roof Wind Deflector, LH
63239	Stopper, Sliding Roof Panel
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63242A	Bracket, Sliding Roof Housing Front Mounting, LH
63243C	Bracket, Sliding Roof Housing Center Mounting, RH
63244C	Bracket, Sliding Roof Housing Center Mounting, LH
63245D	Bracket, Sliding Roof Housing Rear Mounting, RH
63246D	Bracket, Sliding Roof Housing Rear Mounting, LH
63251H	Weatherstrip, Sliding Roof
63252D	Weatherstrip, Sliding Roof Housing
63259B	Holder, Sliding Roof Weatherstrip
63260A	Gear Sub-assy, Sliding Roof Drive
63265B	Gear, Sliding Roof Drive
63267A	Protector, Sliding Roof Weatherstrip, RH
63268A	Protector, Sliding Roof Weatherstrip, LH
63277C	Shim, Sliding Roof Panel
63279D	Stopper, Sliding Roof Guide Rail
63329A	Stopper, Sunshade Lock
63435C	Seal, Roof Carrier, NO.1 RH
63436B	Seal, Roof Carrier, NO.1 LH
63447A	Roof Rail, RH
63448A	Roof Rail, LH
63471B	Leg, Roof Rack, Front RH
63472	Leg, Roof Rack, Front LH
63473	Leg, Roof Rack, Rear RH
63474	Leg, Roof Rack, Rear LH
63477	Support, Roof Rack, Center RH
63478	Support, Roof Rack, Center LH
63484A	Cushion, Roof Rack Leg, Center RH
63485A	Cushion, Roof Rack Leg, Center LH
63486A	Cushion, Roof Rack Leg, Front RH
63487A	Cushion, Roof Rack Leg, Front LH
63488	Cushion, Roof Rack Leg, Rear RH
63489	Cushion, Roof Rack Leg, Rear LH
63491	Cover, Roof Rack Leg, Front RH
63492	Cover, Roof Rack Leg, Front LH
63493	Cover, Roof Rack Leg, Rear RH
63494	Cover, Roof Rack Leg, Rear LH
63495A	Cover, Roof Rack Leg, Center
63625	Block, Sliding Roof Guide, RH
63626	Block, Sliding Roof Guide, LH
63633A	Bush, Sliding Roof Housing, NO.1
63634A	Bush, Sliding Roof Housing, NO.2
63635A	Garnish, Sliding Roof, Front
63785A	Pad, Roof Air Deflector, Front RH
63786A	Pad, Roof Air Deflector, Front LH
64101	Panel Sub-assy, Upper Back
64173A	Bracket, High Mounting Stop Lamp
64811	Glass, Back Window
66243D	Protector, Rear Body, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
