Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 3 illustrations

Illustrations

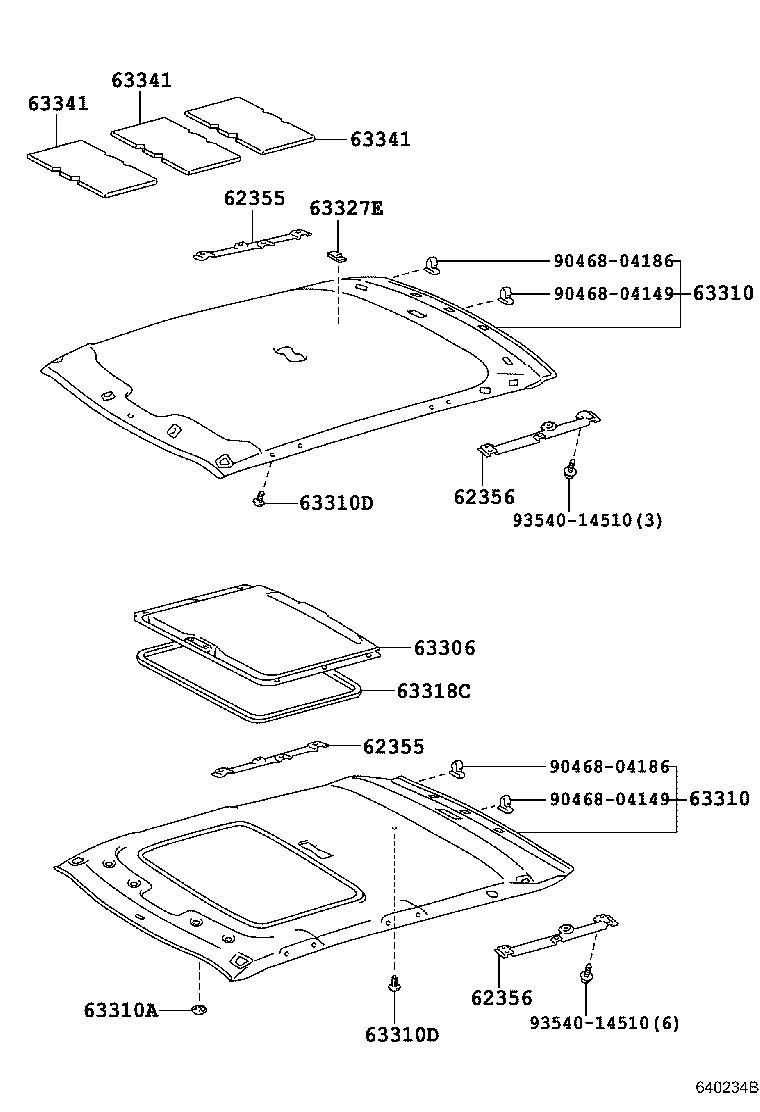

Figure 640851A 640851A 1991-06 → — Figure 640234B 640234B 1991-09 → — Figure 640235A 640235A 1991-09 → —

Part groups

PNCDescription
62355 Retainer, Quarter Window Inside Trim, RH
62356 Retainer, Quarter Window Inside Trim, LH
63305B Trim Sub-assy, Roof Headlining, Rear
63305F Clip(FOR ROOF HEADLINING TRIM)
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310A Plug, Hole(FOR ROOF HEADLINING ASSY)
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63327E Fastener, Roof Headlining, NO.1
63328C Knob, Sunshade Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
