Toyota Corolla
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan
Discontinued model
Data version 2003-01

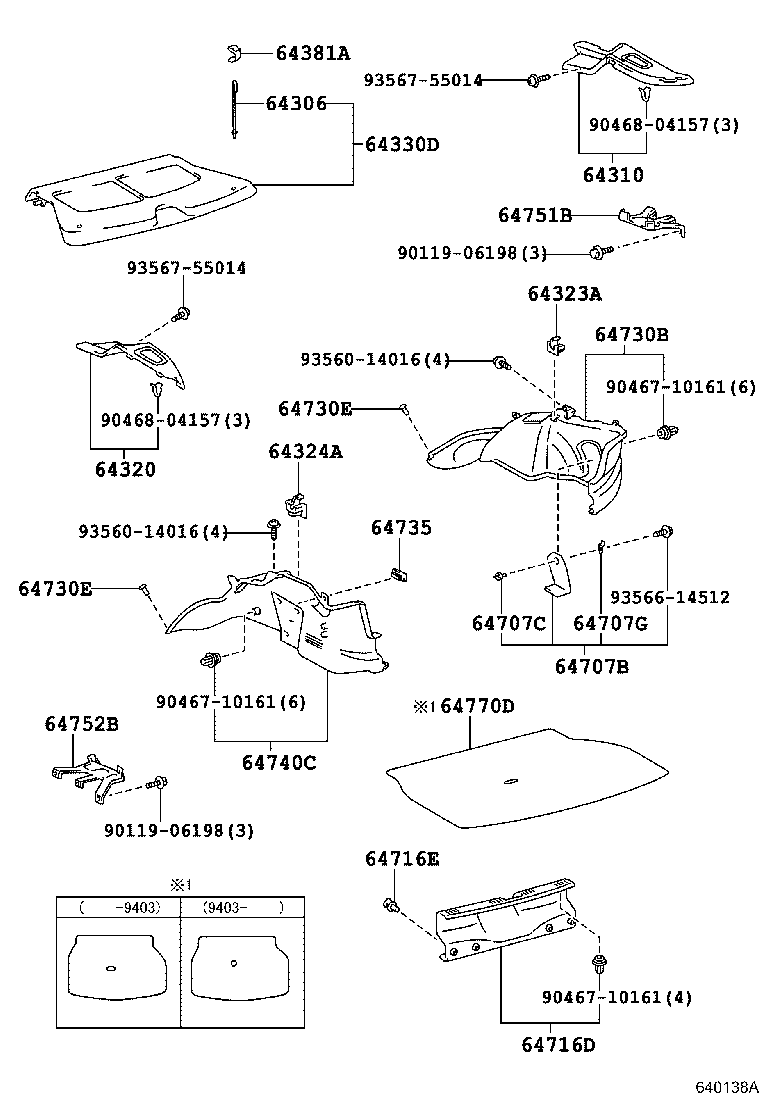

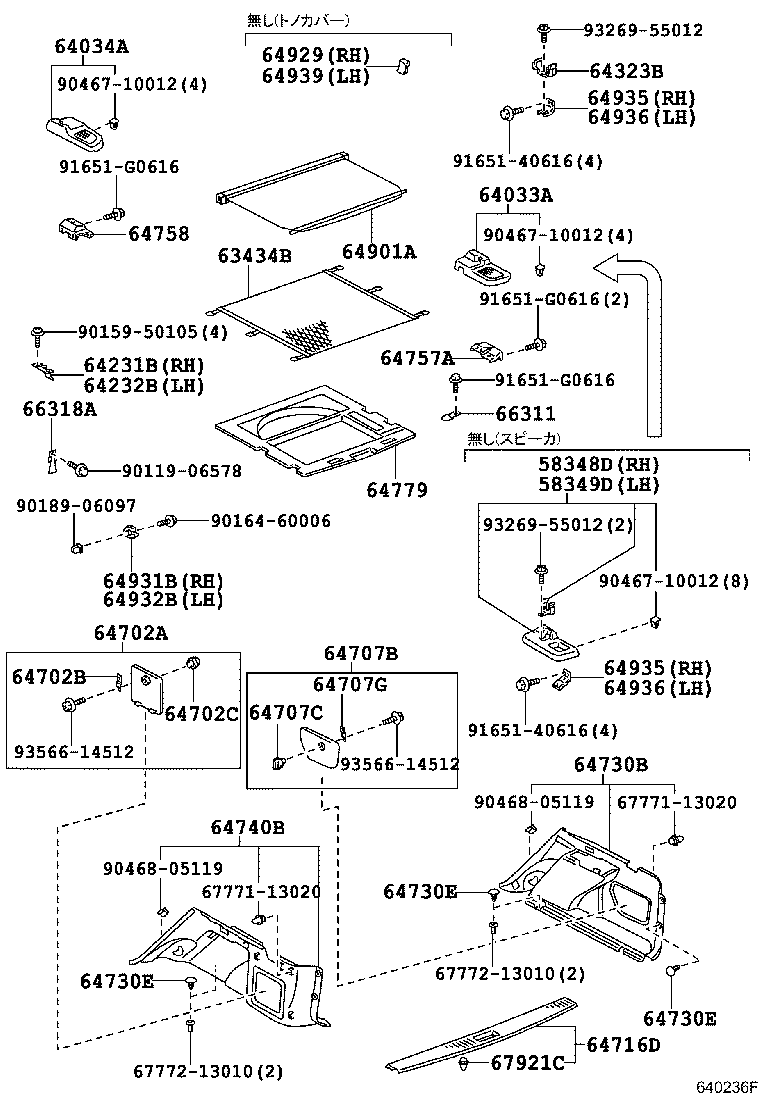

Deck Board & Deck Trim Cover
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58348D | Cover, Rear Absorber Service Hole, RH |
| 58349D | Cover, Rear Absorber Service Hole, LH |
| 62613G | Cover Assy, Quarter Wheel House, RH |
| 62613H | Clip (FOR QUARTER WHEEL HOUSE COVER) |
| 62614F | Cover Assy, Quarter Wheel House, LH |
| 62630U | Panel Assy, Quarter Trim, Rear RH |
| 62630V | Clip (FOR QUARTER REAR TRIM) |
| 62640S | Panel Assy, Quarter Trim, Rear LH |
| 63434B | Net, Room Rack |
| 64033A | Grille Sub-assy, Rear Speaker, RH |
| 64034A | Grille Sub-assy, Rear Speaker, LH |
| 64231B | Hook, Room Partition Net, Front RH |
| 64232B | Hook, Room Partition Net, Front LH |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64310 | Bracket, Package Tray Trim, RH |
| 64320 | Bracket, Package Tray Trim, LH |
| 64323A | Clamp, Package Tray Trim, RH |
| 64323B | Clamp, Tonneau Cover |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64702A | Cover Sub-assy, Deck Trim Side Service Hole |
| 64702B | Stopper, Washer Tank Cover |
| 64702C | Knob, Washer Tank Cover |
| 64707B | Cover Sub-assy, Quarter Trim Jack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740B | Board, Deck Trim Side, LH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64751B | Bracket, Speaker Set, NO.1 RH |
| 64752B | Bracket, Speaker Set, NO.1 LH |
| 64757A | Bracket, Speaker Set, NO.3 |
| 64758 | Bracket, Speaker Set, NO.4 |
| 64770D | Cover Assy, Spare Wheel |
| 64779 | Tray, Spare Wheel Cover |
| 64901A | Retractor Sub-assy, Tonneau Cover |
| 64929 | Cover, Tonneau Cover Holder, RH |
| 64931B | Hanger, Tonneau Cover, RH |
| 64932B | Hanger, Tonneau Cover, LH |
| 64935 | Holder, Tonneau Cover, RH |
| 64936 | Holder, Tonneau Cover, LH |
| 64939 | Cover, Tonneau Cover Holder, LH |
| 66311 | Hook, Rope |
| 66318A | Band, Rope Hook |
| 67921C | Retainer, Deck Trim Side Board |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
