Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

25 part groups · 8 illustrations

Illustrations

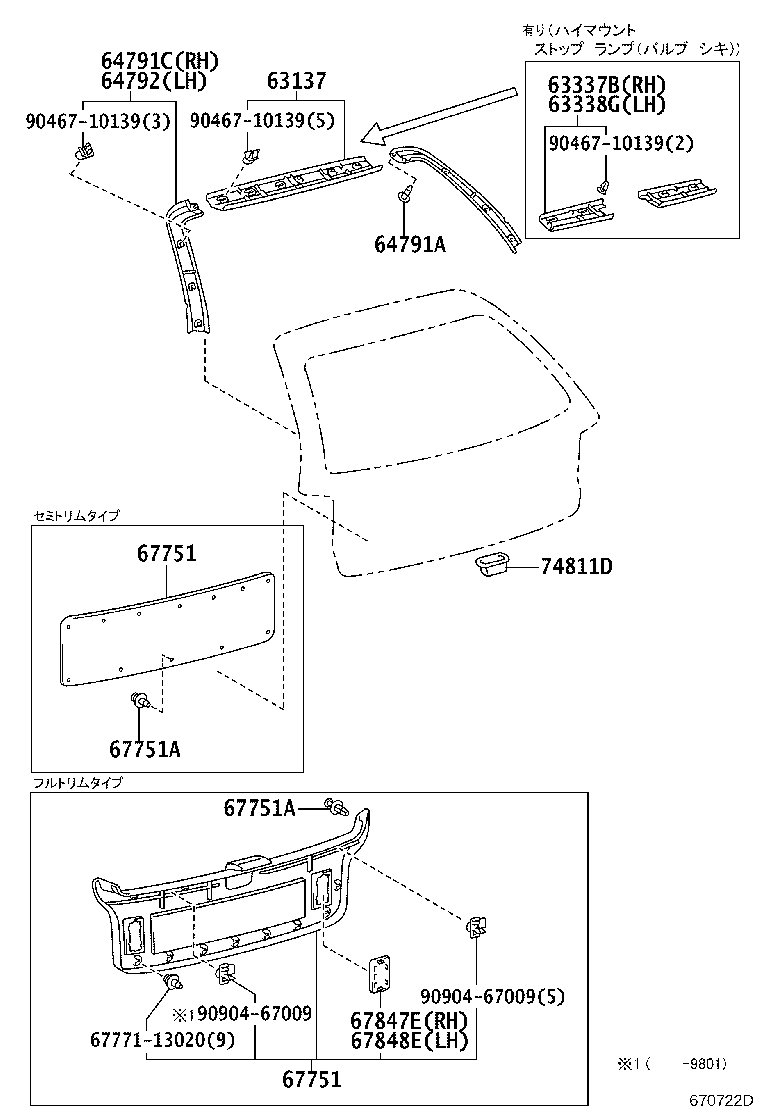

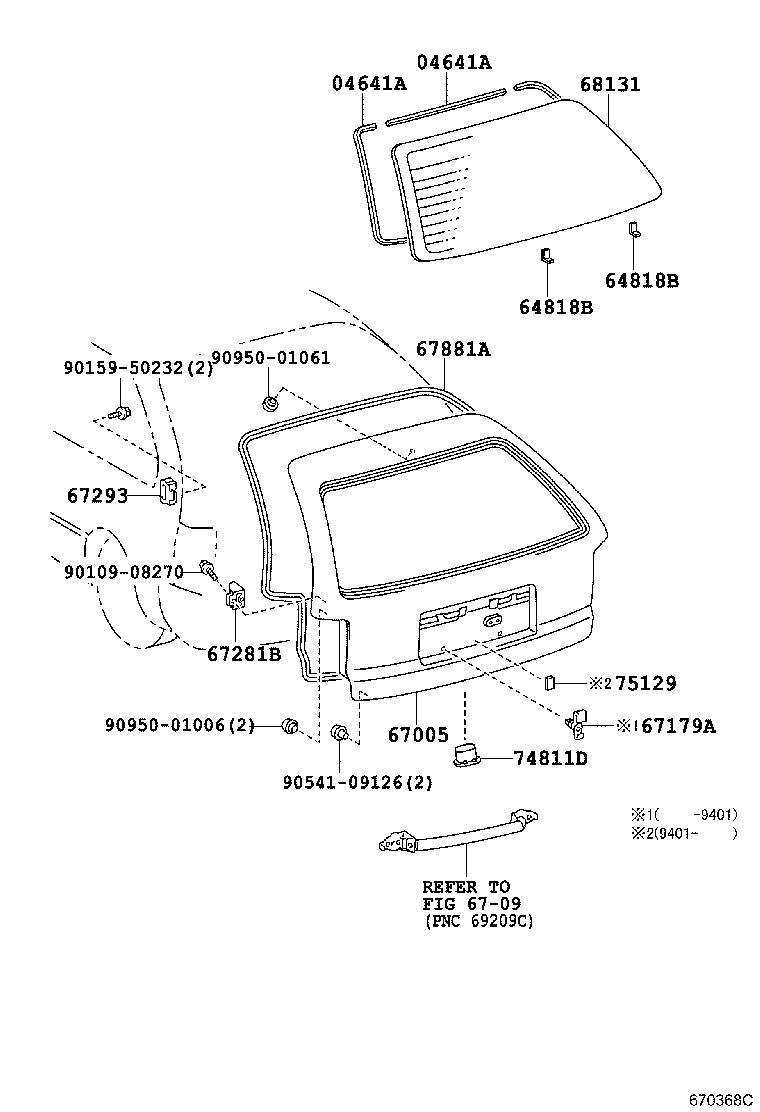

Figure 670377B 670377B 1991-09 → 1997-04 Figure 670377B 670377B 1991-09 → 1997-05 Figure 670722D 670722D 1997-04 → — Figure 670722D 670722D 1997-05 → — Figure 670722D 670722D 1998-04 → — Figure 670368C 670368C 1991-09 → — Figure 670379A 670379A 1992-05 → 1995-05 Figure 670369A 670369A 1992-05 → 1995-05

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
63137 Cover, Back Door Opening Upper, Inner
63337B Cover, Back Door Opening Frame, Upper RH
63338G Cover, Back Door Opening Frame, Upper LH
64373B Stopper, Package Tray Trim
64791A Clip(FOR BACK DOOR TRIM)
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64795A Trim, Back Window Opening
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67179A Retainer, License Plate
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67371 Duct, Back Door Ventilator
67750 Board Assy, Back Door Trim
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847E Cover, Back Door Service Hole, RH
67848E Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74811D Handle, Door Pull
75129 Cushion, Rear License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
