Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

20 part groups · 2 illustrations

Illustrations

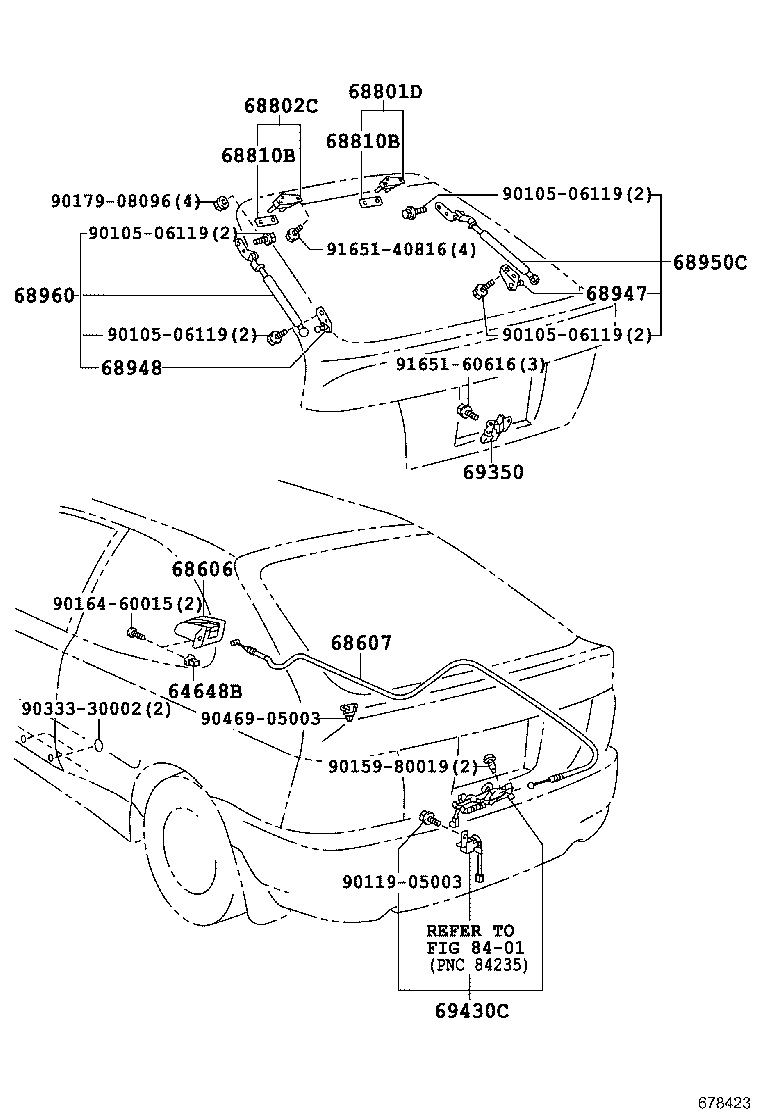

Figure 670630D 670630D 1991-09 → — Figure 678423 678423 1992-05 → 1995-05

Part groups

PNCDescription
64648B Grommet, Back Door Lock Opener
64680 Cable Assy, Back Door Lock Control
68606 Lever Sub-assy, Back Door Lock Open
68607 Cable Sub-assy, Back Door Lock Control
68801D Hinge Sub-assy, Back Door, RH
68802C Hinge Sub-assy, Back Door, LH
68810B Pad, Back Door Hinge
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68957B Bracket, Back Door Stay, Lower
68960 Stay Assy, Back Door, LH
69209C Handle Sub-assy, Back Door, Outside
69217B Cover, Back Door Outside Handle
69217C Retainer, Back Door Outside Handle Cover
69238D Cushion, Back Door Outside Handle
69255C Protector, Door Outside Handle
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
