Toyota Corolla
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan
Discontinued model
Data version 2003-01

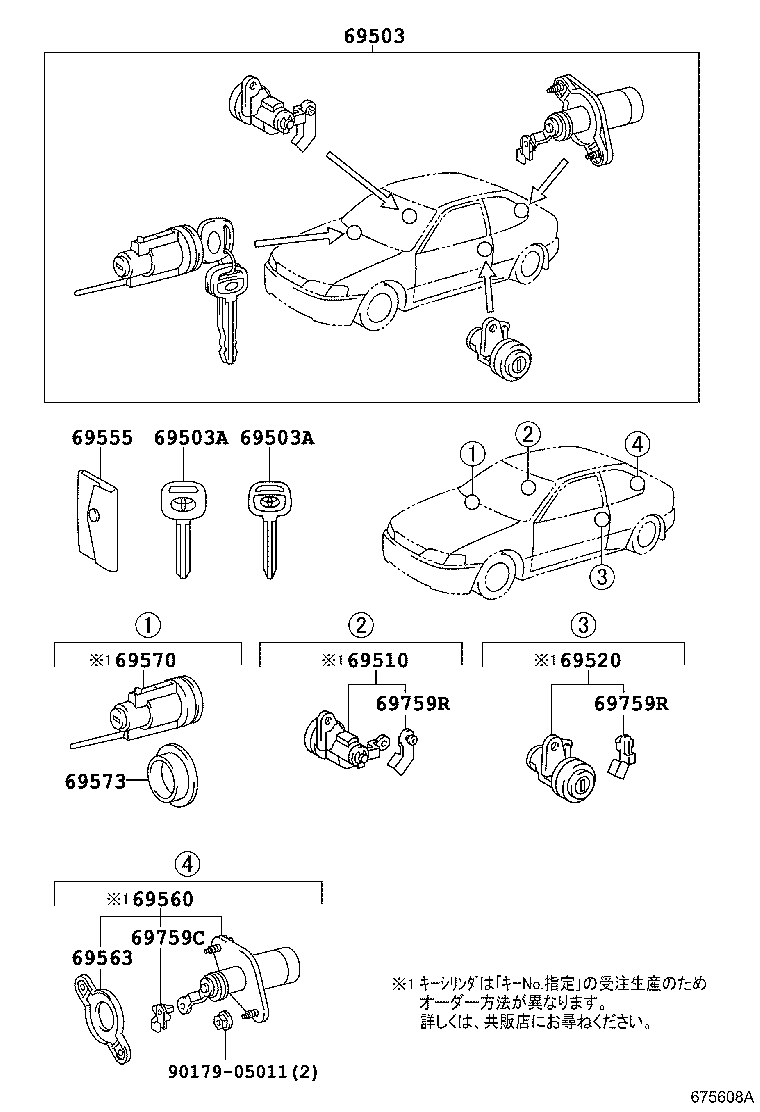

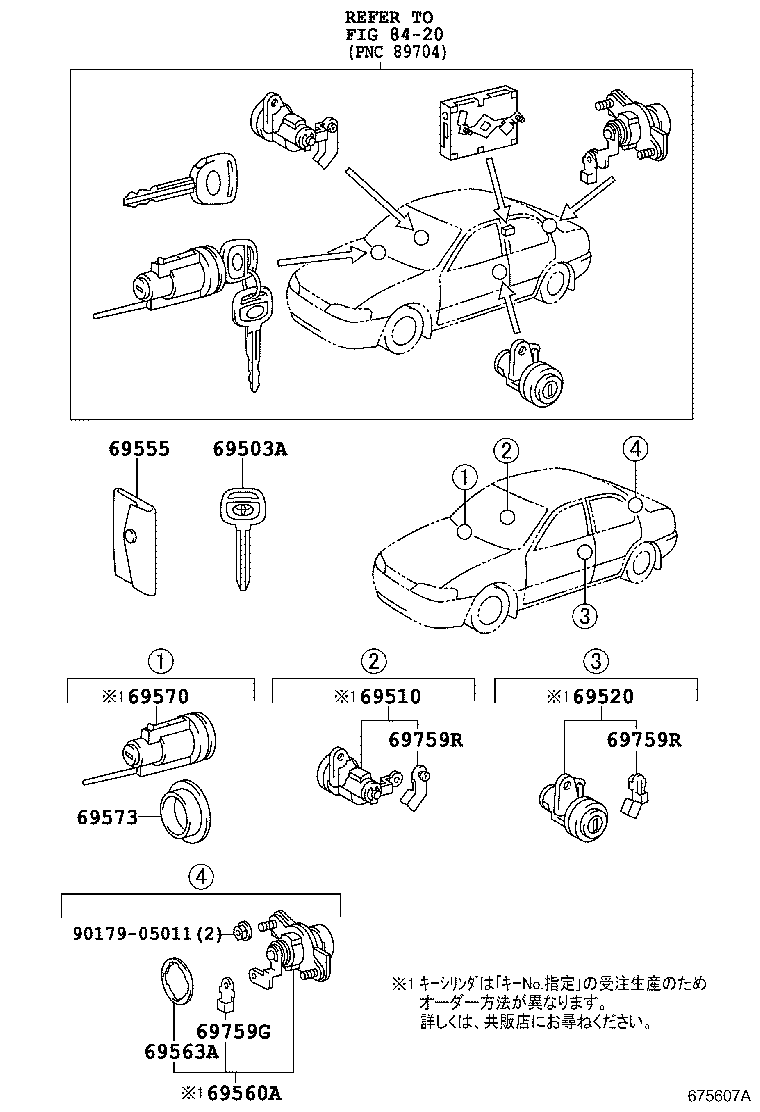

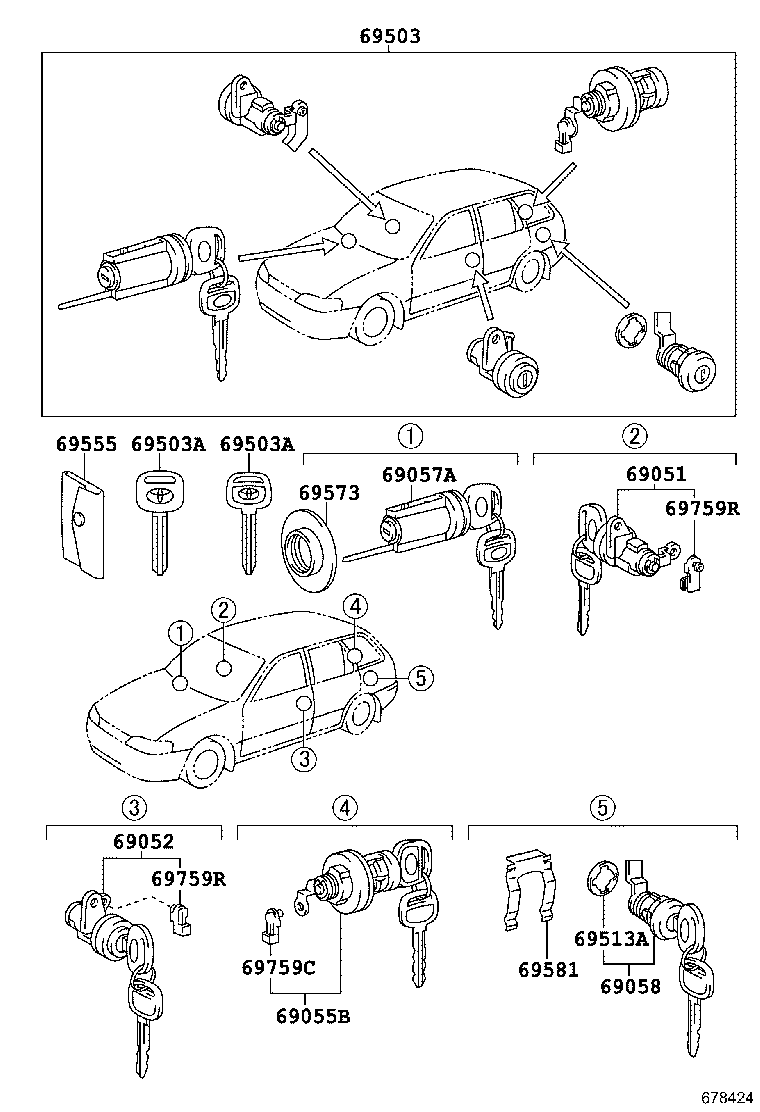

Lock Cylinder Set
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69513A | Pad, Door Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69555 | Cover, Key |
| 69560 | Cylinder Assy, Back Door Lock |
| 69560A | Cylinder Assy, Luggage Compartment Door Lock |
| 69563 | Pad, Back Door Lock Cylinder |
| 69563A | Pad, Luggage Compartment Door Lock Cylinder |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69573 | Pad, Ignition Switch Lock Cylinder |
| 69581 | Retainer, Fuel Filler Lid Cylinder |
| 69759C | Snap, Back Door Lock Cylinder |
| 69759G | Snap, Luggage Door Lock Cylinder |
| 69759R | Snap, Front Door Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
