Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

70 part groups · 9 illustrations

Illustrations

718185A 1991-06 → 1995-05

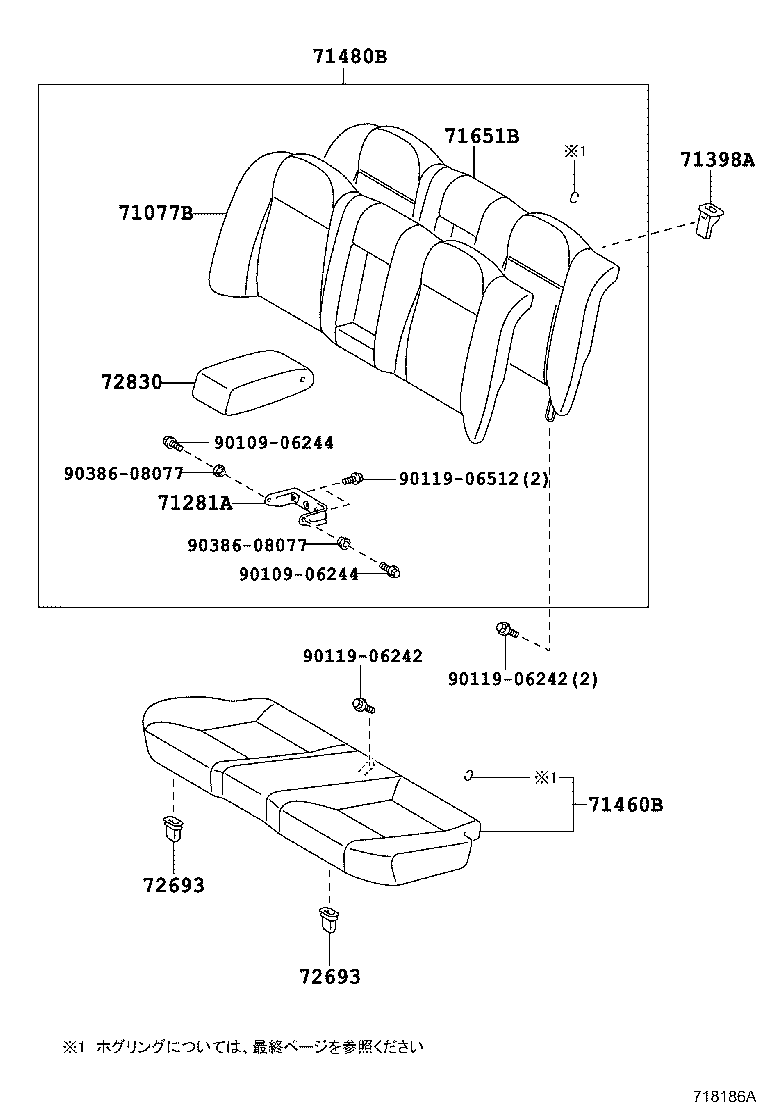

718186A 1991-06 → —

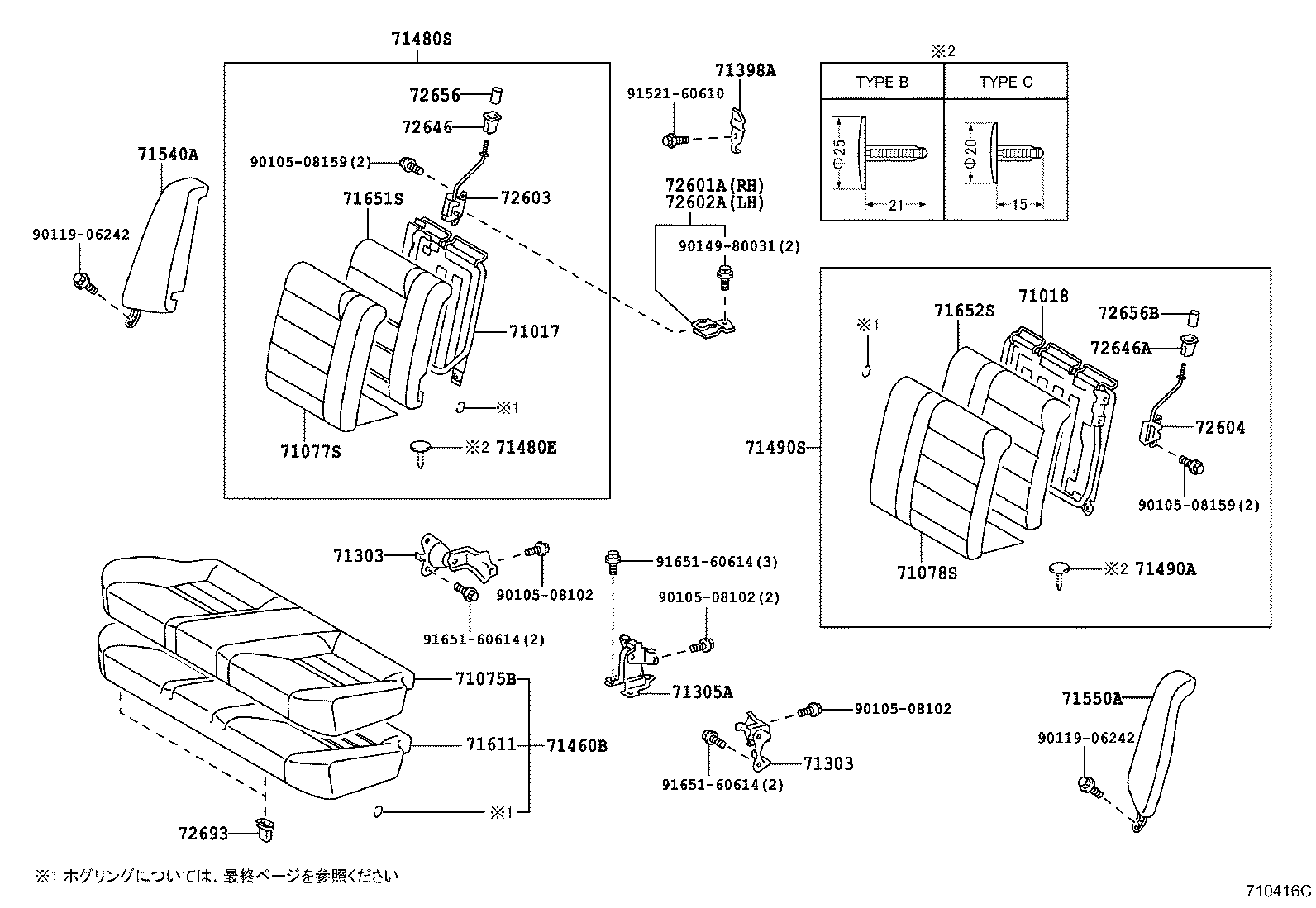

710416C 1991-06 → —

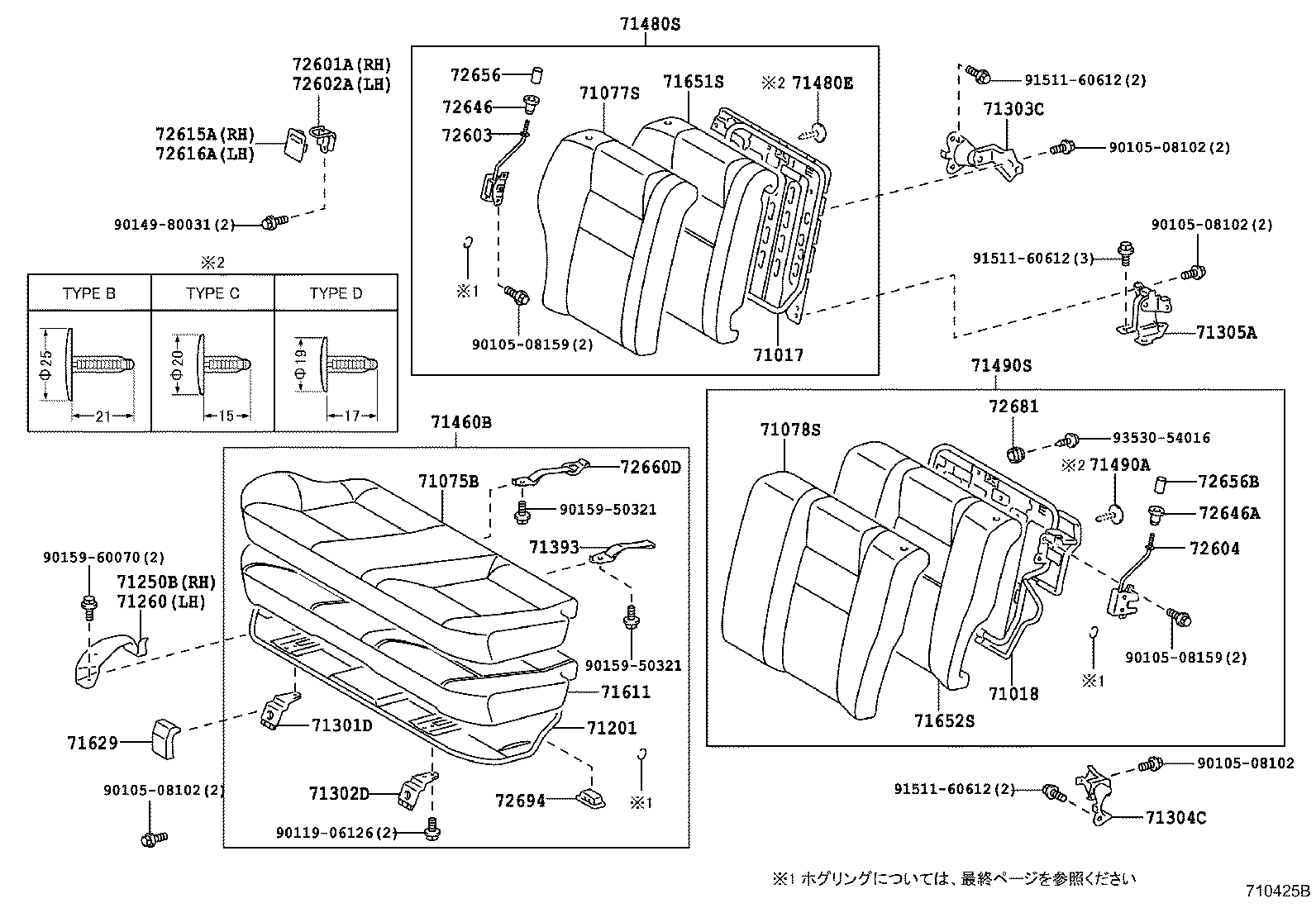

710425B 1991-09 → 1997-05

710425B 1992-05 → 1995-05

710425B 1996-05 → 1997-05

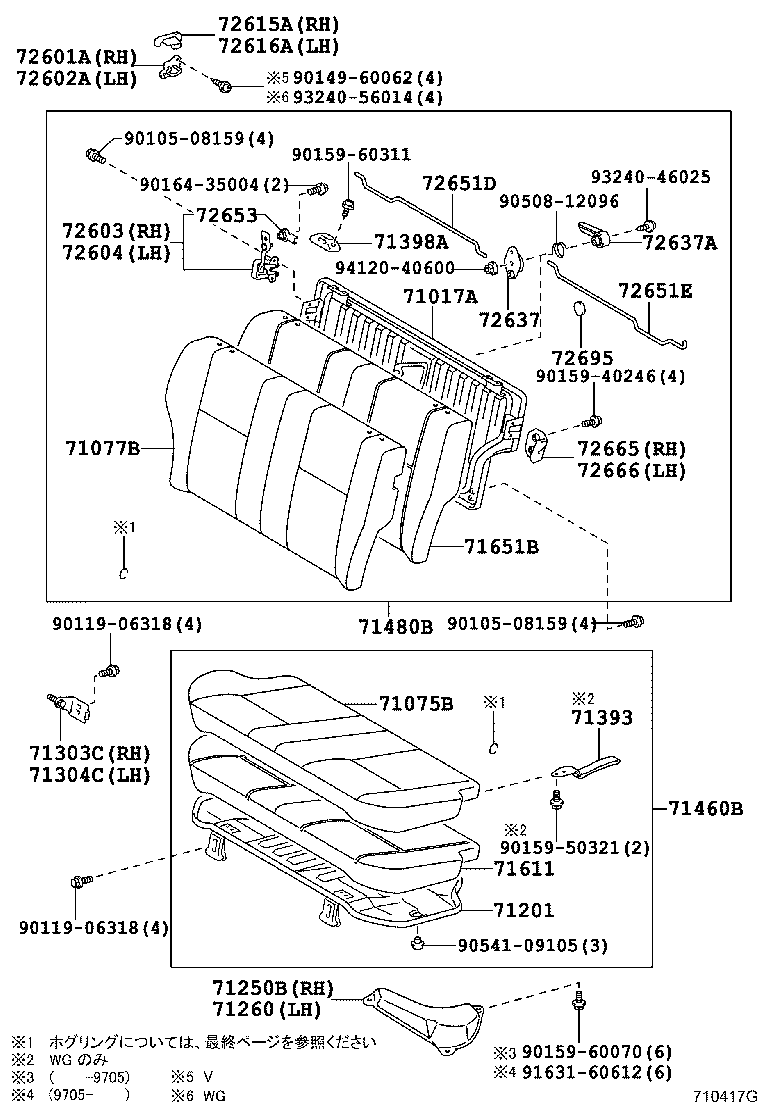

710417G 1991-09 → —

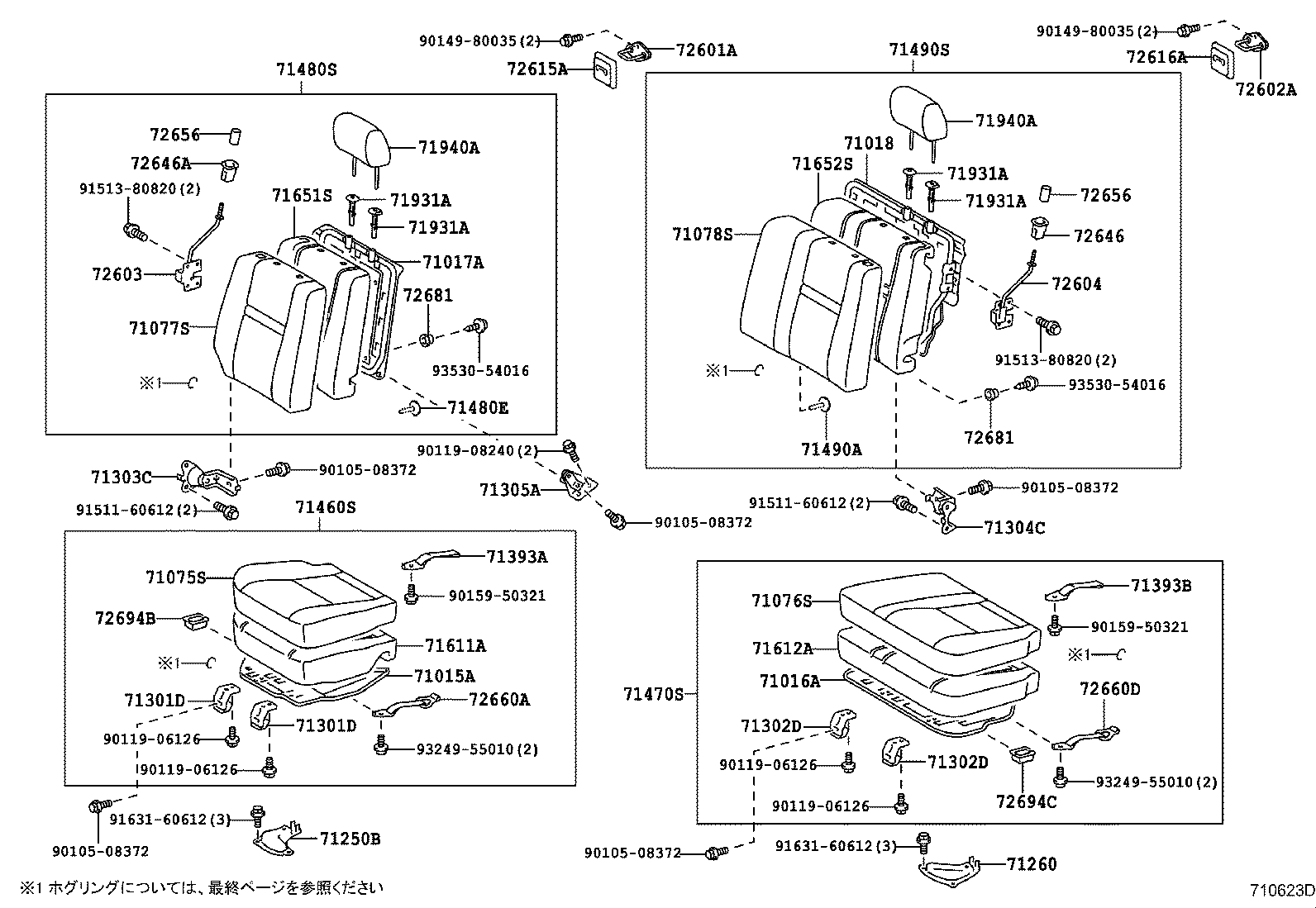

710623D 1997-05 → —

718165A 1991-06 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201	Panel Sub-assy, Rear Seat Cushion
71250B	Bracket Assy, Seat, Outer RH
71260	Bracket Assy, Seat, Outer LH
71281A	Hinge, Rear Seat Center Armrest
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71303	Hinge Sub-assy, Rear Seatback
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71393	Band, Rear Seat Cushion
71393A	Band, Rear Seat Cushion, RH
71393B	Band, Rear Seat Cushion, LH
71398A	Holder, Rear Seatback
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480E	Clip, Rear Seatback, RH
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490A	Clip, Rear Seatback, LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A	Back Assy, Rear Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71629	Cover, Rear Seat Cushion Hinge
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72601A	Striker Sub-assy, Rear Seatback Look, RH
72602A	Striker Sub-assy, Rear Seatback Lock, LH
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72637	Lever, Rear Seatback Rod Control, Inner
72637A	Handle, Rear Seat Lock
72646	Grommet, Rear Seatback Stop Button
72646A	Grommet, Rear Seatback Stop Button
72651D	Rod, Rear Seatback Lock, RH
72651E	Rod, Rear Seatback Lock, LH
72653	Hook, Rear Seatback Rear Lock
72656	Button, Rear Seatback Stop Release
72656B	Button, Rear Seatback Stop Release
72660A	Support Assy, Rear Seat Cushion
72660D	Support Assy, Rear Seat Cushion
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72681	Hook, Rear Seatback Lock, Lower
72693	Hook, Rear Seat Cushion Lock
72694	Cover, Rear Seat Cushion Lock
72694B	Cover, Rear Seat Cushion Lock, RH
72694C	Cover, Rear Seat Cushion Lock, LH
72695	Silencer, Rear Seatback Lock Control Rod
72830	Armrest Assy, Rear Seat, Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
