Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 3 illustrations

Illustrations

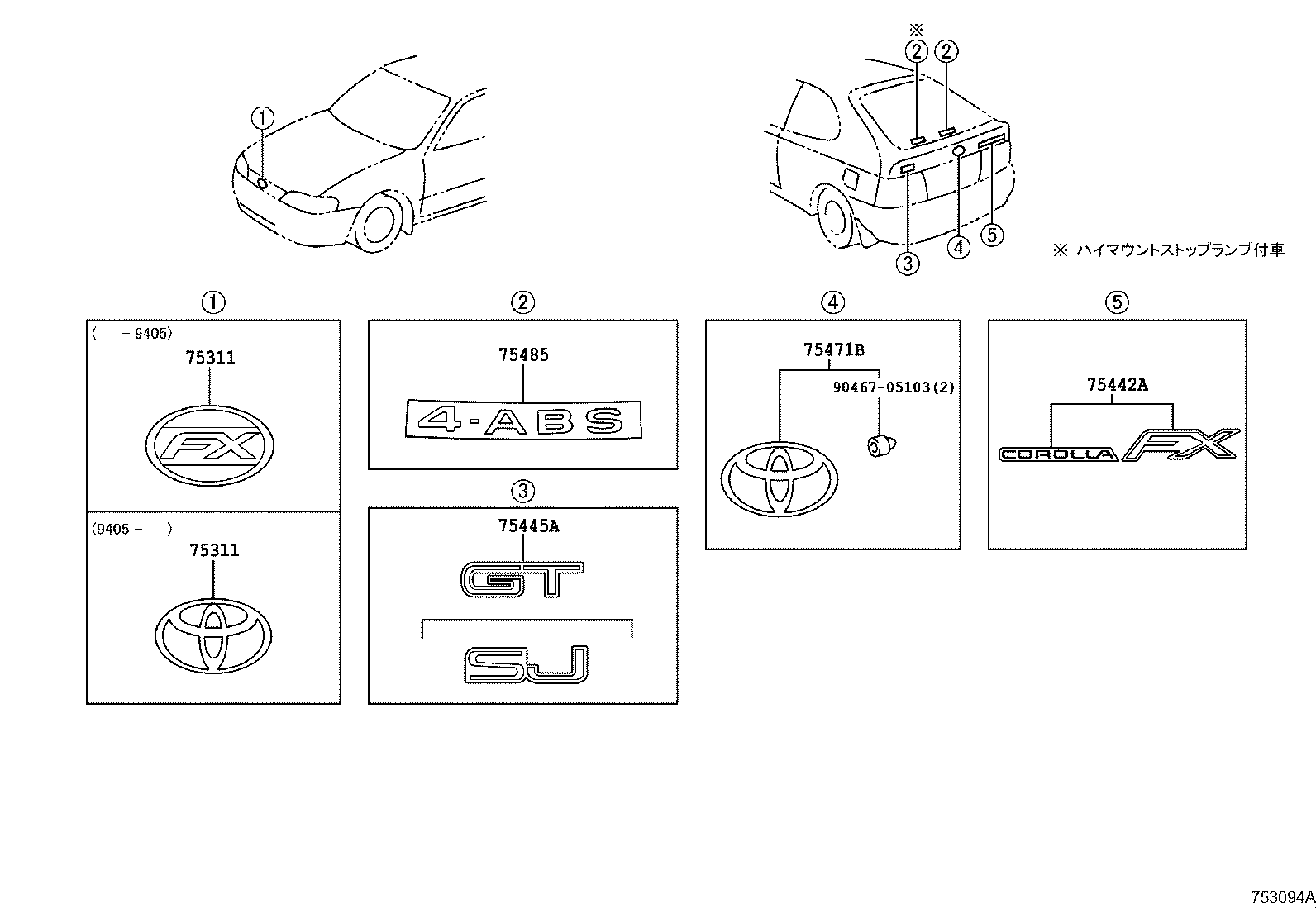

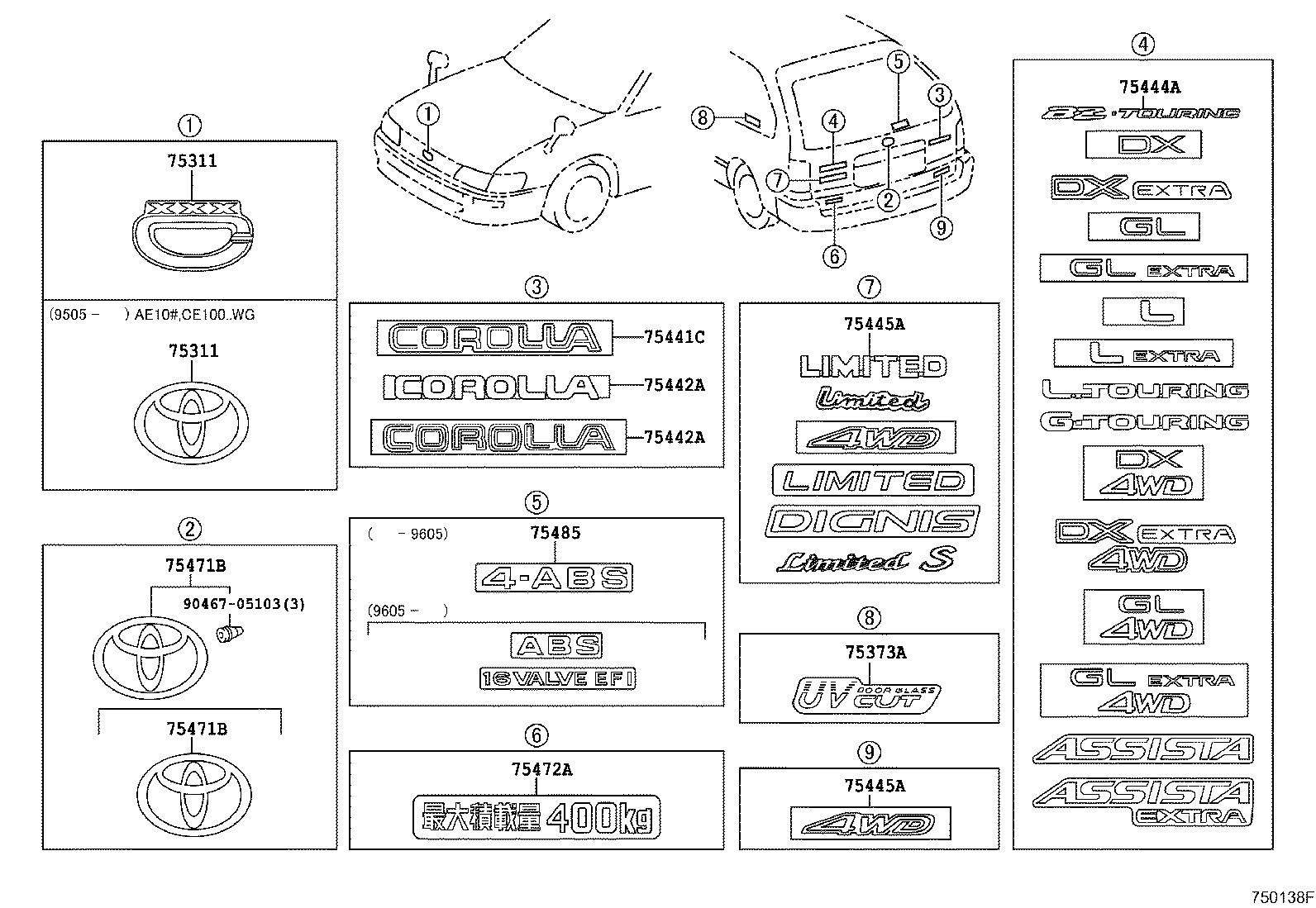

Figure 753093A 753093A 1991-06 → 1995-05 Figure 753094A 753094A 1992-05 → 1995-05 Figure 750138F 750138F 1991-09 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75350 Emblem Assy, Front Fender
75373A Plate, Quarter Window Mark
75441C Plate, Back Door Name
75442A Plate, Back Door Name, NO.2
75444 Plate, Luggage Compartment Door, NO.4
75444A Plate, Back Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75445A Plate, Back Door Name, NO.5
75471B Plate, Rear Body Name, NO.1
75472A Plate, Rear Body Name, NO.2
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
