Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

29 part groups · 3 illustrations

Illustrations

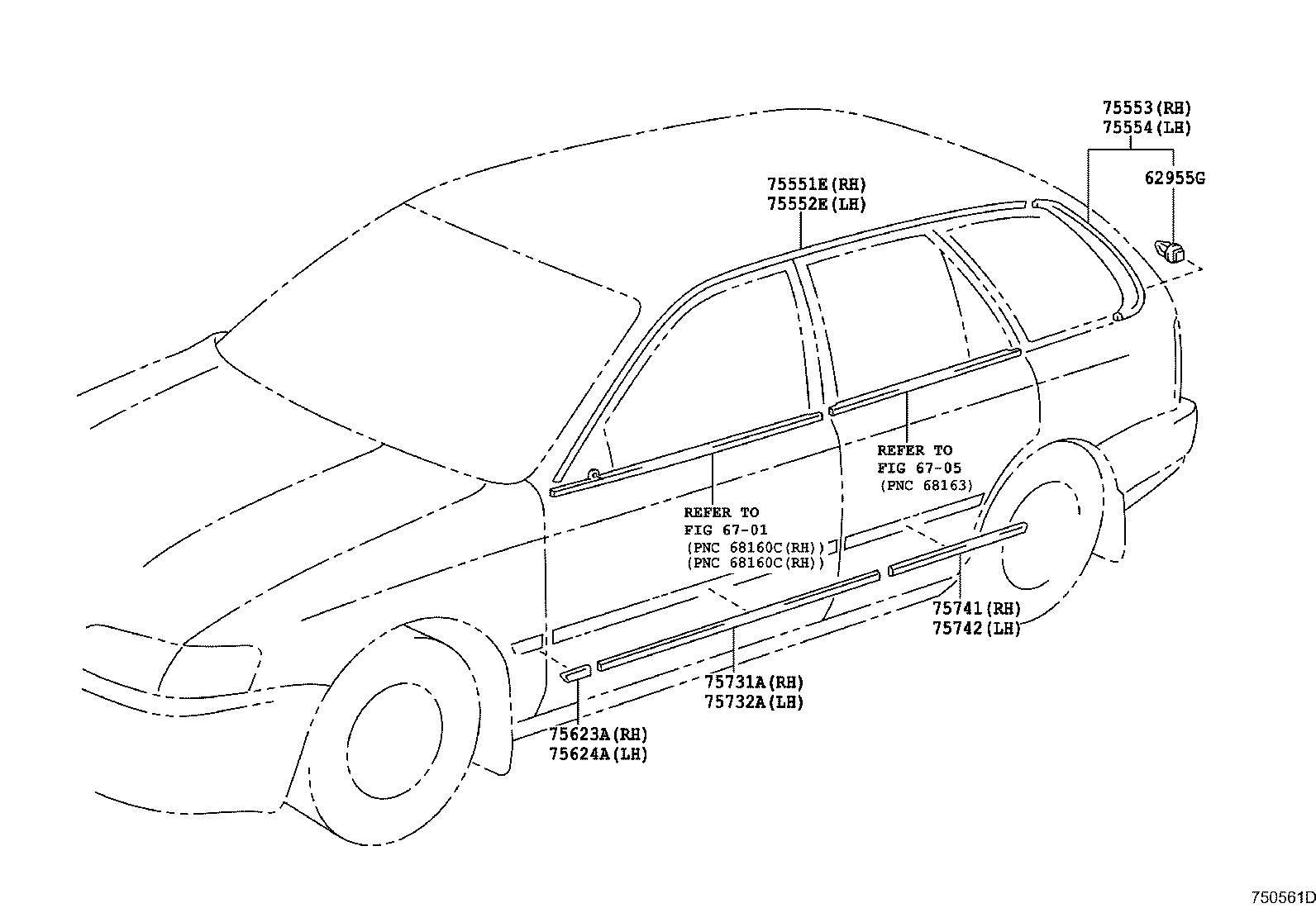

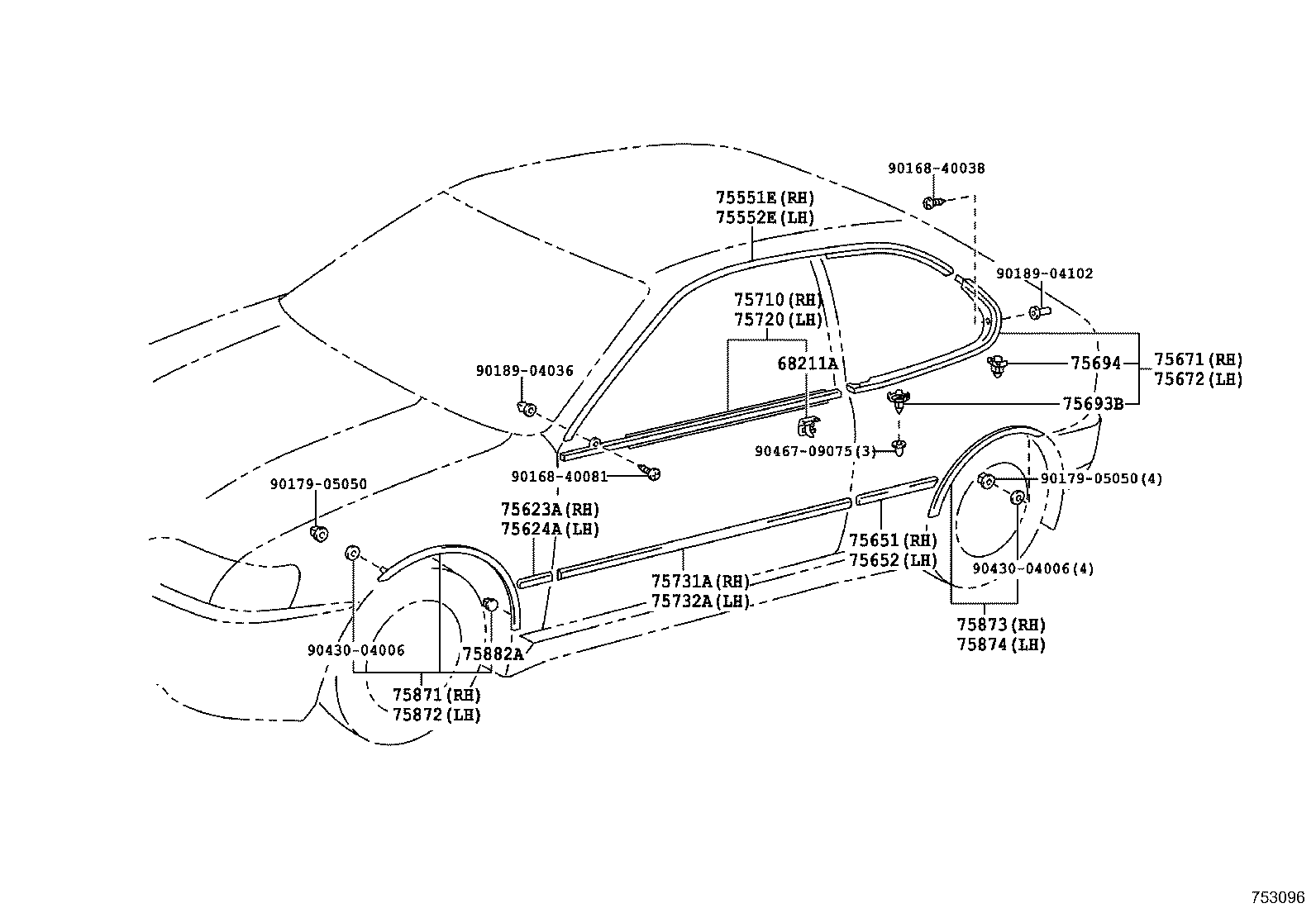

Figure 753095 753095 1991-06 → 1995-05 Figure 753096 753096 1992-05 → 1995-05 Figure 750561D 750561D 1991-09 → —

Part groups

PNCDescription
62955G Retainer, Quarter Vent Louver
68211A Clip, Door Belt Moulding
75055C Moulding Sub-assy, Roof Drip Side Finish, Rear RH
75056C Moulding Sub-assy, Roof Drip Side Finish, Rear LH
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75693B Retainer, Quarter Belt Rear Moulding, NO.1
75694 Retainer, Quarter Belt Rear Moulding, NO.2
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
75882A Retainer, Front Fender Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
