Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 5 illustrations

Illustrations

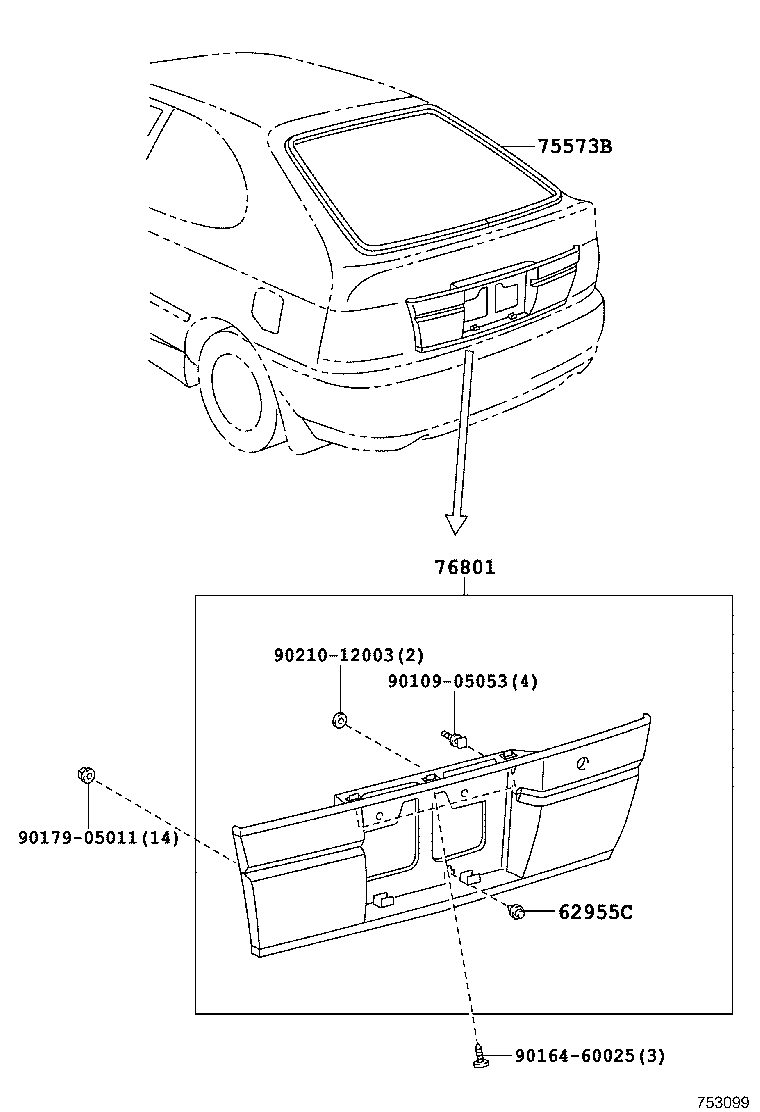

Figure 753097 753097 1991-06 → 1995-05 Figure 753098 753098 1991-09 → 1994-01 Figure 753098 753098 1994-01 → — Figure 753098 753098 1995-05 → — Figure 753099 753099 1992-05 → 1995-05

Part groups

PNCDescription
62955C Retainer, Back Door Moulding
62955D Retainer, Luggage Compartment Door Garnish
75571 Moulding, Back Window, Outside Upper
75573B Moulding, Back Window, Outside
75575A Moulding, Back Window, Outside Lower
75819 Clip, Luggage Compartment Door Moulding
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76584 Retainer, Back Window Outside Lower Moulding, LH
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
