Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

94 part groups · 23 illustrations

Illustrations

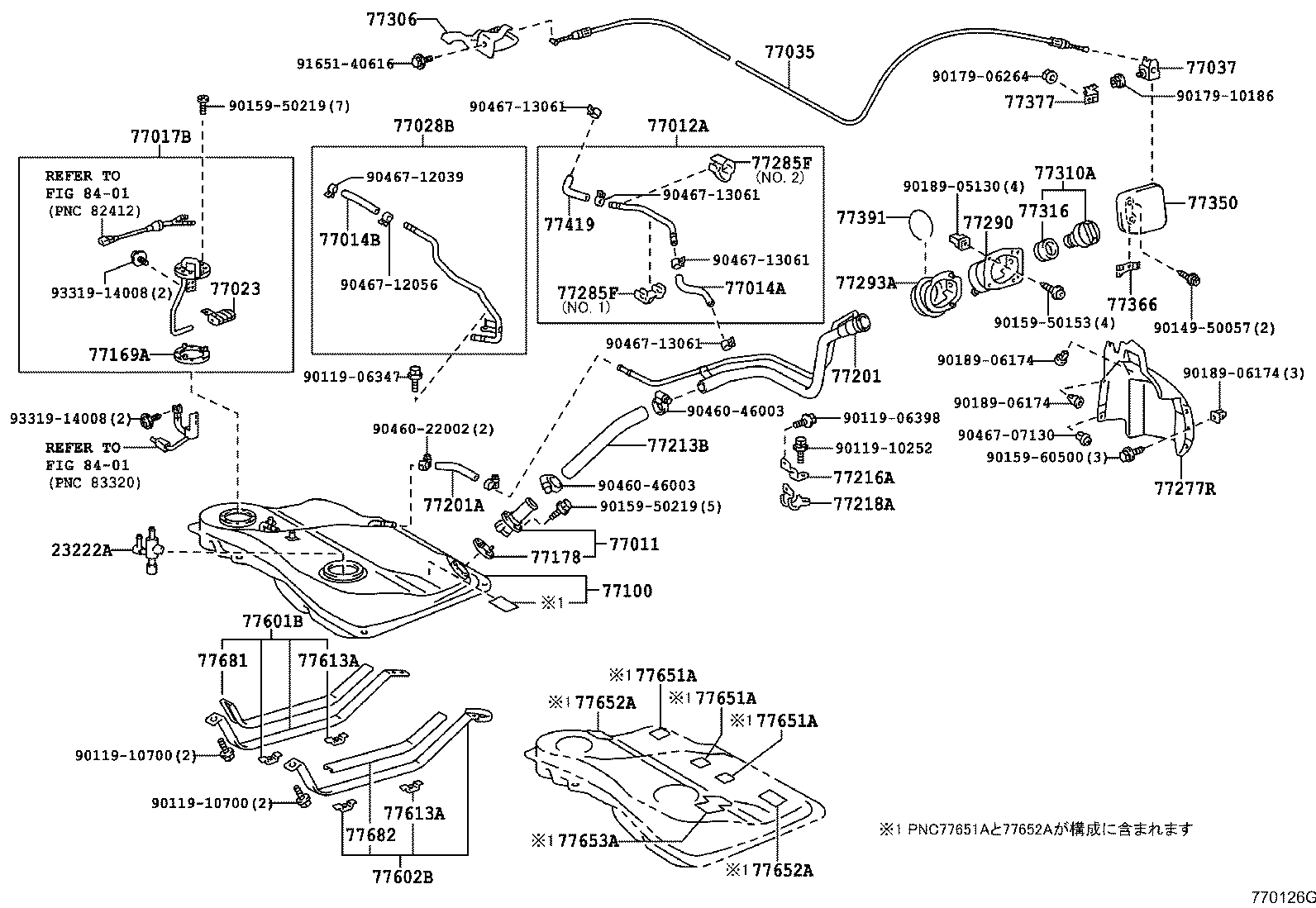

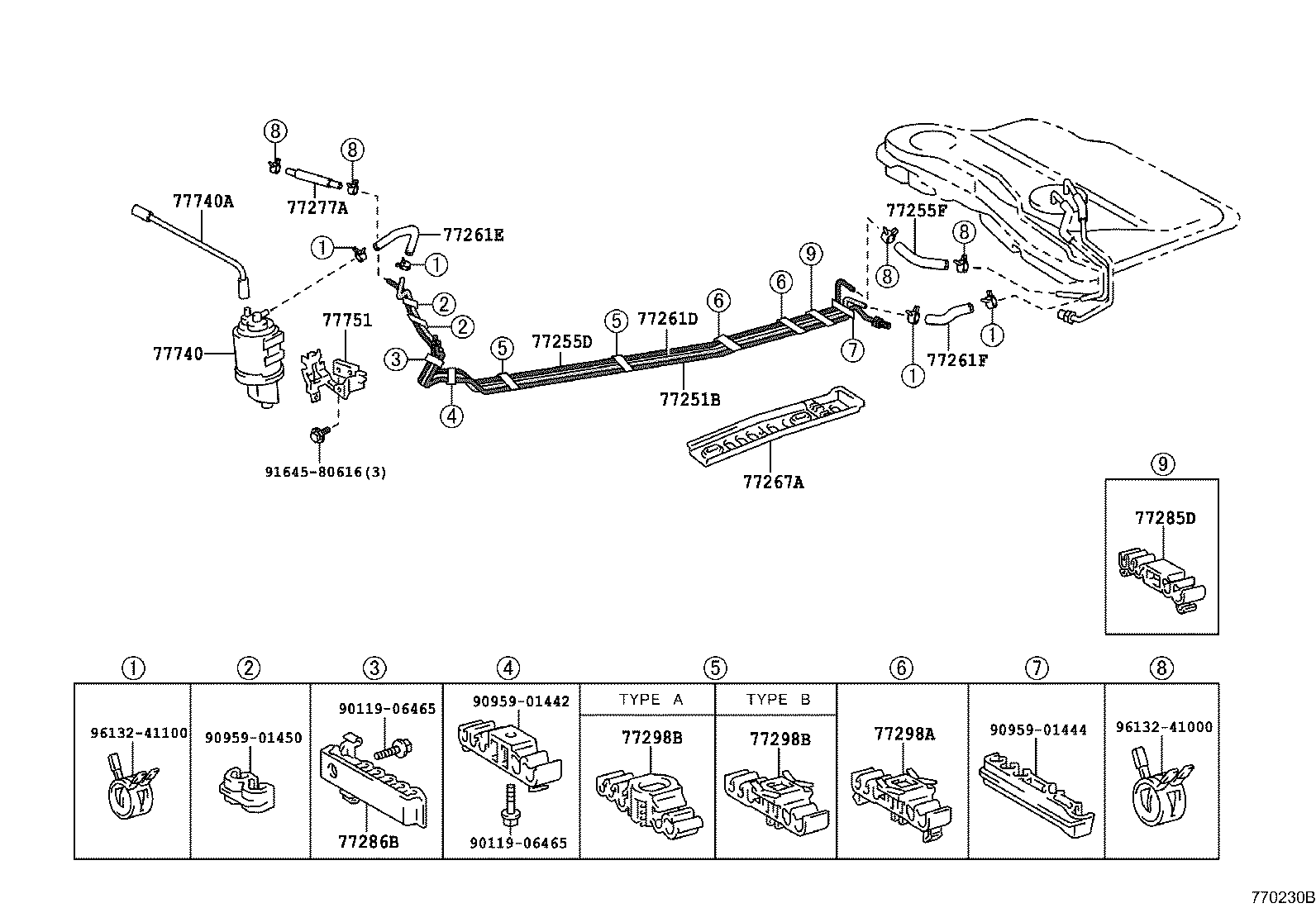

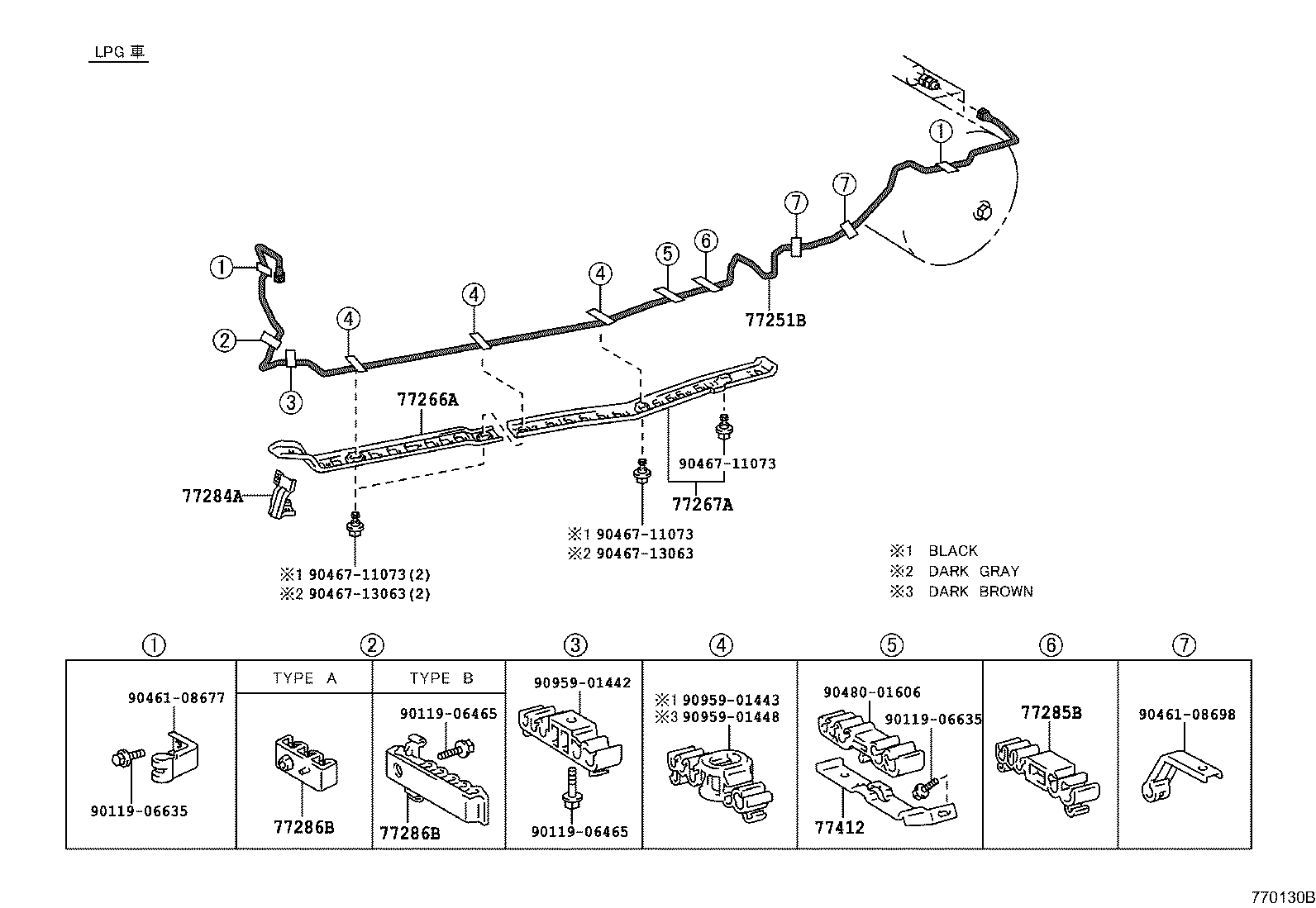

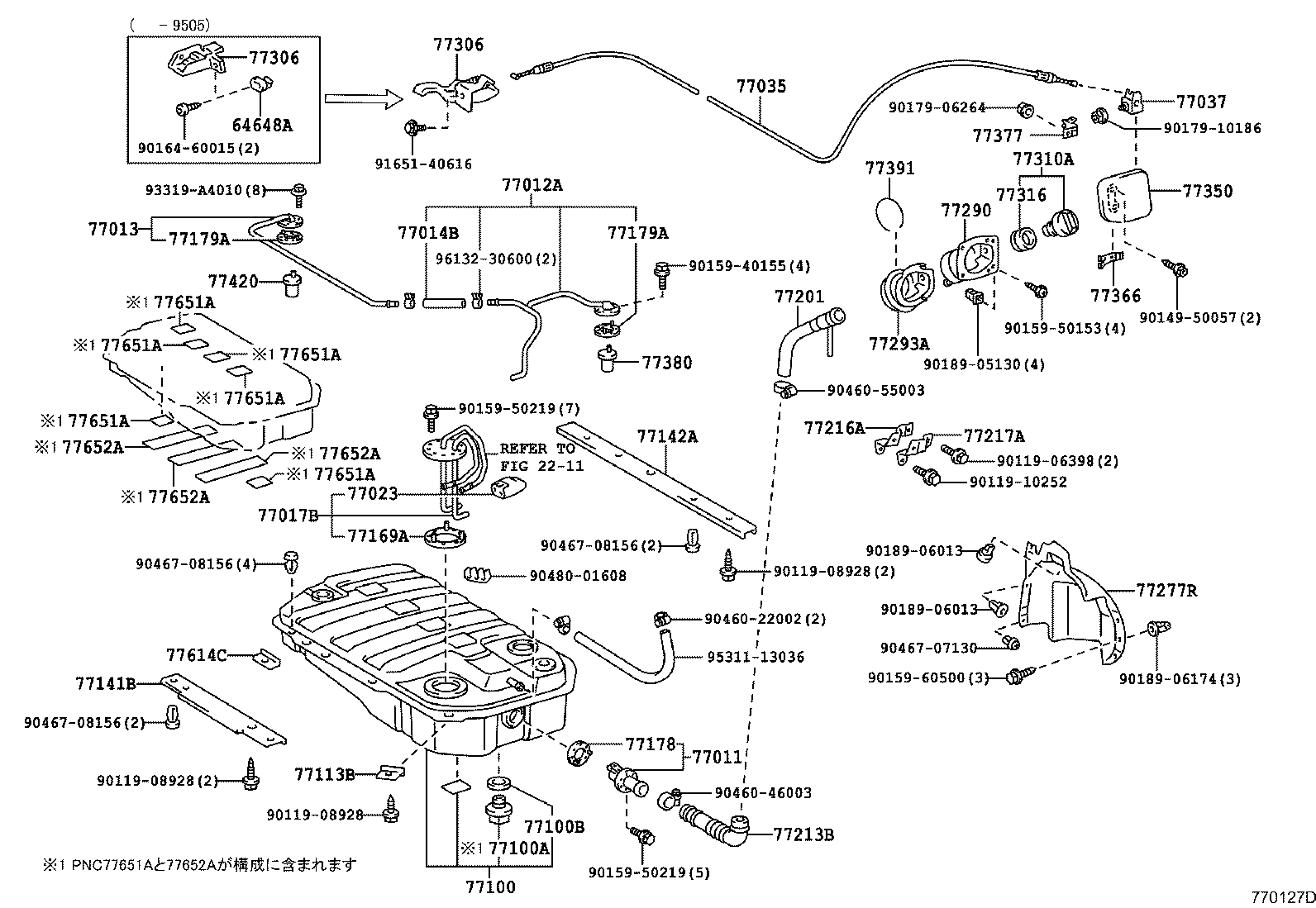

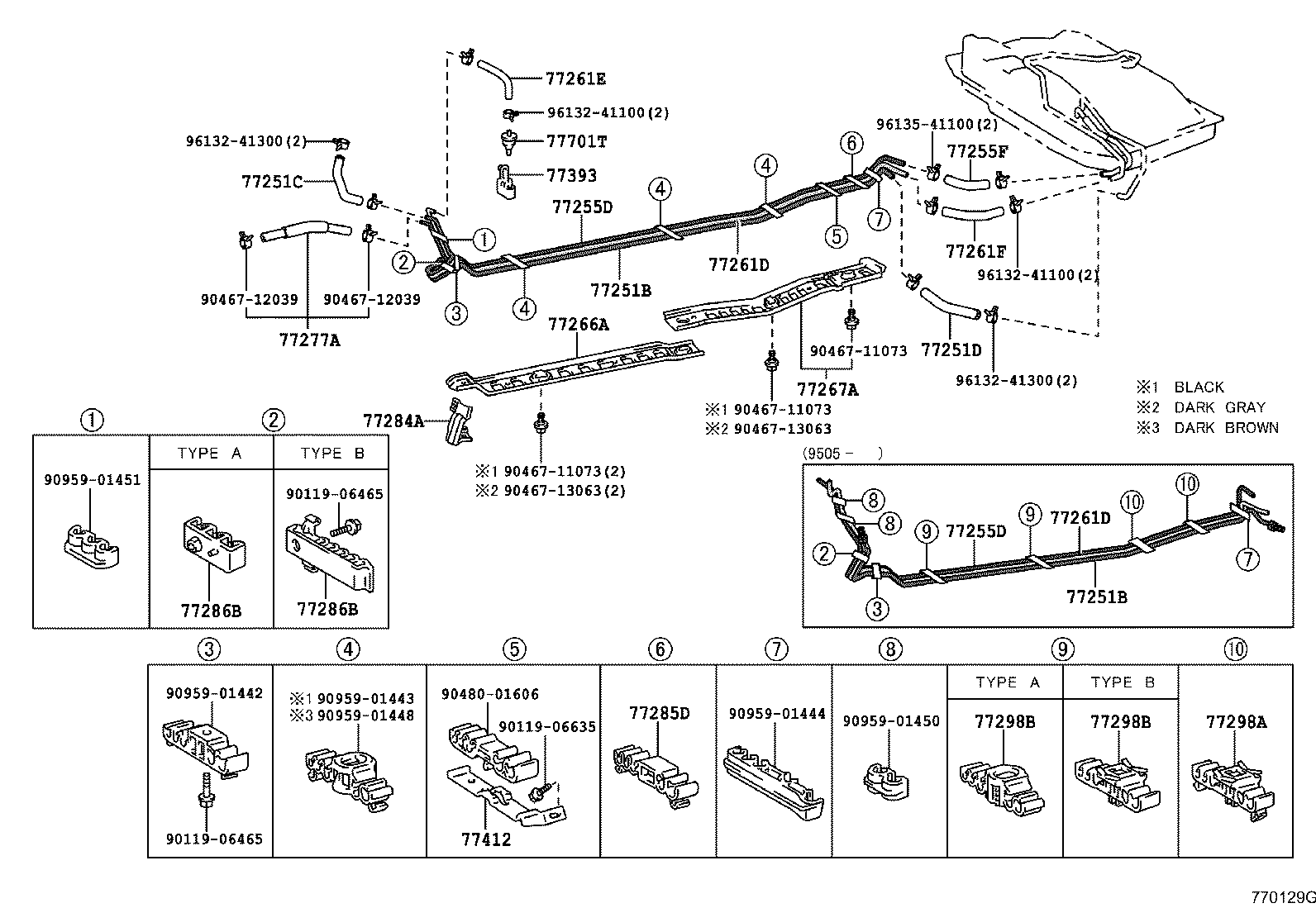

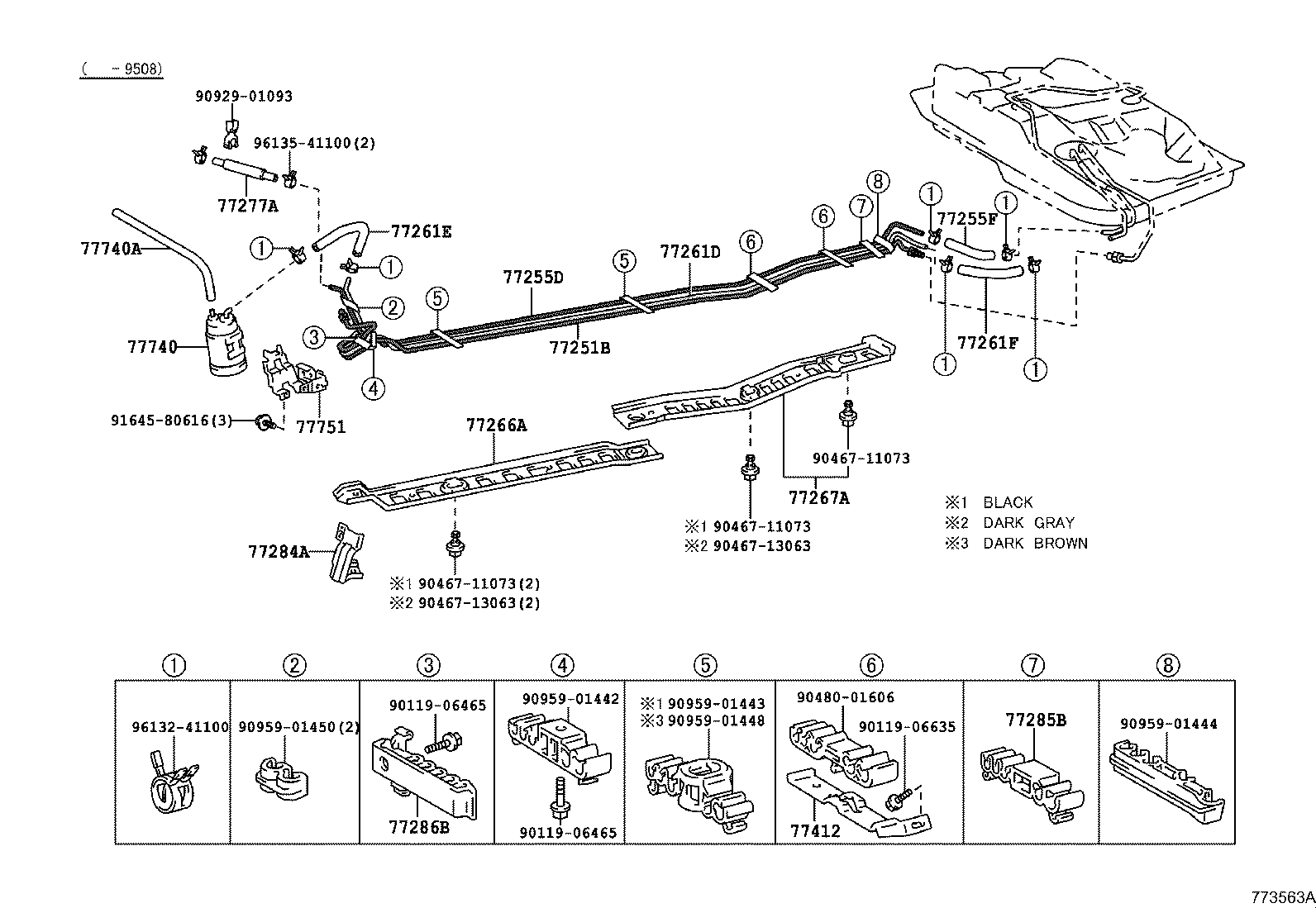

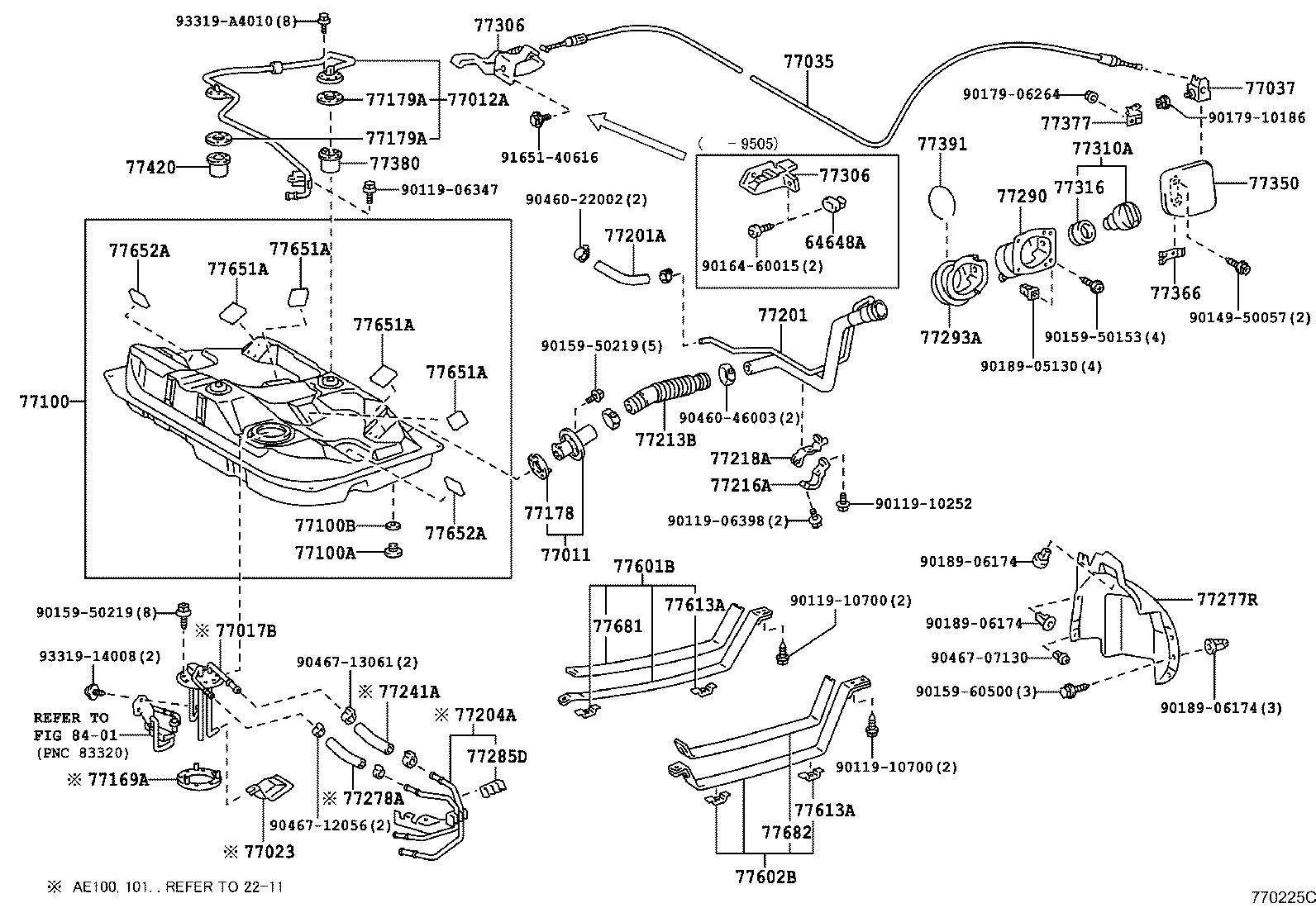

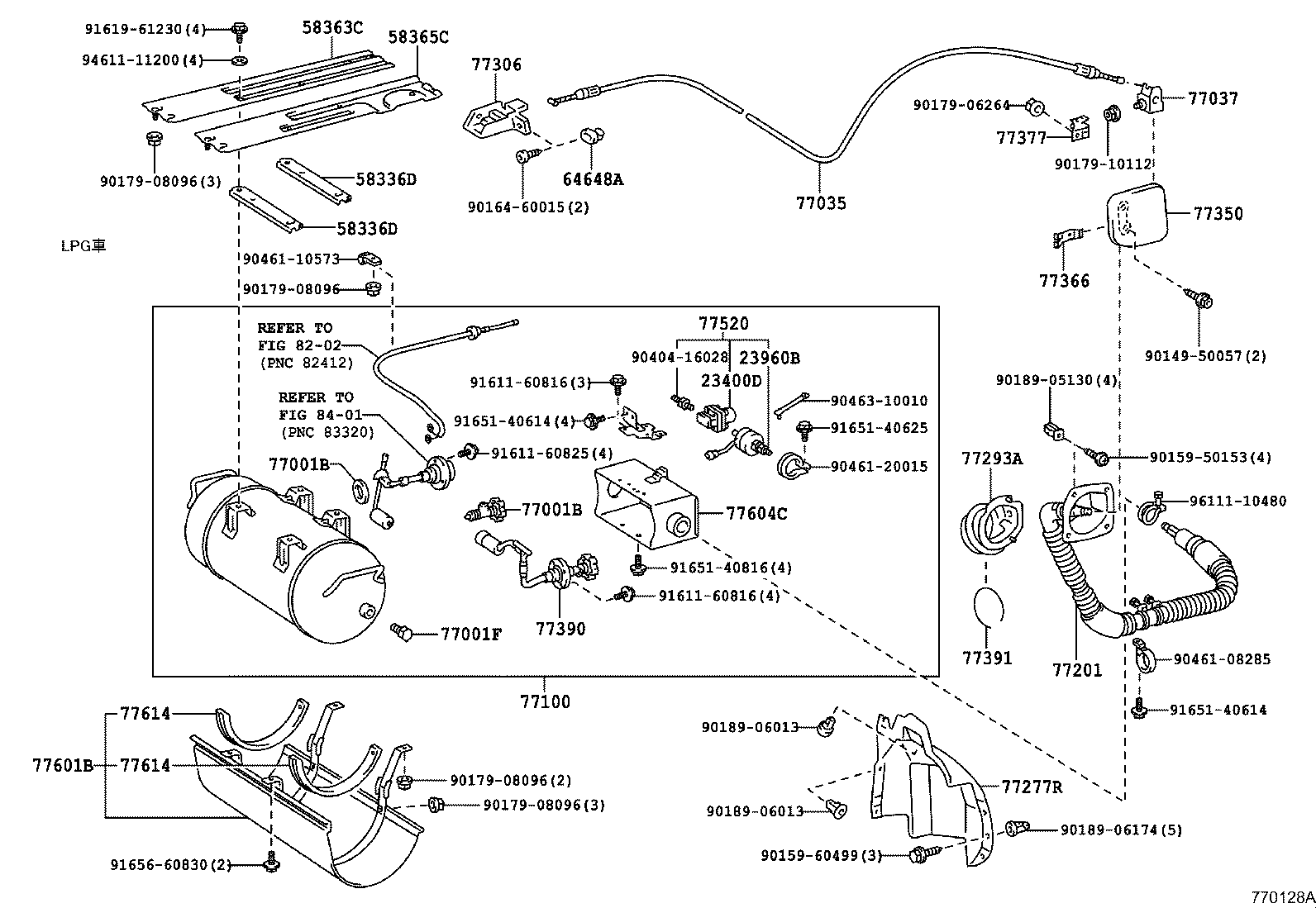

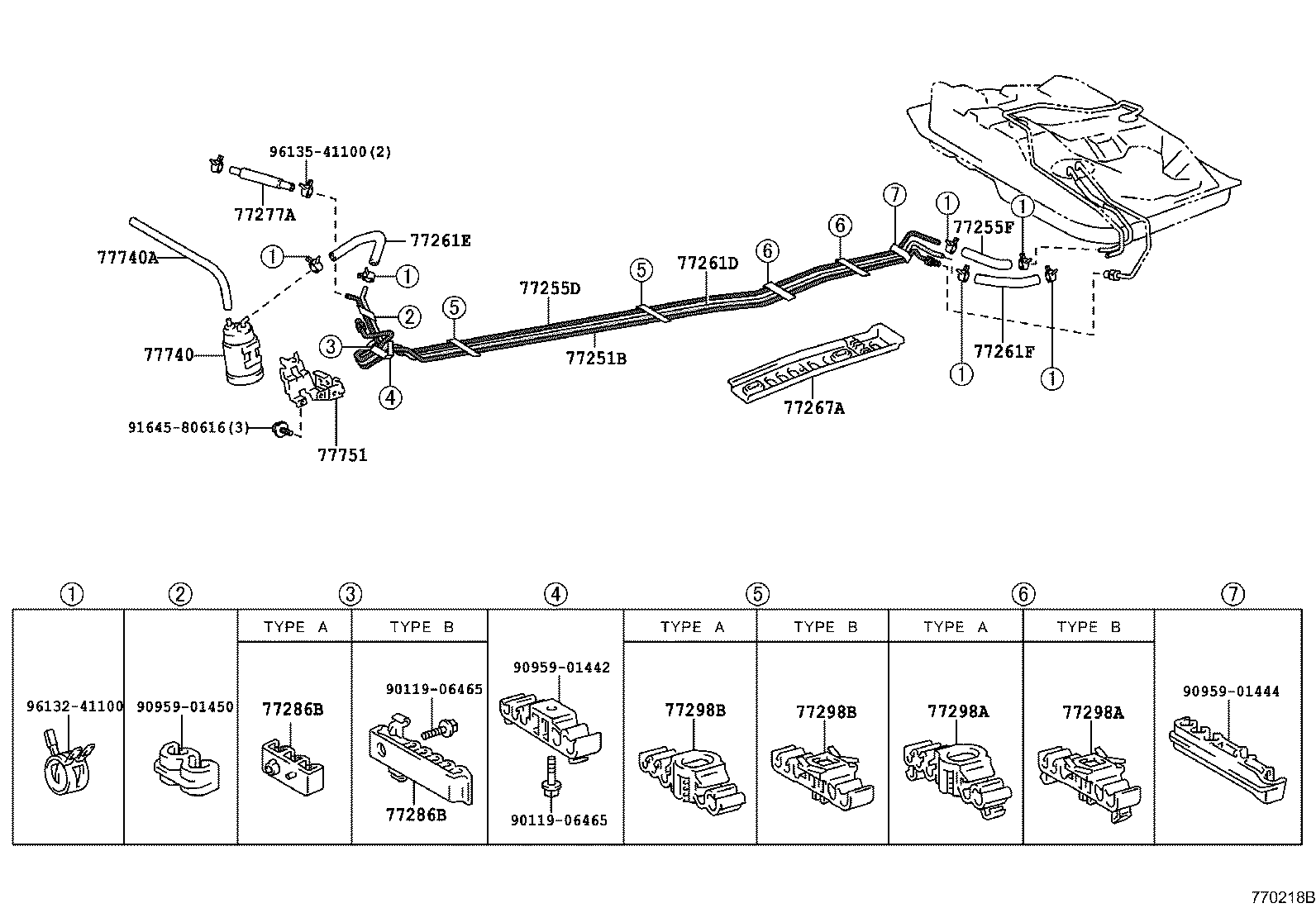

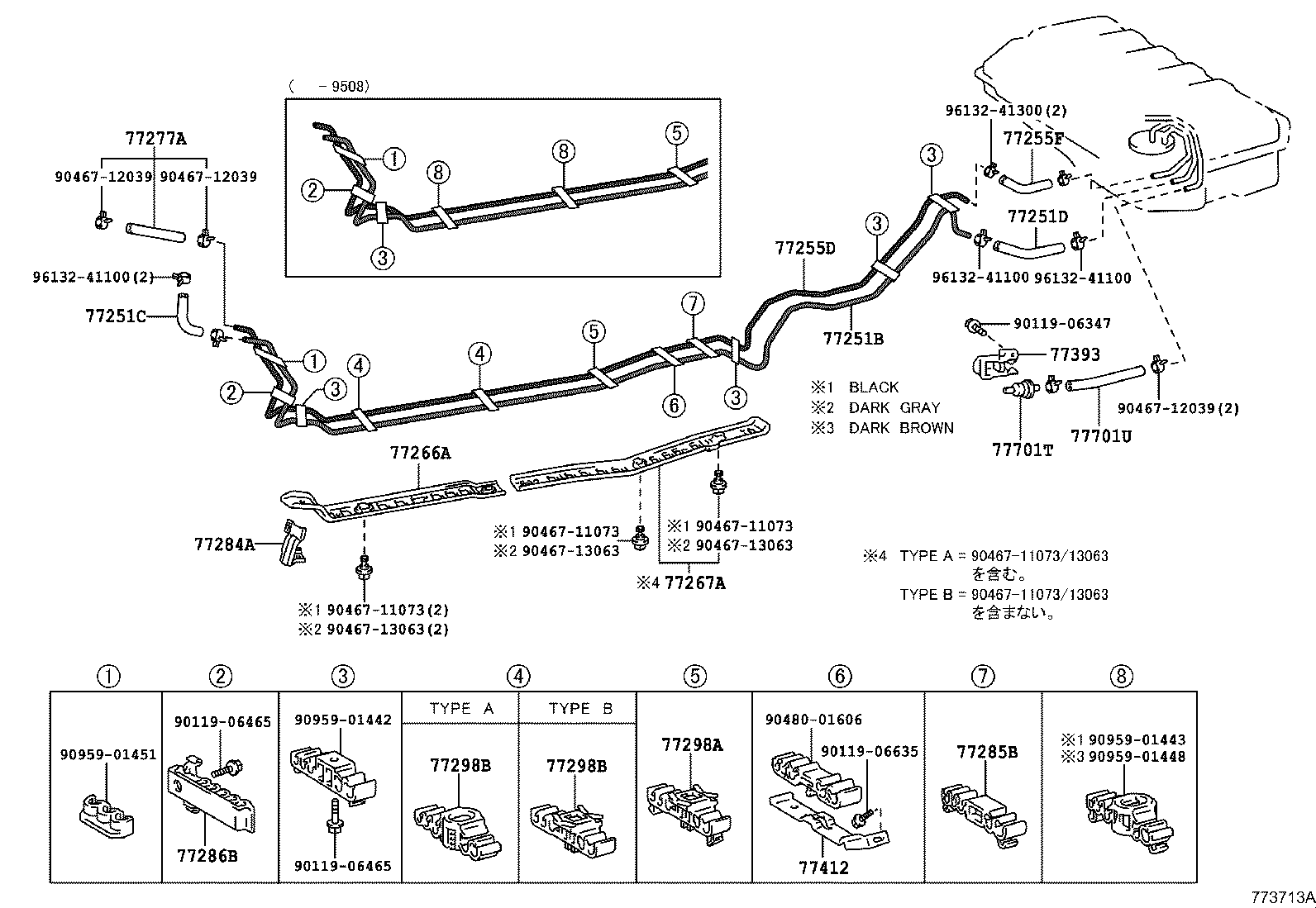

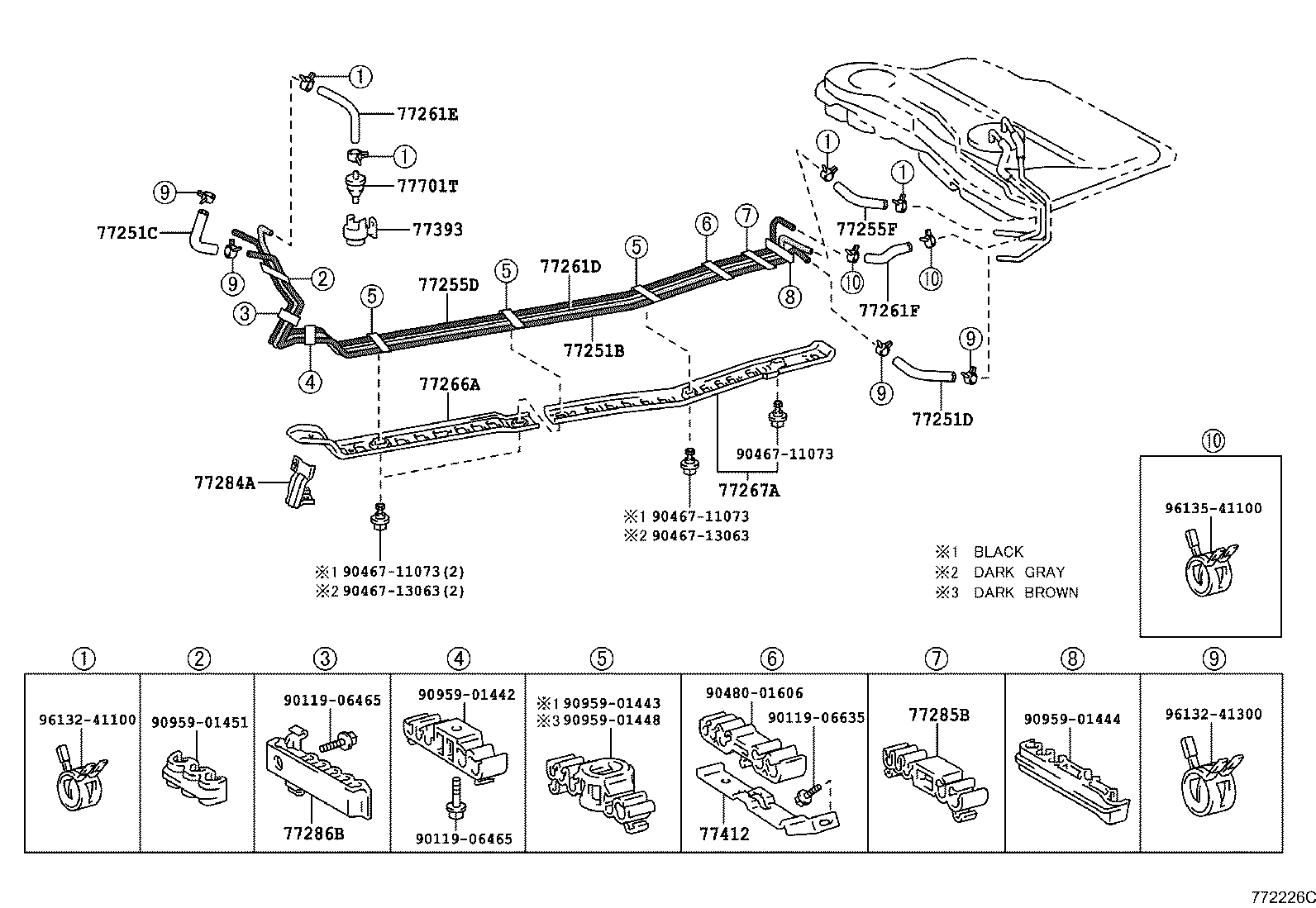

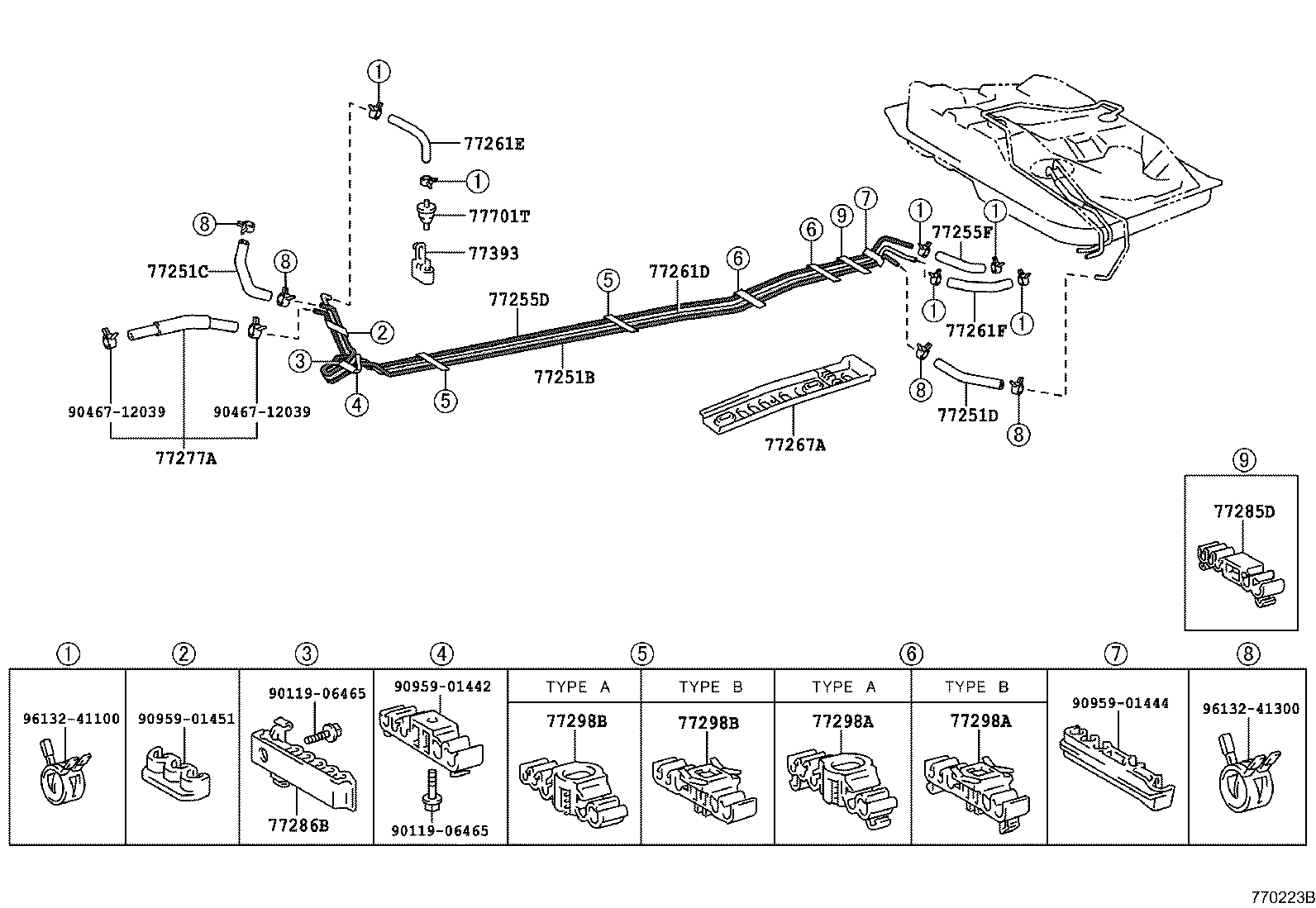

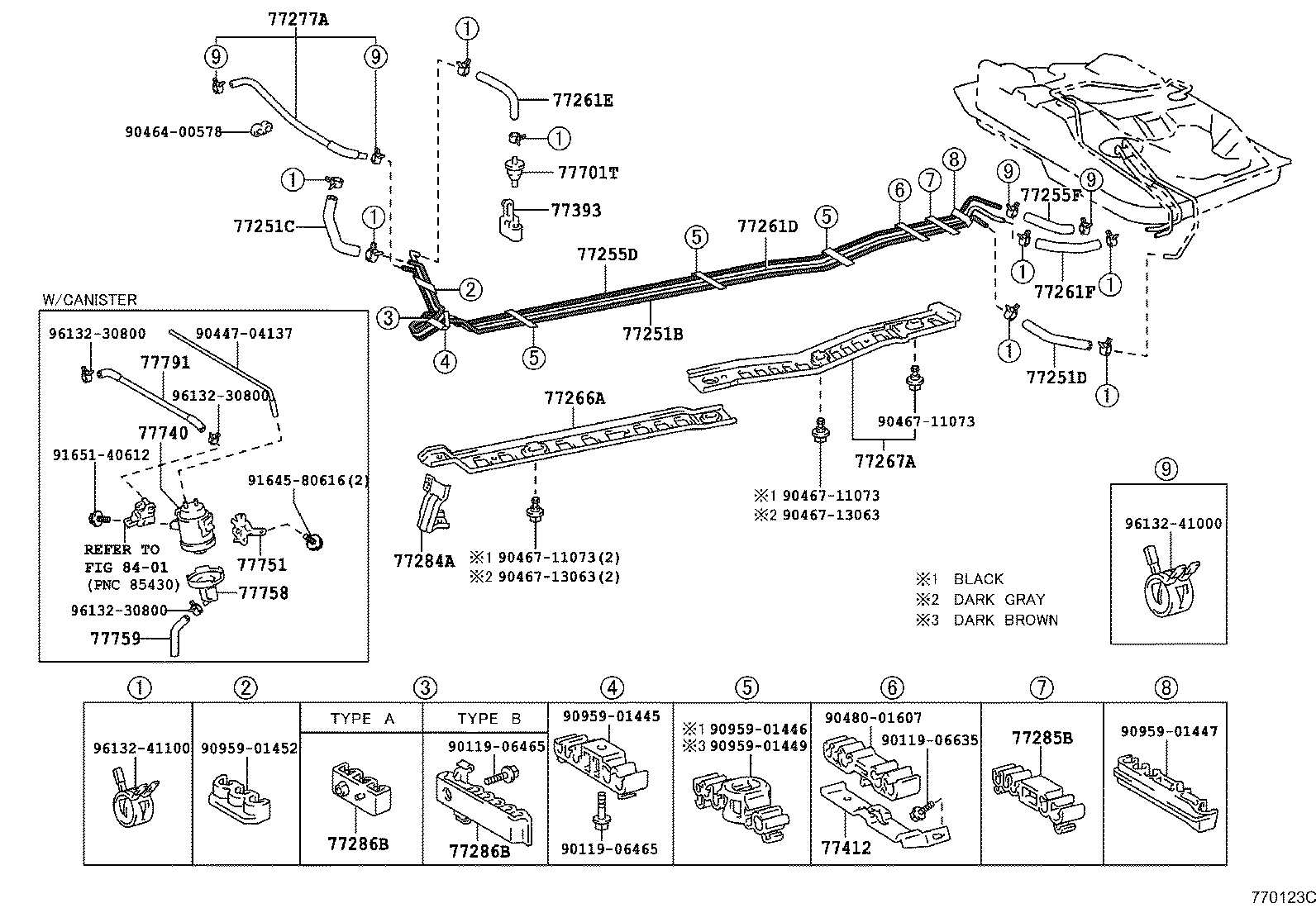

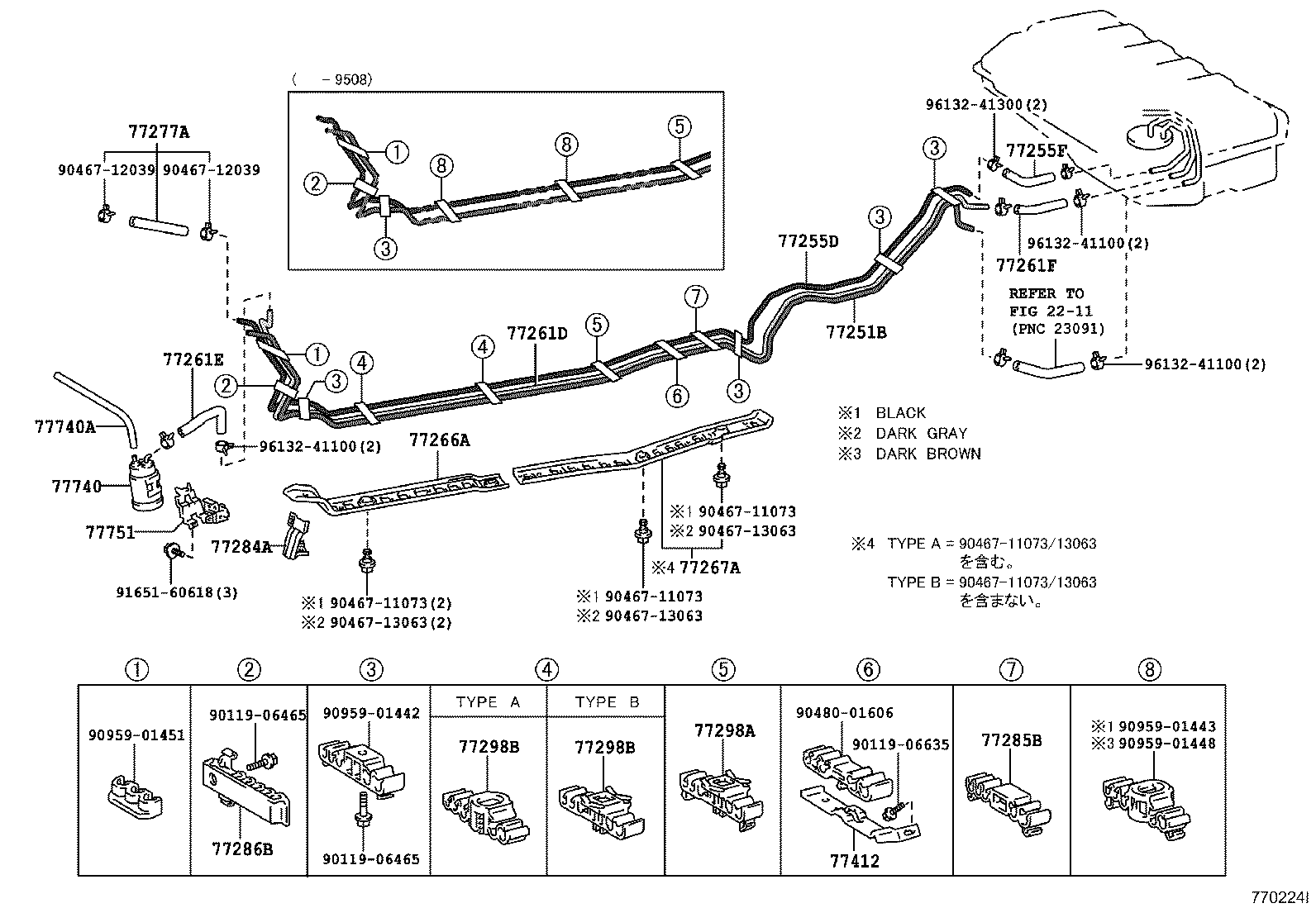

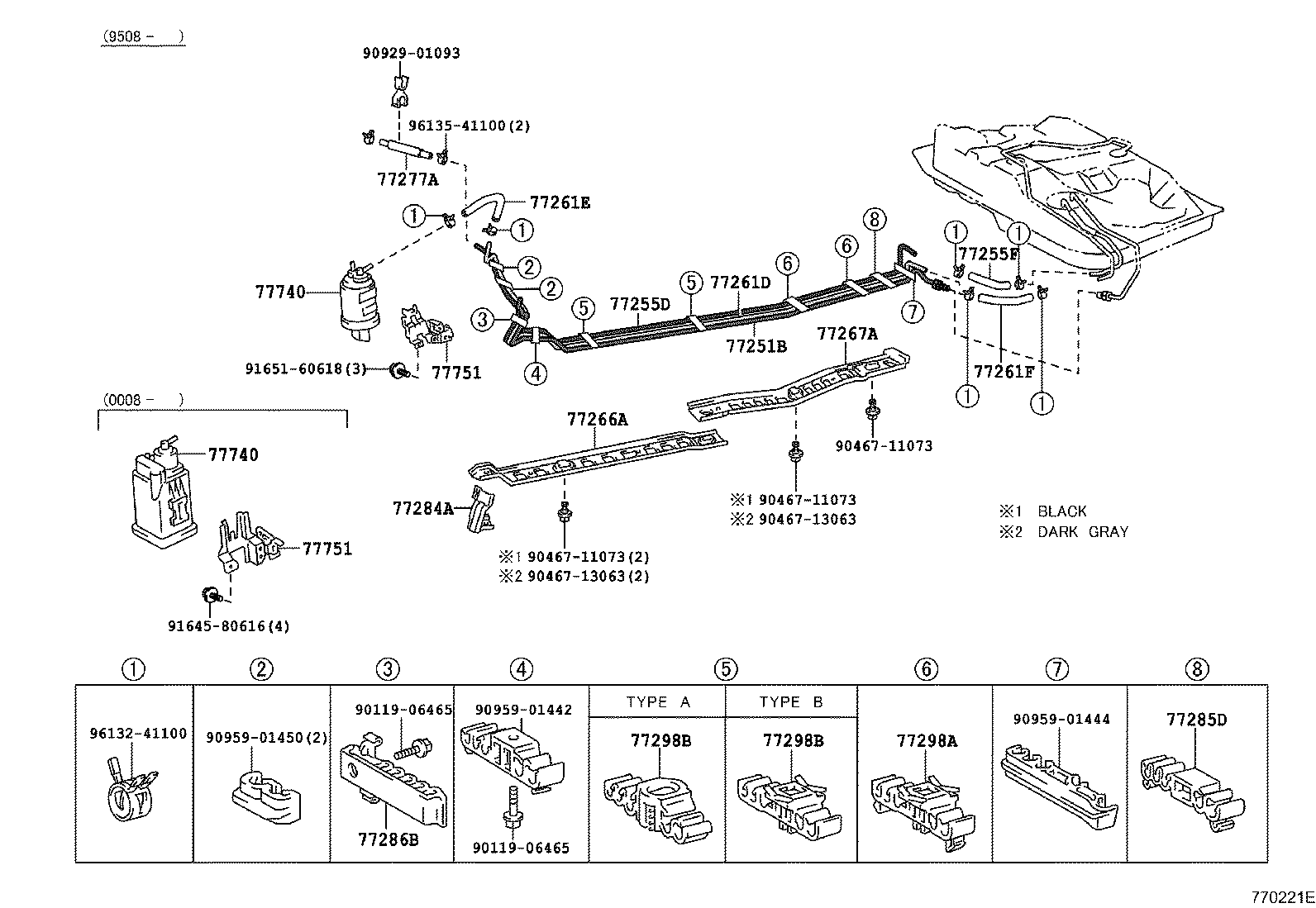

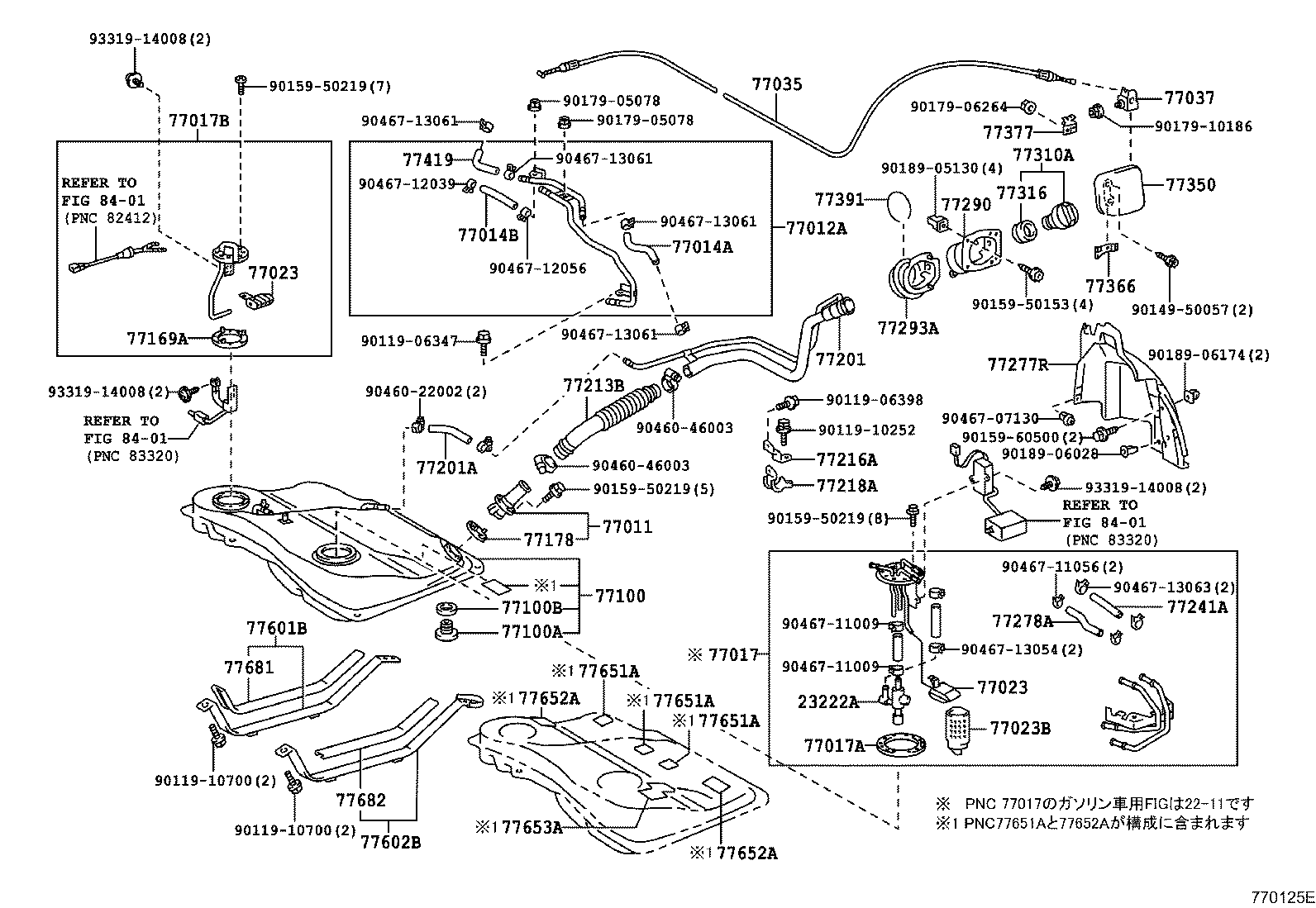

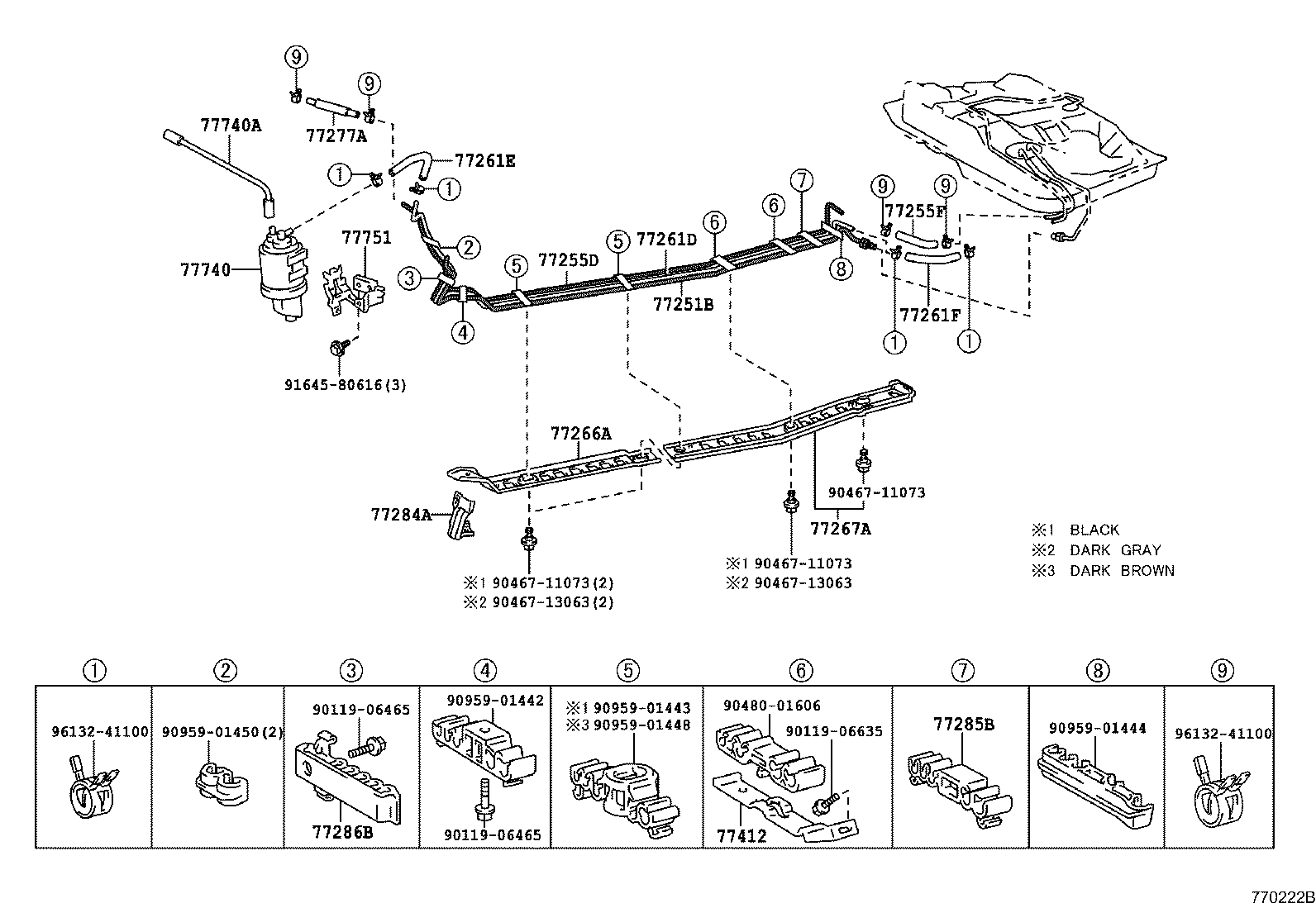

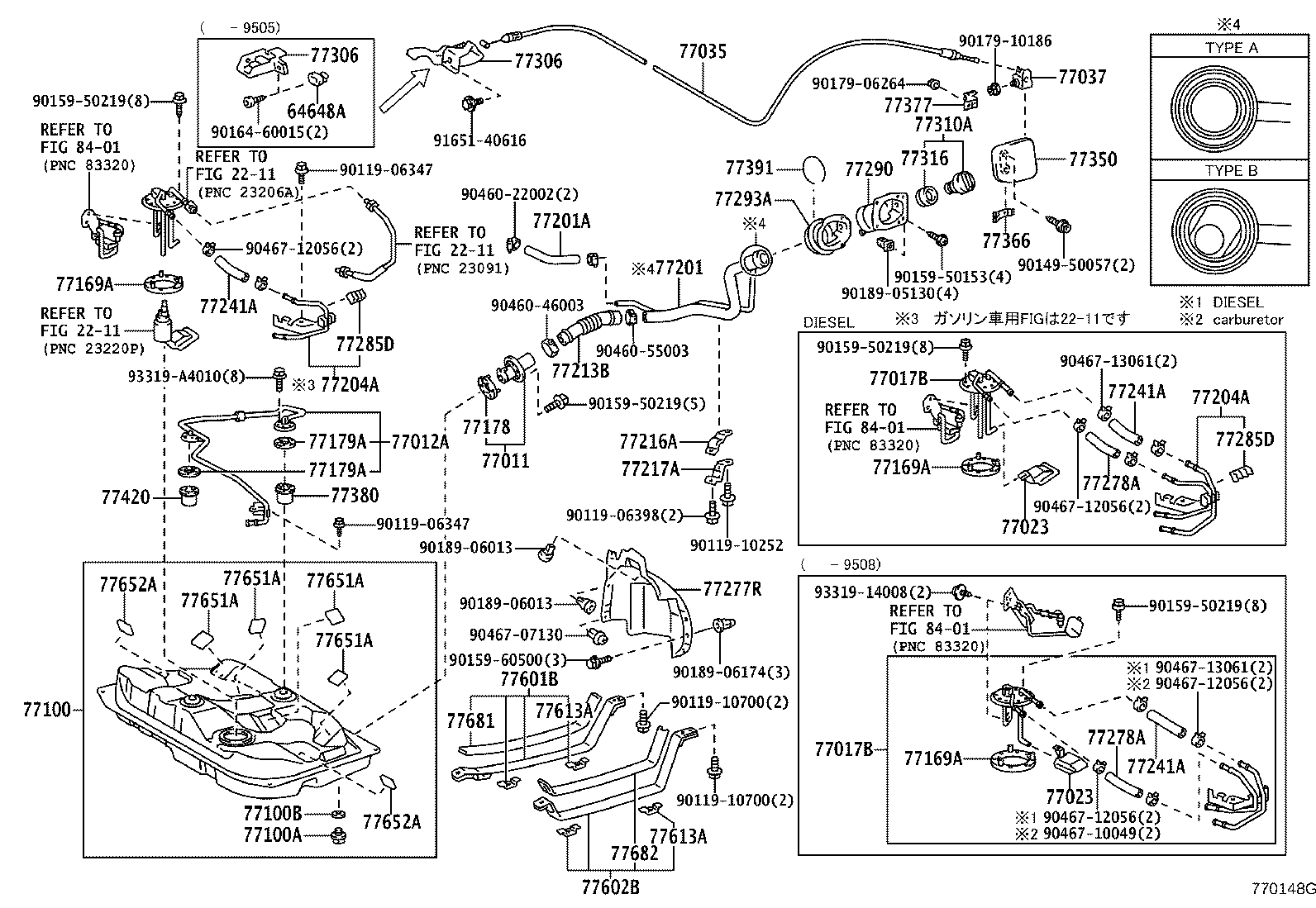

Figure 770124C 770124C 1991-06 → 1995-05 Figure 770125E 770125E 1991-09 → 1995-05 Figure 770225C 770225C 1991-09 → — Figure 770225C 770225C 1995-05 → — Figure 770126G 770126G 1995-05 → — Figure 770148G 770148G 1991-09 → 1994-01 Figure 770148G 770148G 1994-01 → — Figure 770127D 770127D 1991-09 → — Figure 770128A 770128A 1991-09 → — Figure 773563A 773563A 1991-06 → 1995-05 Figure 773563A 773563A 1994-01 → 1995-08 Figure 770221E 770221E 1995-08 → — Figure 770218B 770218B 1995-05 → — Figure 770222B 770222B 1991-09 → 1995-05 Figure 770230B 770230B 1995-05 → — Figure 770129G 770129G 1991-06 → 1995-05 Figure 770129G 770129G 1995-05 → — Figure 770223B 770223B 1995-05 → — Figure 772226C 772226C 1991-09 → 1995-05 Figure 770224I 770224I 1991-09 → — Figure 773713A 773713A 1991-09 → — Figure 770123C 770123C 1991-09 → 1994-01 Figure 770130B 770130B 1991-09 → 1994-01

Part groups

PNCDescription
23222A Tube, Fuel Return Jet
23400D Filter Assy, Lpg
23960B Valve Assy, Solenoid Lpg
58336D Reinforcement, Rear Floor Pan, NO.1
58363C Reinforcement, Fuel Tank Mounting, RH
58365C Reinforcement, Fuel Tank Mounting, LH
64648A Grommet, Luggage Door Lock Opener
77001B Valve (FOR LPG TANK)
77001F Plug, Lpg Tank
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012A Tube Sub-assy, Fuel Tank Breather, NO.1
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77014A Tube Sub-assy, Fuel Tank Breather, NO.3
77014B Hose, Fuel (FOR FUEL TANK BREATHER TUBE)
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77017B Tube Sub-assy, Fuel Tank Vent
77023 Filter Sub-assy, Fuel Suction Tube
77023B Filter Sub-assy, Fuel Suction Tube, NO.2
77028B Tube Sub-assy, Fuel Evaporation, NO.3
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77113B Plate, Fuel Tank Side
77141B Reinforcement, Fuel Tank Flange, NO.1
77142A Reinforcement, Fuel Tank Flange, NO.2
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77204A Tube, Fuel Tank Return
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277R Protector, Fuel Tank Filler Pipe
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77284A Protector, Fuel Tube, NO.3
77285B Clamp, Fuel Tube W/Grommet, NO.1
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77293A Shield, Fuel Tank Filler Pipe, NO.3
77298A Clamp, Fuel Tube, NO.4
77298B Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77390 Valve Assy, Fuel Tank Inlet
77391 Ring, Fuel Inlet Box
77393 Protector, Check Valve
77412 Support, Fuel Tube Grommet, NO.2
77419 Hose, Fuel, NO.3
77420 Valve Assy, Fuel Cut Off, NO.2
77520 Valve Assy, Solenoid Lpg Emergency
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77604C Cover Sub-assy, Fuel Tank Valve
77613A Bracket, Fuel Tank Band, NO.1
77614 Seat, Fuel Tank Band
77614C Seal, Fuel Tank Cover
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77681 Seat, Fuel Tank Band, RH
77682 Seat, Fuel Tank Band, LH
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77758 Cap, Charcoal Canister
77759 Hose, Charcoal Canister
77791 Hose, Outer Vent Valve TO Carburetor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
