Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

8 part groups · 4 illustrations

Illustrations

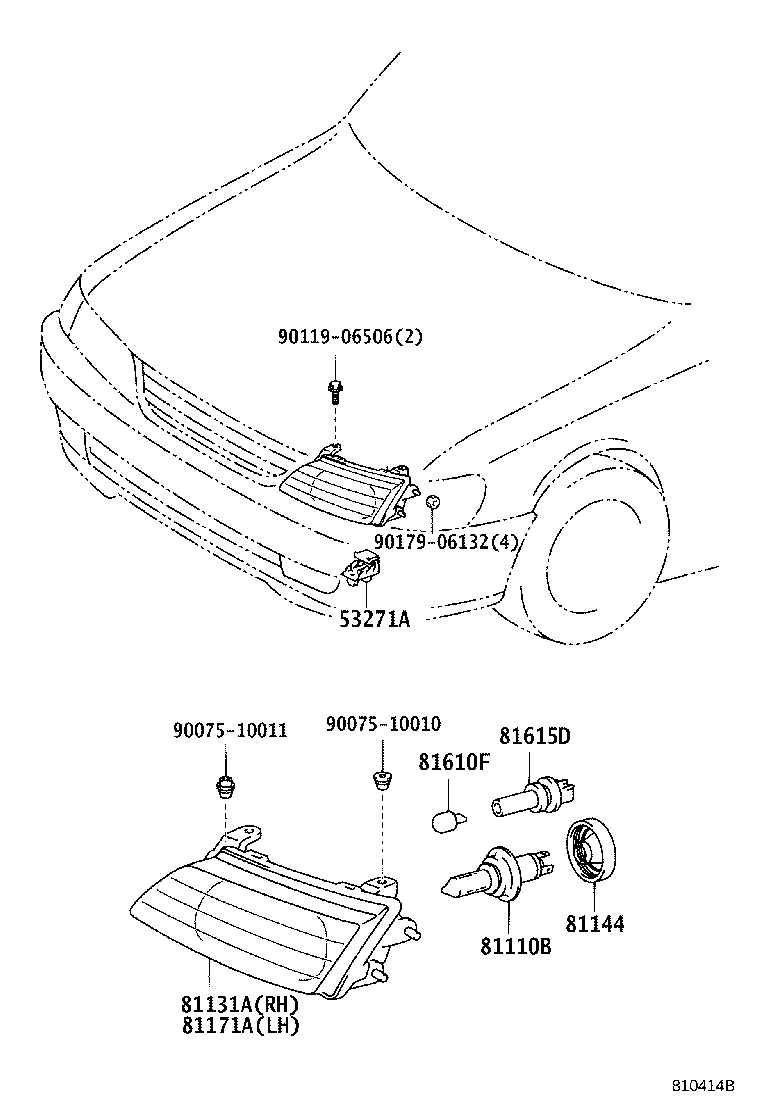

Figure 810256B 810256B 1991-06 → 1997-04 Figure 810256B 810256B 1997-04 → 1997-05 Figure 810256B 810256B 1997-04 → — Figure 810414B 810414B 1997-05 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110B Bulb(FOR HEADLAMP, NO.1)
81131A Unit, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144D Cap, Headlamp Locking
81171A Unit, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
