Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

5 part groups · 8 illustrations

Illustrations

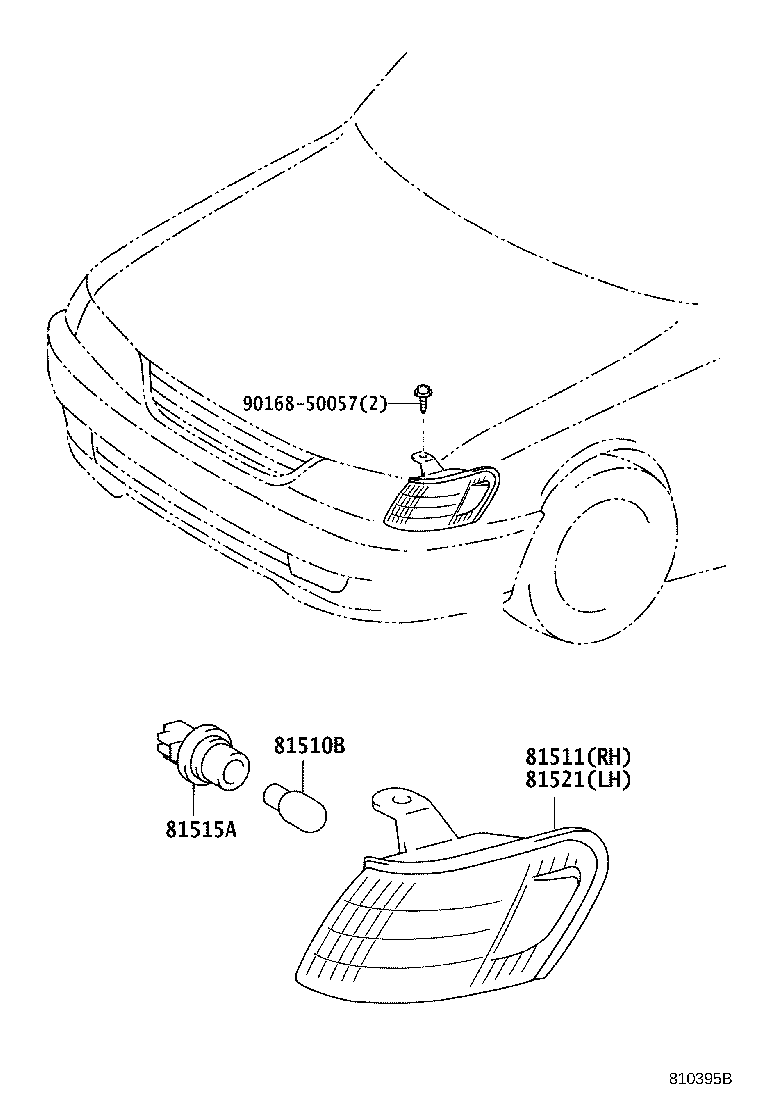

Figure 817172A 817172A 1991-06 → 1993-05 Figure 817172A 817172A 1992-05 → 1995-05 Figure 817172A 817172A 1993-05 → 1994-01 Figure 810284B 810284B 1993-05 → 1994-01 Figure 810284B 810284B 1994-01 → 1995-05 Figure 810284B 810284B 1995-05 → 1997-05 Figure 810284B 810284B 1997-05 → — Figure 810395B 810395B 1997-05 → —

Part groups

PNCDescription
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81515A Plug Assy, Front Turn Signal Lamp
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
