Rear Combination Lamp

13 part groups · 8 illustrations

Illustrations

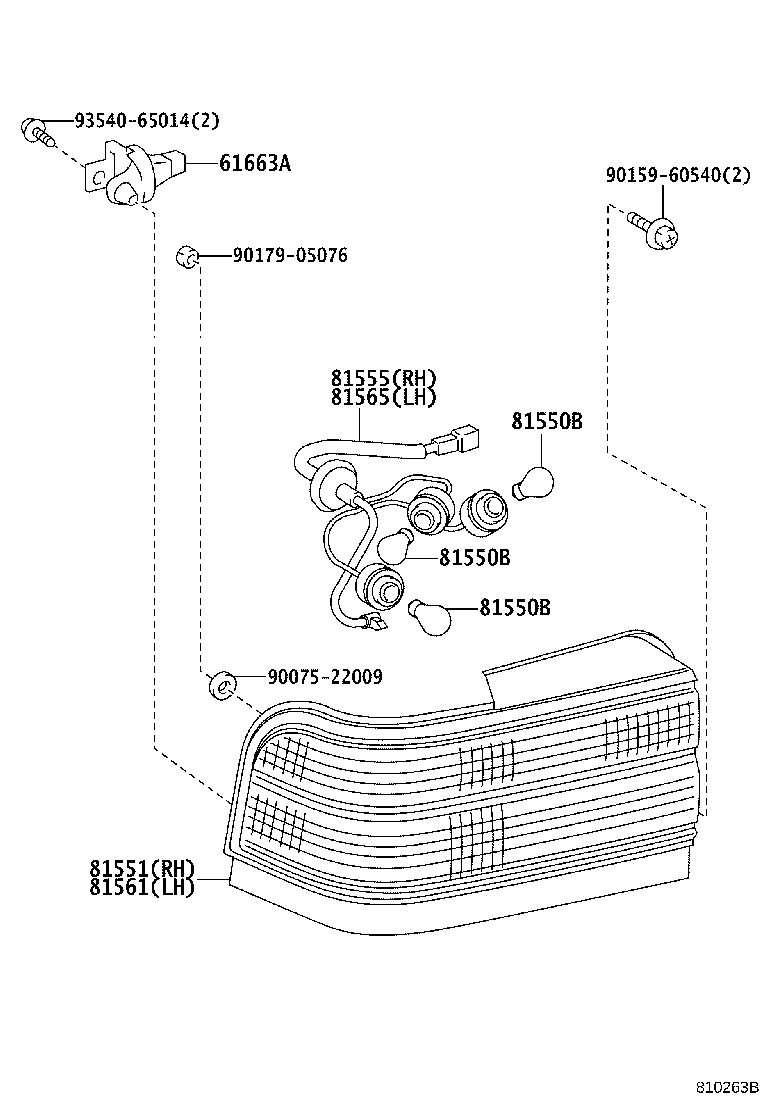

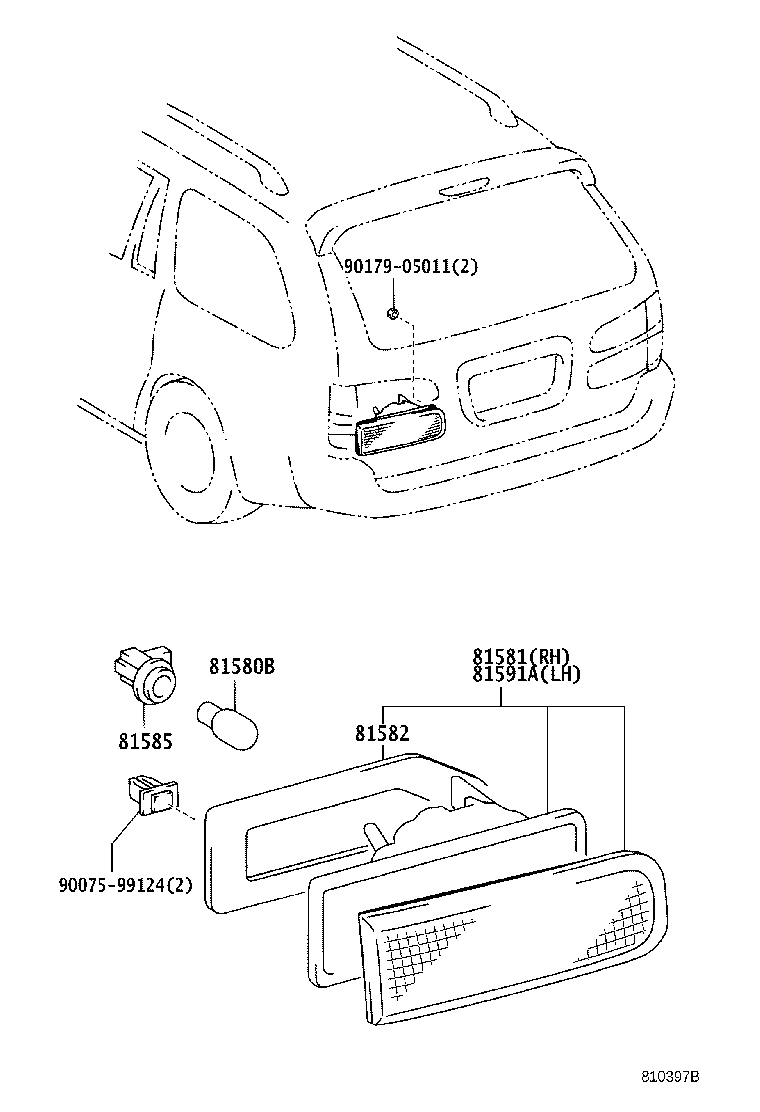

Figure 817395A 817395A 1991-06 → 1993-05 Figure 810263B 810263B 1993-05 → — Figure 817394A 817394A 1992-05 → — Figure 817393A 817393A 1991-09 → 1997-05 Figure 817393A 817393A 1997-05 → — Figure 817393A 817393A 1998-06 → — Figure 810396C 810396C 1997-05 → — Figure 810397B 810397B 1997-05 → —

Part groups

PNCDescription
61663A Bracket, Rear Combination Lamp Mounting
64745L Cover, Rear Combination Lamp Service, RH
64746H Cover, Rear Combination Lamp Service, LH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81582 Gasket, Rear Lamp
81585 Socket & Wire, Rear Lamp
81591A Lens Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
