Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 6 illustrations

Illustrations

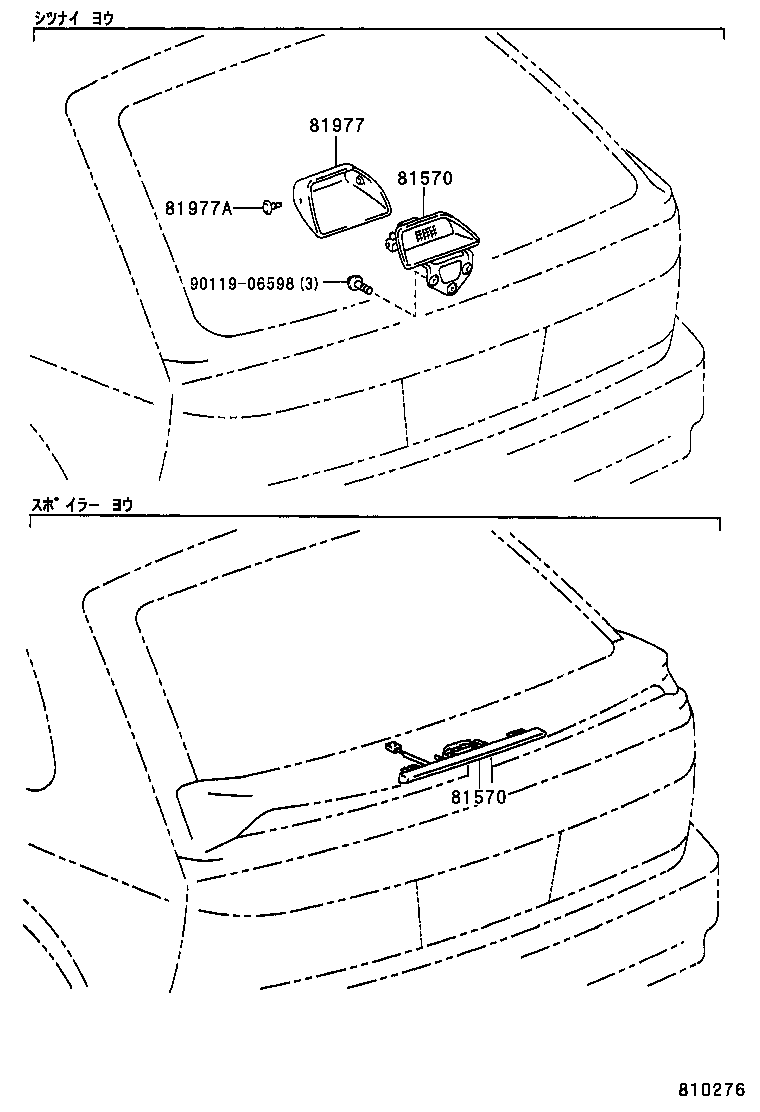

Figure 817398 817398 1991-06 → 1995-05 Figure 810276 810276 1992-05 → 1995-05 Figure 810401 810401 1991-09 → — Figure 817397 817397 1991-09 → 1995-08 Figure 810399A 810399A 1995-05 → 1995-08 Figure 810399A 810399A 1995-08 → —

Part groups

PNCDescription
81570 Lamp Assy, Center Stop
81570B Bulb (FOR CENTER STOP LAMP)
81977 Cover, Center Stop Lamp
81977A Clip (FOR CENTER STOP LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
