Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

51 part groups · 16 illustrations

Illustrations

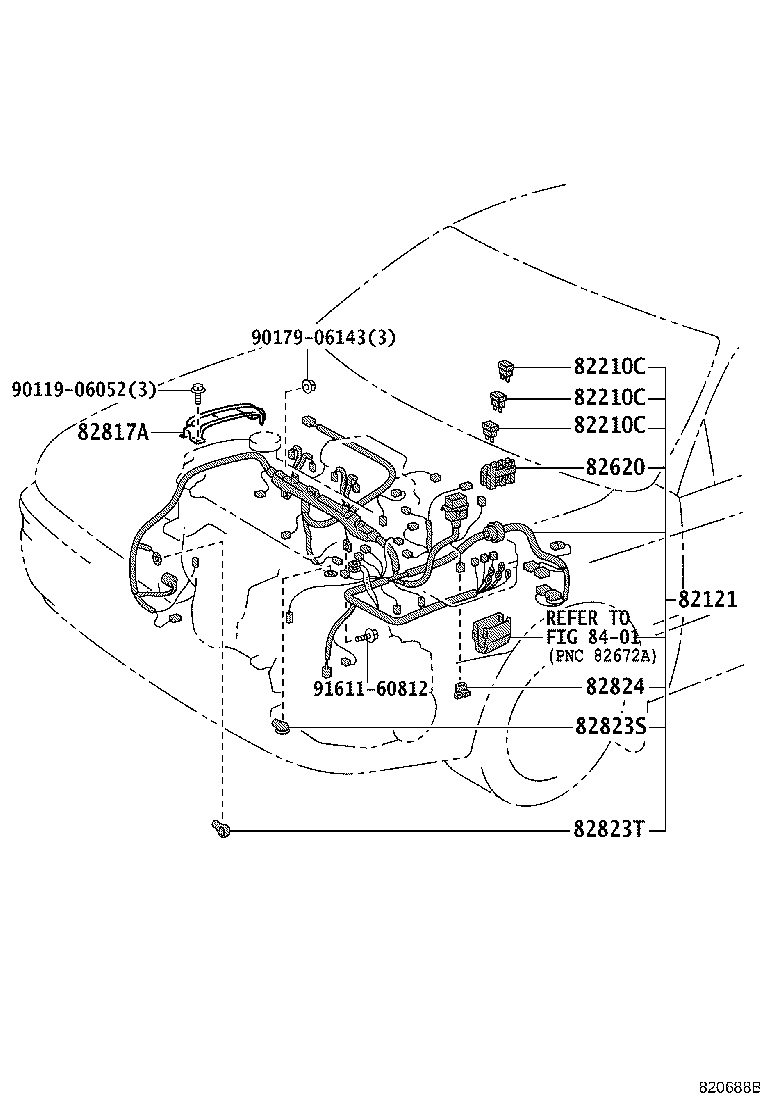

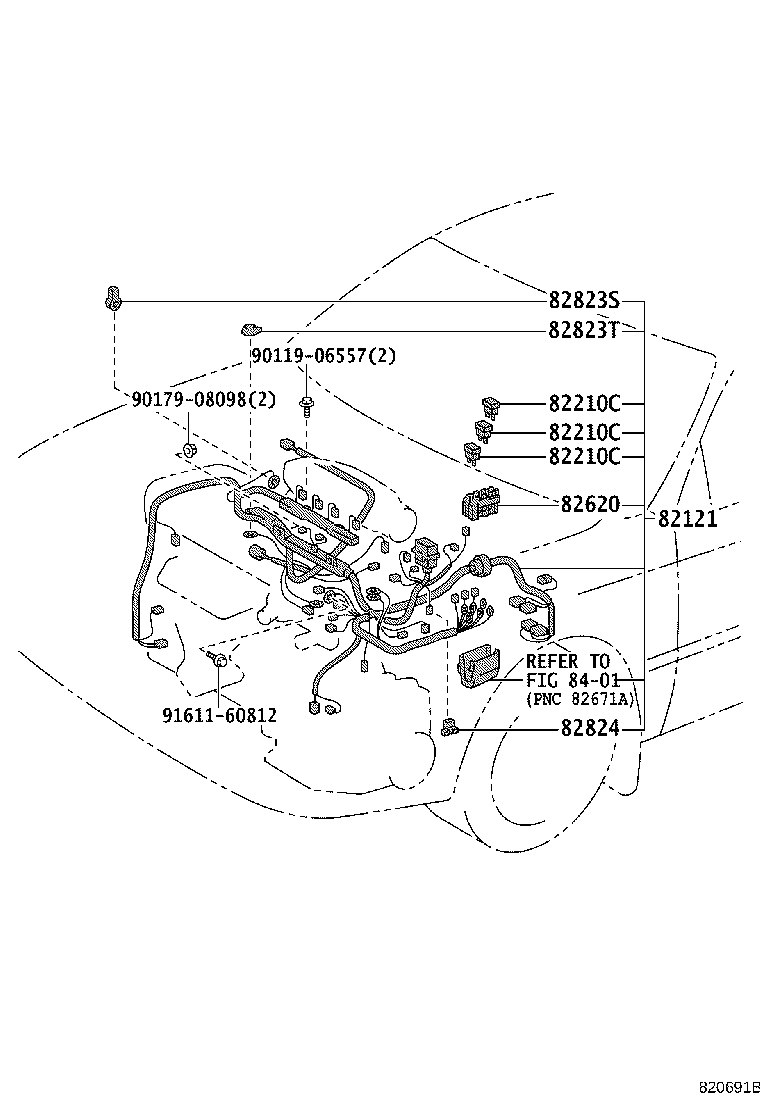

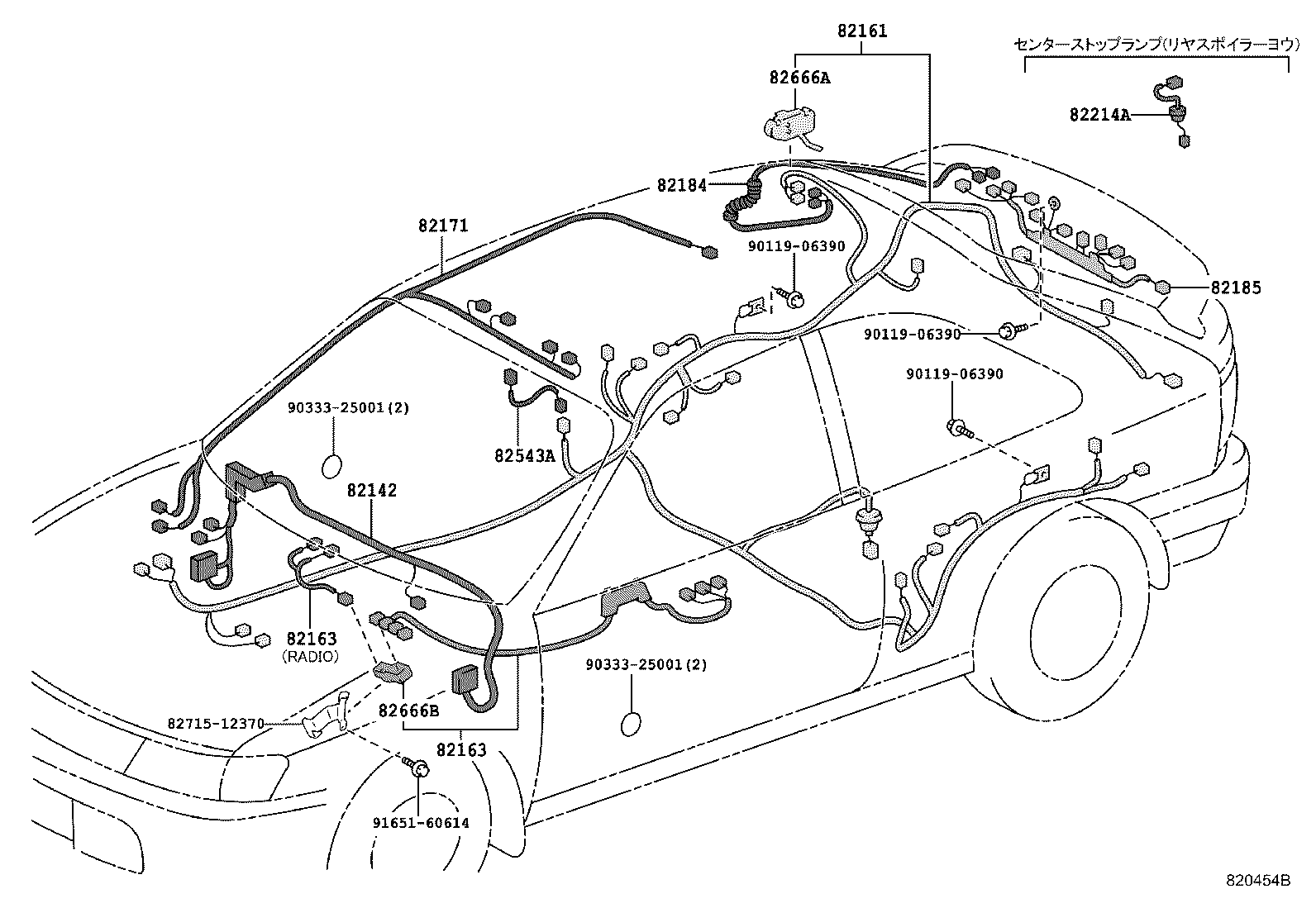

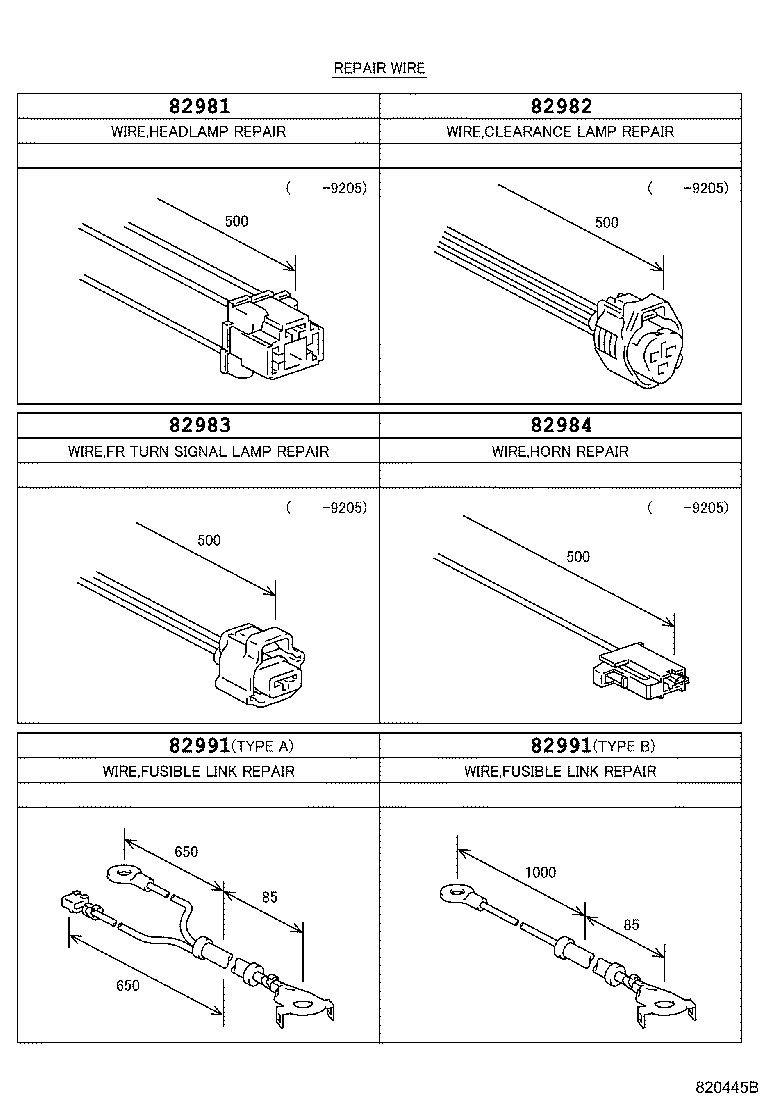

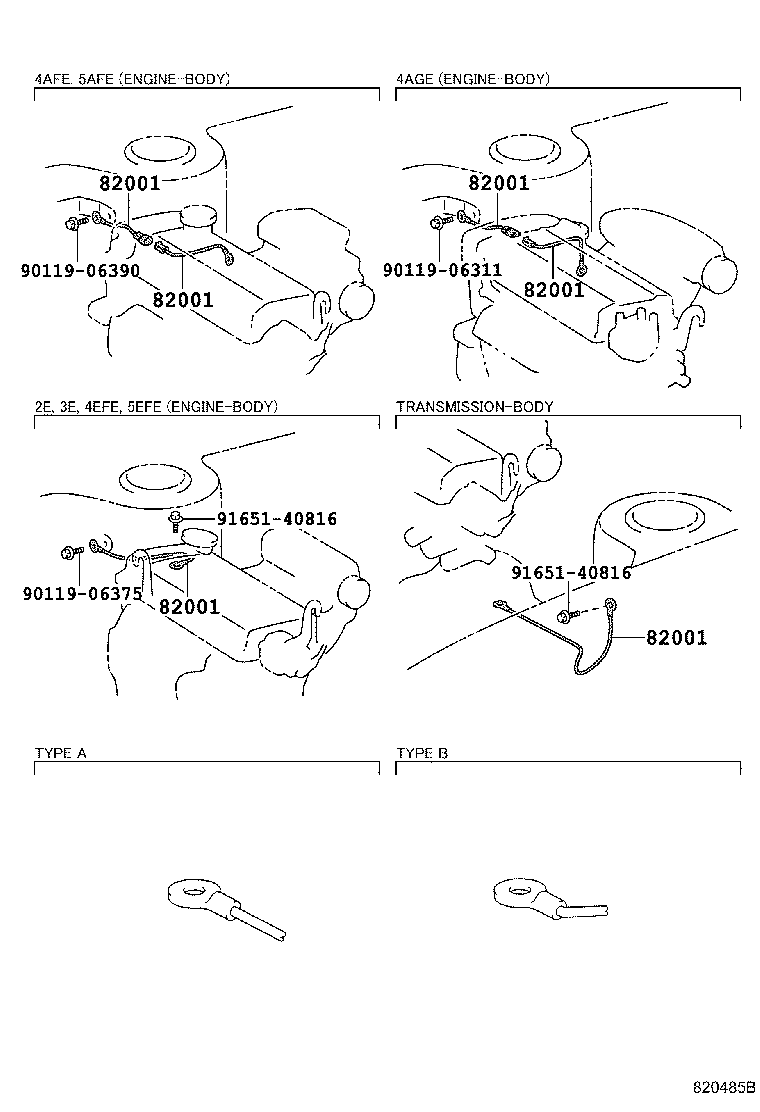

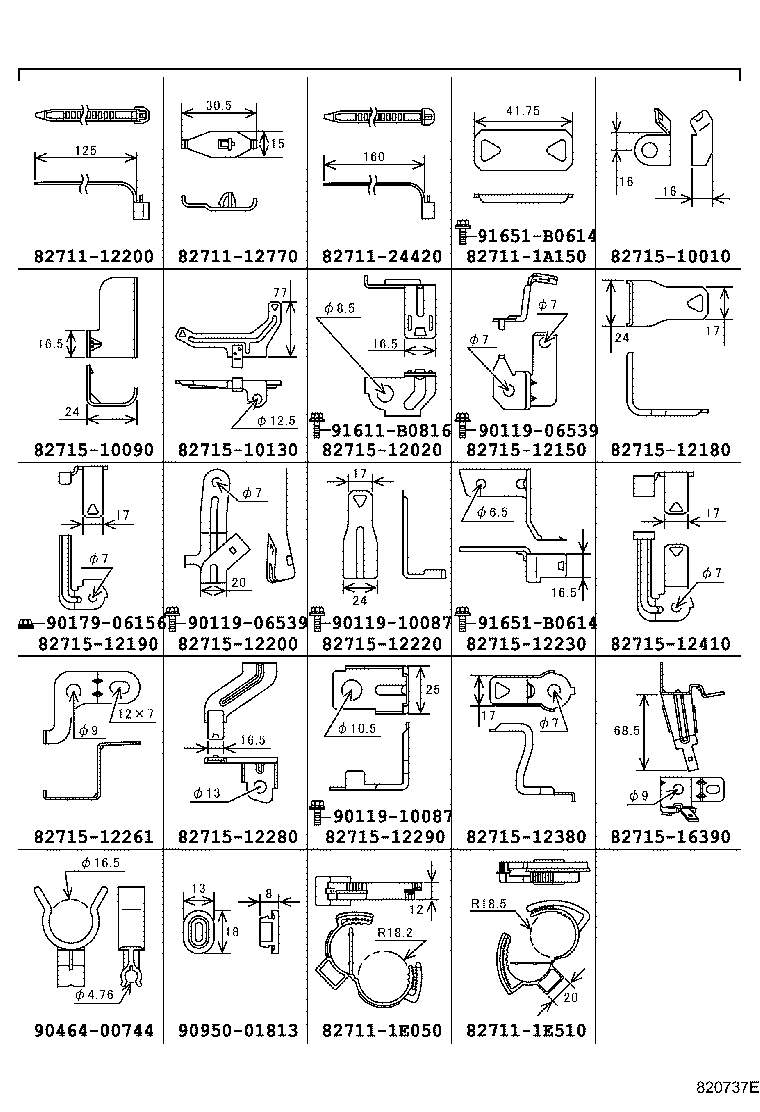

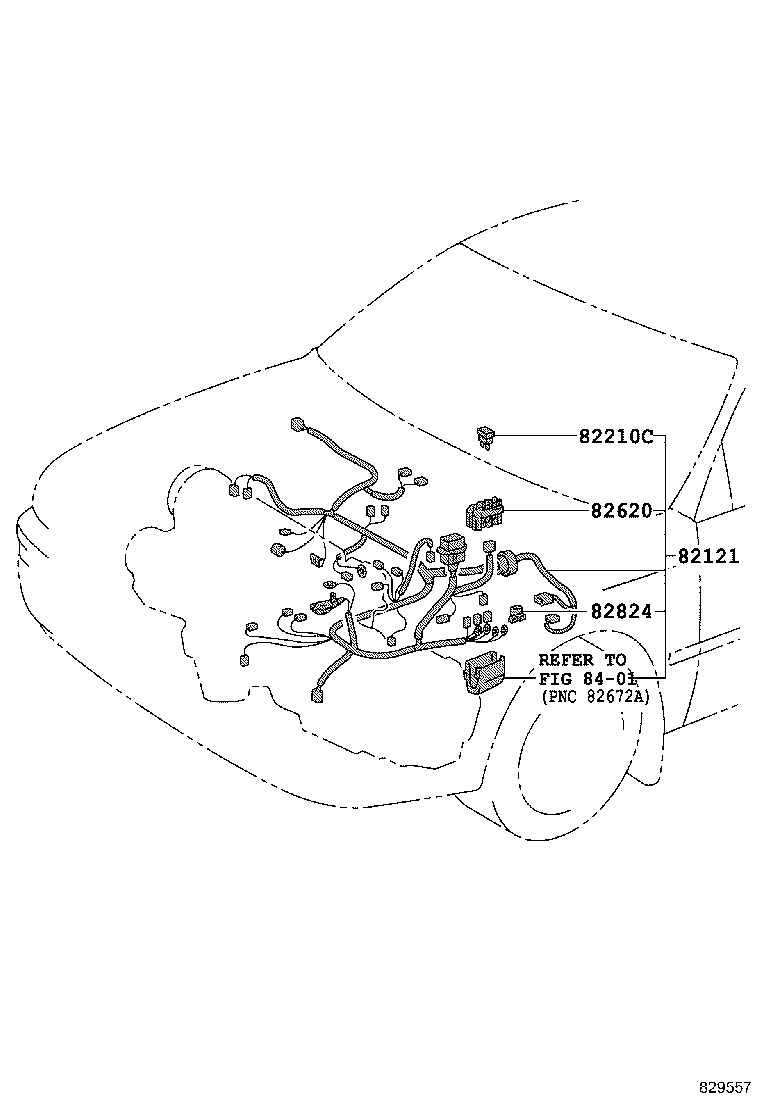

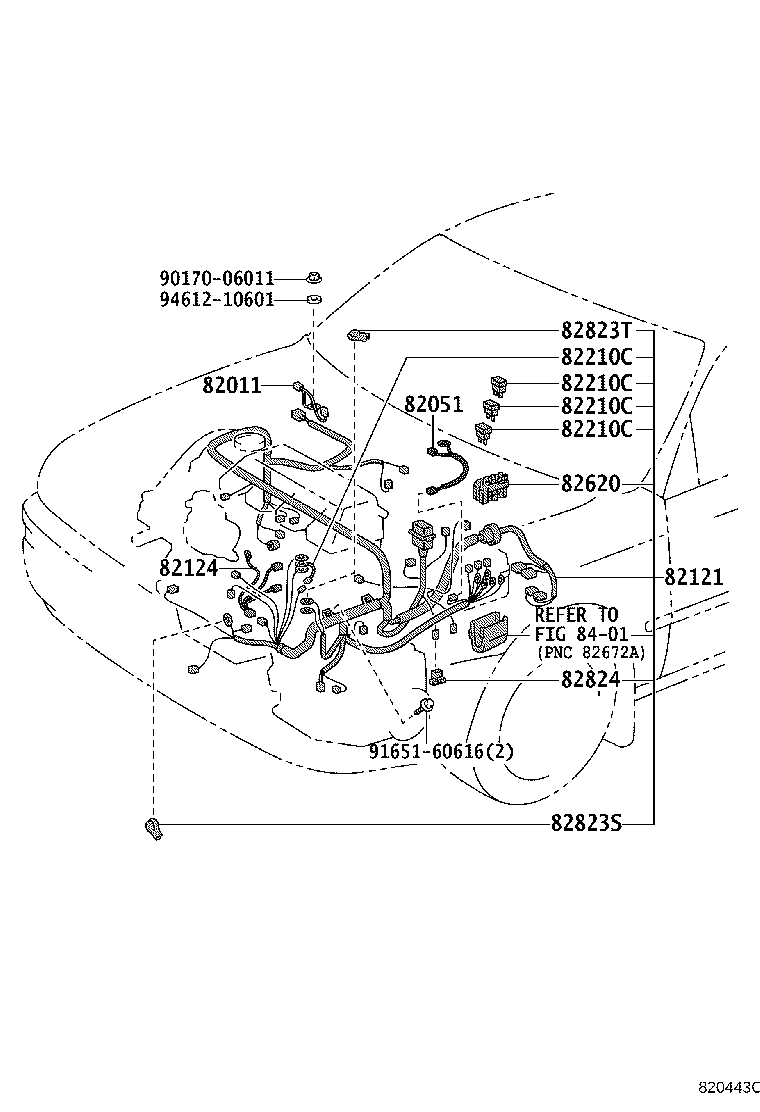

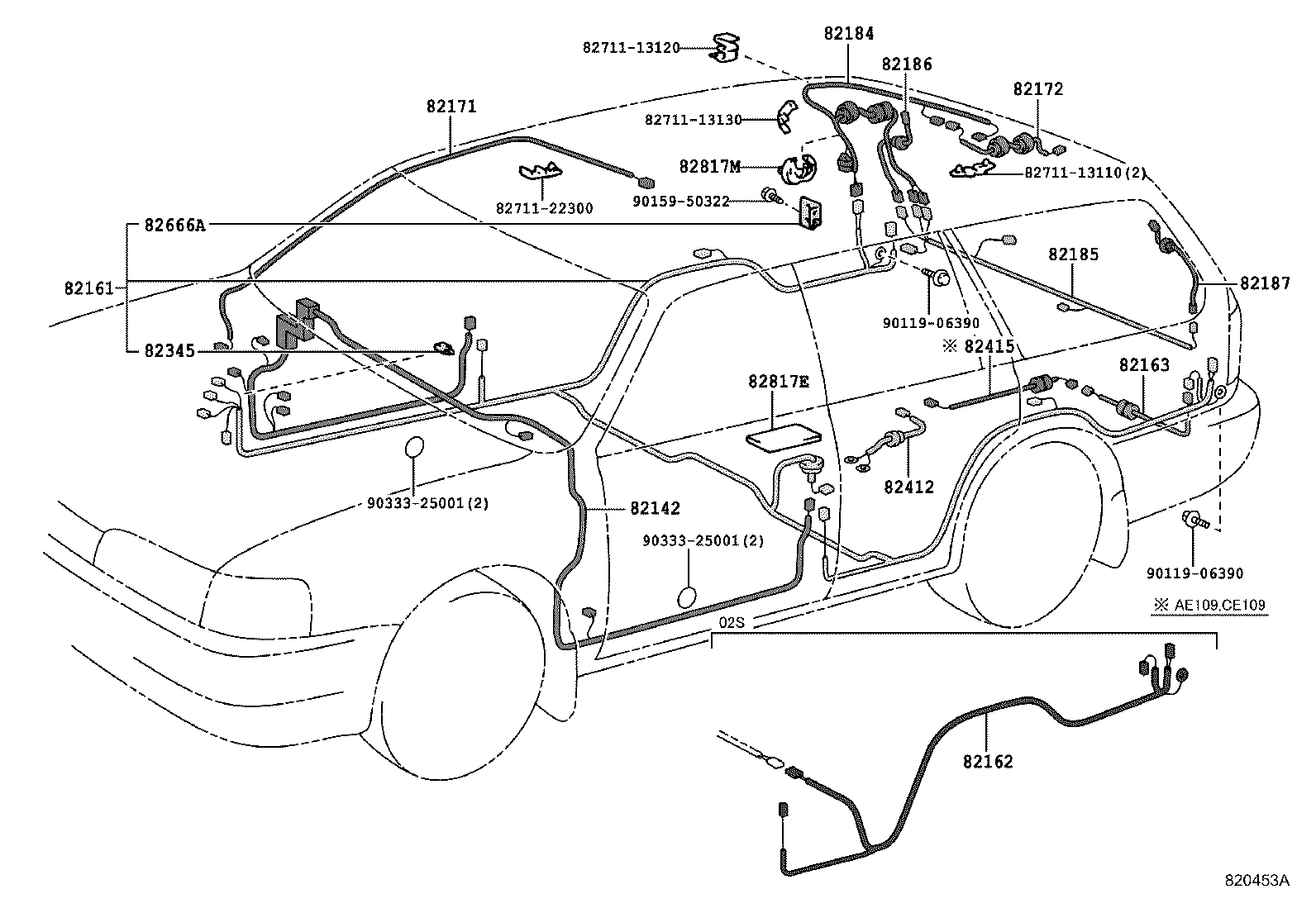

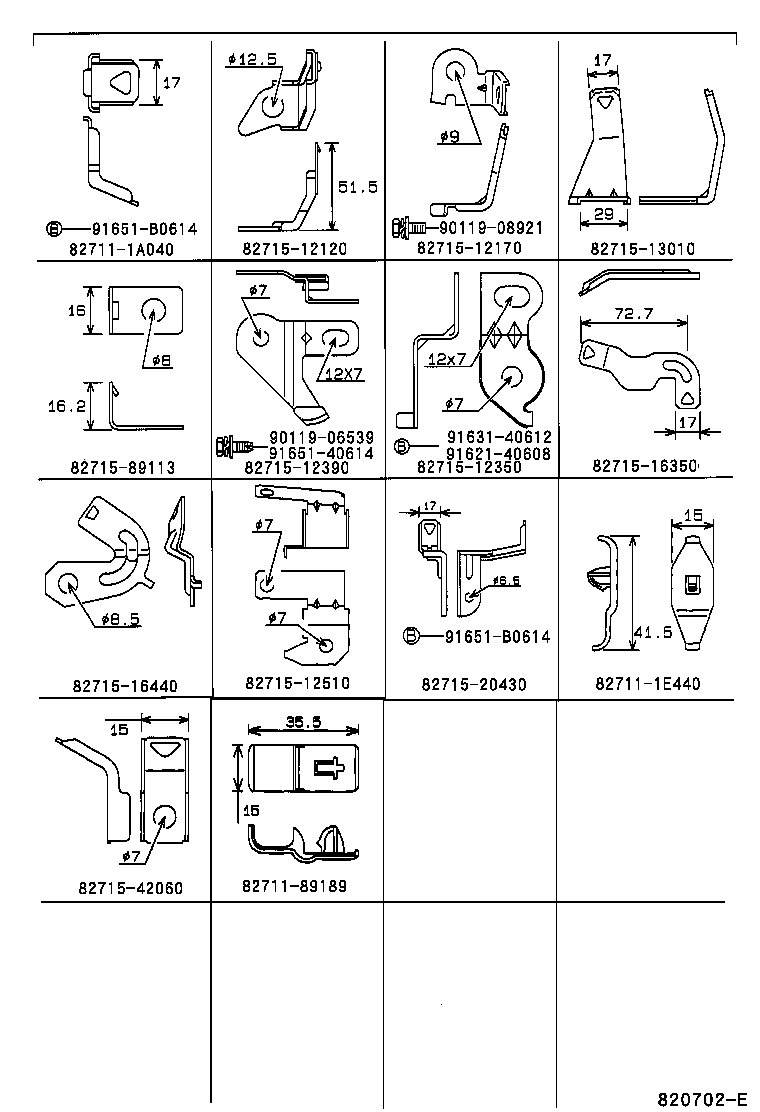

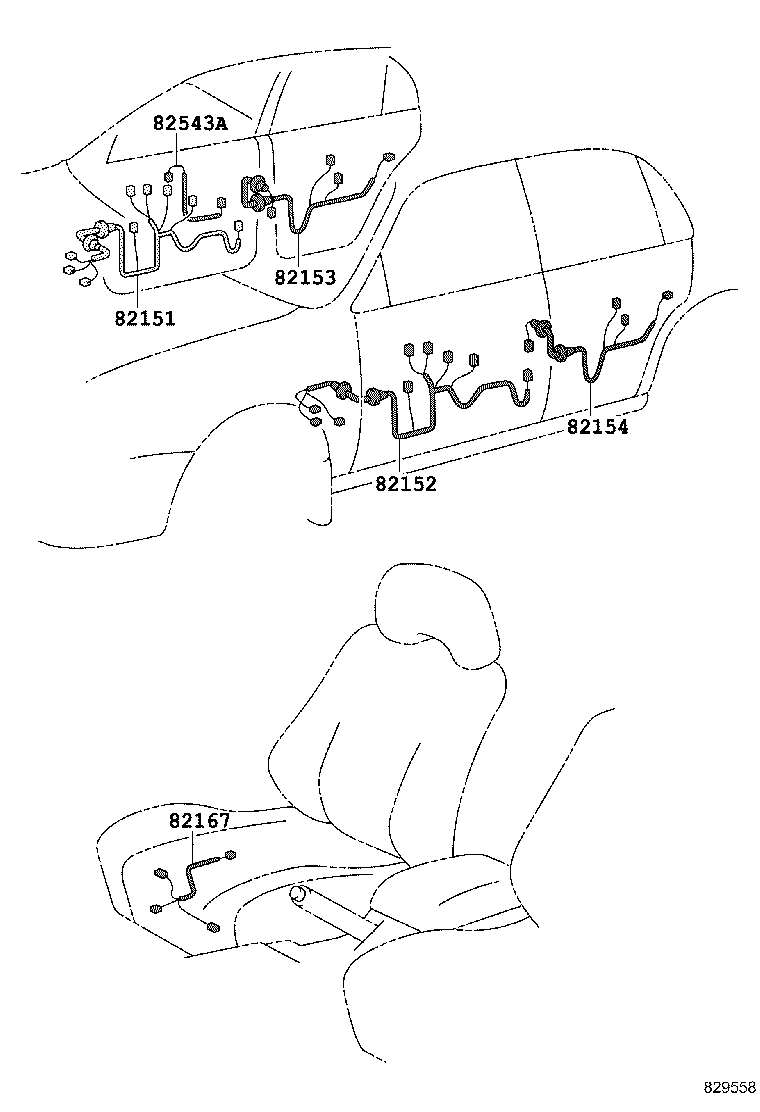

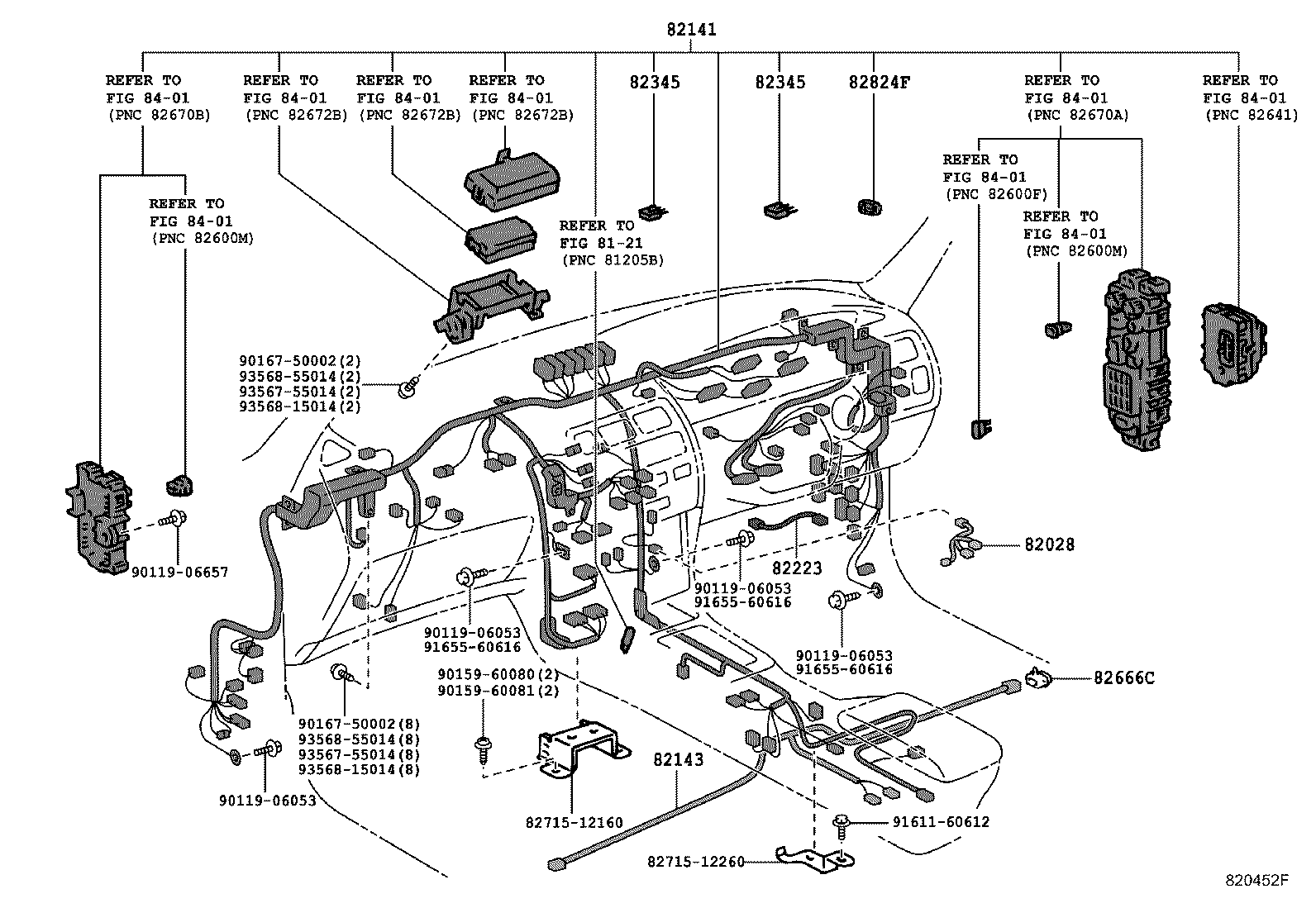

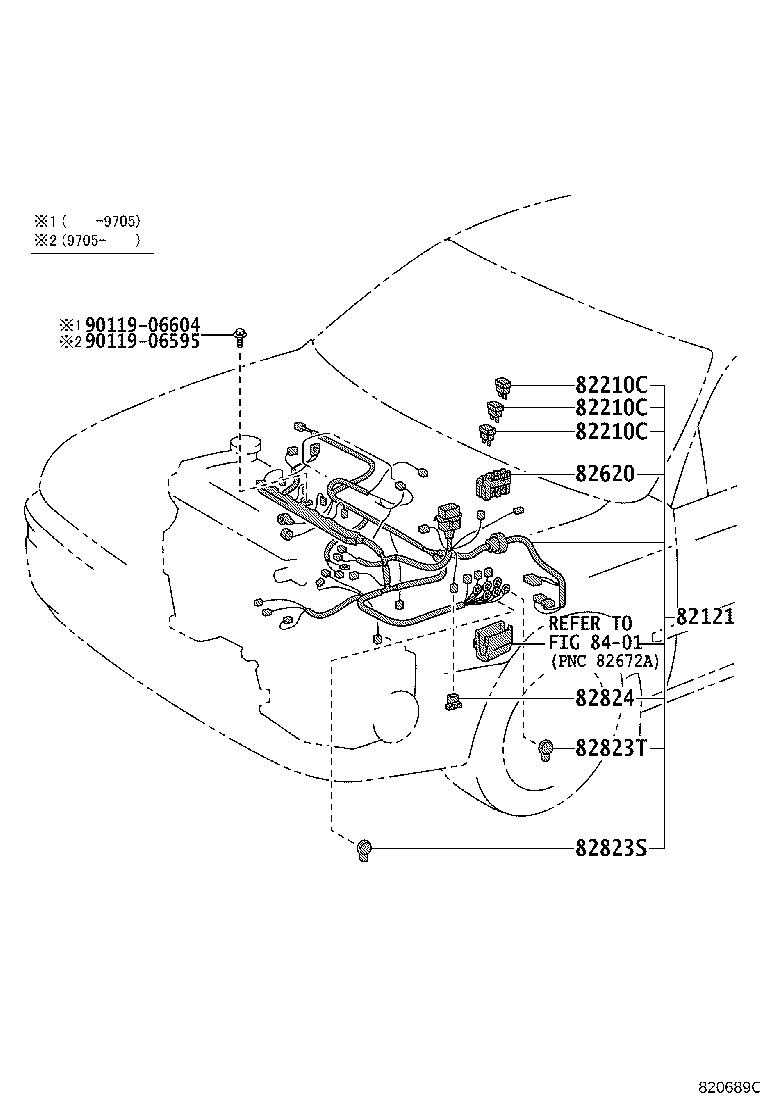

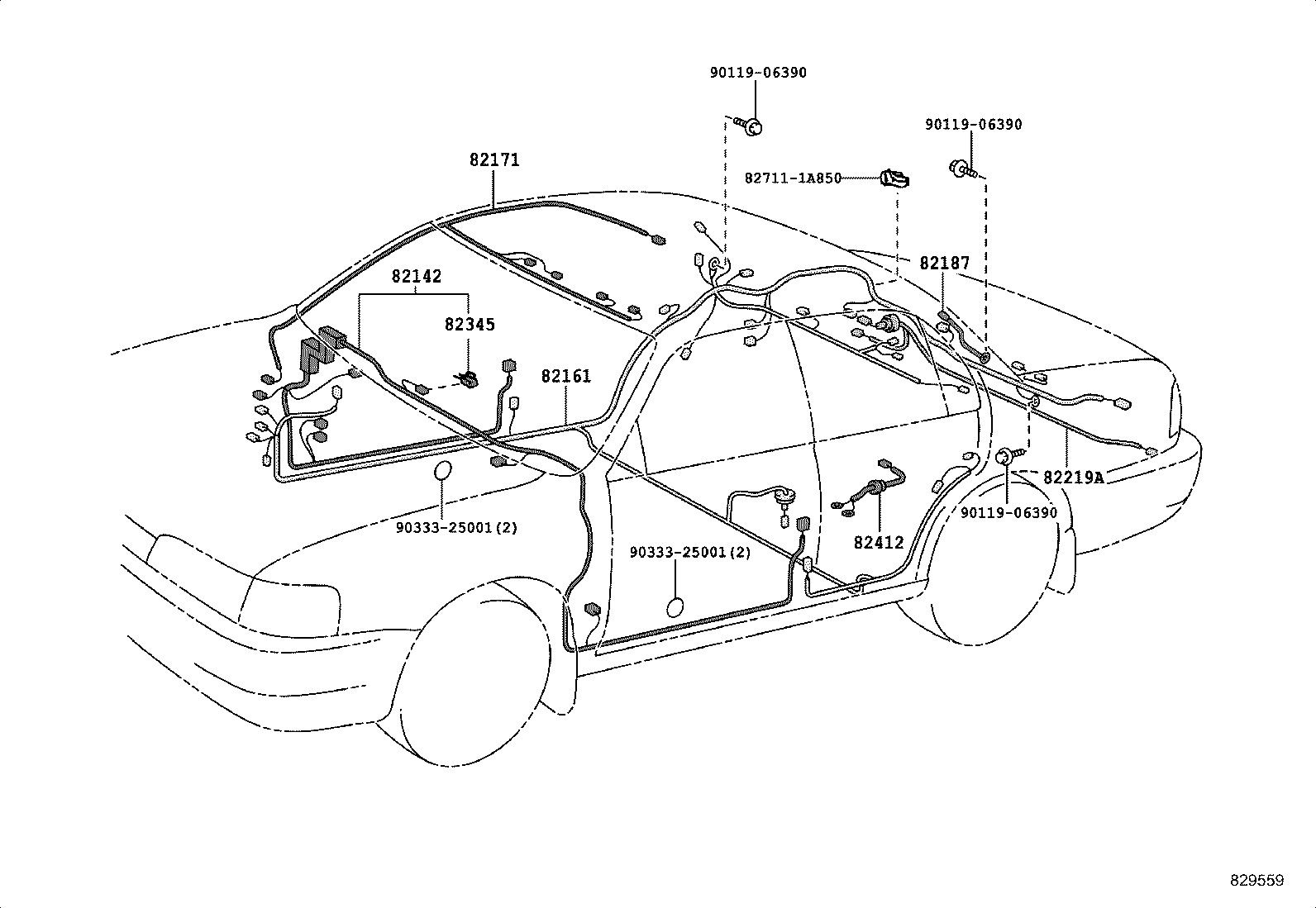

Figure 820448C 820448C 1991-06 → — Figure 820688B 820688B 1991-06 → — Figure 820691B 820691B 1991-06 → — Figure 820443C 820443C 1991-06 → — Figure 820689C 820689C 1991-06 → — Figure 829557 829557 1991-09 → 1994-01 Figure 820737E 820737E 1991-06 → — Figure 820702E 820702E 1991-06 → — Figure 820452F 820452F 1991-06 → — Figure 829558 829558 1991-06 → — Figure 829559 829559 1991-06 → — Figure 820453A 820453A 1991-09 → — Figure 820454B 820454B 1992-05 → — Figure 820485B 820485B 1991-06 → — Figure 820444 820444 1991-06 → — Figure 820445B 820445B 1991-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82028 Wiring Sub-assy, Cowl
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82223 Wire, Switch
82345 Diode
82412 Wire, Fuel Gage
82415 Wire, Fuel Pump
82543A Wire, Power Window, RH
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817E Protector, Wiring Harness, NO.6
82817M Protector, Wiring Harness, NO.12
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824F Connector, Wiring Harness
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
