Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 12 illustrations

Illustrations

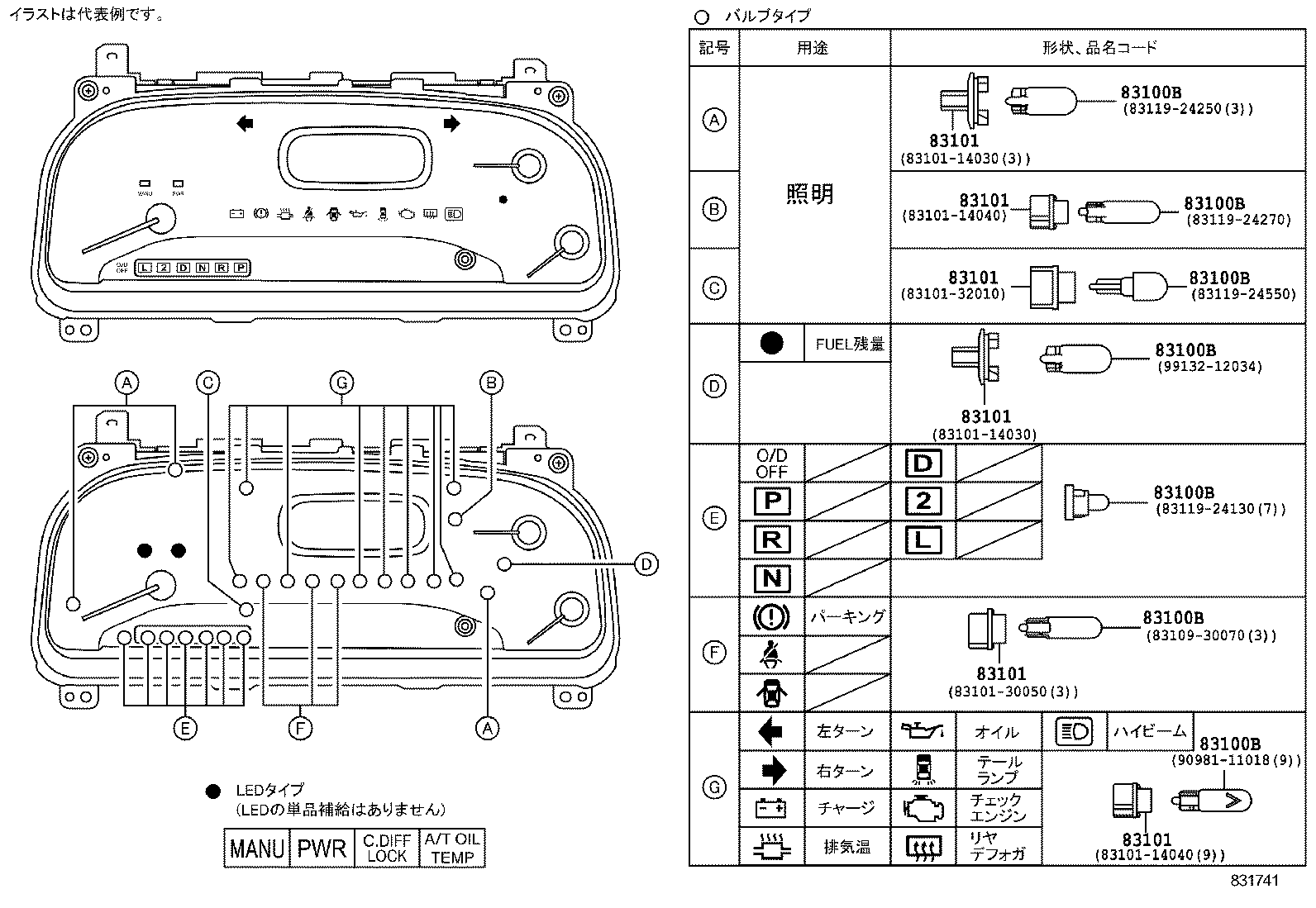

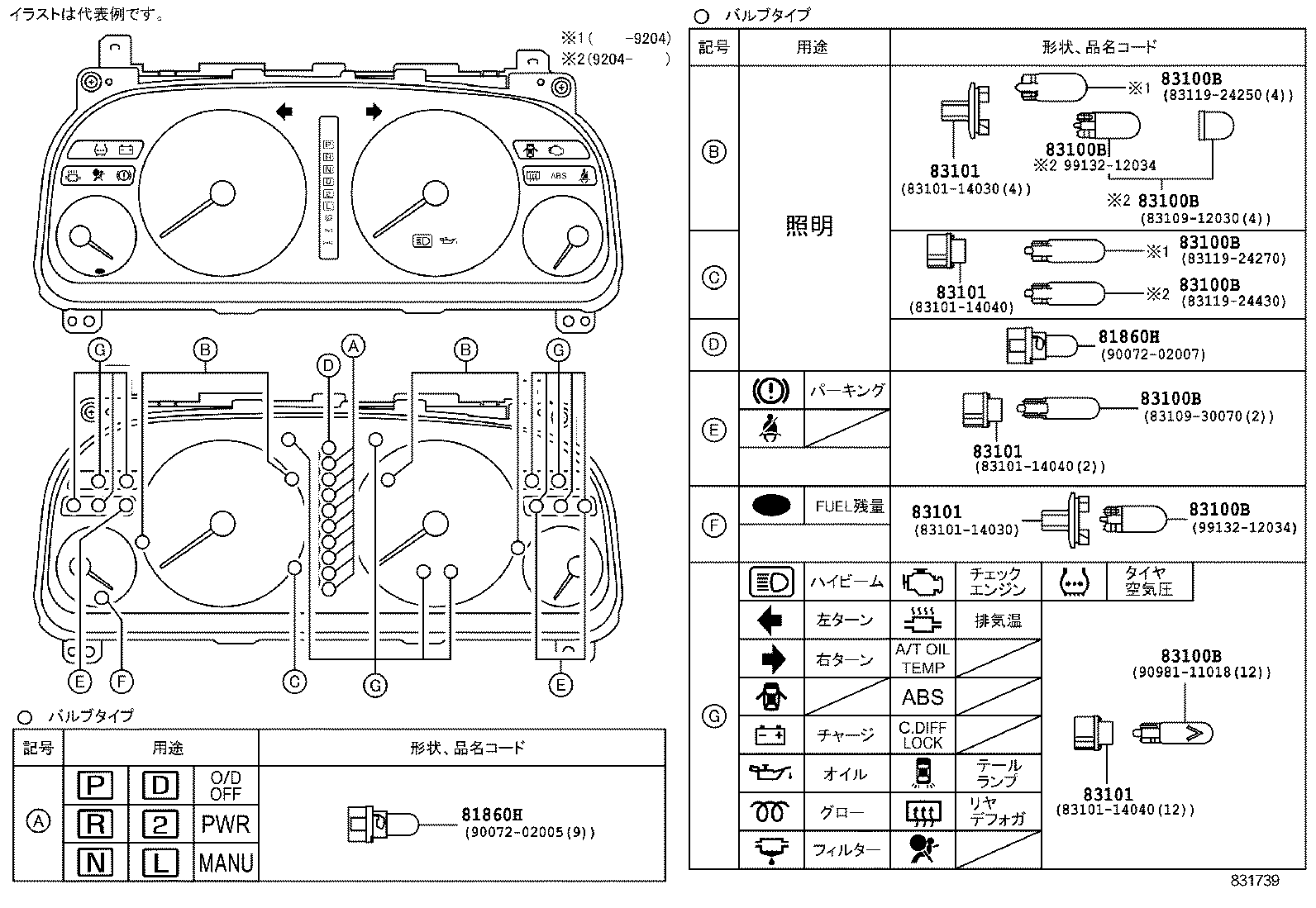

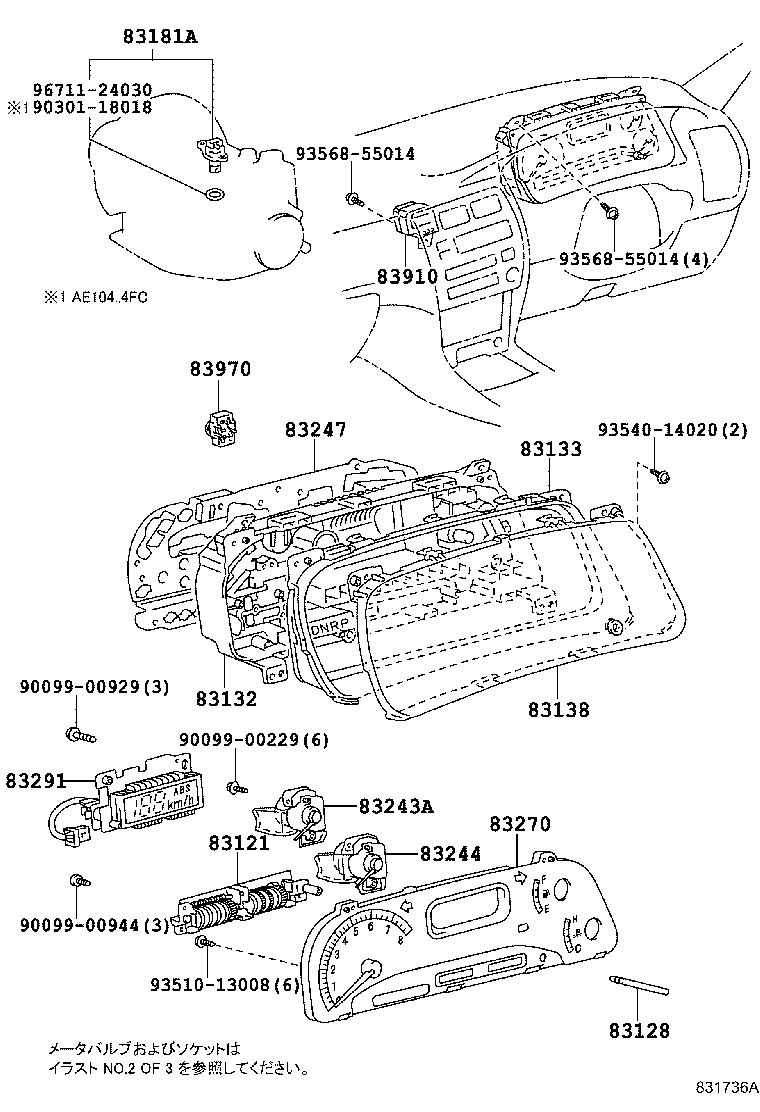

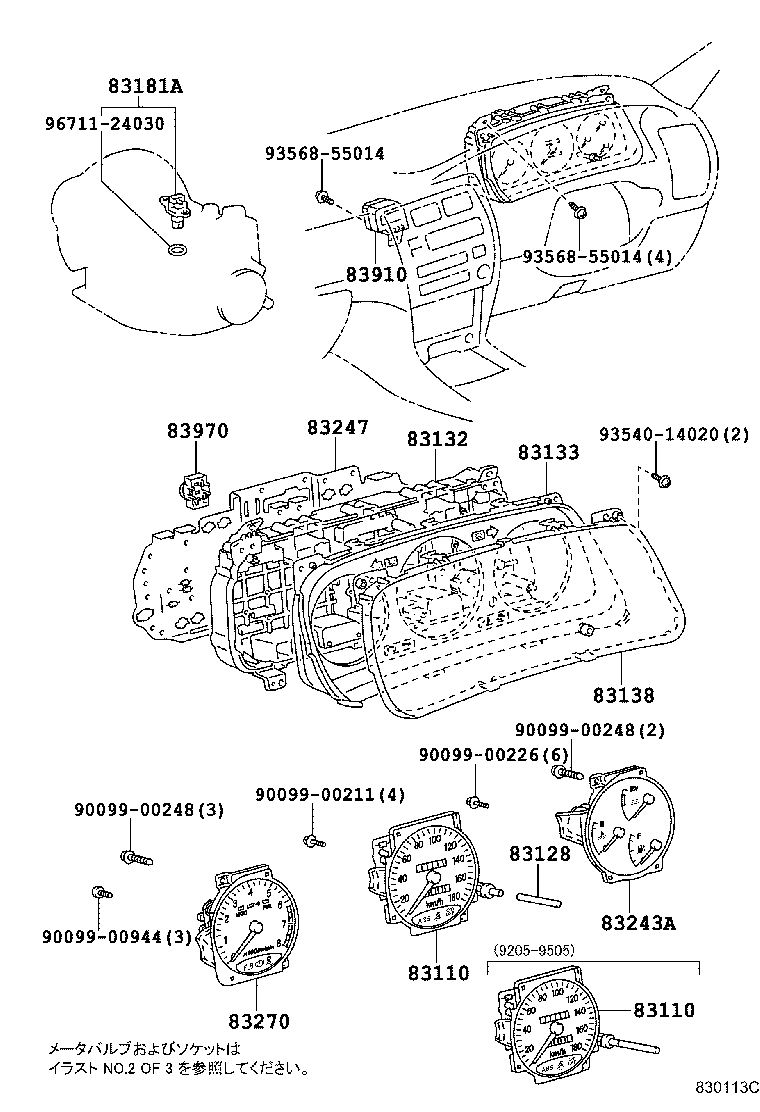

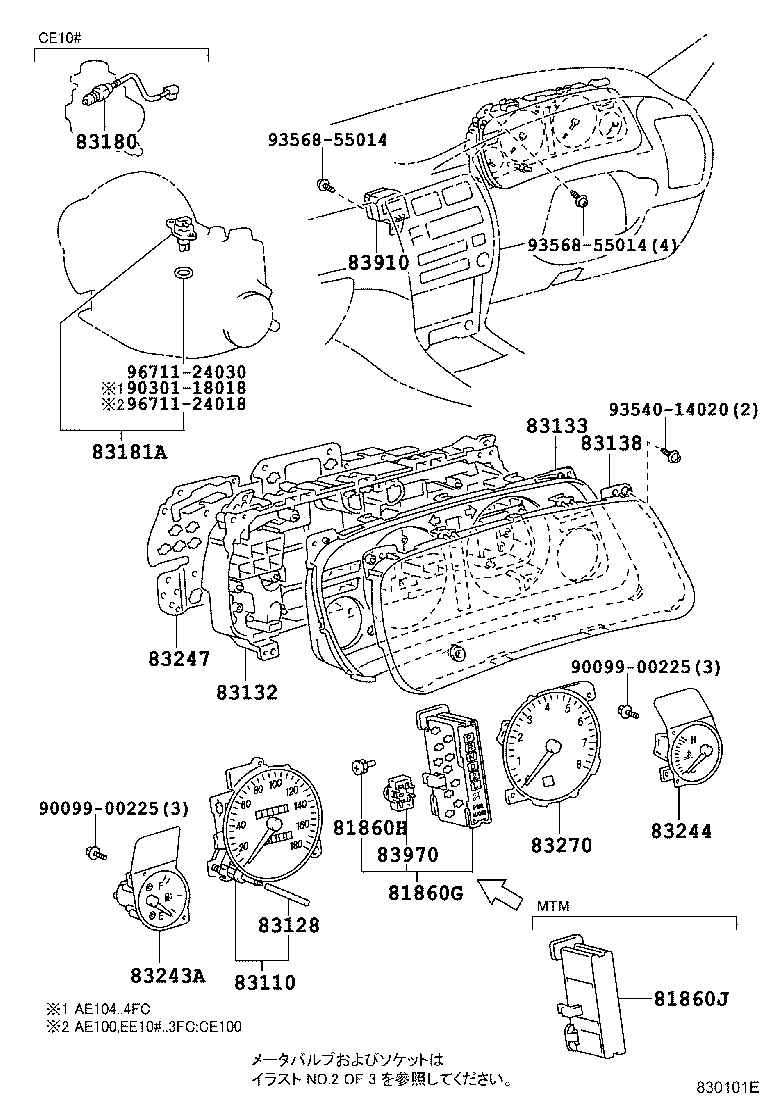

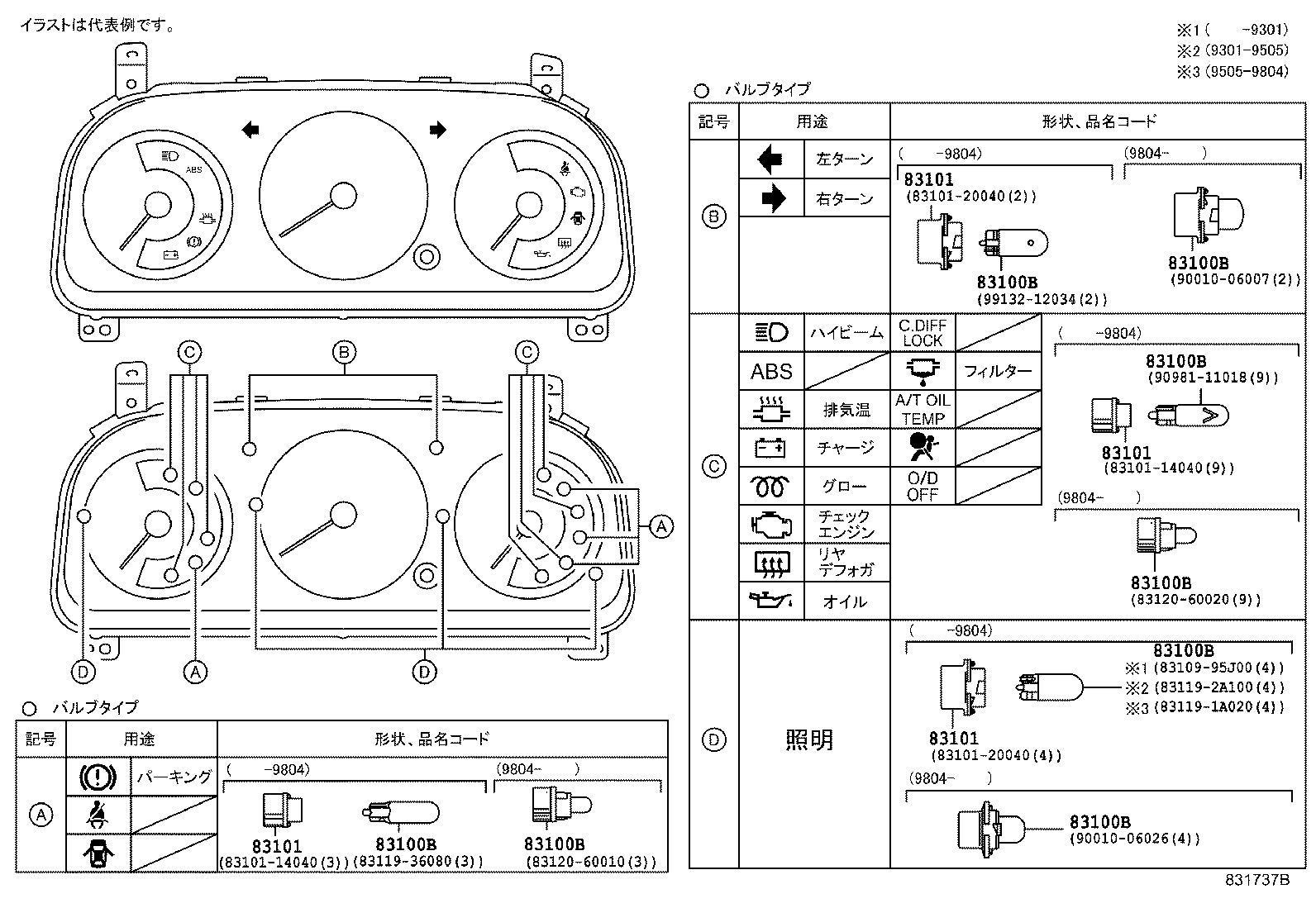

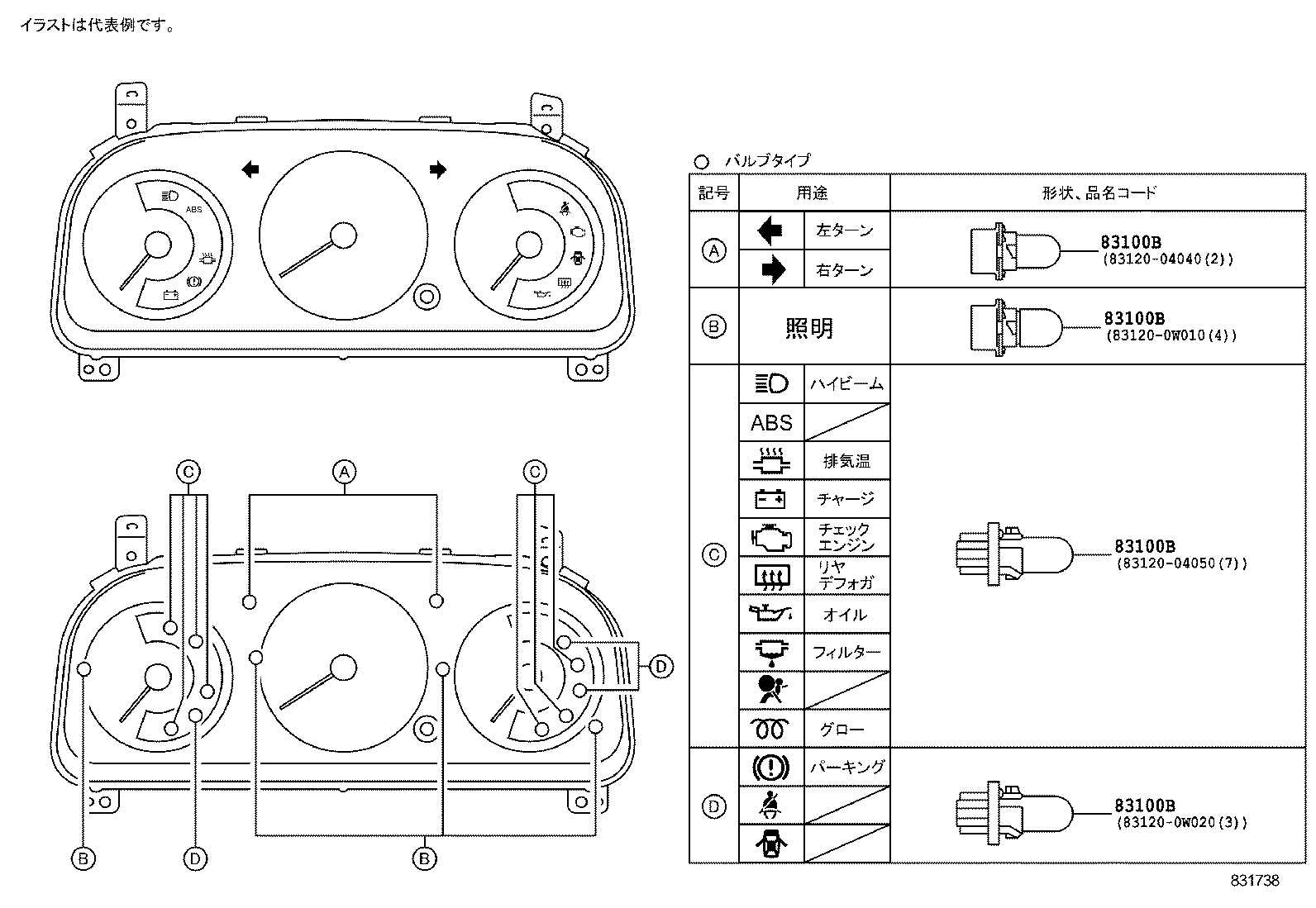

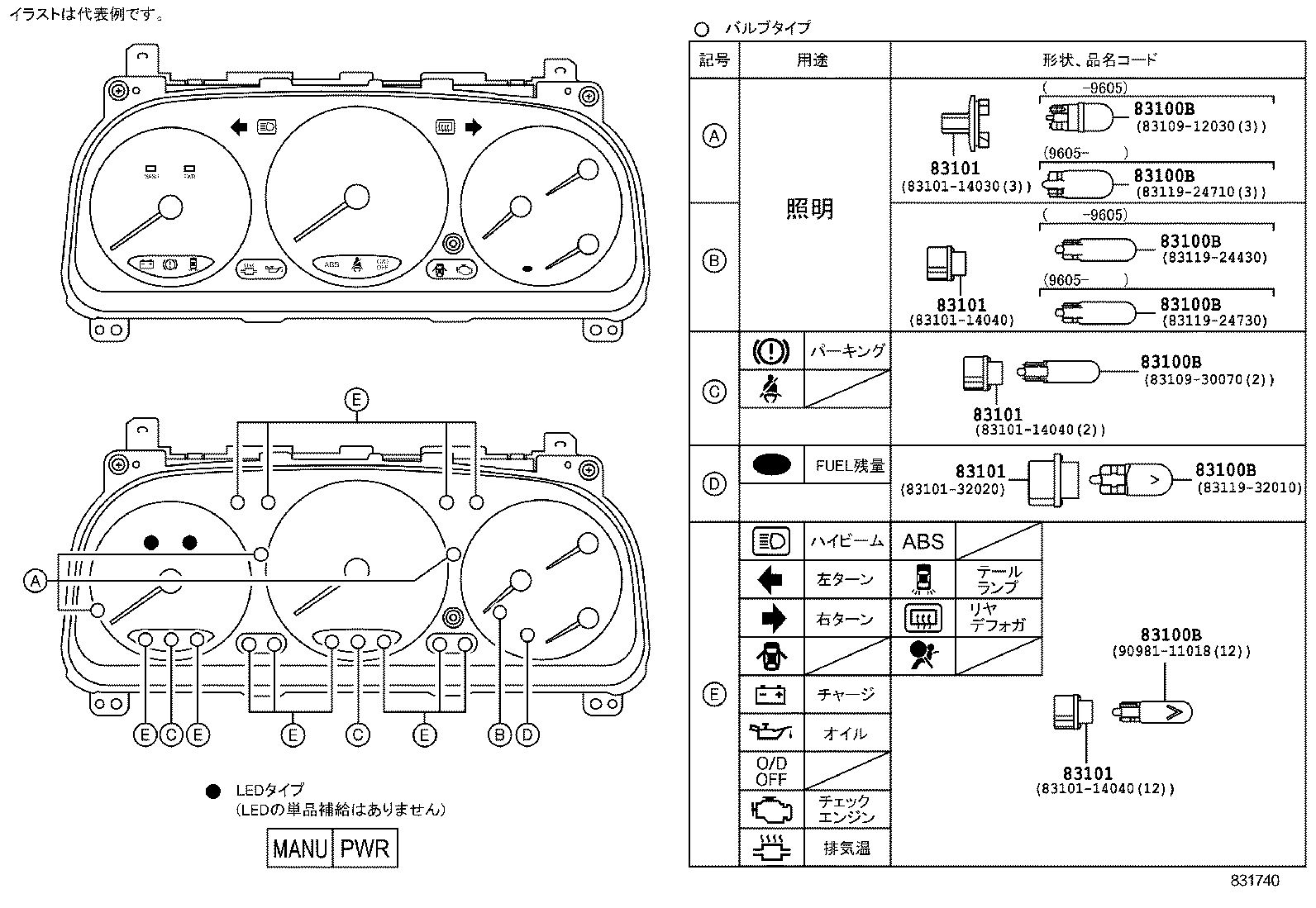

Figure 830100D 830100D 1991-06 → — Figure 830101E 830101E 1991-06 → — Figure 830113C 830113C 1992-05 → 1995-05 Figure 830113C 830113C 1996-05 → — Figure 831736A 831736A 1991-06 → 1993-05 Figure 831737B 831737B 1991-06 → — Figure 831738 831738 1991-06 → — Figure 831739 831739 1991-06 → — Figure 831740 831740 1992-05 → 1995-05 Figure 831740 831740 1996-05 → — Figure 831741 831741 1991-06 → 1993-05 Figure 830104B 830104B 1992-05 → —

Part groups

PNCDescription
81860G Lamp Assy, Transmission Indicator
81860H Bulb, Transmission Indicator
81860J Plug, Meter Plate
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83121 Counter, Total
83128 Knob, Trip Counter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
