Toyota Corolla
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan
Discontinued model
Data version 2003-01
Switch & Relay & Computer
144 part groups · 14 illustrations
Illustrations

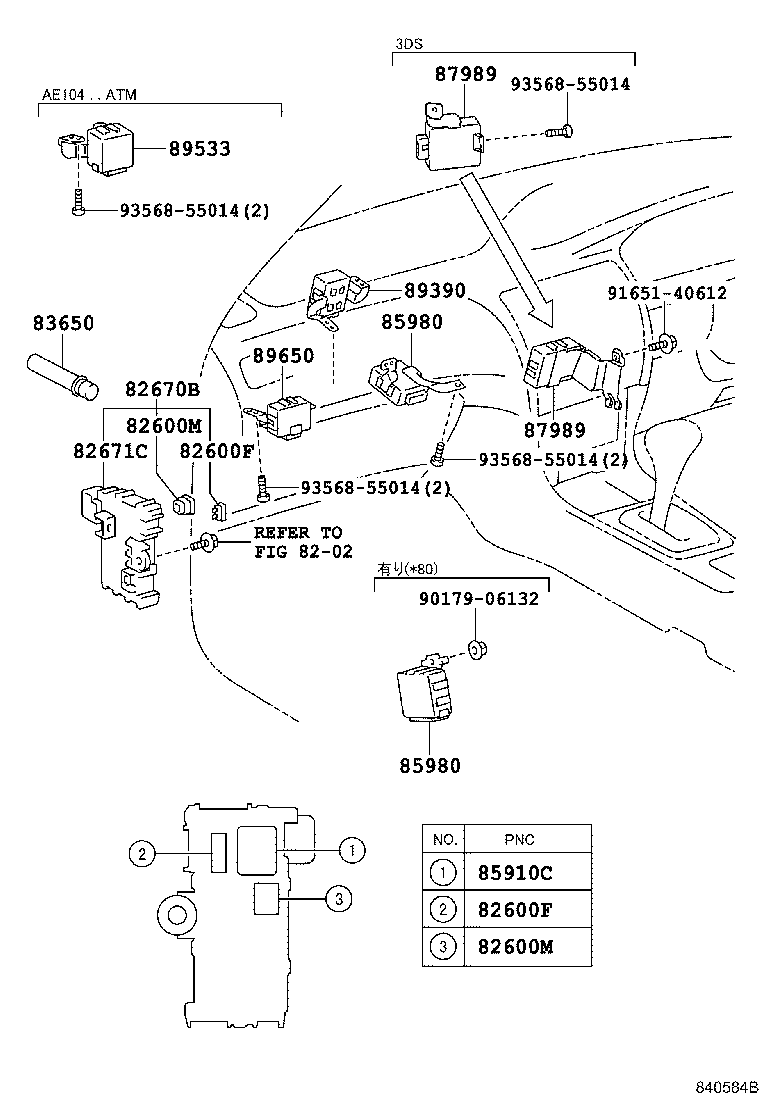

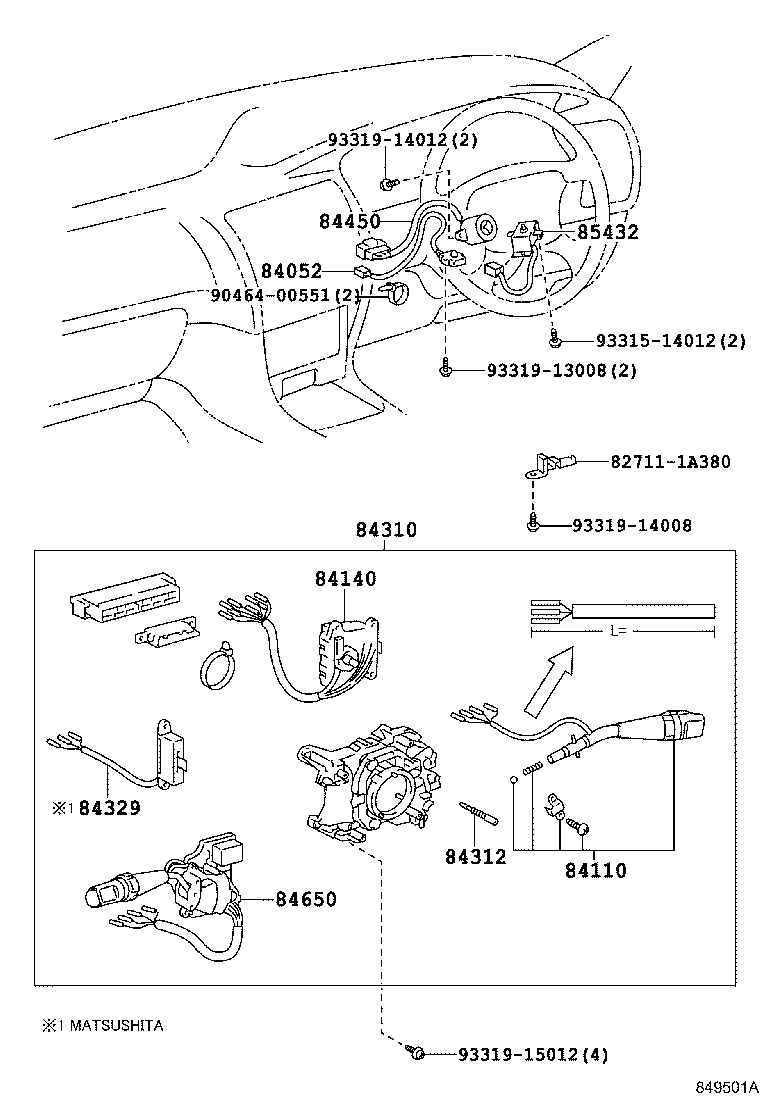

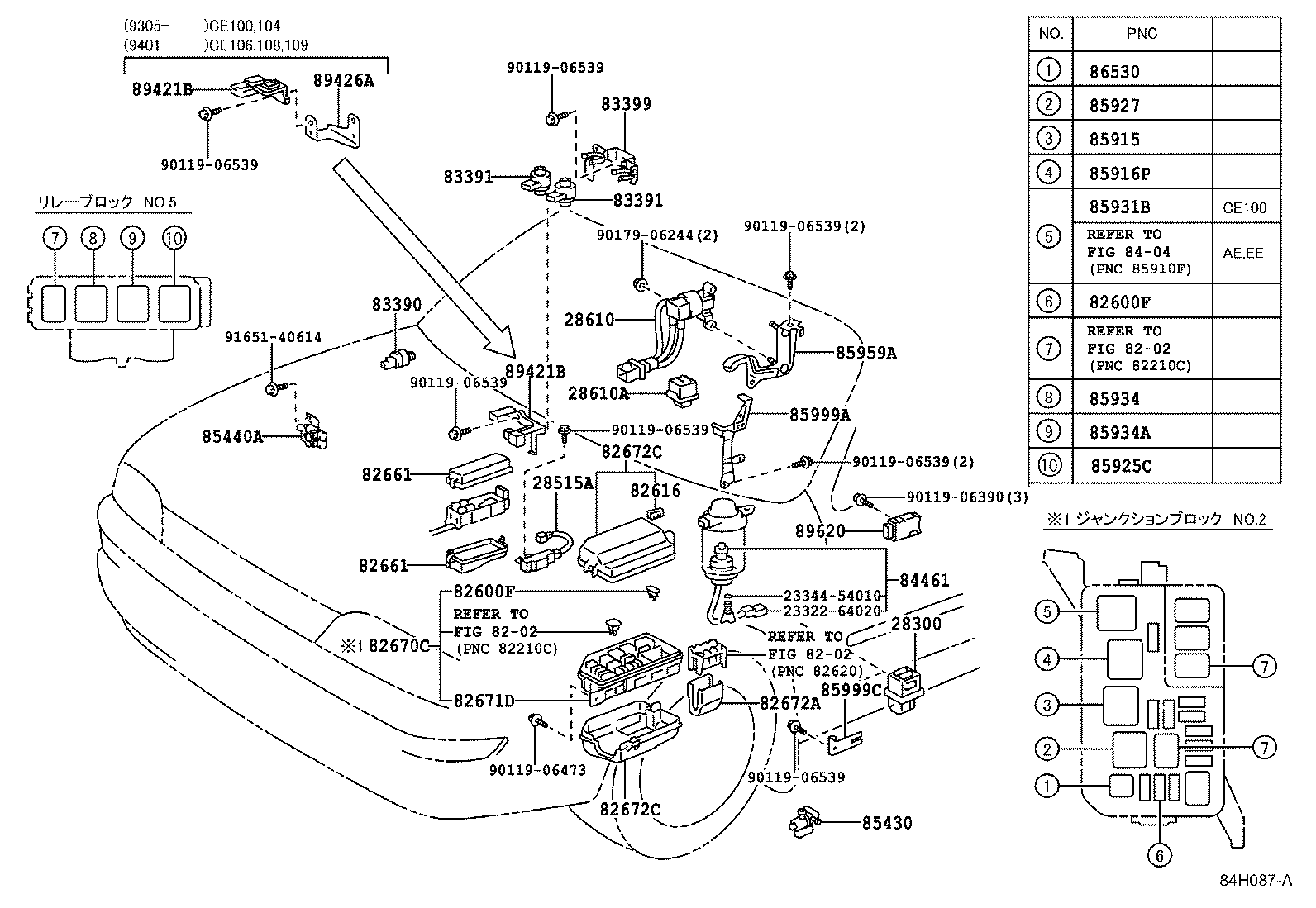

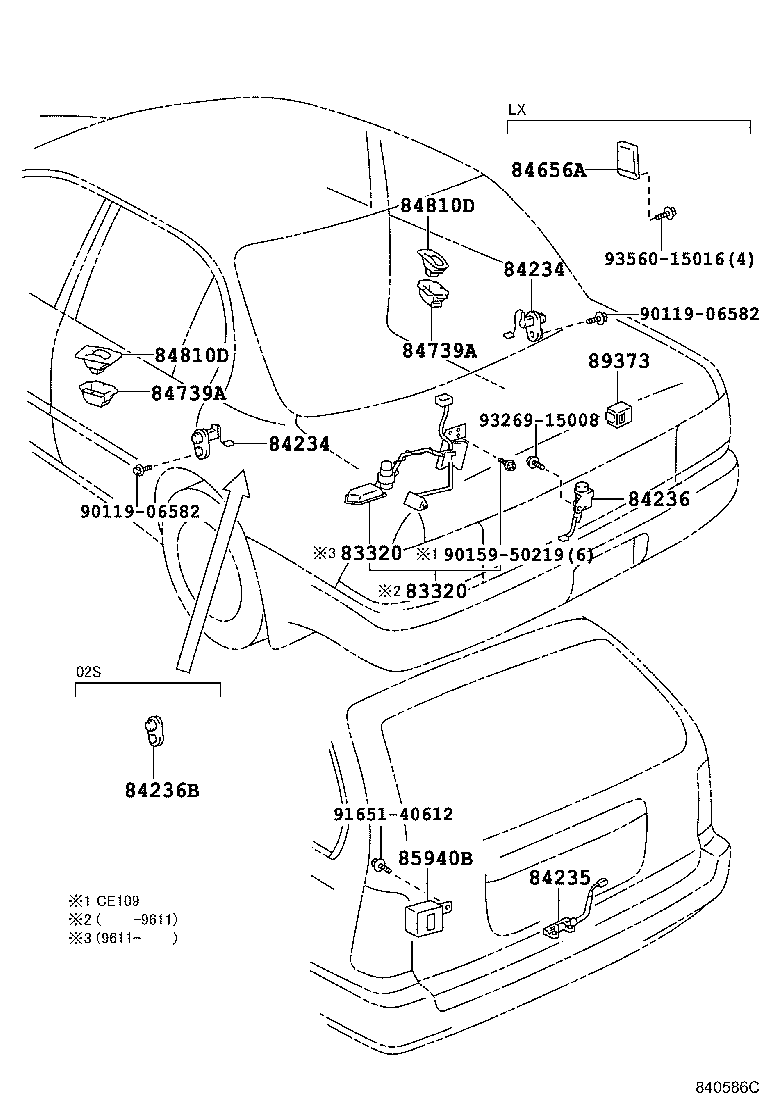

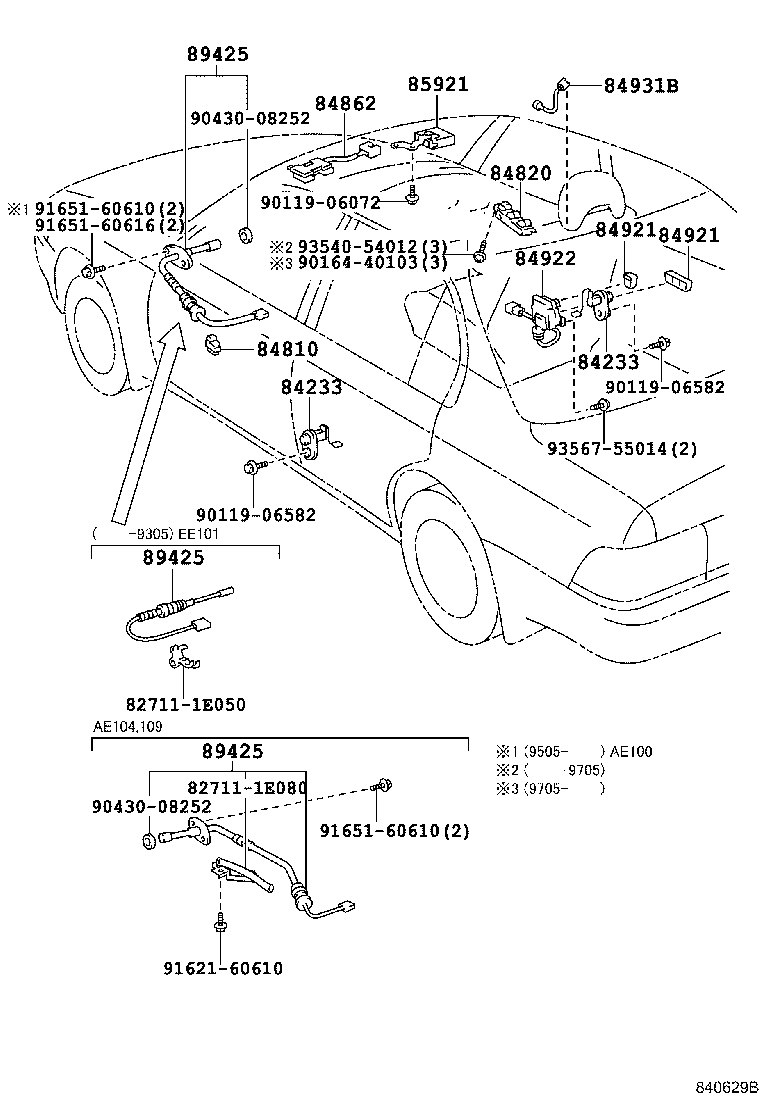

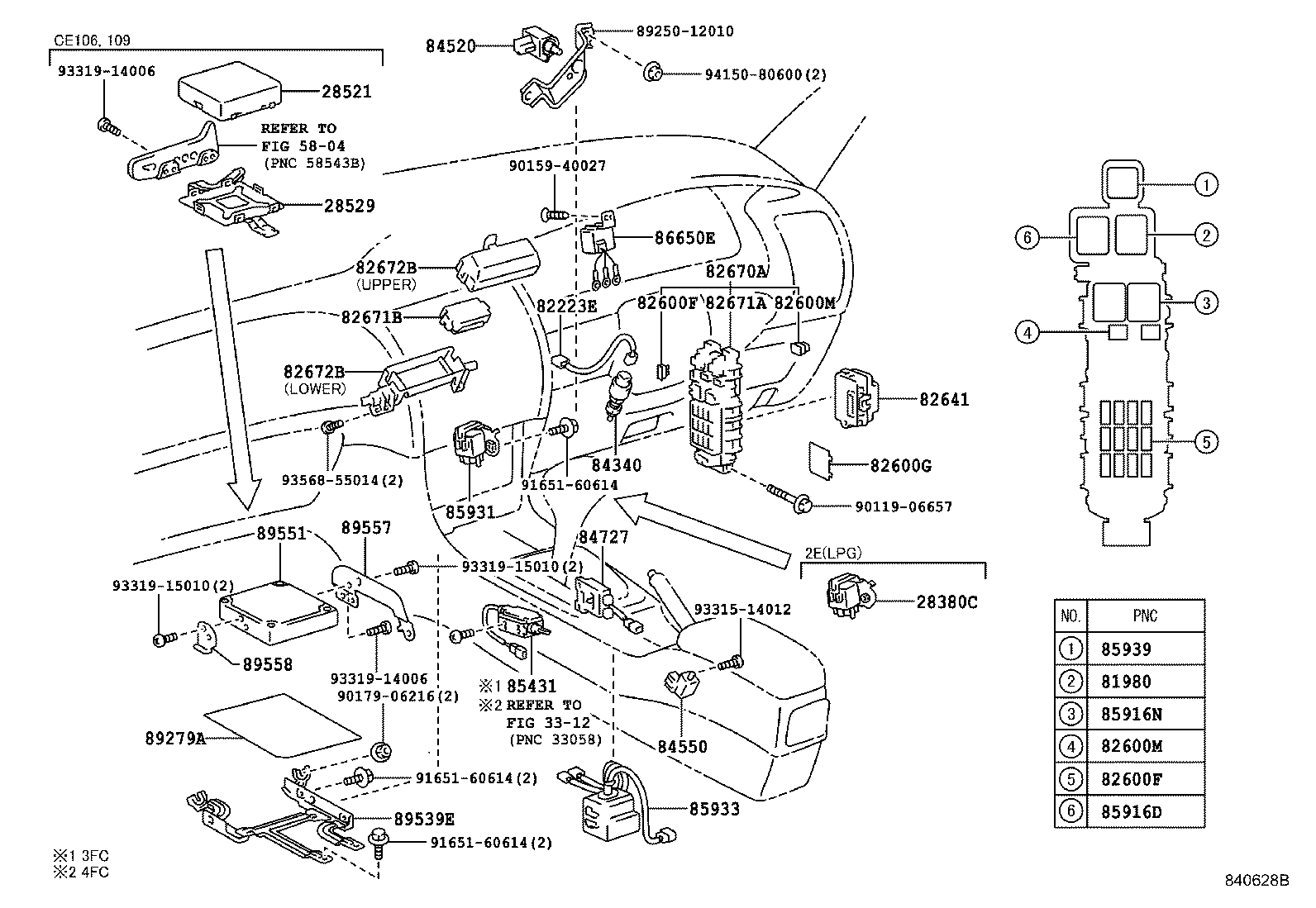

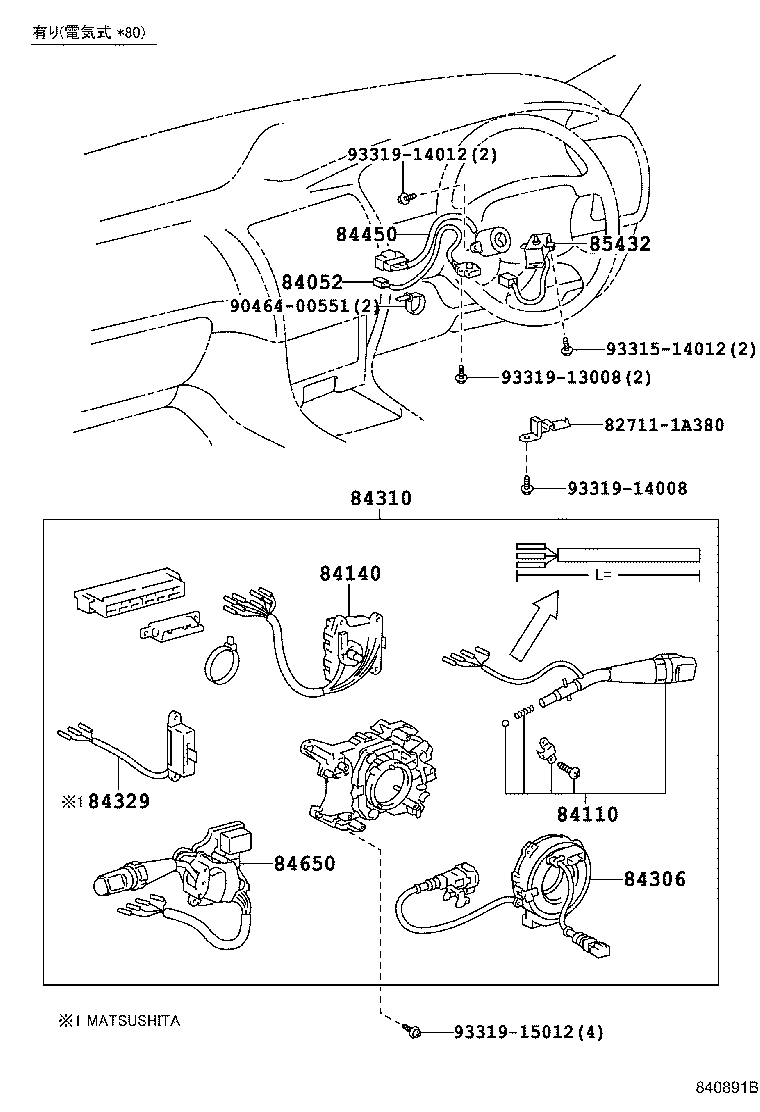

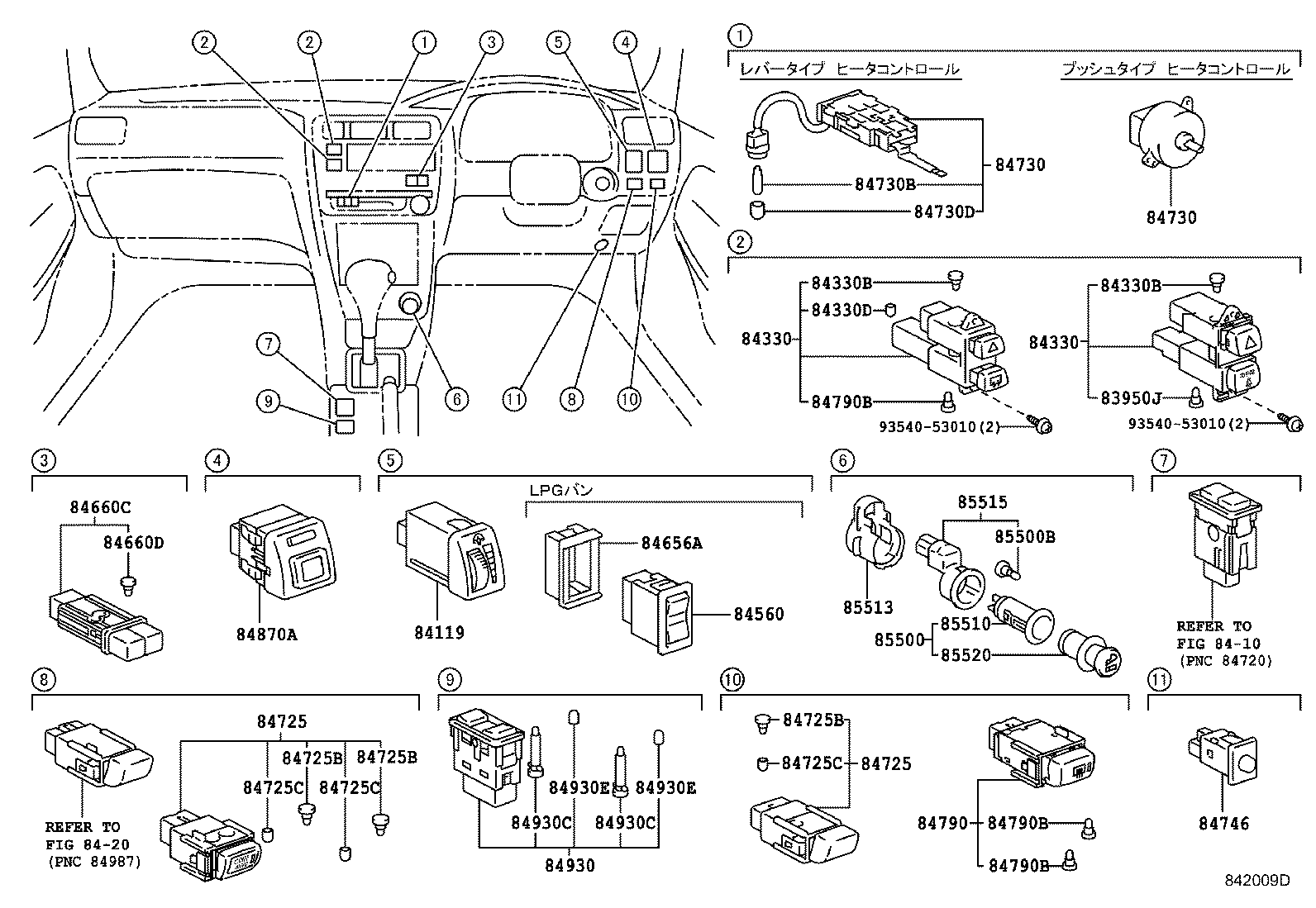

Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28380C | Relay Assy, Fuel Pump |
| 28515A | Resistor, Solenoid |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 81980 | Flasher Assy, Turn Signal |
| 82223E | Wire, Clutch Start Switch |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 82670B | Block Assy, Junction, NO.2 |
| 82670C | Block Assy, Junction, NO.3 |
| 82671A | Block, Junction |
| 82671B | Block, Junction |
| 82671C | Block, Junction |
| 82671D | Block, Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83531A | Switch, Oil Pressure |
| 83650 | Fusee |
| 83950J | Bulb, Passenger Seat Belt Warning Lamp |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84236B | Cover, Courtesy Lamp Switch |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84330D | Cap, Hazard Warning Switch Bulb |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84560 | Switch Assy, Fuel Valve Control |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84725 | Switch, Center Differential Lock |
| 84725B | Blub, Differential Lock Switch |
| 84725C | Cap, Differential Lock Switch Bulb |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84739A | Retainer, Switch |
| 84746 | Switch, Tire Pressure Warning |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84862 | Switch, Slide Roof Motor |
| 84870A | Switch Assy, Outer Mirror |
| 84921 | Knob, Power Seat Switch |
| 84922 | Switch, Front Power Seat |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84930E | Cap(FOR DOOR CONTROL SWITCH BULB) |
| 84931B | Switch, Door Control |
| 85420E | Solenoid Assy, Transmission |
| 85420F | Ring, O(FOR TRANSMISSION SOLENOID) |
| 85430 | Valve, Outer Vent Control |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85925C | Relay, Radiator Fan, NO.2 |
| 85927 | Relay, Cooling Fan |
| 85931 | Relay, Emission Control |
| 85931B | Relay, Fuel Heater |
| 85933 | Computer, Shift Lock Control |
| 85934 | Relay, Magnet-clutch |
| 85934A | Relay Condenser Fan |
| 85939 | Relay, Power Window |
| 85940B | Relay Assy, Rear Wiper |
| 85959A | Holder, Relay |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 86530 | Relay Assy, Horn |
| 86650E | Buzzer Assy |
| 87989 | Relay, Mirror Control |
| 88620C | Thermo Switch Assy |
| 89279A | Cover, Computer |
| 89373 | Sensor, Lamp Failure Indicator |
| 89390 | Relay, Brake Warning |
| 89421B | Sensor, Vacuum |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89426A | Bracket, Vacuum Sensor |
| 89427 | Switch, Temperature Detect |
| 89427E | Switch, Temperature (FOR HEATER IDLE UP) |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89428E | Switch, Temperature, NO.2 (FOR TRANSMISSION) |
| 89429 | Sensor, Oil Temperature |
| 89453 | Switch, Throttle Position (FOR T.C.S.) |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89533 | Computer, 4 Wheel Drive Control |
| 89539E | Bracket, Computer |
| 89551 | Computer, Emission Control |
| 89557 | Bracket, Emission Control Computer, NO.1 |
| 89558 | Bracket, Emission Control Computer, NO.2 |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89650 | Computer Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
