Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

11 part groups · 3 illustrations

Illustrations

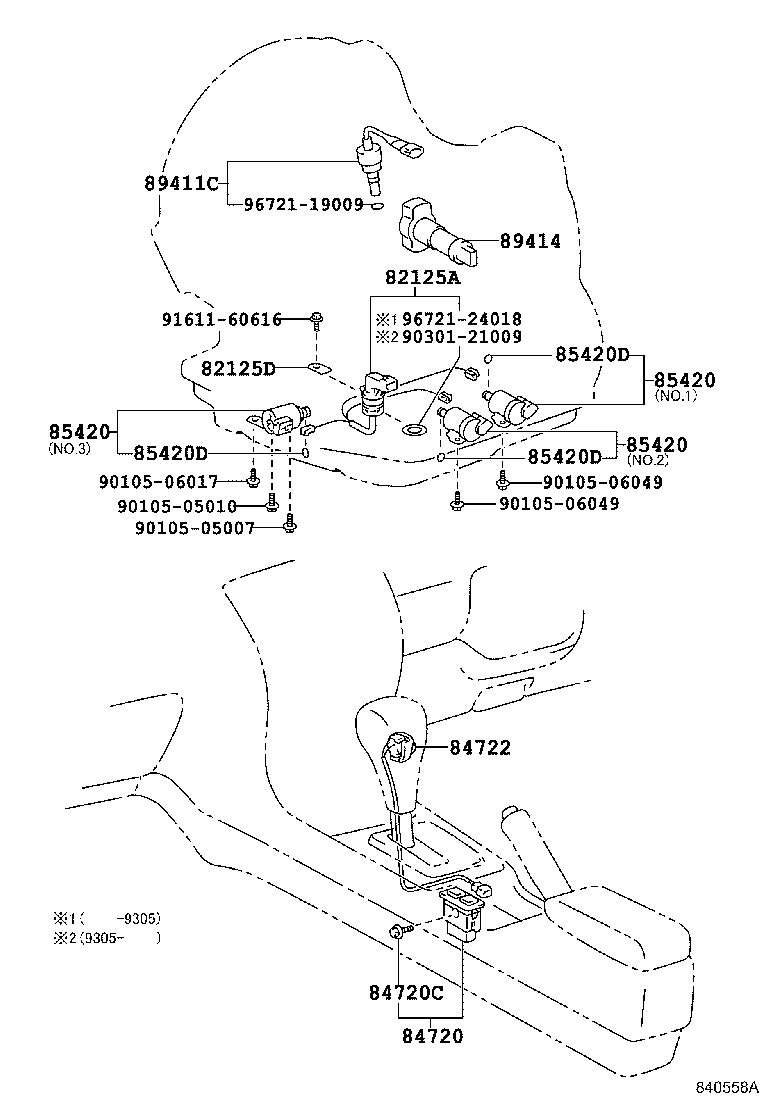

Figure 840556A 840556A 1991-06 → — Figure 840558A 840558A 1991-06 → 1995-05 Figure 840558A 840558A 1996-05 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125D Plate, Transmission Wire Lock
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85425A Ring, O (FOR OVERDRIVE SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
