Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 6 illustrations

Illustrations

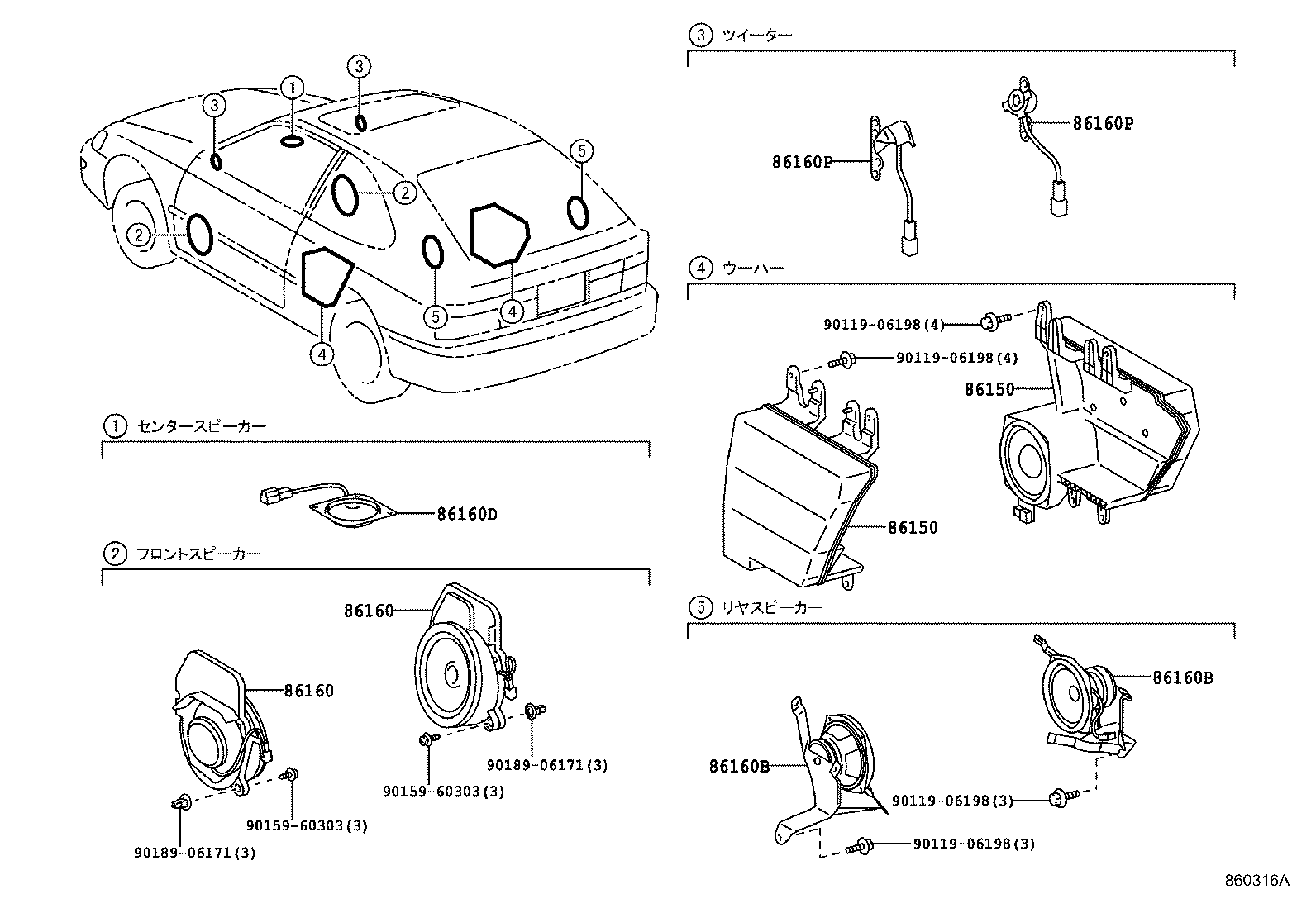

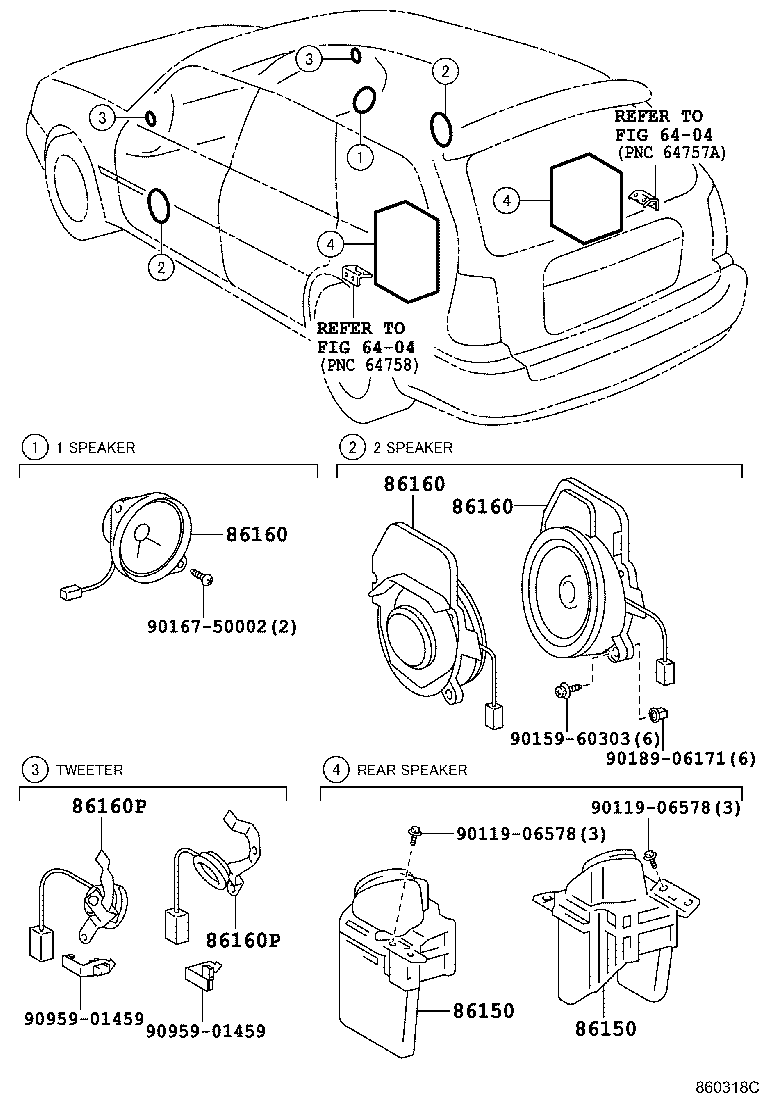

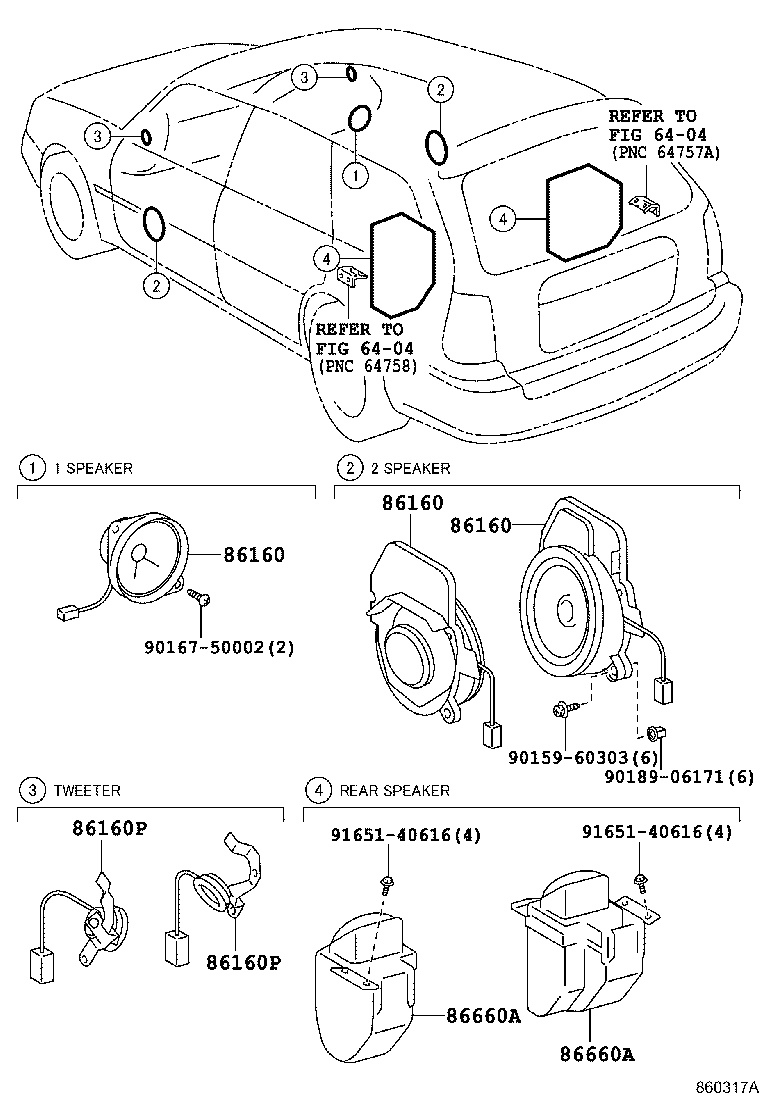

Figure 860315A 860315A 1991-06 → — Figure 860316A 860316A 1992-05 → — Figure 860317A 860317A 1991-09 → 1997-04 Figure 860317A 860317A 1991-09 → 1997-05 Figure 860318C 860318C 1997-04 → — Figure 860318C 860318C 1997-05 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160D Speaker Assy, Stereo Component, Front
86160P Speaker Assy, Front NO.2
86660A Speaker Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
