Toyota Corolla
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan
Discontinued model
Data version 2003-01
Heating & Air Conditioning - Heater Unit & Blower
16 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

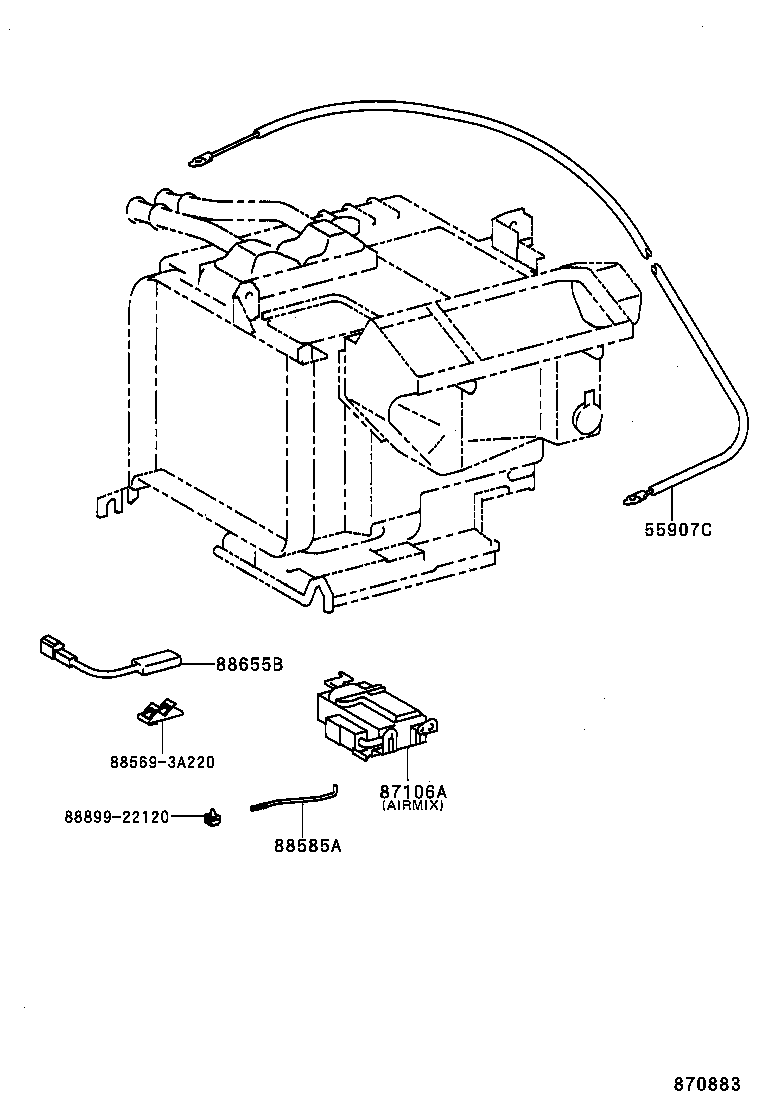

| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87126A | Clamp, Heater Control |
| 87126B | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |

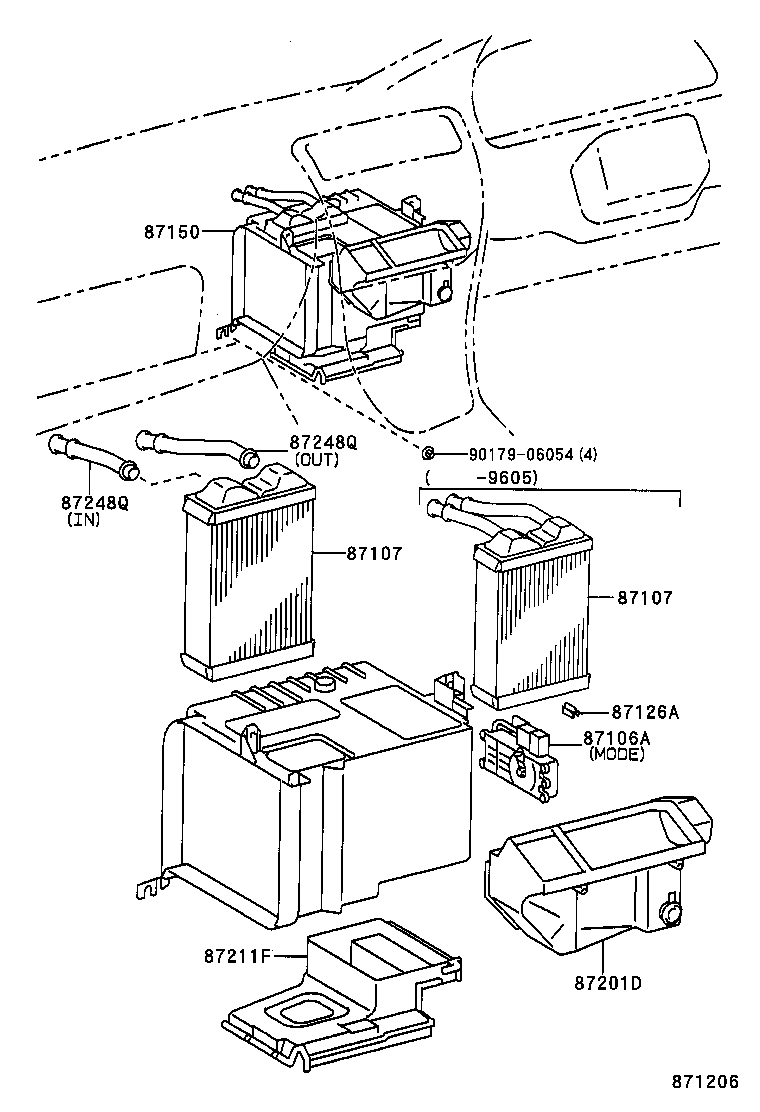

| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
| 87211F | Duct, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
| 88585A | Shaft, Heater Air Damper |
| 88605P | Harness Sub-assy, Air Conditioner Wiring |
| 88605U | Harness Sub-assy, Wiring Air Conditioner |
| 88655B | Switch, Water Temperature |
| 88897R | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
